I hope someone can help.

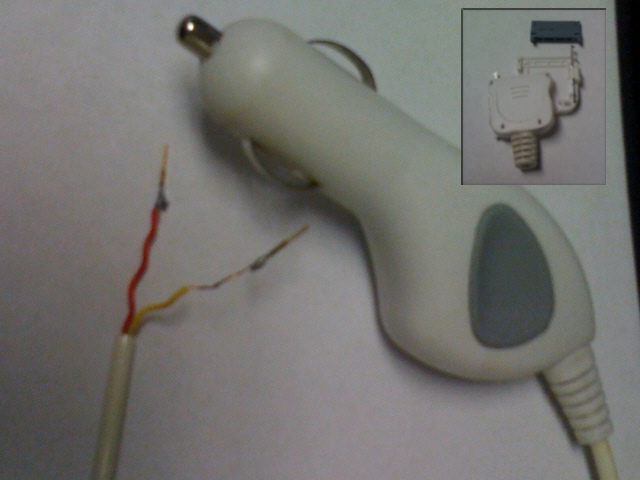

I have the standard white iphone car charger. Last night my son pulled on the cable and it got totally disconnected from the connector. You can see the 2 electric cables, orange and yellow.

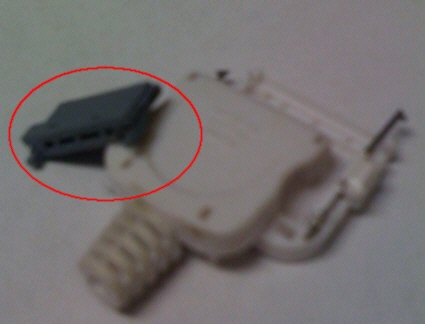

I opened up the connector and tried to figure out how to reconnect it (which the "reconnect" looks simple), but I don't know which cable goes to what hole.
Can someone help or guide me to find the pin layout.
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
To check the voltage, you'd use V (or Volt, and for as it isn't Alternating Current, you'd always use DC). to check the resistance of wires, or where it is going, you'd use Ohm, or often there is a special setting for that, it may look like a musical note, it would make a sound if the wire goes through. For those measurements make sure you aren't connected to a power source.
here it is.
3
2
1
Just thought of the easiest way to do this without having to look at better pics. Measure the Voltage output of your normal mains charger with your multi-meter, then connect your leads on the broken car charger so you measure the same values at the same places (make sure you have the the + and the - values at the correct place). That should be all.
You use the multimeter, and measure the voltage (set it to DC) which comes out at the mains adapter, the part which connects to the iPhone. The Multimeter should display a + or a - along with the Voltage. It should also have leads colored differently (usually red and black). Make a note which colored lead was connected to which connection during the measurement.
Now measure the wires of your car adapter, again not what colored leads of the meter are attached to what wires of the adapter. If you get the same + or - value as during the other measurement, then you can attach the wires to the same connection as what you had when you measured the mains adapter. If the + / - value is different, then you need to invert the two leads.
I greatly appreciate your patience!
For what I understand, what you are recommending would tell me the positions or x/- pf the charger wire. If that's correct, I don't know how it would help me re-connect those wires to the grey box (see pic).
I need to know which cable (red and yellow) of the iPhone charger goes to what hole in the grey box.

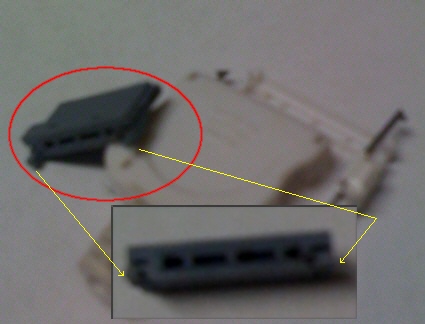

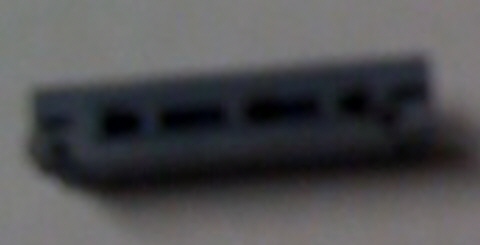

I have place a pic showing the grey box as it appears. There is 4 slots or holes. In what hole should insert the red wire and what hole the yellow wire? The pic provided tries to set the image oriantaion and references.
4

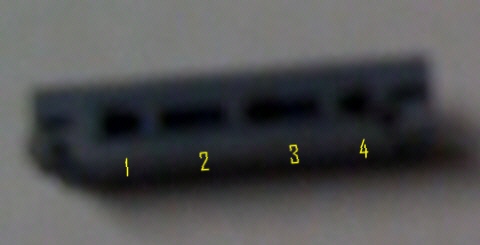

here is a pic indicating the holes as it appears
