Question

Access Control List (ACL) Problems when using the UTL_TCP Package for FTP in Oracle 11g

Asked by: darren_k156

Hi all,

I'm using UTL_TCP to provide FTP functionality through Oracle and have set up ACL privileges for my Oracle user to connect to another server.

I create a connection specifying port 21 and pass over a username, password, then change directory, and next I issue the PASV command and get back parameters for my passive data connection. All at this point is okay (so indicating no problems with the ACL setup). At this point I try to create a connection with these parameters and get ORA-24247: network access denied by access control list

My port range on the ACL is 1 through 32767 so port number is not the issue. Also when I check the DBA_NETWORK_ACLS view I can see the entry with the target server adddress and port configuration as expected

Does anyone have any ideas on why this ACL error is occurring??

Many thanks

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-03-12 at 06:39:08ID23234982
Tags

Oracle

,

Oracle 11g

,

11.1.0.6

Topics

Oracle 11.x Database

,

Oracle Database

,

PL / SQL

Participating Experts
2
Points
500
Comments
14

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Oracle DBA
    How to proceed with Oracle DBA ..
  2. UTL_SMTP
    I need a real life example on how to use UTL_SMTP package to send e-mail from oracle procedure
  3. ACL's with Folder Redirection
    Ok, I'm more a of Linux/openVMS/Oracle DBA/Software guy, but I have a question with ACL's/Security and Folder redirection on Windows Server 2003 ... Environment --------------- Folder redirection is working perfectly in my test environment ... 1 client Windows XP box is redi...
  4. ACLs Oracle 9i Rel 2
    I'm looking for some ideas/suggestions on how to do ACLs in Oracle. I would imagine it would be primarily done with ROLEs but perhaps there's more to it.
  5. ACLs & VRFs
    I suspect I know the answer, but have no lab and am looking for confirmation. Background: We have 5 VRFs on a 3750 that share a single 100Mbps link to a DR site via 802.1q. Bandwidth contention is making CoS/QoS necessary, and we're trying to determine how we can prioritiz...
  6. ACL based security (Java, JPA, Oracle)
    Hello All Experts! I want to discuss an interesting topic, which is not so good covered in the internet. The requirement is to implement data-level security (horizontal) and provide powerful mechanism to quickly select entires from database with pagination and secure filteri...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: sdstuberPosted on 2008-03-12 at 07:17:20ID: 21106170

In 11g ALL access is denied by default.

Use DBMS_NETWORK_ACL_ADMIN to grant your privilges



by: sdstuberPosted on 2008-03-12 at 07:25:41ID: 21106248

sorry, that was an overly terse response.

What are your privileges on each of the ports?

do you have the same privileges on the secondary transfer port as you do on the main port 21?



by: schwertnerPosted on 2008-03-12 at 07:34:00ID: 21106345

I am sure you have read this. But pay attention that it is address to:
- particular IP address or host name
- particular Oracle user

First, create an ACL:

begin
        dbms_network_acl_admin.create_acl (
                acl             => 'utlpkg.xml',
                description     => 'Normal Access',
                principal       => 'CONNECT',
                is_grant        => TRUE,
                privilege       => 'connect',
                start_date      => null,
                end_date        => null
        );
end;

Here the parameter principal => 'CONNECT' indicates that the ACL applies to the CONNECT role. You can define a user or a role here. The ACL is created as a file called utlpkg.xml.
After the creation, you can check to make sure the ACL was added:

SELECT any_path
FROM resource_view
WHERE any_path like '/sys/acls/%.xml';

The output is:
ANY_PATH
----------------------------------------------------------------------------
/sys/acls/ANONYMOUS/ANONYMOUS3553d2be53ca40e040a8c0680777c_acl.xml
/sys/acls/OLAP_XS_ADMIN/OLAP_XS_ADMIN3551b25f93feb8dde040a8c068075b7_acl.xml
/sys/acls/OLAP_XS_ADMIN/OLAP_XS_ADMIN3551b25f944b8dde040a8c068075b7_acl.xml
/sys/acls/OLAP_XS_ADMIN/OLAP_XS_ADMIN3551b25f948b8dde040a8c068075b7_acl.xml
/sys/acls/OLAP_XS_ADMIN/OLAP_XS_ADMIN3551b25f94cb8dde040a8c068075b7_acl.xml
/sys/acls/all_all_acl.xml
/sys/acls/all_owner_acl.xml
/sys/acls/bootstrap_acl.xml
/sys/acls/ro_all_acl.xml
/sys/acls/ro_anonymous_acl.xml
/sys/acls/utlpkg.xml

Note the last line in the output, which shows the ACL you just created. Next, add a privilege to this ACL. In this example, you are trying to limit this ACL to the user SCOTT. You can also define start and end dates.
begin
  dbms_network_acl_admin.add_privilege (
  acl             => 'utlpkg.xml',
  principal       => 'SCOTT',
  is_grant       => TRUE,
  privilege       => 'connect',
  start_date       => null,
  end_date       => null);
end;

Assign hosts and other details that will be subject to this ACL:
begin
  dbms_network_acl_admin.assign_acl (
  acl => 'utlpkg.xml',
  host => 'www.proligence.com',
  lower_port => 22,
  upper_port => 55);
end;

In this example, you are specifying that "the user SCOTT can call only the host www.proligence.com and only for the ports 22 through 55, and not outside it." Now, let's try it:
SQL> grant execute on utl_http to scott
  2  /

Grant succeeded.

SQL> conn scott/tiger
Connected.
SQL> select utl_http.request('http://www.proligence.com') from dual;
select utl_http.request('http://www.proligence.com') from dual
       *
ERROR at line 1:
ORA-29273: HTTP request failed
ORA-06512: at "SYS.UTL_HTTP", line 1577
ORA-24247: network access denied by access control list (ACL)
ORA-06512: at line 1

Note the error "ORA-24247: network access denied by access control list (ACL)." The user called the http server on port 80, which is outside the allowed range 22-55. Therefore the action was prevented.
Now, add another rule to allow the communication:

  1  begin
  2    dbms_network_acl_admin.assign_acl (
  3    acl => 'utlpkg.xml',
  4    host => 'www.proligence.com',
  5    lower_port => 1,
  6    upper_port => 10000);
  7* end;
  8  /

PL/SQL procedure successfully completed.

SQL> conn scott/tiger
Connected.
SQL> select utl_http.request('http://www.proligence.com') from dual;

UTL_HTTP.REQUEST('HTTP://WWW.PROLIGENCE.COM')
--------------------------------------------------------------------------------
</iframe><!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">

<HTML><HEAD><TITLE>Proligence Home</TITLE>
<META http-equiv=Content-Language content=en-us>
...




by: darren_k156Posted on 2008-03-13 at 02:17:25ID: 21114374

Schwertner -

That is the exact procedure already done to get access to our FTP server

The port range assigned is lower port = 1 and upper port = 32767. All works fine when the initial connection to the server is created, I then send user and password commands and try and create a passive connection for the data transfer - this is when access is denied with the ORA-24247 error

When checking the port number assigned for the passive connection it has always been between 1000 and 2000 so should not be stopped by the ACL rule...



by: schwertnerPosted on 2008-03-13 at 02:57:55ID: 21114532

1. From the other side of your connection you have to expect FTP server, listening on that port
2. In most Linux distribution FTP is not installed
3. Even installed FTP server could no to be up - you have to check if it runs
4. Some important parameters in the FTP configuration file should be properly set for our great surprise.
You have carefully to inspect the file etc/vsftpd.conf
5. Among other parameters pay attention to the following:
In etc/vsftpd.conf  uncomment the line local_enables=YES and read carefully all other lines and entries. If running ftp you get the message: 500 OOPS: could not bind listening IPv4 socket then comment the line Listen=YES in the etc/vsftpd.conf  file.
6. Check the file /etc/ftpusers and delete the user name oracle. So the user oracle will have the right to logon FTP.
7. Look for firewalls, antiviruses, etc. that will stop the transfer

So I will recommend prior to involve Oracle 11g in this adventure firs to check if you can use FTP from the Command
Prompt.



by: sdstuberPosted on 2008-03-13 at 06:23:46ID: 21115890

Can you post your acl privileges for all ports and servers?

Obviously something is different between the privilges you have on port 21
and the ports returned by PASV.



by: darren_k156Posted on 2008-03-13 at 14:54:10ID: 21121232

I have 2 entries in DBA_NETWORK_ACLS. They both point to the same machine but one uses the IP address and the other uses the domain address...

First entry reads:
HOST: ftp.myhost.co.uk
LOWER_PORT: 21
UPPER_PORT: 32767

Second entry reads:
HOST: 10.0.0.1
LOWER_PORT: 1
UPPER_PORT: 32767

And I've tried each of these on their own and both together.

The FTP server I'm connecting to is FileZilla running on Windows (Server 2003 I believe)



by: sdstuberPosted on 2008-03-13 at 15:24:47ID: 21121415

what do you get from

select * from dba_network_acl_privileges



by: darren_k156Posted on 2008-03-14 at 03:49:32ID: 21124261

Here I took a screenshot of the result...

I know there's a where clause in the screenshot but I removed it and re-run the query and the result was the same (and it was run using the SYSTEM account)



by: darren_k156Posted on 2008-03-14 at 04:48:00ID: 21124532

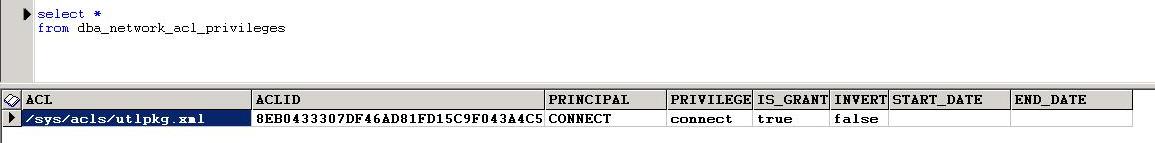

Ok I'll try posting the response again but this time using the query you asked for ;-)



by: darren_k156Posted on 2008-03-14 at 04:50:04ID: 21124541

And here it is...



by: sdstuberPosted on 2008-03-14 at 06:31:51ID: 21125282

grant resolve as well



by: darren_k156Posted on 2008-03-14 at 08:08:23ID: 21126221

Thanks!



by: darren_k156Posted on 2008-03-14 at 08:09:34ID: 31439000

Thanks very much for your help, that was spot on!

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
