Question

What type of Hard Drive connection is this

Asked by: skbryan

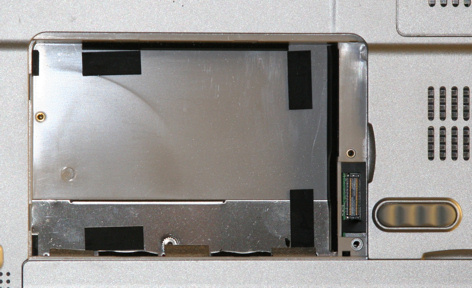

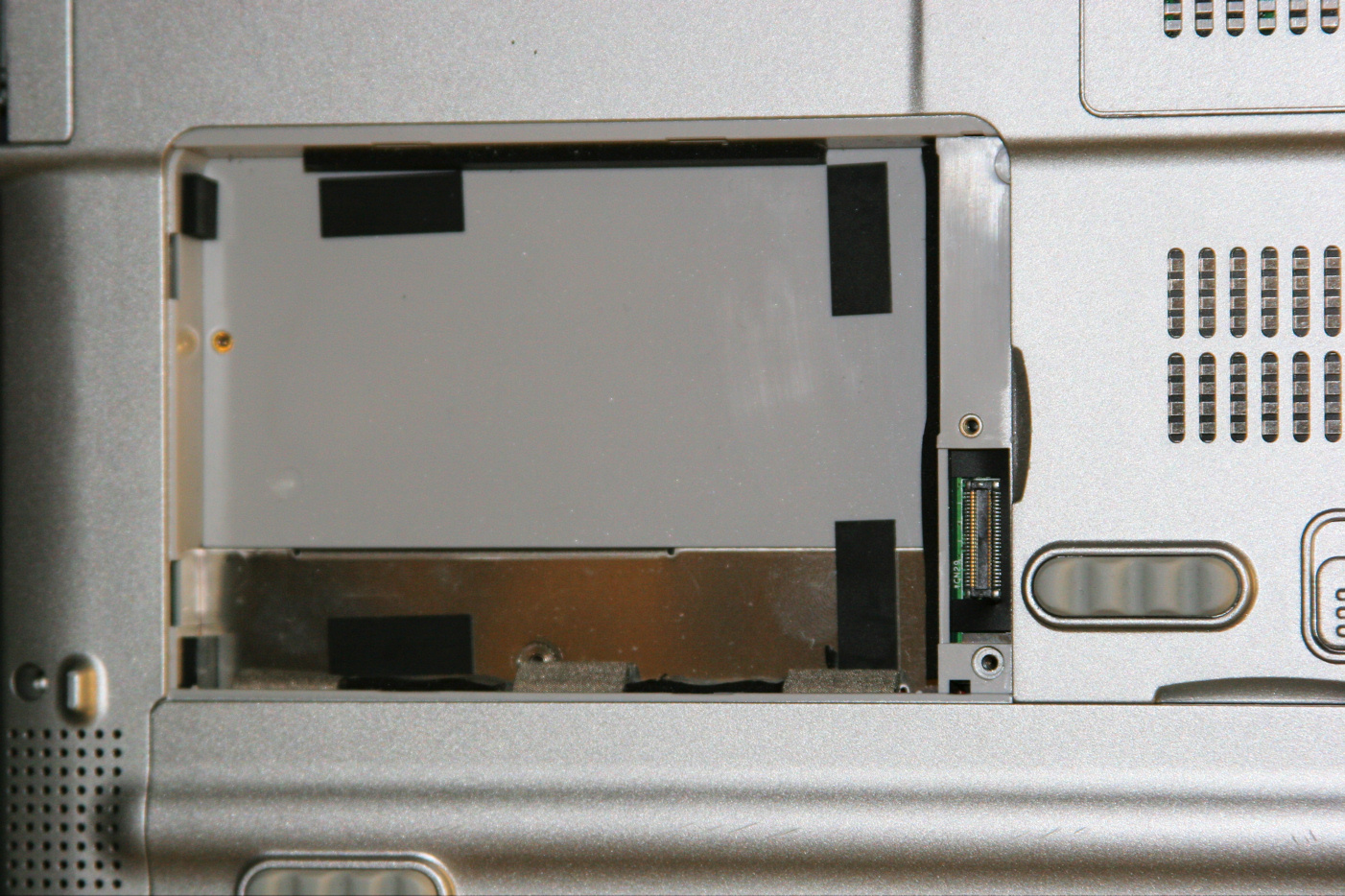

Have an MPC Transport2300 laptop, not sure what kind of hard drive connection it is using, looks like it will be an IDE to whatever this input is.  Any ideas on what type of connection it is? Thank You.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-01-13 at 12:42:35ID24049012
Topic

Hardware Components

Participating Experts
5
Points
0
Comments
24

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Hard Drive Lock/Password
    I have a few Laptop Hard drives that have the password lock enabled. I have researched it and these drives are 3 gig or less, so not worth paying for service to have the password removed. If anyone knows of a way to do this for free, or extremely cheap. Like really cheap. ...
  2. Laptop Hard Drive
    I purchased a Seagate 40gb laptop hard drive hoping to upgrade a old Toshiba Tecra 8000 that has a temperamental 8gb hard drive. Unfortunately, it seems that there are different pin connectors on this drive. Could someone tell me if it is possible to purchase an adaptor of...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: Noam_KuilboerPosted on 2009-01-13 at 12:44:50ID: 23367086

There should be a converter cable or bracket that goes from the HD to the port on the laptop.

Is it still attacjed to your old HD ?



by: skbryanPosted on 2009-01-13 at 12:46:40ID: 23367103

There is no converter cable or bracket, i would like to know which type of converter or bracket i would need. Thanks



by: travisgishPosted on 2009-01-13 at 12:58:55ID: 23367215

That model takes IDE drives, but you will need the drive enclosure for it. You may be able to find one on e-bay.



by: Noam_KuilboerPosted on 2009-01-13 at 12:59:48ID: 23367226

There Website is half down. I would give their Tech Support a call at 877-485-1464

http://support.mpccorp.com/contact/support/csb/index.html





by: Mike_CarrollPosted on 2009-01-13 at 12:59:51ID: 23367229

I might be wrong on this but it really looks to me like it is some sort of proprietary port replicator that is specific to MPC - I've never seen one like it before and my bet is that you'll need to talk to MPC on it.



by: skbryanPosted on 2009-01-13 at 13:06:43ID: 23367282

Unfortunately, MPC just recently declared bankruptcy, so tech support isn't possible.  It looks like an ordinary drive bay, maybe a little higher, and of course, the input near the top.  I dunno.  Was trying to find more info about it, but haven't come up with much.  9.5mmH 2.5" HDD, the HD in the spec sheet was listed as Hitachi 2.5" 60GB 7200RPM Hard Drive.  Thanks.



by: rbarnhardtPosted on 2009-01-13 at 13:07:41ID: 23367292

I believe it is a PATA. It is a new small connector commonly found on newer, small laptops.



by: skbryanPosted on 2009-01-13 at 13:11:27ID: 23367317

Hmmmm, that could be it, I recall seeing "pata" somewhere in my search for a solution.  Now, to find a replacement hard drive and cable.



by: rbarnhardtPosted on 2009-01-13 at 13:46:48ID: 23367631

This looks like it is a Dell from looking at the pictures you uploaded. As new as PATA is, the drive is probably under warranty isn't it?



by: Noam_KuilboerPosted on 2009-01-13 at 13:49:26ID: 23367674

Even though they filled for Chap. 11 they should still have tech support.

I would give them a call and ask. I dont know if I would buy from them though



by: rbarnhardtPosted on 2009-01-13 at 16:20:15ID: 23368872

Do you mean Dell filed for Chapter 11?? We are a huge Dell buyer, and I just checked the web, there is no news posting anywhere of Dell filing chapter 11!! Not even on sites like MSN Money.



by: sparkmakerPosted on 2009-01-13 at 17:05:10ID: 23369146

Here is a company that deals in parts for the MPC line , they may have omething.
http://www.mundocorp.com/mpc-laptop-parts/t2300.html



by: Noam_KuilboerPosted on 2009-01-13 at 17:18:49ID: 23369221

rbarnhardt. No not Dell but MPC



by: skbryanPosted on 2009-01-14 at 06:13:52ID: 23372742

No luck with MPC suport.  They used to have the best support ever, just don't know why they went and bought Gateways business line - it all went down from there.

Anyway, I'm not having any luck.  There is just a bay with no pin connects in the bay.  Looks like the drive would sit in the bay and attach by a ribbon connect on top.  I can't even find a drive that looks like it would fit.  If more photos would help, let me know.  Thanks!



by: sparkmakerPosted on 2009-01-14 at 06:32:34ID: 23372933

This looks to be the type. Found it on this page for a Sony
http://www.fonerbooks.com/laptop_9.htm



by: skbryanPosted on 2009-01-14 at 06:35:04ID: 23372961

So are you think that the drive does have the normal pins, but then has some sort of adapter that  fits on it with a ribbon cable that connects to the connection just outside of the bay?  What might that converter be called, I wonder and where the hack do I get one, and what is its purpose?  Good detective work, just going to read the details now.  Thanks!



by: sparkmakerPosted on 2009-01-14 at 06:46:58ID: 23373074

Do you have a hard drive caddy with this model, perhaps it has the connector integrated in it?



by: sparkmakerPosted on 2009-01-14 at 06:59:14ID: 23373236

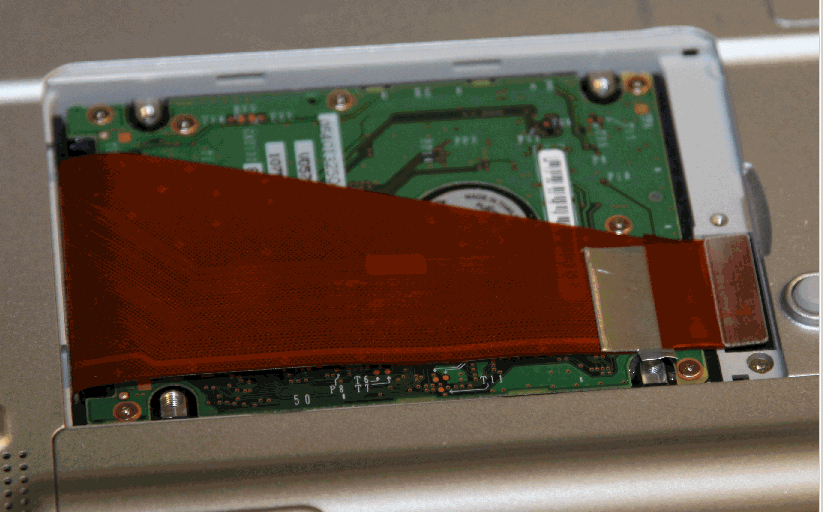

If not integrated into the caddy then this would probably go under the name of a "Hard drive flex cable"
Usually made from mylex similar to this one from a Dell
http://cgi.ebay.co.uk/Dell-Latitude-D420-Hard-Drive-Flex-Cable-0HJ178_W0QQitemZ390017620922QQcmdZViewItemQQimsxZ20081217?IMSfp=TL0812171210002r2920



by: sparkmakerPosted on 2009-01-15 at 14:00:14ID: 23388311

I came across the proper name for this cable.
FPC(Flex-rigid Printed Circuit) cable.



by: skbryanPosted on 2009-01-15 at 14:36:01ID: 23388621

I am finding more and more of the cables, and I may end of buying several just to fine one that fits.  Thanks for everyone's help.  Still working on finding the correct part.  Thank you sparkmaker for furnishing the correct name.



by: skbryanPosted on 2009-01-27 at 14:11:11ID: 23481738

Thank you for all your suggestions.  I am still plugging away on this issue.



by: skbryanPosted on 2009-02-18 at 08:42:18ID: 23672012

Still looking for the part.  I do have a part number, but can't find it anywhere.  The part number is:

Platy HDD FPC
PN 08-20Z16031BSE
Career 27/0505

Very frustrating. . .



by: skbryanPosted on 2009-03-11 at 05:28:31ID: 23856265

Still looking for the part. . .



by: skbryanPosted on 2009-04-15 at 06:59:32ID: 24148004

Well I can't find this part anywhere, so I guess I'll close the question.  Thank you for all of your suggestions.
