I have a Dell D630 for work and yesterday purchased a TFT monitor (Samsung SyncMaster 2232BW) for use in my home office which can also be used on my home PC. The problem it seems is that the D630 does not support horizontal resolutions >1440 pixels so I cannot support the native resolution of the monitor (1680 x 1050). Works fine on home PC.
I was thinking that as long as the D630 could run at 1440 x 9000 or even 1280 x 800 it would work fine however it does not: the d630 only gives the option for 1440 x 900 when it's own screen is operating i.e. lid open and even then the screen on the 2232BW is not correct (regardless of whether I enable black borders or not). 1280 x 800 is not even an option.
I am currenlty running 1400 x 1050 but details are not crisp and lack definition which is hurting my eyes.
Is there some software/driver that can overdie the settings of the graphics card (Intel Mobile 965) ?
Thank you for any advice.
FYI: The d630 has latest graphics and monitor drivers and latest bios.
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
if you use the display clone setting (same display on monitor and laptop lcd), monitor can't display any different resolution
if this is the case, you have 2 options
1. select the display to use ONLY external monitor
2. select extended display, then you can configure the monitor for a higher resolution.
hope this helps
--Gopa

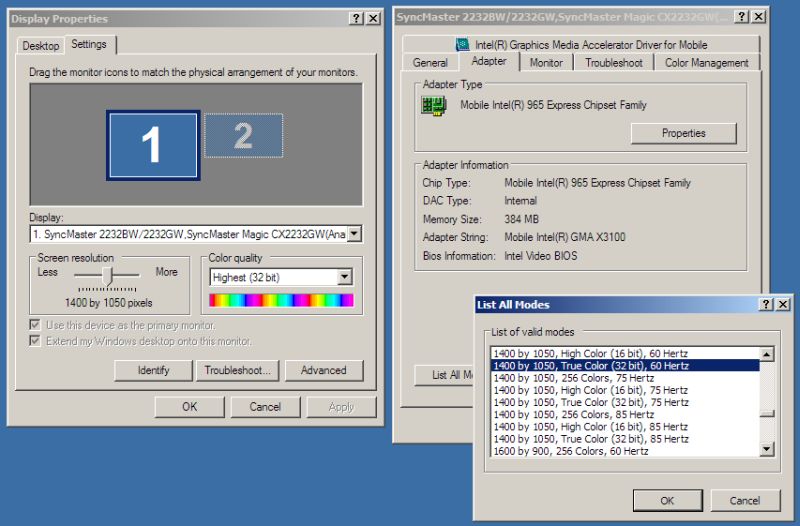

kaygroth2: See attached screen dump of display properties
msgopakumar: I am not running the system with clone setting normally as when I close the lid of the laptop the system switches to external monitor only. I was stating that I can access 1440 x 900 only in clone mode. If I switch to Single Monitor mode (for the 2232), this resolution disappears.
Screen sump of display properties as req'd
The GMA X3100 graphics adapter in the 965 Express chipset supports resolutions up to 2048 x 1536, so you should be able to use your native resolution with the proper drivers as long as the BIOS doesn't preclude this setting. Just to be sure this isn't a BIOS issue, you might want to update to the latest A09 BIOS (which was just released on 16 April): http://support.dell.com/su
The slider on your posted Display Properties image clearly extends well to the right of the 1440 x 1050 resolution you're using => what are the additional options to the right of that? If there are NO widescreen resolutions shown, then the issue may be a problem with the DDC communications with the monitor. Try re-installing the monitor driver to be sure the video adapter "knows" that you have a widescreen monitor attached.
Hi garycase and thanks for the response.
I agree with everything you have said. I have installed the latest drivers and BIOS (see original post).
I have uploaded two further screenshots;

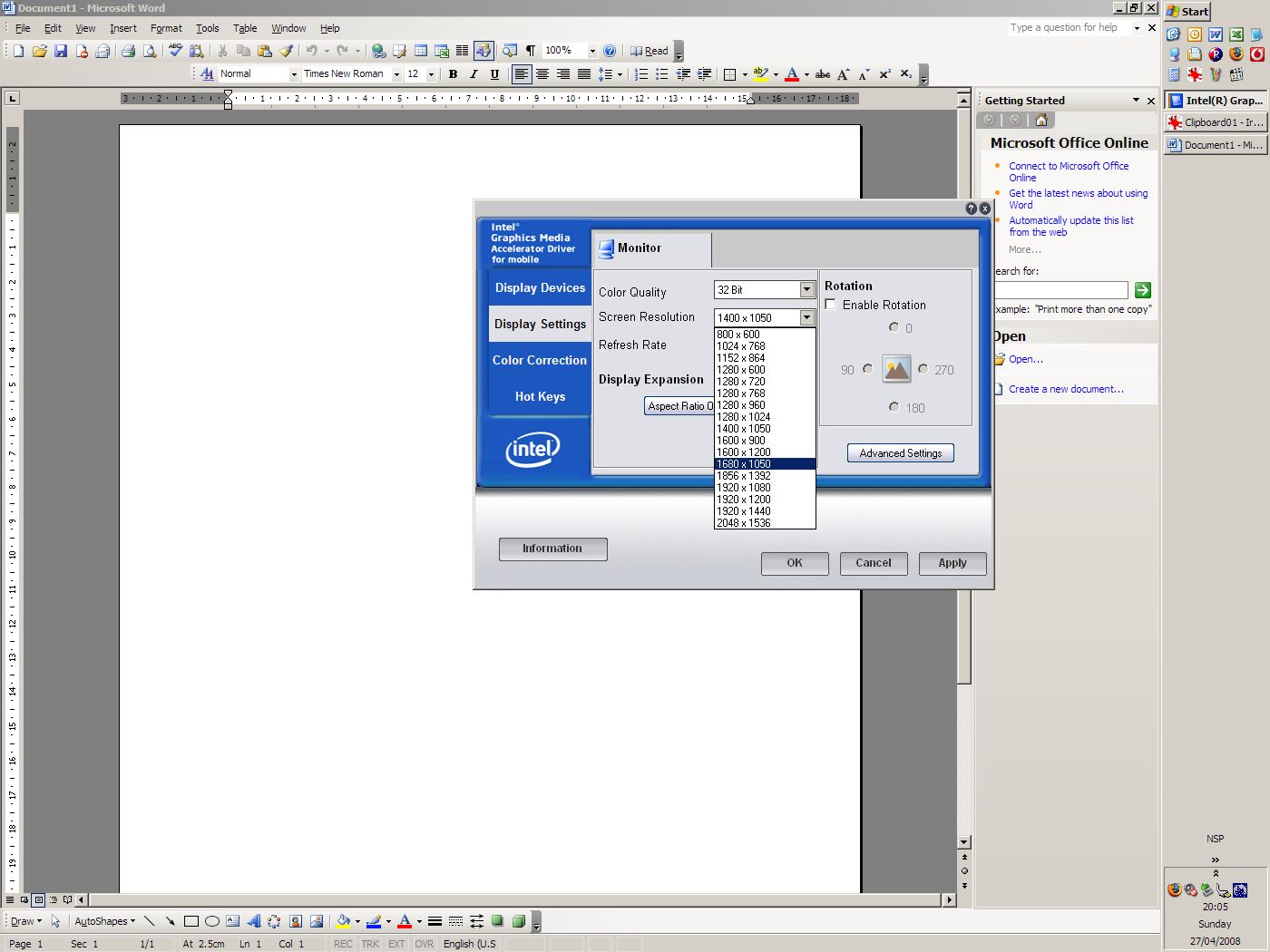

- 1. taken at 1400 x 1050 and showing the intel graphics with allowed resolution shown in drop down tab.

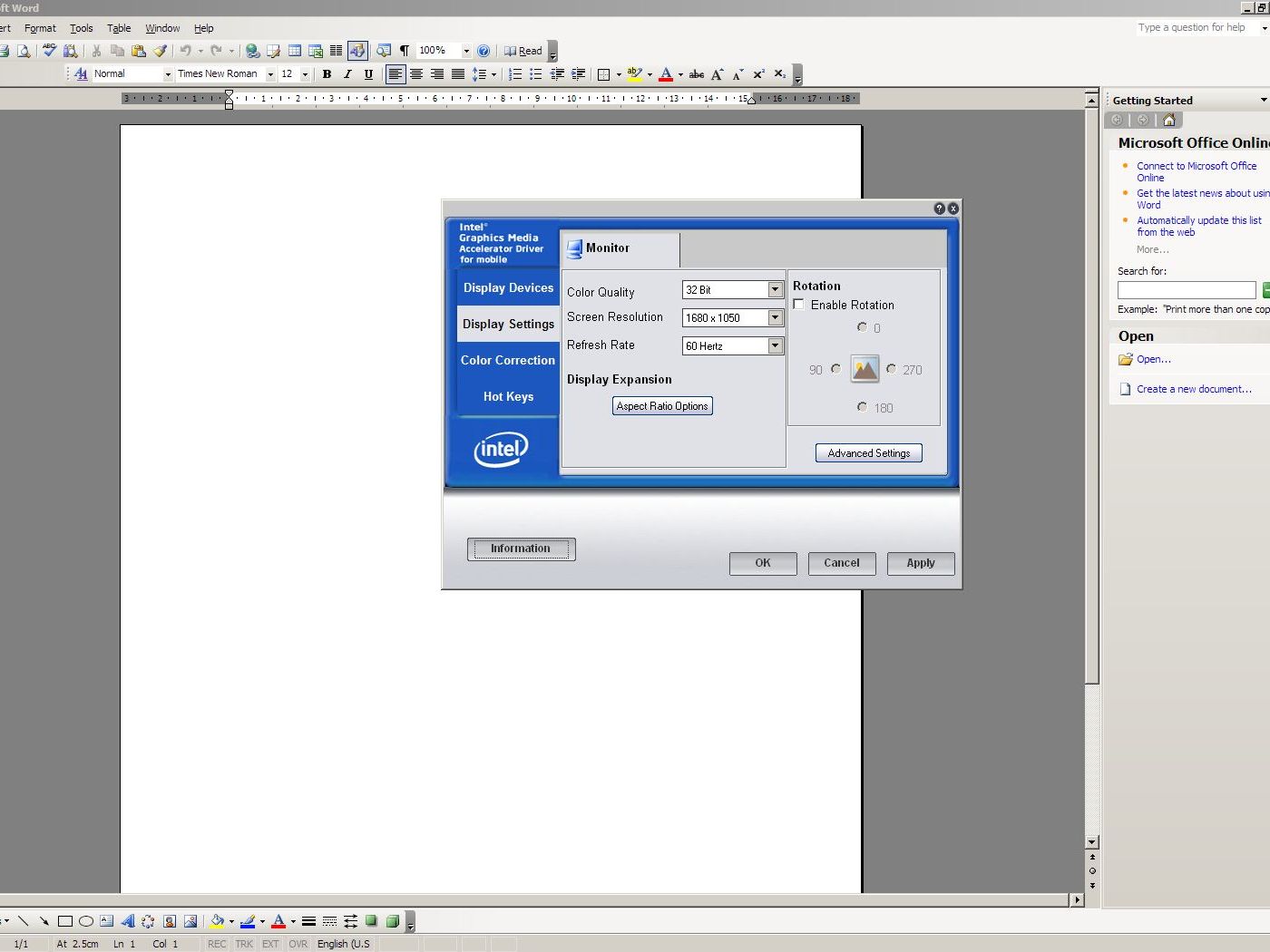

- 2. taken when resolution changed to 1680 x 1050 and you can see my problem - the desktop extends beyond the monitor limits. This picture was created by cropping the selection at 1400 x 1050 px. So although the information is displayed at 1680 x 1050 there are 280 px outside of the monitor width.
I have looked into the BIOS but see now options in particular relating to resolutions.
Business Accounts
Answer for Membership
by: kaygroth2Posted on 2008-04-26 at 08:03:14ID: 21445737
turn your laptop off
connect the monitor
turn laptop on
go to your display proporties and take a screen shot and post it here
