Question

How do I get a DMS-59 video card to work with DVI displays?

Asked by: blackwednesday

I've got a Dell system with an Nvidia card in it (I'm not exactly sure what the model for either is). The Nvidia card has a single DMS-59 connector on it, and I have twin Dell 1708FP displays, running Gentoo Linux. I also have two splitters: one that splits the DMS-59 into two VGA signals, one that splits it into two DVI signals.

If I connect the displays with the VGA cables, I get both displays up. If I connect either one or two displays with DVI cables, neither display works... same if I connect only one display (for which I still have the splitter in place, since I don't have a DMS-59 to DVI adapter, just the splitter). I'm using single-link DVI cables.

My understanding is that DMS-59 is a digital connector, and the Dell literature (for example, http://support.euro.dell.com/support/edocs/video/P69708/Qnvs280_EN/connect.htm ) seems to indicate that I can connect a DMS-59 to two DVI devices, but I've never done this before, so I'm wondering if those familiar with DMS-59 have any sage advice. I'm thinking either I'm missing something that would be obvious to someone with more DMS-59 experience, or else my video card is defective (somehow).

This isn't specifically a problem with X, I can't get a DVI signal in the console either (again, no problem with the VGA).

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-12-12 at 15:41:05ID23981296
Tags

DMS-59

,

DVI

,

Dell

,

Nvidia

Topic

LCD & Plasma

Participating Experts
1
Points
0
Comments
5

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. DFP to DVI to VGA ???
    Is it possible to have a Sony Vaio Monitor connect through a female 40 pin DFP (MDR-20) cable to a Male to Female DFP to DVI connector, and then through a DVI to VGA connector, all plugged into a GeForce FX 5200 card? Sounds simple, I don't have the hardware yet, was wonderi...
  2. nVidia FX5200 128Mb - DVI to VGA converter will no…
    Hello all. I have a FX5200 in my machine, it has two ports one DVI & the other VGA, although i am using the VGA one right now at this very instance, the reason why i want to have the DVI-to-VGA converter is that now my monitor doesnt awake itself from sleep or standby mo...
  3. Activate DVI port on Nvidia Geforce en600GT video card?
    I have Nvidia Geforce en600GT video card's, running in SLI mode on my computer. The issue I'm having is my monitor won't get any signal when I use a DVI connection between my card and monitor, but when I use the VGA it works just fine. There's nothing wrong with the DVI cabl...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: CallandorPosted on 2008-12-12 at 17:49:35ID: 23162538

If the monitors expect DVI-I and you provide DVI-D, that may keep them from displaying anything.  Check which DVI the splitter is connecting with: http://en.wikipedia.org/wiki/Digital_Visual_Interface



by: blackwednesdayPosted on 2008-12-13 at 05:14:01ID: 23163799

Doesn't DVI-I just mean that a single connector can accept either digital or analog signals? From the Wikipedia page:

"'DVI-I' stands for 'DVI-Integrated' and supports both digital and analog transfers, so it works with both digital and analog Visual Display Unit."

If I've misunderstood this statement, please correct me, I like understanding this stuff.

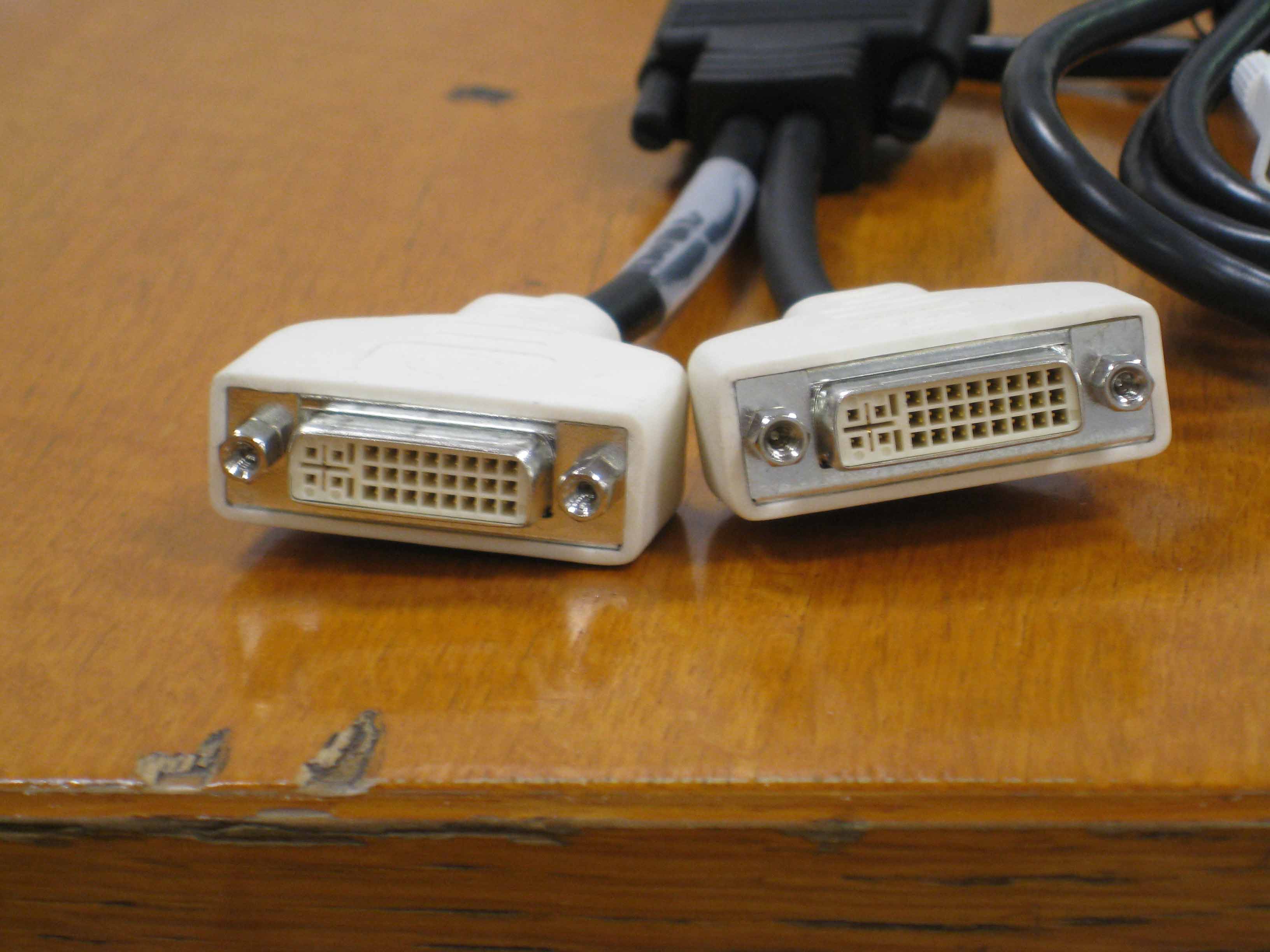

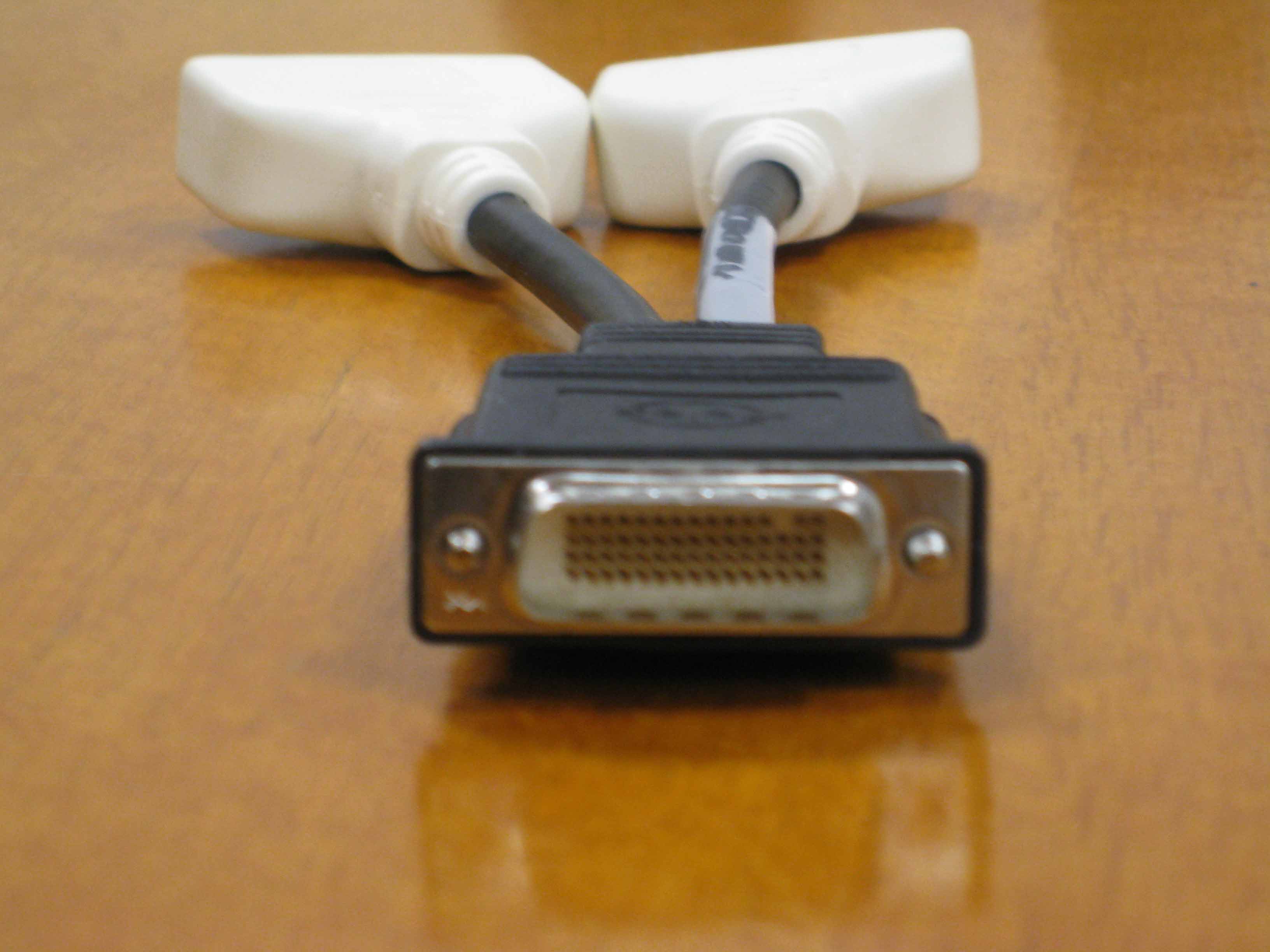

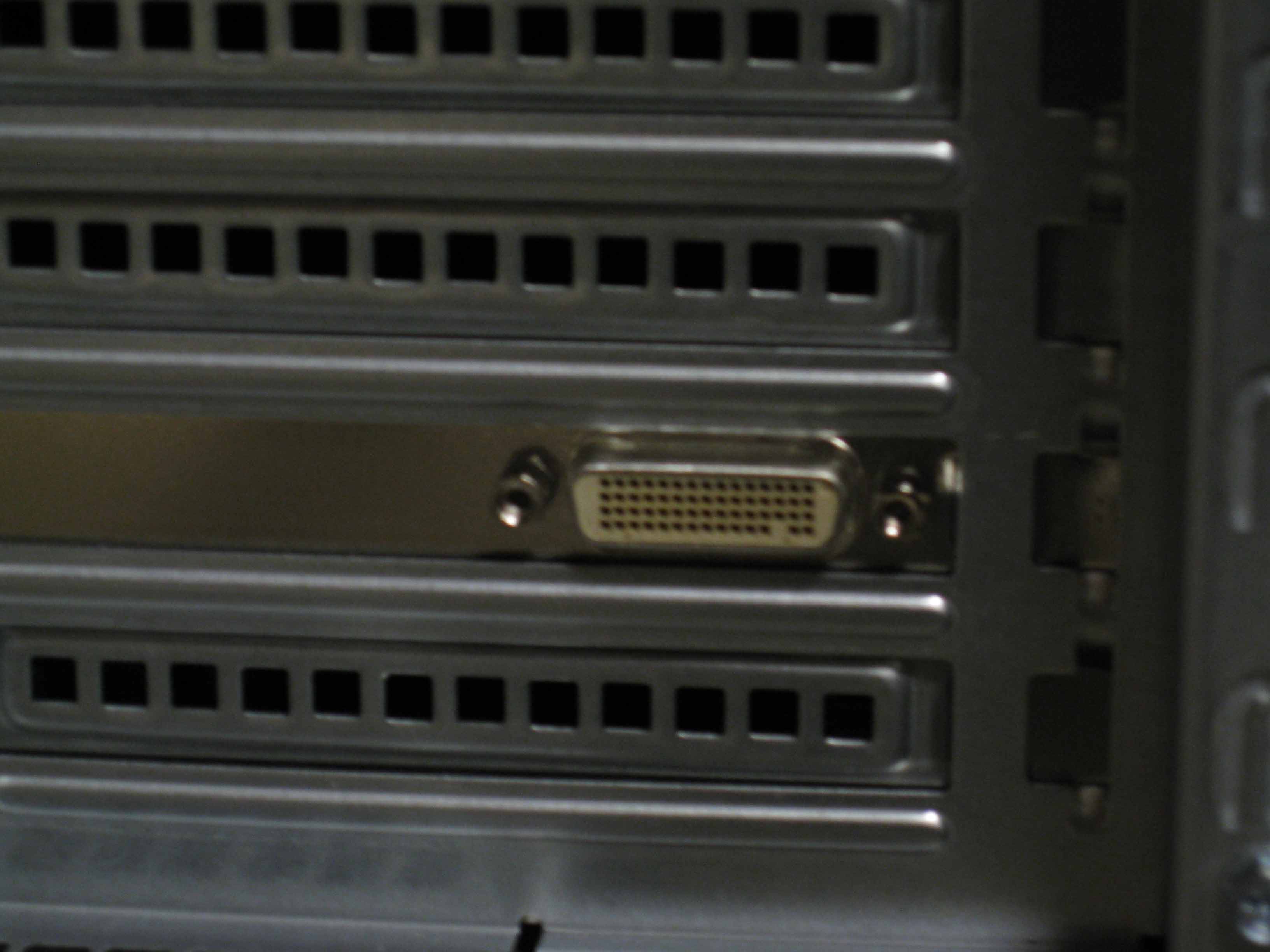

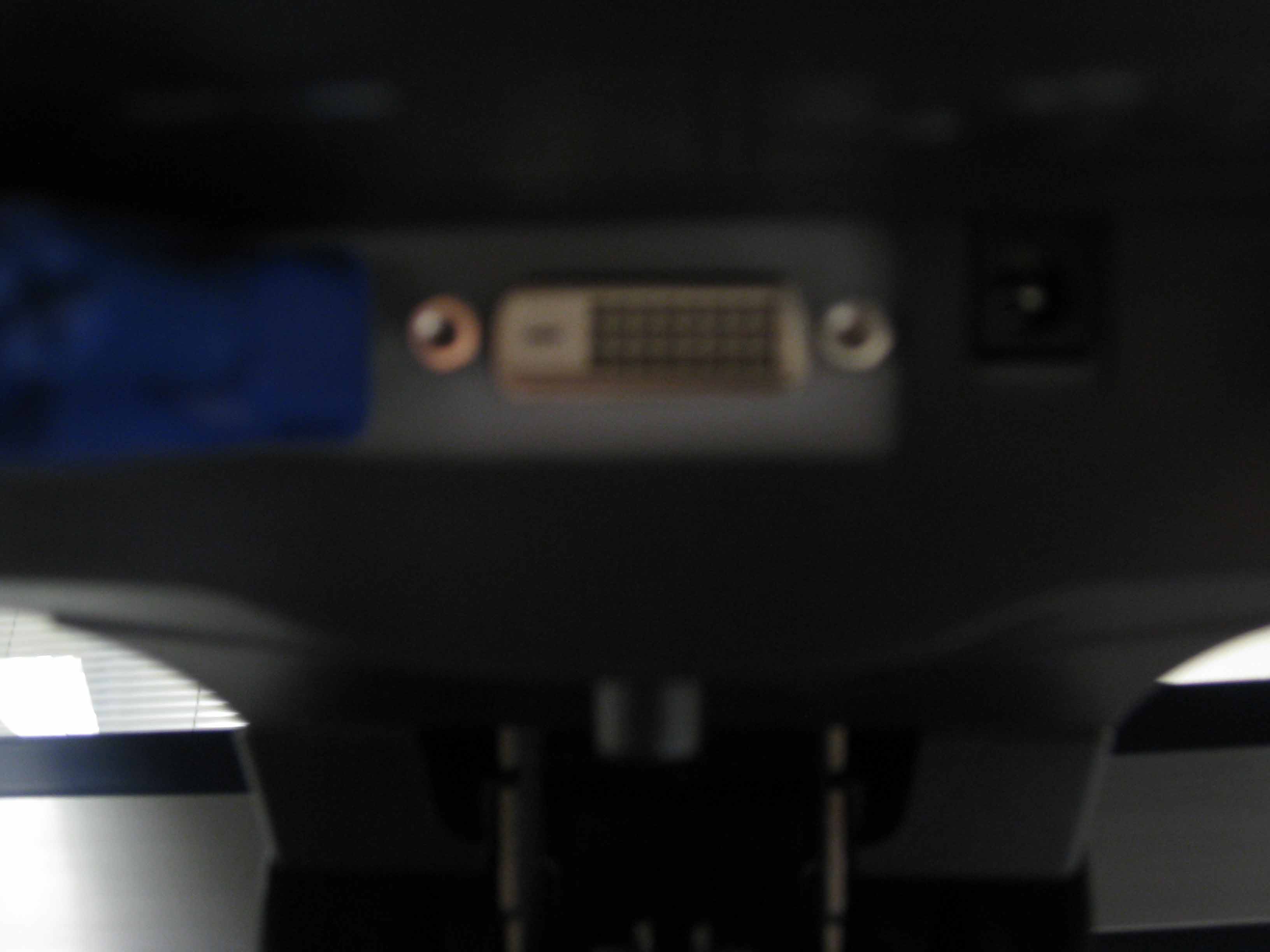

In any case, my displays have DVI-D connectors (and separate VGA connectors, the ones that work), and my cables are DVI-D (single-link). I have pictures of all connectors, although the one of the connector on one of my monitors is pretty fuzzy... You can still see that it's a DVI-D connector, though. As for the splitter, I'm not sure... it's DVI-I, I suppose, but since it's connected to a DMS-59, it should be transmitting a digital signal for the DVI-D cables, no?

So here's my understanding: DMS-59 produces a digital signal, DMS-59 to DVI-I splitter transmits a digital signal, DVI-D cables transmit a digital signal, DVI-D connectors on monitors receive a digital signal. Except they don't seem to receive ANY signal, either when I let them autodetect that there's a DVI cable plugged in, or when I select that a DVI cable is plugged in.



by: CallandorPosted on 2008-12-15 at 13:17:05ID: 23177930

It depends on how it is used - even though something gets DVI-I, internally it can use analog or digital.  If you provide only digital and it wants to use analog, it won't work.

As a simpler explanation, do your monitors automatically sense which port to use, or do you have to set them manually?



by: blackwednesdayPosted on 2008-12-16 at 06:47:23ID: 23183987

Like I said, whether I let the monitors autodetect or whether I explicitly selected DVI, I wasn't getting a signal. Also, in response to your point about DVI-I not working if it's connected to something digital on one end and analog on the other, both ends were digital.

In any case, I've figured it out. I plugged in all the DVI stuff and rebooted, and everything worked... apparently rebooting is important to tell the video card to produce a digital signal. I knew it was something stupid I was missing.



by: CallandorPosted on 2008-12-16 at 07:26:49ID: 23184397

It's good to know that it does work the way it's supposed to - I was wondering what could possibly be happening.
