Question

Dell MediaDirect 3.5 will not exit.

Asked by: jarvt

I bought an XPS M1730 with Windows XP Pro installed (and an option to upgrade to Vista - which I'm avoiding if possible).

When I start the computer using the Media Direct button, I can use MediaDirect 3.5 outside of Windows. However, if I choose to exit, nothing happens. I can still browse photos, files, etc but the only way I can get out of MD is to disconnect the laptop from the mains and remove the battery.

I then need to press the MD button to get into Windows (standard Power On brings me into MD), shut down and then power on as normal to "reset" the buttons. I formatted the laptop, installing MD 3.5 followed by XP but the same thing is happening again.

(If I try to run a MD3.5 install in Windows now, I get an error).

Any ideas to solve this would be much appreciated.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-08-10 at 19:54:37ID24642035
Tags

Dell MediaDirect Media Direct XPS M1730 Windows XP

Topics

PC Laptops

,

Windows XP Operating System

Participating Experts
2
Points
500
Comments
24

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Dell media center cd - 2005  (on the lablel)
    Hi what is this op sys, Dell media center cd - 2005 ? Or is it an add on to XP?
  2. Dell XPS 1530 with XP Pro and Media Direct - Possible??
    I purchased a Dell 1530 and needed to remove Vista and install XP Pro due to some legacy programs that would not run with Vista/IE7. XP is not directly supported for the 1530 thought all the device drivers are available if you look at the 1330/1730 so I completely formated th...
  3. Dell Media Direct - Playing CD/DVD's without booting? …
    Dell Media Direct - Playing CD/DVD's without booting? Am I wrong on this?? XPS 1530, 3gb, T8300 processor, bought June 2008. Not a big deal but I thought on this Dell laptop with MediaDirect you can insert a CD/DVD without fully booting to Windows Vista and play such.. ...
  4. Dell laptop / Vista showing incorrect charging, battery st…
    Hello - I have a Dell Inspiron 1526 laptop (basically one of the very cheap laptops from Best Buy). It is running Vista Home Premium. Lately, the charging status indicator on the task bar is showing erroneous information. For instance, it never shows a charging battery st...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: PriceDPosted on 2009-08-10 at 19:57:31ID: 25065876

This may not work with XP due to the machine originally coming with Vista.  I had the same issue with this same model, and would only work properly with Vista.



by: jarvtPosted on 2009-08-10 at 20:27:16ID: 25065972

Thanks PriceD. Just as a matter of interest, has Vista worked okay for you on the XPS? I'd give it a try if it sorted the Media Direct problem.

Also, when installing MD, there's an option of allowing the program to create its own sized partitions and an option where you can specify the size of the MD partition. Does it matter which one of these you go for?



by: PriceDPosted on 2009-08-11 at 07:34:03ID: 25069527

In my case it worked perfectly with Vista.  I can't remember if I used the default size or chose my own size however either should work fine, just make sure you create a large enough size.  Do you still have warrenty on this box?



by: jarvtPosted on 2009-08-11 at 08:21:04ID: 25070082

I still have the warrenty as the machine was purchased in June. I have been onto Dell support numerous times, even sending back the machine (which was returned in the same state). An engineer called yesterday to replace the motherboard, graphics card and battery (in relation to a different problem with the screen displaying yellow where it should display white).

Never once did they suggest that MD 3.5 might not work with XP properly, but it was at the back of miy mind. I'll give it a reinstall today and report back with the result.



by: PriceDPosted on 2009-08-11 at 08:56:08ID: 25070472

The reason I asked about the warrenty is that there may be an additional step you need to take to make the MD work.  If that does happen, just give Dell a call and they will help with this.  Hope this helped you.



by: jarvtPosted on 2009-08-11 at 09:41:38ID: 25070922

I did ask them about what I'd need to do if I was to reinstall and they confirmed that was it a case of booting with the MD CD, partition install, then OS install and finally MD install in Windows. It seems they did it that way with the factory settings. Fingers crossed for the Vista try!



by: jarvtPosted on 2009-08-11 at 15:44:23ID: 25074233

I installed Vista and am having the exact same problem. Obviously it's not preventing me from using the computer normally but it is annoying.



by: PriceDPosted on 2009-08-11 at 16:09:10ID: 25074387

Are you able to give Dell a call as they may be able to fix that issue as you Vista on the box now.



by: jarvtPosted on 2009-08-11 at 16:37:52ID: 25074571

I will give them a call tomorrow and see what they come up with. Originally, they suggested re-installing the MD through Windows but I'm getting an error after 10%. Will report findings back here.



by: jarvtPosted on 2009-08-13 at 12:56:53ID: 25092175

I contacted Dell and they got me to do exactly the same thing that I had already done myself. Used the MediaDirect 3.5 to create a partition, install the OS then complete the MD installation in Windows. I'm still having the same problem so they are sending me a copy of MediaDirect 4.0 which doesn't use a partition.

I'm wondering if there's an advantage to installing a verion of MD at all. From what I can see, if MD4.0 works, it boots into Visa then opens the programme rather than allowing you to work pre-boot.



by: PriceDPosted on 2009-08-13 at 13:22:55ID: 25092488

MD4.0.  That would be the only advantage.  The user that I worked with just like that extra function with the 4.0; however, it is not needed if you can handle the way it is working now.



by: GeekTechLabPosted on 2009-08-16 at 13:41:59ID: 25110385

There are many specific steps that you need to follow when there are problems with  Media Direct, and if something goes wrong, the OS needs to be reinstalled. You can  follow these steps:

1. Boot from the media direct disc and choose the option you prefer (1st option  makes 2 partitions, one for media direct and the rest for the OS; and 2nd option  makes a partition for media direct and gives you the option to create more than one partition with the rest of the space)

2. Boot from Windows disc and proceed with Windows installation in the partition that was created for it.

3. After Windows installation is done, is EXTREMELY IMPORTANT that you install the drivers in the correct order, because the media direct application requires that  audio and video driver are present. Remember to restart the system between each  driver installation to avoid registry corruption. The order is:

http://support.dell.com/support/topics/global.aspx/support/downloads/en/driver_install_order?c=us&l=en&s=gen&~lt=print

Please, don't forget to ask me if you have doubts about the drivers installation order, this is very important. Remember that some of the drivers depend on the configuration you chose when you bought the computer, if you´d like, you can provide me with the details about your system.

4. After drivers have been installed, you can put Media direct disc again and  install the application. If the application is not correctly installed in Windows, you will have problems when booting to Media direct using the button, this is probably why you were not able to exit.

***IF THE APPLICATION GIVES AN ERROR DURING THE INSTALLATION, YOU CAN FOLLOW THESE STEPS: you have to browse the Media direct disc (in windows explorer for example) and look for a Folder, I don´t remember the name exactly, it goes about DellFix/Toolfix or something like this, inside that folder, there is an .exe file, you have to execute that file and you should be able to install the application correctly in Windows.

5. After the application is installed, you have to restart the system. Then you can shut down system and test if the media direct partition works fine.



by: jarvtPosted on 2009-08-16 at 14:30:36ID: 25110564

Hello GeekTechLab,

Thanks for your reply. So far, I have been installing drivers AFTER the MD Windows installation so I will give your method a try.

If I follow that exact order on the link you provided, should that be okay? I've been using the Driver Resources disc which indicates any hardware detected and I install the items with a tick beside them. The only additional thing I have to get is an nVidia video driver from the Dell support site. My system is:

Dell XPS M1730 Core 2 Duo T8300, 2.40 GHz, 800, 3 M.
4096MB 667MHz Dual Channel DDR2 SDRAM, 500GB HD.

I have a choice of XP Professional Service Pack 3 or Vista 32 Bit Business as the OS.

The application has only given an error so far after I try to install it after the initial installation in the OS. It always installs fine first time.




by: GeekTechLabPosted on 2009-08-16 at 16:57:26ID: 25110960

Hello,

Is very important to follow the order described in the previous link for the drivers installation.

The check beside the drivers in the resource CD does not mean that the hardware is present on the system, these discs are produced to be used on different Dell models, and the check means that the selected driver applies for all those Dell models, this is why not all the hardware will be marked.

Besides this, the Resource CD does not have the latest version of the drivers, drivers are often updated and new revisions are published in the Dell Support website (http://support.dell.com), is always recommended to download the latest versions because they usually fix bugs or errors found in previous versions.

Is very important for the Media Direct application
 to work properly, that the drivers are installed before and in the correct order. So probably this could be the main cause of the problems you've been having, the driver installation is very delicate.

I would recommend downloading the drivers from the Dell Website. Now they have a Download manager which is not so friendly user, if you´d like, I can give you the direct download link for your drivers, but I would need the following details, since the drivers depend on your configuration:

1. Which Wireless card you have, Intel or Dell? and which model is it?
2. Do you have Bluetooth card on your system?
3. Which Nvidia graphic card model you have on the system?
4. Are you going to install Windows XP or Windows Vista?

Let me know this information so I can provide you with those download links. Remember it's also very important to restart system after installing EACH driver, due to changes on the registry.

Remember to not install anything after the Windows installation is done, let's first have all the drivers ready, because the registry could be damaged if not done in the correct order and with the proper drivers, and we would have to start again.

I know that all these stuff sound complicated but they are not. If we follow the correct order the problem will be solved. =) Even if it´s hard to believe, most problems that appeared to be very complex, in the end, were resolved by doing a proper installation.



by: jarvtPosted on 2009-08-16 at 17:15:39ID: 25111000

Hi again, the details are as follows:

1. Intel® Next-Gen Wireless-N Mini-Card
2. Dell Wireless 355 Bluetooth 2.0 Module (up to 3 Mbps) with Enhanced Data Rate
3. Dual SLI 512MB nVidia GeForce 9800GT graphics card
4. I'll be installing Vista (unless you recommend XP!)



by: GeekTechLabPosted on 2009-08-17 at 05:27:31ID: 25113590


Thanks a lot for the information! well,  now that you mention that you have nVidia GeForce 9800GT graphics card, as far as I know this video chipset does not support Media Direct functionality. This does not mean that you are won't be able to use it at all, it means that there is no guarantee that it will work 100% properly. You can confirm this information by contacting Dell, they should have it in their knowledgebase, however, you can still try to make this work if you'd like, but you have to keep this in mind.

If you decide to continue with the procedures, before doing anything, since you have done many reinstallations of the operating system I would also recommend that you do a debug of the hard drive, in order to clean the hard drive completely before the reinstallation, remember that this will delete all data from hard drive, so be sure to do a backup before doing this! you can find the instructions for this procedures in the following link:
http://www.fdisk.com/fdisk/HardDrive.htm

You could install either Windows XP or Windows Vista, however, Windows XP is more stable and reliable. So I will provide the driver download links for both operating systems so you can install the one you prefer, you can also try both if you feel like experimenting a little bit more.

The drivers are:

For Windows Xp:
Dell Notebook System Software ftp://ftp.us.dell.com/utility/R181862.exe
Intel Mobile Chipset ftp://ftp.us.dell.com/chipset/R153997.exe
PCMCIA slot driver http://ftp.us.dell.com/chipset/R161772.exe
nVidia Geforce 9800M GTX http://ftp.us.dell.com/video/NVIDIA_GEFORCE-9800M-GTX_A00_R206881.EXE
Ageia PhysX Processor http://ftp.us.dell.com/video/R161803.EXE
Broadcom 57XX Gigabit Integrated Controller http://ftp.us.dell.com/network/R161008.EXE
Creative Labs Laptop Integrated Webcam http://ftp.us.dell.com/input/R160323.EXE
Dell Touchpad / Pointing Stick http://ftp.us.dell.com/input/R175658.exe
SIGMATEL STAC 92XX C-Major HD Audio http://ftp.us.dell.com/audio/R181712.exe
Intel (R) Wireless WiFi Link 4965AGN http://ftp.us.dell.com/network/Intel_multi-device_A13_R171131.exe
Dell Wireless 355 Bluetooth Module (Bluetooth 2.0 + EDR) http://ftp.us.dell.com/network/R161378.exe
Dell Quickset http://ftp.us.dell.com/app/R180759.exe



For Windows Vista 32-bit:
Dell Notebook System Software ftp.us.dell.com/utility/R156592.exe
Intel Mobile Chipset ftp.us.dell.com/chipset/R153997.exe
nVidia Geforce 9800M GTX ftp.us.dell.com/video/NVIDIA_GEFORCE-9800M-GTX_A00_R206873.EXE
Ageia PhysX Processor ftp.us.dell.com/video/R161803.EXE
Ricoh R5C833 ftp.us.dell.com/chipset/R161772.exe
Broadcom 57XX Gigabit Integrated Controller ftp.us.dell.com/network/R161008.EXE
Intel (R) Wireless WiFi Link 4965AGN ftp.us.dell.com/network/Intel_multi-device_A05_R164259.exe
Creative Labs Laptop Integrated Webcam ftp.us.dell.com/input/R160323.EXE
SIGMATEL STAC 92XX C-Major HD Audio ftp.us.dell.com/audio/R171786.exe
Dell Touchpad / Pointing Stick ftp.us.dell.com/input/R175658.exe
Dell Wireless 355 Bluetooth Module (Bluetooth 2.0 + EDR) ftp.us.dell.com/network/R140135.exe
Dell QuickSet ftp.us.dell.com/app/R180762.exe

Remember to restart system after installing each driver. Also, previously I mentioned that after installing all drivers, if you had problems installing the Media Direct application, you could browse the CD, the correct name of the folder I mentioned is "Dellkit" and inside it has an executable file called Dellkit.exe, you need to do a right click and choose the option to run as an administrator.

If you can, before installing the Dell MediaDirect application, you can send me a screenshot of the Device Manager to make sure all drivers were correctly installed and that we are not missing anything =) remember to expand all trees. In order to get to device manager, you can do a right click on My Computer, then choose properties and go to the "Hardware" tab, there you can press a button that says "Device Manager". Let me know if you have any issue!



by: jarvtPosted on 2009-08-17 at 14:32:48ID: 25118588

I'm just about to start, but have a question. Will I install the drivers in the order that you have listed?
Also, I tested running Dellkit.exe as Administrator (after Media Direct had been installed) and I still get an installation error.

Just a note. MD works in Windows pefectly and I can exit out of it there. It works pre-boot too. I just can't exit at that point.

Thanks again for your detailed suggestions.



by: GeekTechLabPosted on 2009-08-17 at 19:19:35ID: 25119759

Hello,

Yes, please proceed with the installation and use the driver order I provided, because this system has some specific drivers that are only for this system and that do not appear in the previous list from the link, which is more general.

About Dellkit, remember you should use this file after installing all drivers, and only if you get errors after the first attempt of installing the software normally.

Let me know how it goes!  Remember there is the issue about the incompatibility with the video card, but let's hope for the best!



by: GeekTechLabPosted on 2009-08-18 at 05:38:03ID: 25122508

Hello,

I forgot to mention that in order to do the DEBUG process on the hard drive (this is very important! because it will clean the HDD completely from old installations)  you have to follow the procedures listed here: http://www.fdisk.com/fdisk/HardDrive.htm    But, there is something different that you need to do, you have to boot the system from the Resource CD and choose the option to Quit without any action, this will take you to the command prompt, just like you were booting from a Win98 boot disk.



by: jarvtPosted on 2009-08-18 at 08:37:39ID: 25124342

I followed the Debug procedure. But I booted from a Windows98 SE disc which brought me to an A: prompt. I then ran the debug.exe from a flash drive I had plugged in. However, I was not able to do a format as the system seemed to label the flash drive as C.

I the booted up with the MD disc, made the partition and rebooted with Vista to install the OS on the proper C drive.

Do I need to start again and immediately boot up with the Resource CD?



by: GeekTechLabPosted on 2009-08-19 at 13:40:54ID: 25137105

I suggest you run the debug procedure once again, using the Resource CD, then choosing the option to quit without any action, it should take you the command promt, and the letter listed will be the one of your CDROM Drive, so you can type C: then press enter, and then when the prompt changes, you can begin the procedure.  After it is done, you should shut down the computer and then boot to the Media direct disc, partition the disk, and then install Windows. Let me know how it goes :)



by: jarvtPosted on 2009-08-20 at 17:15:29ID: 25148182

No luck unfortunately. I followed the directions to a tee and still cannot exit out of MD. And to cap it all off, one of the LEDs has turned a flickery orange colour.

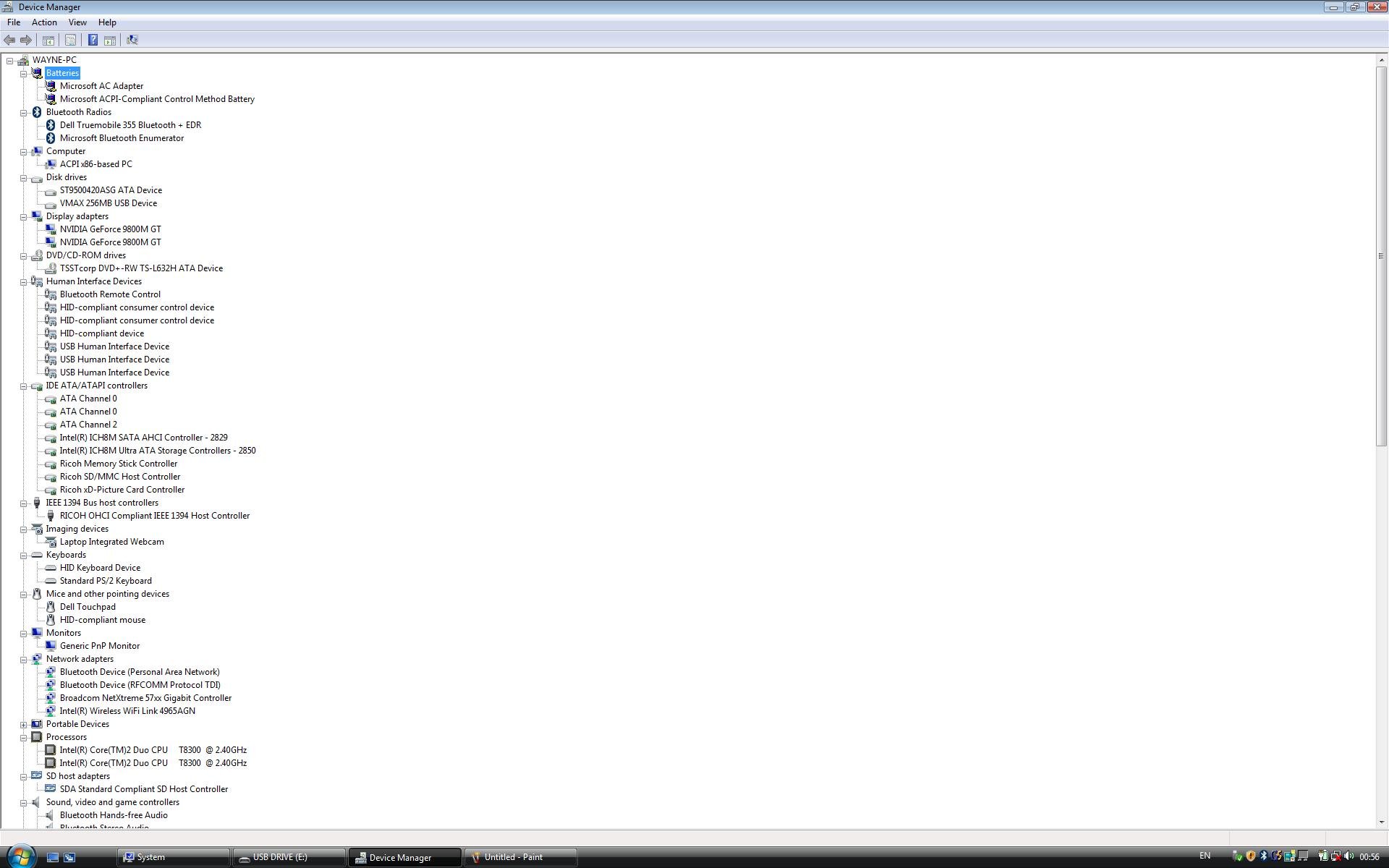

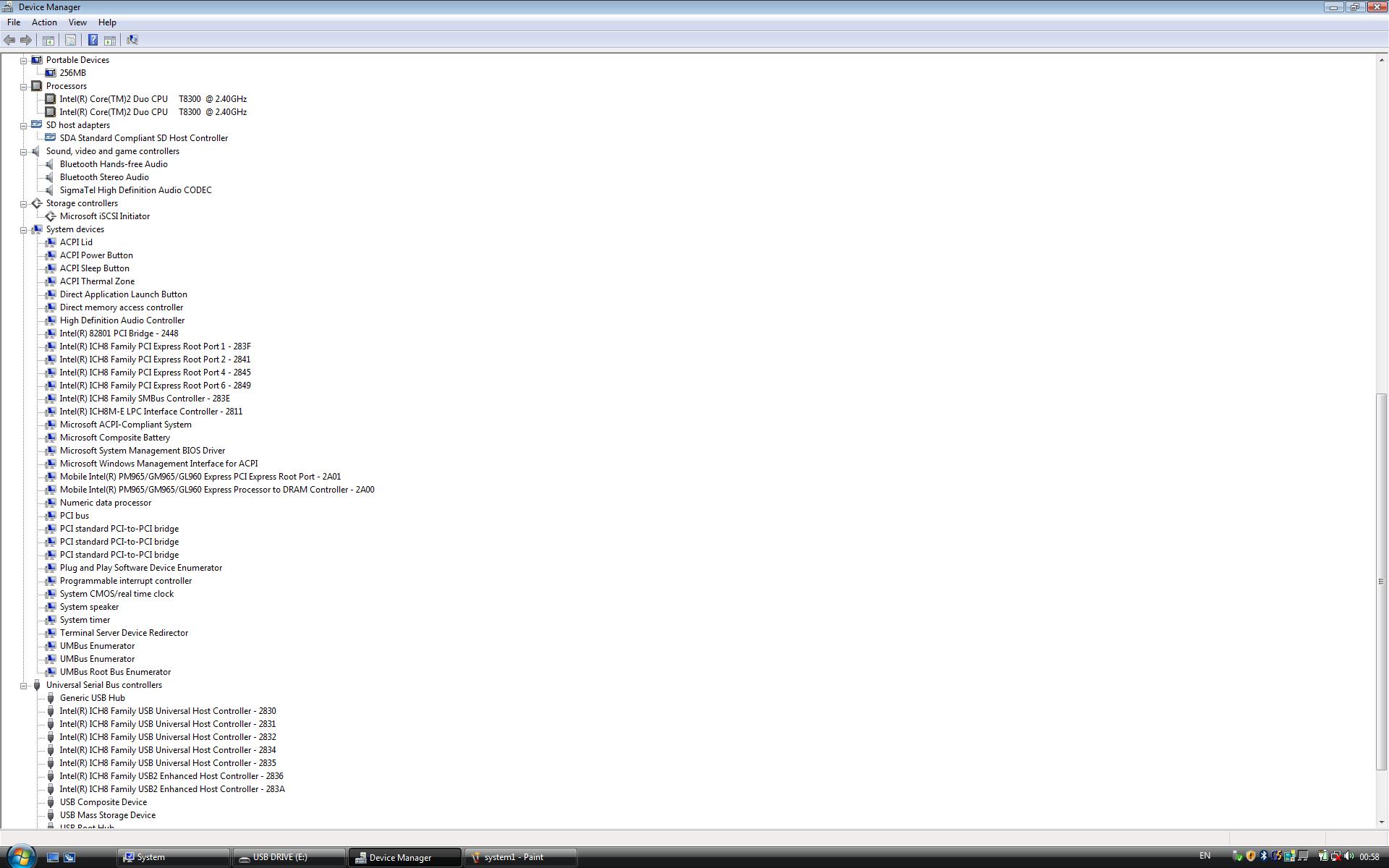

I'm attaching screenshots of the device manager. There were no exclamation marks.



by: GeekTechLabPosted on 2009-08-22 at 23:40:39ID: 25161564

Hello,

Well, in this case, you have followed all the procedures to achieve a perfect Windows reinstallation, but as I mentioned before, there was still the problem about the incompatibility, unfortunately, MediaDirect 3.x is not compatible with nVidia Geforce 9800M GTX, this doesn't mean that it will not work at all, but there will be some problems when running, and this is probably why you're experiencing this issue, even after installing Windows following all the proper steps.

And about Mediadirect 4.x, as far as I know, it is only fully compatible with certain Studio systems, because it does not use a partition. If you have any other doubt or question, feel free to ask me :)



by: jarvtPosted on 2009-08-24 at 18:05:40ID: 25173878

Thank you for all your help. I'm going to bend Dell's ear about supplying a MD 3.5 machine with an incompatible video card.

In the end, I debugged again, installed Vista, then drivers, then installed the MD 4.0 from the CD Dell sent. Powering up using the MD button now loads Windows, then starts MD 4.0 which is a bit pointless, but I will live with it.

I suppose at this point, I can close the question.

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
