I wanted to get a few opinions on the way our network is setup.
We have 2 locations in different states: Corp Office, Call Center
They are connected Via 3M (2 x T1) MPLS Circuit
The call center is a cisco Voip setup with Call managers, Unity, IPcc

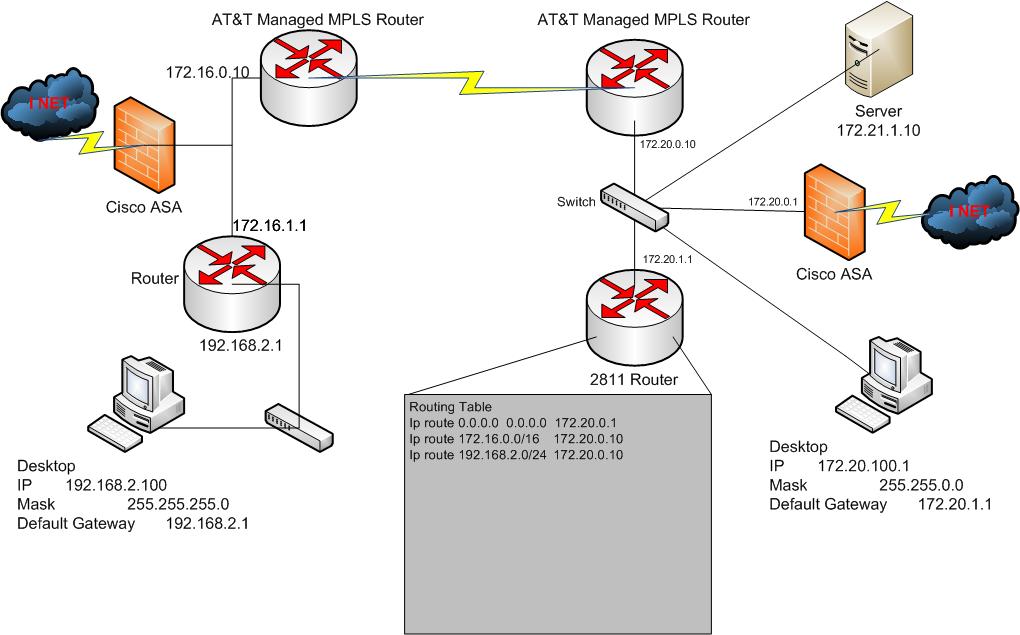

I wanted to know if the way that we're doing the routing from the workstations/servers to the internet, mpls connection, and even the call managers is correct. I've put all of the info into a the attached image file. I'm wondering If there is a better way putting the routing information out there since the Main router in the call center doesn't actually route the most of the traffic, it just sends it to a different ip address on the same subnet
Any comments / tips / questions are very welcome.
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Correct. It's an HP Procurve 5300.
I was mainly concerned with putting all the clients in the call center with a default gateway of 172.20.1.1 and then having all the traffice for the main office have to actually touch the 172.20.1.1 router before it's sent to the 172.20.0.10 router to be sent over the mpls.
The strange thing is that the routing table of windows computer at the call center doesn't show the learned route to the main office after it's sent data to that location. It's like the 172.20.1.1 router does the forwarding for the client instead of just telling the client it should send to the 172.20.0.10 router for that subnet.
Business Accounts
Answer for Membership
by: from_expPosted on 2008-01-18 at 00:58:16ID: 20688839
I wonder where is your main office in your drawing?
