Also provide the Default Gateway address as 192.168.1.1 on both the systems. It will work fine. Also remember to disable the firewall.
Main Topics
Browse All Topics
Loading Advertisement...
Question
how to connect Laptop and Desktop using crossover cable
Hi,
I have a Laptop (given by my company and is joined to my company domain) running Windows XP Professional with SP3. And I have my desktop which is running Windows 2000 Professinal with SP4 and Windows 2003 server with SP2 (dual booting). It is in the default workgroup named WORKGROUP. I wanted to connect these two machines (laptop and desktop) using the crossover cable to practice certain features of SQL Server 2005 which require two physical machines. I have given the following IPs.
Laptop: 192.168.1.1 and 255.255.255.0
Desktop: 192.168.1.2 and 255.255.255.0
But when I connect the cable to both the machines, it is showing Network cable unplugged on both the machines. The crossover cable was tested with a machine when it was bought.
Can someone please let me know what I need to do to connect my two machines?
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Subscribe now for full access to Experts Exchange and get
Instant Access to this Solution
- Plus...
- 30 Day FREE access, no risk, no obligation
- Collaborate with the world's top tech experts
- Unlimited access to our exclusive solution database
- Never be left without tech help again
Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.
- "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
- "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
- "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.
See what Experts Exchange can do for you.
Got a question?
We've got the answer.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
Need individual assistance?
Our experts are ready to help.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Want to learn from the best?
Read articles from industry experts.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Working on a long term project?
Store your work and research.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
What Makes Experts Exchange Unique?
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Trusted by the world's most respected brands.
Faithfully serving IT professionals since 1996.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Free Tech Articles
-
WARNING: 5 Reasons why you should NEVER fix a computer for free.
It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
-
SCCM OSD Basic troubleshooting
SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
-
Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
-
Create a Win7 Gadget
This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
-
Outlook continually prompting for username and password
There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
-
Backup Exchange 2010 Information Store using Windows Backup
There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...
Cloud Class Webinars
- Avoiding Bugs in Microsoft Access
Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
- Top 10 Best New Features in Visio 2010
Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
- IT Consultant Business Secrets Revealed
Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
- Disaster Recovery and Business Continuity
Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
- Organize Your Visio Diagrams with Containers and Lists
Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
- How to Us Objects, Properties, Events and Methods in Microsoft Access
Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...
Join the Community
Give a Little. Get a Lot.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Answers
Thanks for the replies. Side A looks same. Side B on my cable looks like:
1. Green-white
2. Green
3. Orange-white
4. Blue
5. Blue-white
6. Orange
7. Brown-white
8. Brown
Is this not the cross cable configuration? I have bought two crossover cables from two different computer shops (they prepared it and gave it to me). Two are similar with the color coding I have mentioned. Both are not working. Please confirm if this coding is not correct and the coding you have given is perfect, I will ask them to crimp it again with the coding you have given.
FYI, I have also disable the firewall and I will try with the default gateway.
Just now I checked in the few of the sites to check the crosscable color coding. The crosscable(s) which I have now are with the correct coding as per those sites. Here is one of those sites: http://www.incentre.net/co
I have connected both my machines with straight cable and the LAN icon in the System Tray is showing Connected and I can access the shared folders from one of the machines depending on the end they are connected.
I am a layman in the field of networks cables. Please provide me some pointers.
Srinivas_Vengala,
I'm not sure what the previous diagram is... it's not a standard crossover... what you have described IS a standard 10/100Mb crossover (gigabit may be different, but 2 stripes and 2 solids are not supposed to be next to each other in any case). Cisco used to employ a non-standard PoE, but I don't think even that is it.
Attached is a diagram with a 568A straight through on the left, and a crossover on the right.
To make a 10/100Mb crossover you wire it 568A on one end and 568B on the other end (essentially, the green and orange pairs are swapped in the 2 different wiring specs... the other 2 pair - blue and brown - stay in the same positions). So the 568B layout is on the far-right in the attached image.
If you usually connect to your company LAN wirelessly, go into your laptop's BIOS setups and see if the ethernet controller is enabled.
- 568A-Crossover.gif
- 8 KB
568A on the left; crossover on the right.
> I have connected both my machines with straight cable and the LAN icon
> in the System Tray is showing Connected and I can access the shared
> folders from one of the machines depending on the end they are connected.
That is odd. You are saying if you turn the cable around end for end, it changes which computer can access the shared folders on the other computer?
Both the diagrams are correct.
The only pins that need to be crossed for your scenario are pins 1,3 and 2,6
Since the cables are fine and you are able to connect using a standard patch cable, the problem is most likely in your network card settings.
Check the network card properties for an option that allows you to set the cable type and select crossover. That is the only suggestion that makes sense given what you have stated above.
>Check the network card properties for an option that allows you to set the cable type and select >crossover. That is the only suggestion that makes sense given what you have stated above
Hi Rohit,
Thank you for your reply. I am unable to find an option that allows me to set the cable type. Can you please tell me where exactly we can find this option generally?
I have given the default gateway as 192.168.1.1 which is my Laptop's IP. Now I am able to access the shared folders on my desktop. But not shared folders from laptop on the desktop. When I try to access the shares on the laptop from desktop, I am getting the attached error.
One more question, if everything works fine... only file sharing is possible using peer-to-peer (by crossover cable) or can I access the other machine as it is connected through a LAN using hub/switch? Because I want to access the SQL Server installed on the desktop from the laptop. Is it possible using the crossover cable connection?
- ConnectError.jpg
- 156 KB

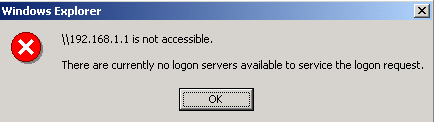

Error when trying to access shared folders on the laptop from desktop
Hi All,
I just checked again. It is working without the gateway also. But, I can access the shared folders on my desktop from my laptop but not in the reverse way.
Darr247: Just FYI., when the cable ends are changed, the PING to the name of the machine is successful depending on the end. But, in both the cases, I am able to access the shared folders from on my desktop from my laptop.
you can only use a straight through cable to connect two machines that have 1gig LAN.
If you cant access shared files it is a permission problem.This is either that the user does not have permission because it can not be recognised (maybe a firewall is blocking the service, look at advanced firewall settingsand then exceptions, this shows ports tcp 139,445 ,udp 137,138) or you have not set the permissions correctly.
HI All,
Leave all this.. I just want to know if crossover cable between two machine is working fine and I can see each machine from the other, can I access an application/server (like SQL Server) installed on my desktop from my laptop or I can just access the shared folders from the other machine? Please respond to this first. If I can access only shared files, I can stop my experiments as my intention is not to copy/move the files between the systems but to access the SQL Server.
When they're networked, and the laptop uses MDAC to send a query on port 1433, I believe the SQL server should respond, yes. If it doesn't, try it without the firewalls enabled on both machines.
Check these articles
http://support.microsoft.c
http://support.microsoft.c
As my Laptop is my company's domain, whenever I try to access my laptop from desktop (using a local account), it is trying to connect to a logon server (may be the domain controller) which is not available when I am not connected to my company's domain. Hence, it is giving error when connecting to my laptop from desktop.
3 Ways to Join
Business Accounts
- Perfect for organizations
- Multiple users
- Save over 36%
- Create a Business Account
Answer for Membership
- Earn free access
- Showcase your knowledge
- No credit card required
- Sign Up to Answer
Loading Advertisement...
by: RohitBagchiPosted on 2008-12-27 at 04:00:58ID: 23248050
Are you sure its a CROSSOVER cable and not a PATCH cable?
That sounds like the most likely cause. Check the attached screenshot to verify the cable pinouts.
If you are certain it is, post back.
Crossover cable pinout
