Question

intel pro 1000 teaming windows 2008 server x 64?

Asked by: 03671328

Im trying to figure out why it gets stuck at configuring team please wait....

trying to team two intel pro 1000 cards.

Its been saying that now for more then a day.

os server 2008 x 64
ram 12gb

in the end im trying to setup two servers to talk to each other only there is no switch in between them
the other server is freenas and i have the teaming setup on the freenas side already.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-29 at 11:55:16ID24771191
Tags

intel pro teaming

Topics

Networking Hardware

,

Data Hosting/Data Havens

,

Microsoft Server

Participating Experts
1
Points
500
Comments
22

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Remove Intel Team Adapter
    How to remove Intel Team Adapter from Device Manager. I uninstalled the software but the stupid Team_Name is still there and if I want to create another one then that one will not go away. I need help
  2. Intel NIC team Broadcast's issue?
    I have 2 server's configured with teams on there NIC's. Im seeing alot of broadcast's from the teams on all my switches is this something to be concerned about? (see picture attached) Thank you ahead of time.
  3. Team Intel NIC's on Win 2003
    I have several Intel servers with 2 NICS in, only one of which is used. These server are DC and file servers. - Is it worth teaming the NICs to make use of the one I am not using? - Do I need 3 spare static IP addresses per server (oner for each NIC and the other for the virt...
  4. I'm finding Intel NIC teaming software
    I want to team two onboard Intel NIC on my workstation. Unfortunately I can't find Advanced Network Services software in motherboard driver disk. Where can I obtain it? Thanks so much.
  5. Intel NIC Teaming utility
    I need to team two Intel NICs. I have teamed Broadcom NICs using the Broadcom utility before, but although I find lots of references on the Intel site that says my NICs can be teamed, I can't find a download for the actual Intel teaming utility. NIC model: Intel Pro/1000 MT...
  6. Teaming Intell Pro/1000EB nics
    I'm trying to team 2 intel Pro/100EB nics to a Cisco 3750 swtich. I created the team correctly and I've created the channel-group on the cisco switch. I'm doing a IEEE 802.3ad Dynamic Link Aggegation on the 2 cards. and I set the channel-group to mode active. so its in LA...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: 03671328Posted on 2009-10-01 at 13:42:21ID: 25473040

managed to get it to team but now i can not get the team to work network connections shows up as connection unpluged.



by: Netman66Posted on 2009-10-01 at 17:28:40ID: 25474347

I think you'll need a switch between them.  The NICs should be set to Auto and plugged into a switch.

Otherwise, these cables need to be crossover cables - and even then I am unsure if the teaming software will work in the absence of a switch.



by: 03671328Posted on 2009-10-02 at 06:58:20ID: 25477922

well i have cross over cables set up but i get network cable unplugged....



by: Netman66Posted on 2009-10-02 at 09:03:11ID: 25479203

Alright then, I suspect they need that switch between them.



by: 03671328Posted on 2009-10-02 at 11:01:30ID: 25480289

ok setup switch with lagc
have the same issue network cable is unplugged on the team adapter....


switch
12-Jan-2000 17:20:59 %TRUNK-I-PORTADDED: Port g19 added to ch1
12-Jan-2000 17:20:59 %LINK-I-Up:  g19
12-Jan-2000 17:20:59 %LINK-I-Up:  ch1
12-Jan-2000 17:21:00 %TRUNK-I-PORTADDED: Port g17 added to ch1
12-Jan-2000 17:21:00 %LINK-I-Up:  g17
12-Jan-2000 17:21:29 %STP-W-PORTSTATUS: ch1: STP status Forwarding




by: Netman66Posted on 2009-10-02 at 11:49:42ID: 25480839

The switch has added Gig17 and 19 to channel 1 and is forwarding (according to the logs above).

How have you setup the Teaming on the server?  Is it switch-assisted load balancing, auto, standby?



by: 03671328Posted on 2009-10-02 at 12:06:21ID: 25481015

static load ballanceing
current config on switch

console# show run
interface ethernet g1
duplex full
exit
interface ethernet g17
channel-group 1 mode on
exit
interface ethernet g19
channel-group 1 mode on
exit
interface ethernet g21
channel-group 2 mode on
exit
interface ethernet g23
channel-group 2 mode on
exit
interface ethernet g24
port monitor g1
exit
interface vlan 1
ip address 168.215.66.3 255.255.255.0
exit
aaa authentication enable default line
console#

teaming was set up on the server
created a new team then selected static link aggression hit next it configures the team
and the two physical cards are linked but the virtual team adapter says its unpluged.



by: 03671328Posted on 2009-10-02 at 12:41:45ID: 25481315

from windows 2k8 to switch
console# show lacp eth g19
g19 LACP parameters:
      Actor
              system priority:       1
              system mac addr:       00:14:22:86:e6:7f
              port Admin key:        25
              port Oper key:         25
              port Oper number:      19
              port Admin priority:   1
              port Oper priority:    1
              port Admin timeout:    LONG
              port Oper timeout:     LONG
              LACP Activity:         ACTIVE
              Aggregation:           AGGREGATABLE
              synchronization:       FALSE
              collecting:            FALSE
              distributing:          FALSE
              expired:               FALSE
      Partner
              system priority:       0
              system mac addr:       00:00:00:00:00:00
              port Admin key:        0
              port Oper key:         0


from freebsd to switch

console# show lacp eth g19
g19 LACP parameters:
      Actor
              system priority:       1
              system mac addr:       00:14:22:86:e6:7f
              port Admin key:        25
              port Oper key:         25
              port Oper number:      19
              port Admin priority:   1
              port Oper priority:    1
              port Admin timeout:    LONG
              port Oper timeout:     LONG
              LACP Activity:         ACTIVE
              Aggregation:           AGGREGATABLE
              synchronization:       TRUE
              collecting:            TRUE
              distributing:          TRUE
              expired:               FALSE
      Partner
              system priority:       32768
              system mac addr:       00:04:23:b1:57:9e
              port Admin key:        0
              port Oper key:         304



by: Netman66Posted on 2009-10-02 at 14:02:39ID: 25482185

Ok, you have setup switch assisted load balancing - which means on the server-side you want to set this to Auto or lock it to switch assisted load balancing.

You don't want the teaming software getting involved with the port bonding because you've set the switch to do it for you.



by: 03671328Posted on 2009-10-02 at 14:17:43ID: 25482315

options i have are adapter fault tolerance
adaptive load balancing
static link aggregation
IEEE 802.3ad dynamic link aggragation
switch fault tolerance...

so i want adaptive load balancing or ieee 802ad dynamic?



by: 03671328Posted on 2009-10-02 at 14:43:08ID: 25482585

so im starting to think there is something wrong with the instlation of the teaming software...
i have tryed all options and they all come back netowork cable unpluged.....



by: Netman66Posted on 2009-10-02 at 15:44:23ID: 25482874

Try setting up the switch as normal ports - not channelled.

Setup g17 & g19:

speed auto
duplex auto
no spanning-tree portfast

Setup the teaming software as Adaptive Load Balancing.

Let me know.



by: 03671328Posted on 2009-10-06 at 08:41:11ID: 25506308

well did as you said... and i have the same issue. comes back as network cable unpluged???



by: Netman66Posted on 2009-10-06 at 09:25:59ID: 25506829

Interesting.

If you disolve the team and use one NIC is it connected?  I'm looking at bad cables or a hardware issue.



by: 03671328Posted on 2009-10-06 at 09:47:06ID: 25507074

when the cable are connected to the team each of the actual team members show a connected link
but the main team stays unconnected...

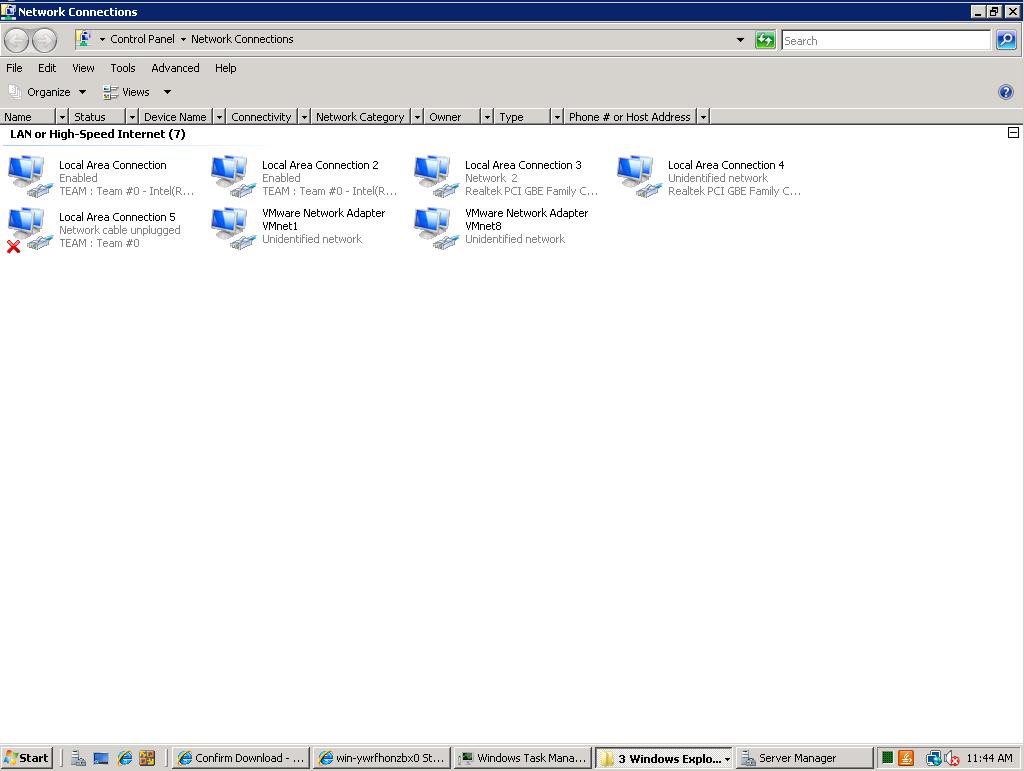

  • d.JPG
    • 69 KB

    shows you what im talking about.

    shows you what im talking about.


by: Netman66Posted on 2009-10-06 at 10:13:59ID: 25507360

I think VMWare may be interfering with things.

I see 2 Intel NICs (Local Area Connection & Local Area Connection 2) which should be part of Local Area Connection 5.

Local Area Connection 3 and Local Area Connection 4 should not be part of the Team.

Use a physical NIC as the bridge when it installs - you may need to get the team working before the VMWare networking gets installed.




by: Netman66Posted on 2009-10-06 at 10:18:48ID: 25507411



by: 03671328Posted on 2009-10-06 at 10:24:56ID: 25507469

um lol wow.... u unchecked vmware driver from both the intel cards and the team card and it now has a link. :).



by: Netman66Posted on 2009-10-06 at 10:53:45ID: 25507778

Excellent.

It's important to know all the variables - and I didn't until your screenshot.

Glad it's working now!



by: 03671328Posted on 2009-10-06 at 10:56:34ID: 31635033

thanks

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
