Looking for design diagram for Dual Routers, BGP and active/standby ASA5510 w/ DMZ

Asked by: MarkJenks

I am working on designing a project and have found all of the individual docs to put each part of this together.  But I have not found anything that can help me design the whole thing.

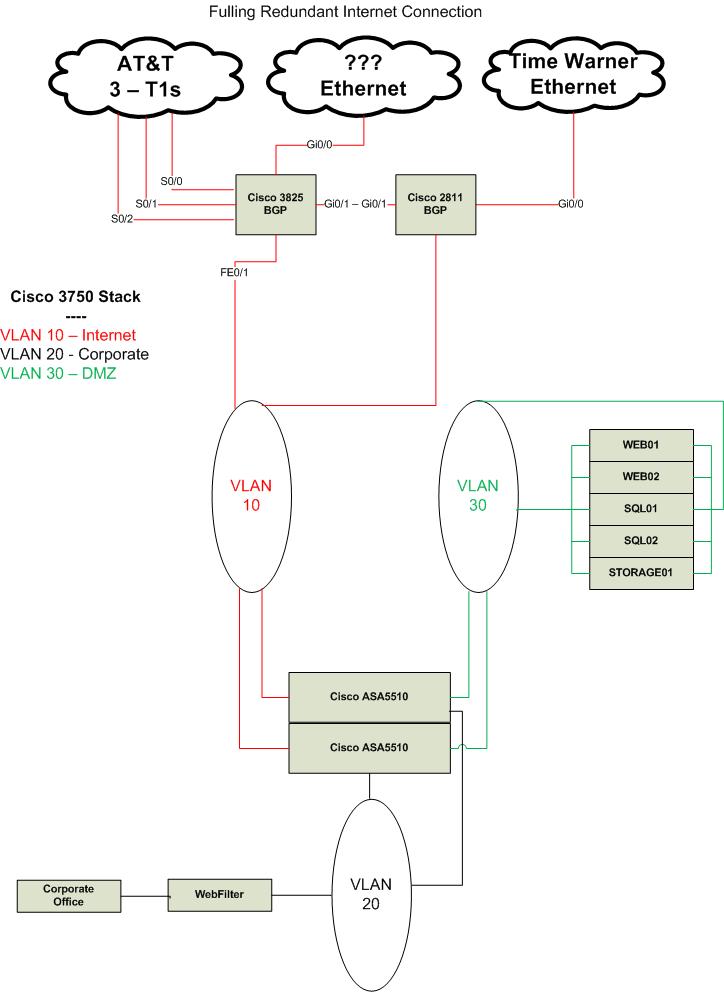

Dual Cisco router, each connected to their own ISP using BGP.  (Cisco 3825 & 2811)
-ISP's at 15MB/15MB each
Pair of ASA5510's in Active/Standby
DMZ (shared between the ASA's)
IPSEC VPN, and IPSEC L2L

Anyone done anything like this before?  I'm someone has, but I can't find the one good doc that combines all of these key points.

It looks like I can run IPSEC VPN on Active/Standby, so that should mean I can also do L2L?
The IPSEC doesn't have to be part of the config, but it would be nice.

I am also planning on using a 3750's stack divided into VLANs to support each segment.

Thanks for the help!

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-03-12 at 13:21:23ID24225573
Tags

cisco bgp asa firewall dmz DR

Topics

Network Routers

,

Cisco PIX Firewall

,

Network Design & Methodology

Participating Experts
2
Points
0
Comments
9

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. VLAN ROUTING WITH A CISCO ASA 5510
    I have two networks with two Cisco routers (2600 & 1720), 1 Cisco ASA 5510, & a series of VLAN 802.1Q capable switches. I am currently using network A (with a PIX) to allow both internal (corporate LAN, internal internet access, etc...) and external (Citrix) traffic a...
  2. IPSEC VPN on Cisco routers  or ASAs
    In the attached diagram, things seem to be a complex in the first look, but let me explain. We have 2 DSL links from our ISP, about 8mb, active and backup, connected across two 2811 routers. These routers terminate on a pair of Alteon Application switches by Nortel. The nort...
  3. Isolate Vlan Traffic on Cisco ASA with 2 VPN's and same…
    I have a CISCO ASA with 2 separate VPN connections coming in. Site A is connected to VLAN 10 and SITE B is connected to VLAN 15. Site A and B both have 10.1.1.0/24 as their native IP Address scheme. The actual home site off the ASA (let's call that Site C) is 10.1.1.0/24 as...
  4. Cisco ASA 5505 VPN Can't Talk to Internal VLANs
    I have a Cisco ASA 5505 that I'm trying setup VPN on. I got VPN to work fine, I get the VPN subnet (10.10.30.0) etc., but I can't talk to the internal nor the DMZ VLANs. I tried running nat traversal but this didn't help. Any help would be greatly appreciated! I have atta...
  5. Cisco HSRP / Extended VLAN / BGP questions
    I am trying to connect with a vendor from the main site and hot site via the vendor provided Cisco VPN router in each site behind the Cisco ASA 5500 DMZ interface. Both sites have its own Internet T1 and they are MPLS connected in the backend. The goal is to establish the...
  6. Cisco ASA DMZ problems
    We have a Cisco ASA 5505 with Security Plus licensing. After researching Cisco's documentation and troubleshooting this issue on this site and others I am at a stopping point. I would like to setup a DMZ and allow the following: Allow inside hosts full connectivity to the ...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: MarkJenksPosted on 2009-03-12 at 18:49:17ID: 23875503

Do the ASA's do GLBP?  Would that help on the external interface of the ASA's?



by: chouckhamPosted on 2009-03-13 at 03:43:50ID: 23877613

Hello,

Im sure someone will be with you shortly with your question.
In the mean time, may I suggest that, it might be an idea to move your SQL and Storage Boxes out of the DMZ into another higher security VLAN of their own.

This reduces the risk of unauthorised access to these boxes via the DMZ.

Thanks,
Craig



by: MarkJenksPosted on 2009-03-13 at 04:40:58ID: 23877978

I agree completely, but as it was designed, it's too hard to move them right now.    The DMZ is new, it is currently housed at a Tier-1 provider and we are moving it in house.



by: lrmoorePosted on 2009-03-13 at 05:40:06ID: 23878498

Use OSPF between the two ISP facing routers and the ASA pair. Just advertise a default route from each.
Otherwise you will not get any load balancing or load sharing only failover from router 1 to router 2

I would also suggest keeping VLAN 10, the "outside" vlan on a totally separate switch (or switch pair) to protect from vlan bleed over or arp poisoning.



by: MarkJenksPosted on 2009-03-13 at 06:13:40ID: 23878790

If I use OSPF, would that not be for Active/Active?

If not, could you please explain?

Also, I would love to put VLAN10 on another stack, but I need to keep this on a stack to not have a single point of failure, which is what I am trying to design here.



by: MarkJenksPosted on 2009-03-13 at 06:22:39ID: 23878871

Do you have a good diagram or configs on how to put this together?

I'm in the design stage and trying to get the most info together to get it right the first time.



by: MarkJenksPosted on 2009-03-14 at 11:22:53ID: 23887918

Okay, maybe I'm asking too much here.

Let's get back to some basic questions that I need figured out.

I have done dual ASA Active/Passive with a single router with BGP and 2 ISP's.

But what I am trying to create is a config that doesn't have a single point of failure, like having one router, and using a 3750 stack to do the switching.

So, BGP on each router, sharing the same ASN, subnet behind them is my /24.

Should I go Active/Active with the ASA's?  Or stick with Active/Passive, so I can do my IPSEC traffic also and not have a 3rd firewall?

LRMore mentioned using OSPF behind the BGP routers, what would that look like?   I've done OSPF before.

Anyone?



by: MarkJenksPosted on 2009-03-15 at 11:21:29ID: 23892483

This is what I have so far...

ISP-a

interface GigabitEthernet0/0
 description ISP-a
 bandwidth 1000000
 ip address x.x.33.22 255.255.255.252
 ip access-group inbound_acl_06102008 in
interface GigabitEthernet0/1
 ip address x.x.120.1 255.255.255.248
router bgp xxxxx
 no synchronization
 bgp log-neighbor-changes
 bgp dampening
 network x.x.120.0
 network x.x.120.0 mask 255.255.255.0
 neighbor x.x.33.21 remote-as 1000
 neighbor x.x.33.21 description 1stISP
 neighbor x.x.33.21 password 7 xxxxxxxxxx
 neighbor x.x.33.21 prefix-list input-route-filter in
 neighbor x.x.33.21 prefix-list announce-out out
 no auto-summary

router ospf 0.0.0.0
 network x.x.120.0 255.255.255.0
 default originate

ip route x.x.120.0 255.255.255.0 Null0
ip route x.x.120.0 255.255.255.0 GigabitEthernet0/1

ip access-list extended inbound_acl_06102008
# Block unroutables and things we don't want
!
ip prefix-list announce-out seq 10 permit x.x.120.0/24 le 32
ip prefix-list announce-out seq 20 deny 0.0.0.0/0 le 32
!
ip prefix-list input-route-filter seq 10 deny 10.0.0.0/8 le 32
ip prefix-list input-route-filter seq 25 deny 127.0.0.0/8 le 32
ip prefix-list input-route-filter seq 40 deny 169.254.0.0/16 le 32
ip prefix-list input-route-filter seq 45 deny x.x.120.0/24 le 32
ip prefix-list input-route-filter seq 70 deny 192.168.0.0/16 le 32
ip prefix-list input-route-filter seq 85 deny 224.0.0.0/3 le 32
ip prefix-list input-route-filter seq 90 permit 0.0.0.0/0 le 24
ip prefix-list input-route-filter seq 100 permit 0.0.0.0/0


----------------------------------------------------------------------------
ISP-b

interface GigabitEthernet0/0
 description ISP-b
 bandwidth 1500000
 ip address 206.40.x.x 255.255.255.252
 ip access-group inbound_acl_06102008 in
interface GigabitEthernet0/1
 ip address x.x.120.2 255.255.255.248
router bgp xxxxx
 no synchronization
 bgp log-neighbor-changes
 bgp dampening
 network x.x.120.0
 network x.x.120.0 mask 255.255.255.0
 neighbor 206.40.x.x remote-as 1001
 neighbor 206.40.x.x description 2ndISP
 neighbor 206.40.x.x password 7 xxxxxxxxxx
 neighbor 206.40.x.x prefix-list input-route-filter in
 neighbor 206.40.x.x prefix-list announce-out out
 no auto-summary

router ospf 0.0.0.0
 network x.x.120.0 255.255.255.0
 default originate

ip route x.x.120.0 255.255.255.0 Null0
ip route x.x.120.0 255.255.255.0 GigabitEthernet0/1

ip access-list extended inbound_acl_06102008
# Block unroutables and things we don't want
!
ip prefix-list announce-out seq 10 permit x.x.120.0/24 le 32
ip prefix-list announce-out seq 20 deny 0.0.0.0/0 le 32
!
ip prefix-list input-route-filter seq 10 deny 10.0.0.0/8 le 32
ip prefix-list input-route-filter seq 25 deny 127.0.0.0/8 le 32
ip prefix-list input-route-filter seq 40 deny 169.254.0.0/16 le 32
ip prefix-list input-route-filter seq 45 deny x.x.120.0/24 le 32
ip prefix-list input-route-filter seq 70 deny 192.168.0.0/16 le 32
ip prefix-list input-route-filter seq 85 deny 224.0.0.0/3 le 32
ip prefix-list input-route-filter seq 90 permit 0.0.0.0/0 le 24
ip prefix-list input-route-filter seq 100 permit 0.0.0.0/0

----------------------------------------------------------------------------
ASA-a

interface Ethernet0/0
nameif outside
security-level 0
ip address x.x.120.2 255.255.255.0 standby x.x.120.3
!
interface Ethernet0/1
nameif inside
security-level 100
ip address 10.200.1.2 255.255.255.0 standby 10.200.1.3
!
interface Ethernet0/2
nameif dmz
security-level 50
ip address 172.16.17.1 255.255.255.0 standby 172.16.17.2


failover
failover lan unit primary
failover lan interface failover Ethernet0/3
failover key *****
failover link failover Ethernet0/3
failover interface ip failover 192.168.55.1 255.255.255.0 standby 192.168.55.2
failover interface ip state 192.168.56.1 255.255.255.0 standby 192.168.56.2

ospf 0.0.0.0
 network x.x.120.0 255.255.255.0
----------------------------------------------------------------------------
ASA-b

failover
failover lan unit secondary
failover lan interface failover Ethernet0/3
failover key *****
failover interface ip failover 192.168.55.1 255.255.255.0 standby 192.168.55.2
