Second public IP for a new network on existing infrastructure - add new switch or recable?
I have an existing network of servers running in a particular server room. From a socket on the wall we have a single CAT5e cable running into the FE0/WAN interface of our Cisco 1800 series router. A CAT5e cable runs from the FE1 interface on the router into an unmanaged HP 24x100/1000 switch. Our servers are connected to the unmanaged HP 24x100/1000 switch. The Cisco 1800 router is performing NAT. The Cisco 1800 routere's FE0 interface is configured with our WAN static IP, and this is accessible from the internet. Everything works just fine at present.
We are adding a second set of servers into the same room. They will be operating behind a completely different public IP address on a different subnet. Traffic for that IP address will be coming down the existing/same cable from the wall socket. The new/second network of servers will be on a separate local subnet.
If we will have two separate local networks, my understanding is that we need to add an additional switch. So a cable runs from the wall socket into a new switch. A cable runs from the new switch to our existing Cisco 1800, and another cable runs from the new switch to our new router for the new network. That way traffic for both public/wan IP addresses can get to their respective routers from the wall socket.
So if a new switch is required, then can we re-use the existing HP 24x100/1000 unmanaged switch? Thus;
A cable runs from the wall socket into the HP switch.
A cable runs from the HP switch into the FE0/WAN interface of the Cisco 1800.
A cable runs from the FE1/LAN interface of the Cisco 1800 into the HP switch.
A cable runs from the HP switch into the WAN interface of our new router.
A cable runs from the LAN interface of our new router into the HP switch.
All servers are connected to the HP switch.
Thus all traffic is distributed via the same switch on multiple subnets. Would this work, or would it be better to separate out the traffic first via a switch, or is there a better way of doing this?
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Subscribe now for full access to Experts Exchange and get
Instant Access to this Solution
- Plus...
- 30 Day FREE access, no risk, no obligation
- Collaborate with the world's top tech experts
- Unlimited access to our exclusive solution database
- Never be left without tech help again
Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.
- "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
- "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
- "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.
See what Experts Exchange can do for you.
Got a question?
We've got the answer.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
Need individual assistance?
Our experts are ready to help.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Want to learn from the best?
Read articles from industry experts.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Working on a long term project?
Store your work and research.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
What Makes Experts Exchange Unique?
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Trusted by the world's most respected brands.
Faithfully serving IT professionals since 1996.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Free Tech Articles
-
WARNING: 5 Reasons why you should NEVER fix a computer for free.
It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
-
SCCM OSD Basic troubleshooting
SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
-
Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
-
Create a Win7 Gadget
This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
-
Outlook continually prompting for username and password
There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
-
Backup Exchange 2010 Information Store using Windows Backup
There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...
Cloud Class Webinars
- Avoiding Bugs in Microsoft Access
Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
- Top 10 Best New Features in Visio 2010
Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
- IT Consultant Business Secrets Revealed
Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
- Disaster Recovery and Business Continuity
Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
- Organize Your Visio Diagrams with Containers and Lists
Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
- How to Us Objects, Properties, Events and Methods in Microsoft Access
Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...
Join the Community
Give a Little. Get a Lot.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Answers

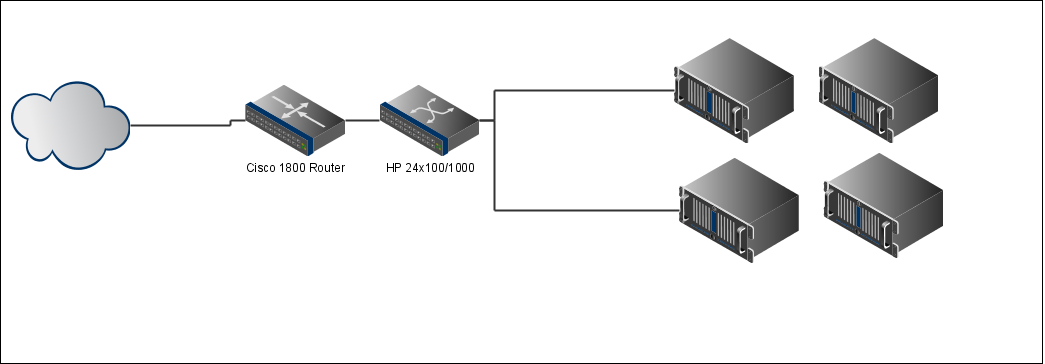

This is the existing network. Additional images to follow...
- Existing-Network.png
- 45 KB
Existing Network Diagram

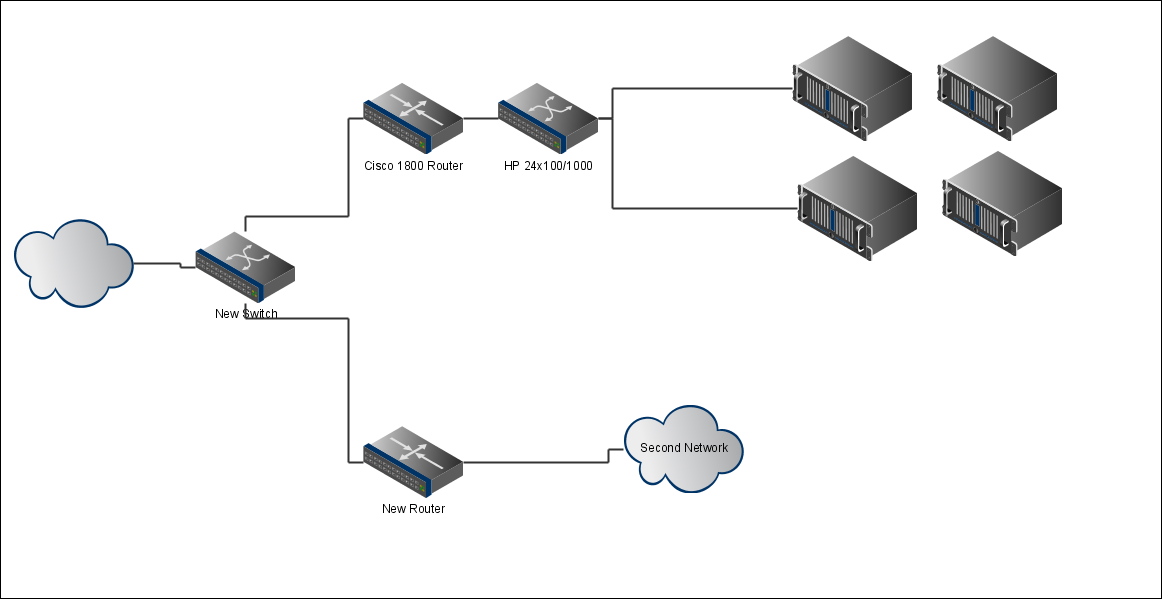

This is a diagram showing the existing network with the new second network at the bottom. I have added a new switch in between the bubble on the left and the existing Cisco 1800 router. One more image to follow ...
- With-Additional-Network.png
- 70 KB
With additional network

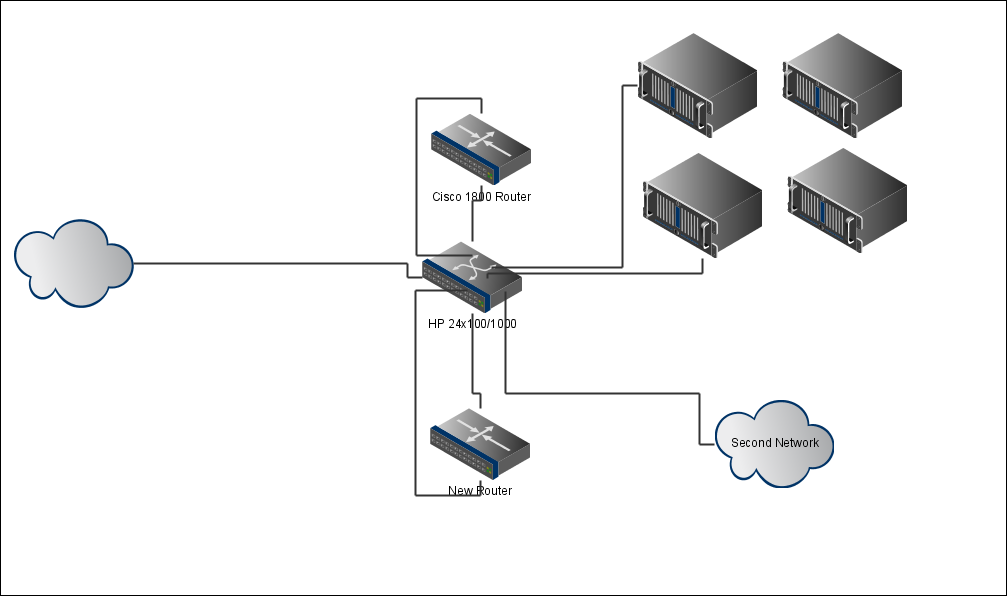

This is a diagram showing everything connected into the same switch. Comment to follow ...
- Everything-into-the-one-switch.png
- 62 KB
Everything into the one switch
First Image: This is the existing network as it is right now. Cisco 1800 router is performing NAT.
Second Image: This is the existing network, with the new network shown too. Traffic from the wall enters a switch. The switch sends the traffic to one of two routers depending on the destination IP. The existing network works as in the first image. The new/second network is at the bottom, and will probably mirror the first network.
Third Image: Ultimately providing the same functionality as the second image, but without the use of an additional switch. Thus the one/single switch is doing all of the work.
Hi Praveen,
Thanks for your comments. We're in Ireland. We haven't been provided with the second IP address yet - I expect that to happen at some stage later today. When I asked how the traffic will be delivered I was told it will be down the same cable as our existing traffic, but perhaps they will put it onto two separate cables - I don't know yet.
Hi,
Actually i am in india its my time to go home. i am just attaching a suggestion.
On monday i will give you some more suggestion.
I am assumin your getting ethernet based ISP connection then u need not to use switch at all to connect from service provider to your router.
Directly connect to routers from there if you have Managed or Unmaged no much difference untill your running on different network .
I think its confusing just sec i will make diagram for it.
Regards,
Praveen
- suggestion.bmp
- 750 KB
suggestioln

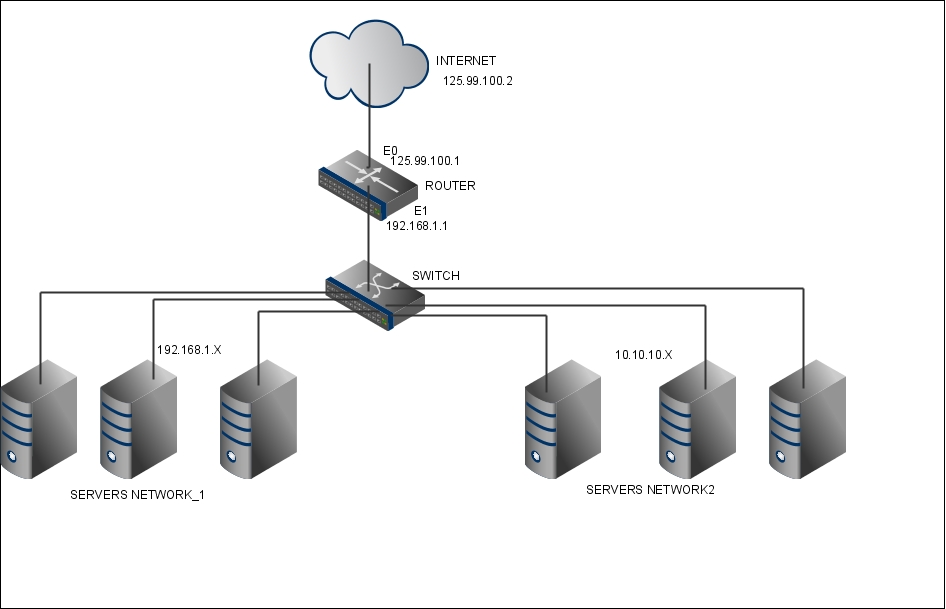

Hi,
