Question

WPF texture mapping problem

Asked by: MareiAlgarni

Hello,

In my XAML code below I have six triangles of MeshGeometry3D which has been displayed OK. The problem is that when I want to map a DrawingBrush (EllipseGeometry) to my material and ImageBrush to back material they can just be mapped to the first two triangles only on each side as shown on pictures attached here. I want actually to map them so they will appear as one ellipse and one picture on each side (one picture stretched  on the six triangles as back material and one ellipse stretched on the six triangles as material).

Note that you may need to reference the well known 3D tools library from http://www.codeplex.com/3DTools and change picture path to run code correctly.

I apprciate all help.

Thanks,
Marei

<Window x:Class="WpfApplication1.Window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:tools="clr-namespace:_3DTools;assembly=3DTools"
    Title="Window1" Height="500" Width="700">
    <Grid Background="Black">
        <tools:TrackballDecorator Name="tb1">
            <Viewport3D Name="viewport3D1">
                <Viewport3D.Camera>
                    <PerspectiveCamera x:Name="camera1"
                                       Position="3 3 3"
                                       LookDirection="-3 -3 -3"
                                       UpDirection="0,1,0"
                                       FieldOfView="45"
                                       >
                    </PerspectiveCamera>
                </Viewport3D.Camera>

                <ModelVisual3D>
                    <ModelVisual3D.Content>
                        <DirectionalLight x:Name="directionalLight1" Direction="-3,-3,-3"/>
                    </ModelVisual3D.Content>
                </ModelVisual3D>

                <ModelVisual3D>
                    <ModelVisual3D.Content>
                        <DirectionalLight x:Name="directionalLight2" Direction="3,3,3"/>
                    </ModelVisual3D.Content>
                </ModelVisual3D>

                <ModelVisual3D>
                    <ModelVisual3D.Content>
                        <DirectionalLight x:Name="directionalLight3" Direction="-3,3,0"/>
                    </ModelVisual3D.Content>
                </ModelVisual3D>
                <ModelVisual3D>
                    <ModelVisual3D.Content>
                        <GeometryModel3D>
                            <GeometryModel3D.Geometry>
                                <MeshGeometry3D x:Name="geometryModel3D1"
                                    Positions="-1,1,0 -1,-1,0 1,-1,0 1,1,0
                                                -1,-1,0 -1,-1,-2 1,-1,-2 1,-1,0
                                                 -1,-1,-2 -1,-3,-2 1,-3,-2 1,-1,-2"
                                    TriangleIndices="0 1 2 0 2 3
                                                     4 5 6 4 6 7
                                                     8 9 10 8 10 11"
                                    TextureCoordinates="0,0 0,1 1,1 1,0">
                                </MeshGeometry3D>
                            </GeometryModel3D.Geometry>

                            <GeometryModel3D.Material>
                                <DiffuseMaterial>
                                    <DiffuseMaterial.Brush>
                                        <DrawingBrush TileMode="Tile" Viewport="0 0 1 1" Stretch="Fill">
                                            <DrawingBrush.Drawing>
                                                <DrawingGroup>
                                                    <GeometryDrawing Brush="Green">
                                                        <GeometryDrawing.Geometry>
                                                            <RectangleGeometry Rect="0 0 10 10" />
                                                        </GeometryDrawing.Geometry>
                                                    </GeometryDrawing>
                                                    <GeometryDrawing Brush="Red">
                                                        <GeometryDrawing.Geometry>
                                                            <EllipseGeometry Center="5 5" RadiusX="2.5" RadiusY="2.5" />
                                                        </GeometryDrawing.Geometry>
                                                    </GeometryDrawing>
                                                </DrawingGroup>
                                            </DrawingBrush.Drawing>
                                        </DrawingBrush>
                                    </DiffuseMaterial.Brush>
                                </DiffuseMaterial>
                            </GeometryModel3D.Material>


                            <GeometryModel3D.BackMaterial>
                                <DiffuseMaterial>
                                    <!--<DiffuseMaterial.Brush>
                                        <SolidColorBrush Color="Red"/>
                                    </DiffuseMaterial.Brush>-->
                                    <DiffuseMaterial.Brush>
                                        <ImageBrush Stretch="Fill" ImageSource="C:\\Documents and Settings\\All Users\\Documents\\My Pictures\\Sample Pictures\\Sunset.jpg" />
                                    </DiffuseMaterial.Brush>

                                </DiffuseMaterial>
                            </GeometryModel3D.BackMaterial>

                        </GeometryModel3D>
                    </ModelVisual3D.Content>
                </ModelVisual3D>

            </Viewport3D>
        </tools:TrackballDecorator>

    </Grid>

</Window>

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:

Select allOpen in new window

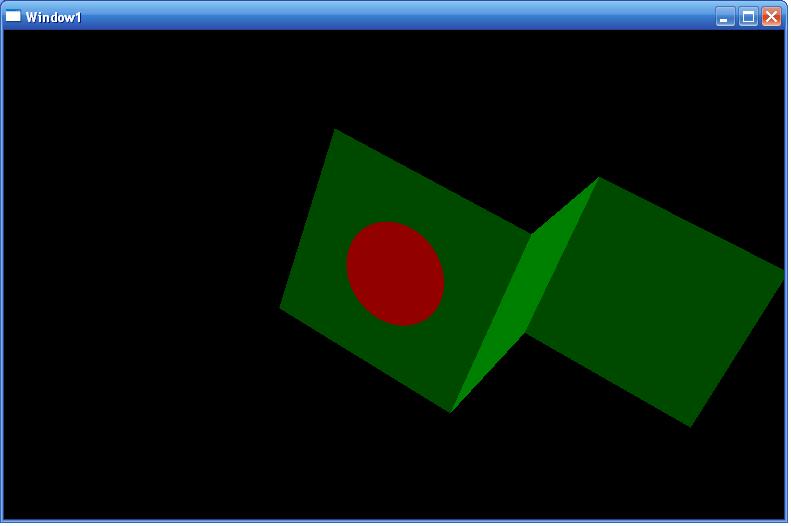

  • 1.JPG
    • 21 KB

    DrawingBrush for GeometryModel3D.Material (appears only on the first two triangles). I need it to stretched on the six triangles available.

    DrawingBrush for GeometryModel3D.Material (appears only on the first two triangles). I need it to stretched on the six triangles available.

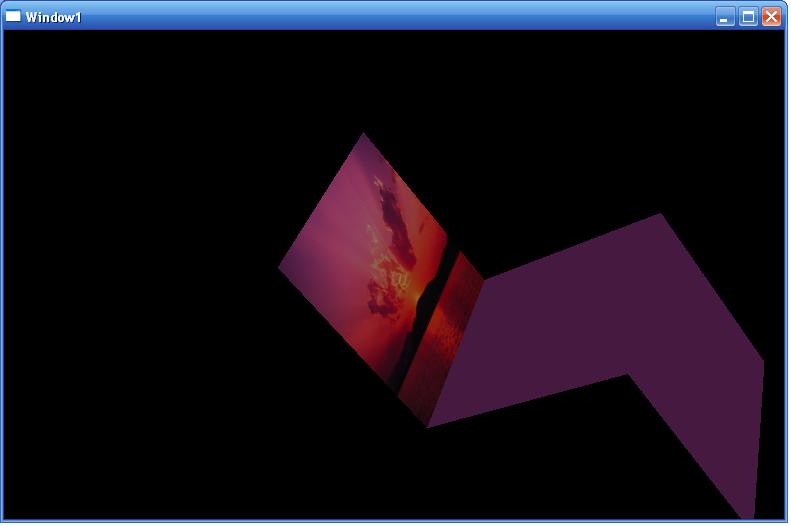

  • 2.JPG
    • 22 KB

    ImageBrush for GeometryModel3D.BackMaterial (appears only on the first two triangles). I need it to stretched on the six triangles available.

    ImageBrush for GeometryModel3D.BackMaterial (appears only on the first two triangles). I need it to stretched on the six triangles available.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-10 at 04:39:06ID24720954
Tags

WPF 3D texture mapping

Topics

WPF and Silverlight

,

.NET

,

Microsoft Visual C#.Net

Participating Experts
0
Points
0
Comments
1

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Texture skinning
    Hi My name is Johan Wendel and Im a "hobby" 3d artist. I have this problem when Im to texture the face of a low polygon character in max r3. when I apply the texture it gets all screwed up. I have recently understood that this is because the face texture isn't stret...
  2. Quad to triangle?
    Anybody know how to convert a polygon that I know the number of vertices into triangles? Thanks Jesse
  3. Texture mapping
    Hi, I have texture mapped a jpeg (256 * 256 pixels) to a quadrilateral (with -1,-1 and 1,1 as the bottomleft and topright corners). Later I stretch it to (-5,-5 and 5,5) to get a zooming effect. Now I am interested in retrieving the RGB values of this stretched texture (rathe...
  4. Simple Texture sample in a single triangle
    Hi guys. I need a simple source code sample what create in DX9 the following screen: - A single triangle with a single texture place in. Thanks for all. zezons.
  5. 3D textures
    I am using OpenGL 3D textures for my project, and I need to be able to slice the texture with a plane, displaying intersection image. The texture, as I understand, is loaded into a unit cube (coordinates normalized to [0,1] range). So when I cut it with an image plane in some...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: MareiAlgarniPosted on 2009-09-10 at 22:26:12ID: 25306859

I have found the solution myself:

 TextureCoordinates=" 0,0 0,0.333 1,0.333 1,0
0,0.333 0,0.666 1,0.666 1,0.333
0,0.666 0,1 1,1 1,0.666 ">
