Question

how to configure ISA 2006 to work as reverse proxy so that one site can be used internally and from outside

Asked by: gdemoura6555

Hi Experts

I have test environment and soon it should be implemented in production.
Here is the scenario I have setup 5 servers (W2k3) in the lab environment with static ips.  Now 4 out of the 5 servers are in one domain are as follow:

DC1--> Primary DC  --> ip 10.1.1.1 subnet: 255.0.0.0 Default gateway: 10.1.1.3
WEB1--> Sharepoint Server (MOSS 2007) --->  ip 10.1.1.2  subnet: 255.0.0.0 Default gateway: 10.1.1.3
DB1--> Sql2005 carrying the Database for Web1:  ip 10.1.1.4  subnet: 255.0.0.0 Default gateway: 10.1.1.3
ISA1--> ISA 2006   has two NICs

NIC 1:  ip 10.1.1.3  subnet: 255.0.0.0    ----> No default gateway
NIC 2: 172.17.1.2 subnet :255.255.255.0 ----> No default gateway

Server 5 is in different domain:
External: 172.17.1.1 subnet :255.255.255.0 Default gateway: 172.17.1.1

Now I have configured Routing and remote access on ISA. I have also setup the DNS in respective Domains. The DNS in internal Domain has Forwarder pointing to external DNS.

The external dns has Host entry in its DNS for external NIC on ISA.

What I am trying to acheive is internal domain connected to internet. Here external DC is acting as ISP and it's DNS. Ultimate goal is to host a website for internal and external users on Web1. On ISA I shall be configuring Reverse proxy for same.
The site is hosted on Sharepoint and its working fine for internal domain

Can any of the expert suggest if I am in right direction? and what am I missing or what can I do to acheive the same

CJ

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-08-19 at 16:14:04ID23661537
Tags

Microsoft

,

Windows

,

2003

,

ISA 2006 MOSS 2007 2 Nics Split DNS

Topics

MS Forefront-ISA

,

Network Design & Methodology

,

Windows 2003 Server

Participating Experts
2
Points
500
Comments
7

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. ISA 2004 Proxy Loop Error
    I'm running ISA 2004 SP 2 on a Windows 2003 Server SP1 and have now for months without any major interruptions. However, now whenever I connect thru VPN and then disconnect my session, nothing will work. No internet, OWA, VPN, Web Site, nothing. When i got here I looked at th...
  2. ISA Sharepoint Inquiry
    We're thinking of deploying Microsoft Office Sharepoint Server 2007 as an internet facing corporate site. We want to use ISA 2006. Can we keep our MOSS 2007 server on our internal network?
  3. Publishing SharePoint with ISA 2006
    I'm trying to publish my MOSS 2007 server via ISA 2006. I completed setting up the web publishing rule and creating the SPS listener in ISA. I also created an Altername Access Mapping in MOSS. My question is, the site I want to publish is on port 8080. Whenever I try to h...
  4. MOSS 2007 and ISA 2006
    Has anyone used MOSS 2007 with ISA 2006 and kerberos constrained delegation? If so, can someone point me to an architecture document and a step by step process to setting it up? If not, any information other than 'the wizard will do it for you' would be great!

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: QuoriPosted on 2008-08-19 at 17:45:10ID: 22265239

You could setup the ISA box in 3-leg perimeter mode and have one of the legs be a DMZ for published servers.



by: lavionlinePosted on 2008-08-19 at 23:32:40ID: 22266701

Looking at the current configuration, the setup looks okay to me. It is organisational requirement and invidual preference which may utimately decide what king of network network you'd like to setup. Some people place their web-servers/SPS servers in DMZ network while some would go with the network design you have.

You can definitely go ahead with this network design. Make sure that you run ISA in firewall mode to take it's full advantage. You can run ISA as a edge firewall facing the internet with an Static public ipaddress on the external NIC. regarding your reverse proxy/publishing requirement of website, you can surely host it on your internal SPS server and make that available to the external world.

You can make use of SSL using certificates to make your website secure. As a reference, you can use the folowing article to publish website. This article talks about publishing OWA website using SSL. in similar fashion, you can publish any website on IAS to be available for external users.

Using the 2006 ISA Firewall (RC) to Publish OWA Sites

http://www.isaserver.org/tutorials/Using-2006-ISA-Firewall-RC-Publish-OWA-Sites-Part1.html



by: gdemoura6555Posted on 2008-08-20 at 09:49:55ID: 22271651

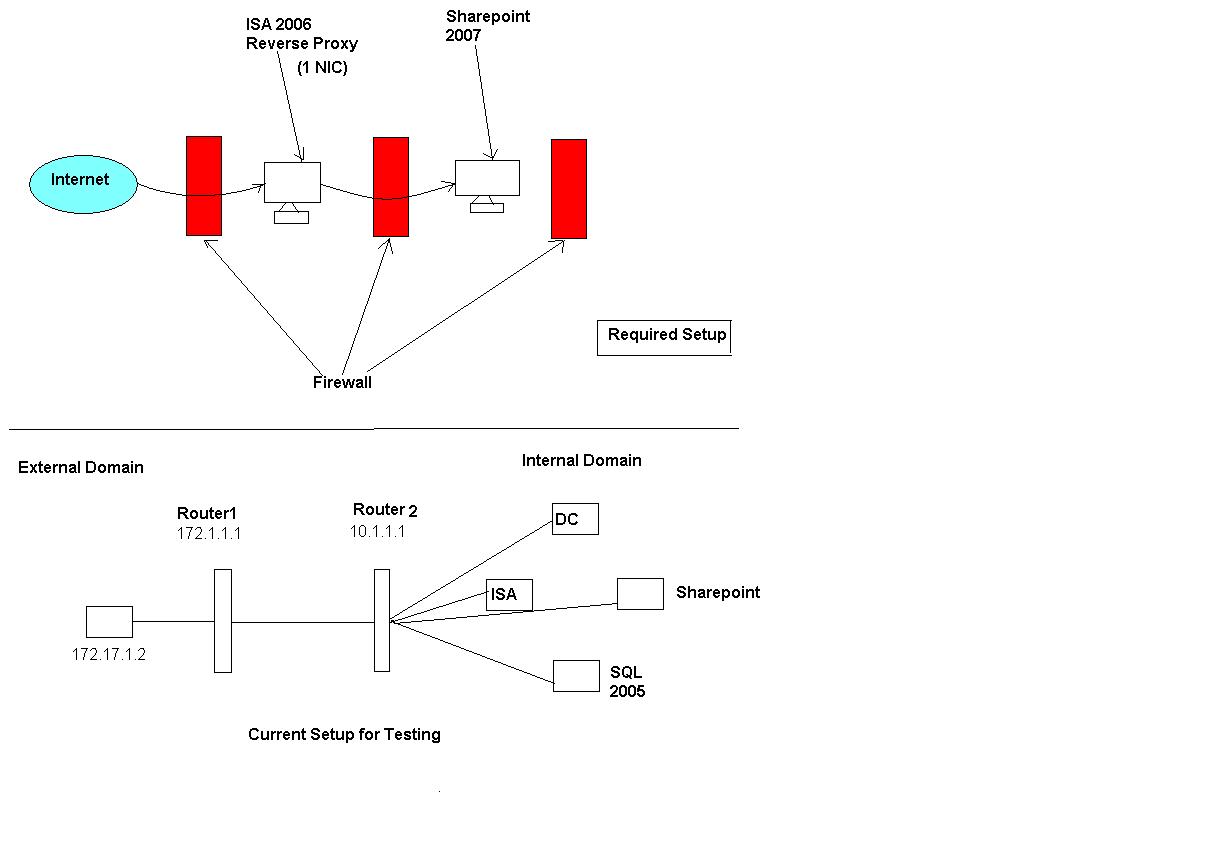

Thanks for your response guys. Now I have a website hosted by Sharepoint. On ISA policy what should I use Publish Websites or Publish Sharepoint Sites. Also we want to use ISA just for reverse proxy purpose and not as firewall.
The thing is in about setup if I uninstall ISA and ping from external server to internal domain it ping fine and replies back with internal ip(the way I have set it up on external dns) but when I install ISA , it blocks that ping.
Also in firewal policy I configured to Publish Sharepoint sites (not sure if thats what I want). We have not yet brought the SSL certificate for our external site so I am testing with http on port 80. Is that ok?

Following link below:
http://blogs.msdn.com/sharepoint/archive/2007/03/06/what-every-sharepoint-administrator-needs-to-know-about-alternate-access-mappings-part-1.aspx

Thanks again

CJ



by: QuoriPosted on 2008-08-20 at 14:23:48ID: 22274088

Publish sharepoint sites.

Add a rule to permit ICMP. Or a rule to permit all/all if you don't want to use its firewall abilities.



by: gdemoura6555Posted on 2008-08-21 at 09:39:57ID: 22281389

Hi Thanks for your response. We had some changes from Network guys so I have a little different setup. Hope you guys would help me with that. I have attached both required setup and what I have for testing. Please suggest how I can acheive this. Thanks again



by: QuoriPosted on 2008-08-21 at 19:51:27ID: 22285927

Do you presently have a hardware firewall option selected?



by: gdemoura6555Posted on 2008-08-22 at 08:24:56ID: 22291005

Not sure where tht option is. Does tht mean ISA will act only as reverse proxy ? Also is above scenario acheivable with one NIC. thanks again
