Question

Need advise on DSL/Router/Terminal server configuration

Asked by: jamie177

We have a satellite office that has 4 people working there. The setup is as folows:

Users are connected to a switch that goes to a router that connects to a DSL modem. (3-6Mb/s up and 768k down)
The users are on thin clients and they connect to our main office's terminal server via the router's VPN connection.

The users have been complaining about the server being slow. They use applications such as Great Plains and other apps that they do queries to our SQL server. They also surf the internet while on the Terminal server. They use roaming profiles. The terminal server is a virtual machine on an ESX (VMware) box. We have 2 ESX boxes, they share the load between about 6 servers. Utilization on the ESX boxes do not seem to be high or not normal.
When I RDP to the Terminal server from inside the network it seems to be fine.
The biggest complaint is that the internet is very slow.

My question is what can I do to fix this? I was thinking about getting another dsl line and another router so I can have 2 people dedicated to each. My boss asked about putting another network card in the router so we can use 2 dsl connections. Is this possible since we use vpn to do everything?






This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-06-10 at 09:05:42ID24479896
Tags

DSL

,

router

,

Terminal server

,

Load balancing

,

VPN

,

esx

,

vmvare

Topics

DSL Lines / Cable Internet

,

Virtual Private Networking (VPN)

,

Network Routers

Participating Experts
2
Points
500
Comments
15

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. DSL Upload speed and RDP connections
    OK, I have a simple question. Does upload speed effect RDP connections? I have setup RDP connections to desktop PCs through a firewall for attorneys at a law firm. They do not want to connect to the server, but rather their own PCs. SO, I got it up and running and they can co...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: jamie177Posted on 2009-06-10 at 09:09:14ID: 24593245

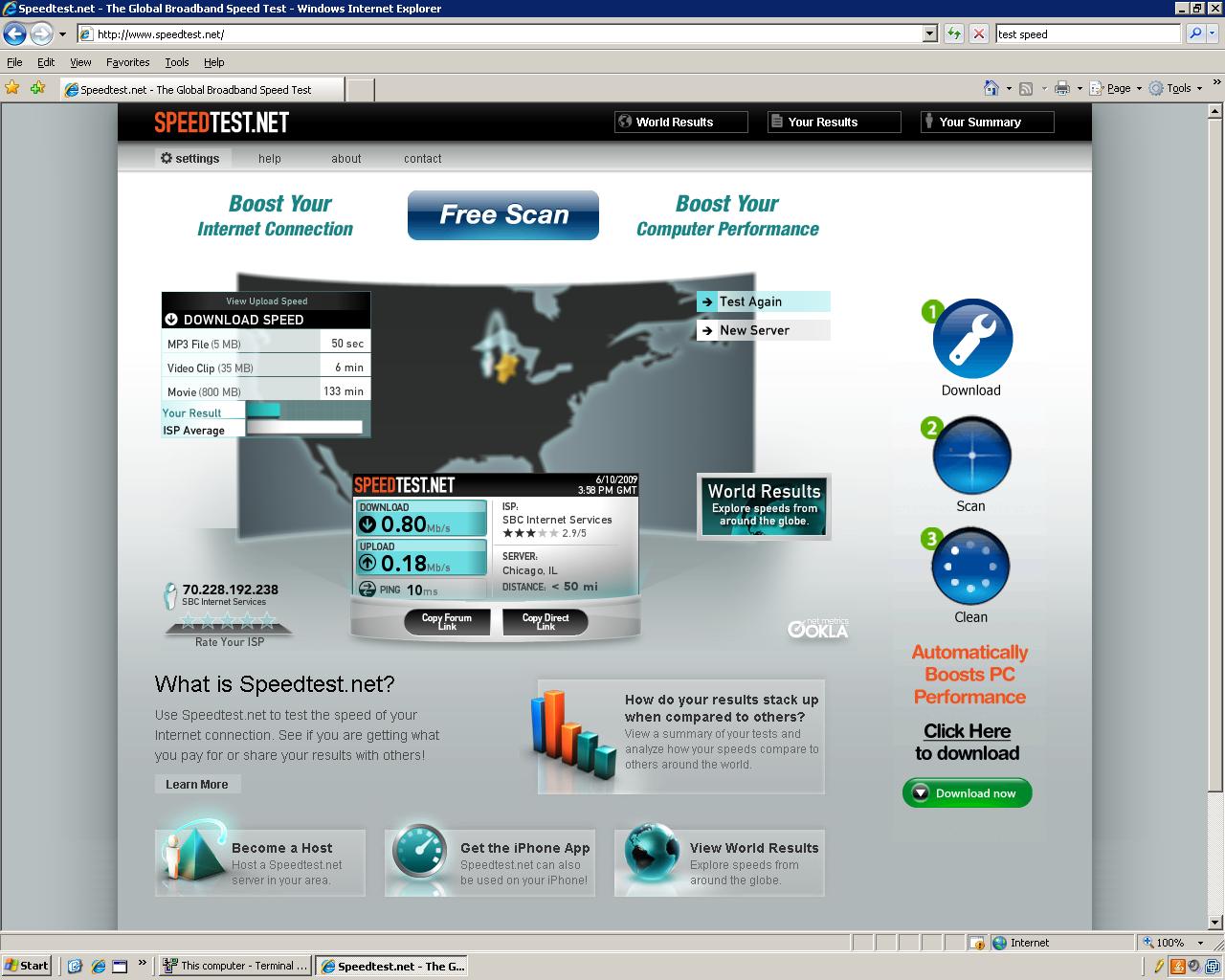

Update - I just did a speed test from our terminal server. (I rdp'd to it from inside the network..)
The servers are connected via switch (cisco 3560) to a cisco router breaking up a T1)

  • 1.JPG
    • 165 KB

    sucky connection

    sucky connection


by: jmarti80Posted on 2009-06-10 at 09:27:41ID: 24593455

The screen shot above tells you all you need to know.  It looks like it's a simple bandwidth issue.  VPN alone takes up extra bandwidth because it is encrypting everything that passes through the network, coupled with the use of terminal services, I don't think your DSL line can handle it.  Your statement that everything from the inside seems to work fine further supports this.

I would verify this by connecting directly to the Modem (configure your laptop with the static IP's and GW provided to you by the ISP) and then running the same speed test.  This will tell you the true bandwidth that your ISP provides, if it is significantly higher, then that basically suggests that your users are using the bandwidth and you definetly need to increase it.  If it is the same as the screen shot above, then the problem is on the ISP side for sure.

My suggestion would be to simply increase the Bandwidth provided to you by your ISP (provided that the above is done).  I wouldn't add anymore lines, I would just contact your ISP and see if they can increase your bandwidth on that line.  If not, then you may have to go with a T1 or higher with increase pipes.

Good luck.



by: jamie177Posted on 2009-06-10 at 12:43:21ID: 24595472

I talked to AT&T earlier. They said we have the fastest DSL they offer.


T-1 is pretty much out of the question.



by: emilgasPosted on 2009-06-10 at 13:07:22ID: 24595756

First of all what kind of a router do you use at your satellite office?
What type of VPN hardware do you use at the corporate? VPN concentrators etc...

If you do not have invested in expensive equipment at the satellite office then you should consider a router with two WAN ports which will allow you to add another internet connection, either DSL or Cable. This way you don't have to go with T1. It would be way cheaper to and another ISP. I would recommend Cable so you don't have to get another phone line into the office.

Check it out; something like this will do it:
http://www.tomsguide.com/us/linksys-rv082-10-rv082,review-257.html
It is a Linksys product but will work with you existing Cisco network without any problems.

One more thing... That Speed test that you did was it done from the satellite office or from the corporate office. I know you did it from Terminal Services, but where did you do it from?



by: jamie177Posted on 2009-06-10 at 13:21:01ID: 24595927

cisco 2620xm is the router that we have at the satellite office I believe.
VPN is from the router or our PIX515e. I can't remember at the moment.


The speed test was from me rdp'd to the terminal server from my computer inside the corporate office. It was on the Terminal server's browser. I did one from my computer and got a similar speed.



by: emilgasPosted on 2009-06-10 at 13:53:37ID: 24596330


Wow, in that case the internet at your corporate office is pretty slow too. What kind of internet connection do you have?

Can you do the speed test from your Satellite Office but not using the RDP? Just opening the browser and doing it. This way you are not going through your VPN (that's if the router is doing Split Tunneling) meaning that anything that is not going to Corp it doesn't transfer through the VPN just uses the "plain" internet connection. I would be surprised if the internet speed would sill be slow.

At this moment I don't think your Satellite office internet connection is that slow. It is your Corp Internet.
Internet.



by: jamie177Posted on 2009-06-10 at 14:02:45ID: 24596441

T1 at corp
At the satellite office they are using thin clients so I can't do a speed test without logging on to the network.

I think it may be on this side also. I'm going to try to log in tonight and see if the terminal server is slow on the internet for me. If it is then I know it a corporate problem.



by: jamie177Posted on 2009-06-11 at 07:09:23ID: 24602484

I logged in from home via vpn and tried it out. I'm almost certain that it is the vpn connection.
If I enable split tunneling would it slow down the traffic that tunnels to corporate?



by: emilgasPosted on 2009-06-11 at 08:29:26ID: 24603502

In your particular case it would not make a difference since all of your traffic needs to go through VPN. Am I right? Your thin clients cannot do anything without the RDP to terminal server. Your Thin Clients cannot even get on the internet on their own. Split tunneling is only if you want to split your traffic into two categories: Things going to Corp (VPN) and things that are not going to Corp (Internet). If that was the case then you would have seen some improvement on your VPN connection because not everybody is utilizing the VPN connection at a given point in time.

But in your case thin clients are designed to do everything over the VPM. Therefore, split tunneling wouldn't do anything because there is not traffic to split everything is going through the VPN



by: jamie177Posted on 2009-06-11 at 09:15:06ID: 24604035

emilgas-

yes and no.

We have 3 people that use thin clients and 1 who uses his laptop. I need to figure out how to make everyone win. (the guy with the laptop is the CEO) :)




by: emilgasPosted on 2009-06-11 at 11:41:25ID: 24605404

Do you know how to check to see if the split tunneling is present?

Check your public IP address on the internet (www.whatismyip.com). Go to the website both from a PC from the headquarter office, and from that CEO's laptop. If the IP addresses are the same then there is no split tunneling. But if Ip is different then there is.



by: jamie177Posted on 2009-06-11 at 12:52:33ID: 24606133

He is in Texas, I'm in Chicago..

It's not enabled. I use Cisco ASDM to control my firewall and vpn settings. It's not enabled in the PIX. Also, I can tell it's not enabled because while connected, his internet explorer won't work.

I was thinking that maybe setting the MTU would help. They are using DSL and I read about problems with the default being 1500 on DSL. I am going to set it down to 1272 tonight. I would do it now but I am scared it will interrupt their work.

Other than that I don't know..
I don't think the problem is the terminal server because it is fine if I RDP from internal. I doubt it is the DSL line because I get the same problem when I remote from home.
I do think it is the VPN, but I'm not sure why or how to fix it. I'm really hoping that the MTU settings will help.




by: jamie177Posted on 2009-06-12 at 06:05:26ID: 24611756

Does anyone know what I can do for the thin client users? I need to speed up their connection.



by: emilgasPosted on 2009-06-12 at 09:32:12ID: 24613837

I wouldn't mess with the MTU unless you are 100% sure. Secondly, who told you to change it to 1272. I always thought it was 1492, but I don't have that much background.

Again, this is an area that I don't have much expertese. Read the following article

http://www.dslreports.com/faq/5793



by: jamie177Posted on 2009-06-23 at 07:51:10ID: 31590950

Came to conclusion that it was a bandwidth issue.
