VLAN problem with remote site on Metro Ethernet

Asked by: CityofKerrville

Hello EE,

Many of you have been following my posts pertaining to a major upgrade to Metro Ethernet.  Last Thursday evening, we moved forward with 4 of our sites.  Everything went very smoothly until we got to SITE D.  This is when we ran across what we believe to be a VLAN tag related issue.  Here is the rundown of what we did.

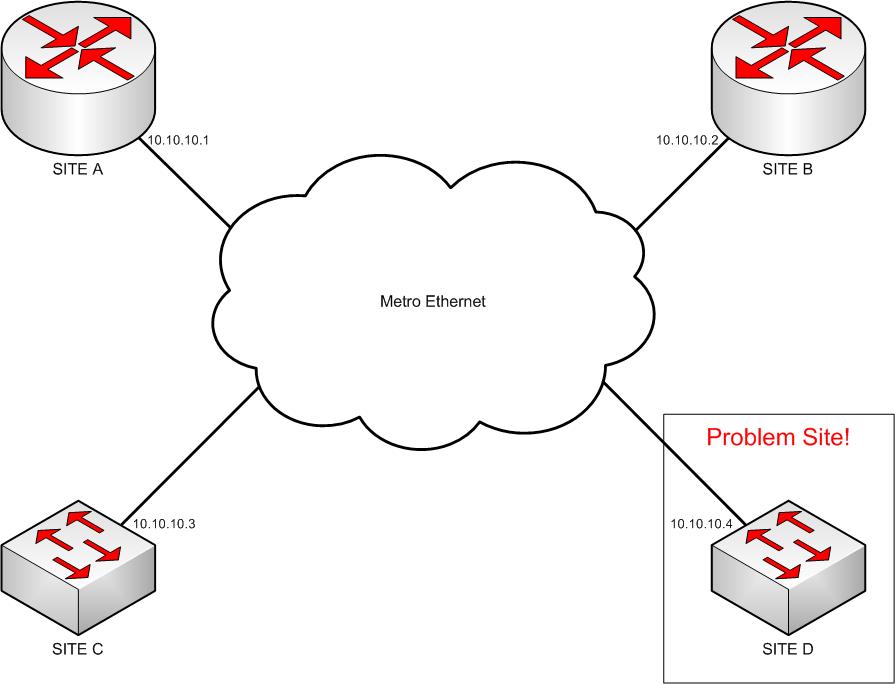

SITE A:
We installed a Cisco 2821 router in our main data center.  This new router is touching the metro cloud and we assigned the metro port the address 10.10.10.1.  Another port on this device is connected back to our existing network infrastructure.  Remote sites are to be migrated from the existing network to the fiber one at a time.  All routes are good and tested.  The Router is up and routing traffic right now.

SITE B:
We installed a Cisco 2811 router in the data center at our Police Station.  This router is touching the metro cloud and has an address of 10.10.10.2.  The other port on this device is connected to the switches that contain all the users and server on the 192.168.111.0 subnet.  Addresses are statically assigned.  All routes are good and tested.  The Router is up and routing traffic right now.

SITE C:
We installed a Cisco 3560 switch on this site.  L2 routing capabilities are enabled.  The switch is touching the metro cloud and has an address of 10.10.10.3.  There is a VLAN20 interface with the address 192.168.109.1.  All the users connected to this switch are assigned to VLAN20, and address are assigned through DHCP.  All routes are good and tested.

SITE D:
We installed a Cisco 3560 switch on this site.  The switch and the configuration is identical to the switch at SITE C, with the exception of the hostname and the IP addresses.  The switch is touching the metro cloud and has an address of 10.10.10.4.

Here is where the problem begins.   When I plugged it in and did a few housekeeping procedures (i.e. removed erroneous routes) interface VLAN20 would not come up no matter what I tried.  From the switch console i could ping everything on the network, but nobody else could see past the metro port at site D.  Here is some of the the step I took to resolve the issue.

blew away the vlan20 interface and started over - NO CHANGE
created a new vlan interface (VLAN220) and assigned the network ip address to that - NO CHANGE
reloaded the config from our TFTP server - NO CHANGE
reloaded the config from the switch at SITE C and changed hostname, ip's, etc - NO CHANGE
replaced with a whole different switch - NO CHANGE

Nothing I did would bring that vlan interface up.  Finally our desperation and pure exhaustion, at 11:45, I decided to assigned the network ip to the vlan1 interface and what do you know, all the ports on the switch that were lit up amber all turned green and all the pc's at SITE D started grabbing DHCP.  We desided to leave it alone for now and research what went wrong.  so my question is this.

Why would the VLAN20 interface not come online?
Did it have something to do with an active VLAN20 running at site C?

An earlier post here suggests that the switches are oblivious to the VLANS on other switches in a setup like this.

What more should I be looking at?
What are the dangers of running traffic on VLAN1?

The hard part is done.  Now we need to work out the kinks before we move the other 7 sites over.  I have attached a diagram and the configs I want to use for reference.

~~~~~~~~~~~~~~~~~~~~~SITE A~~~~~~~~~~~~~~~~~~~~~~~~~~~~

!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname CHR1
!
boot-start-marker
boot system flash:c2800nm-adventerprisek9-mz.124-20.T1.bin
boot-end-marker
!
logging message-counter syslog
logging buffered 51200 warnings
enable secret 5 *****
enable password 1*****
!
no aaa new-model
!
dot11 syslog
ip source-route
!
!
no ip cef
!
!
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice-card 0
 no dspfarm
!
!
username netmaster privilege 15 secret 5 *****
archive
 log config
  hidekeys
!
!
interface GigabitEthernet0/0
 description VLAN30 SERVERS
 shutdown
 duplex auto
 speed auto
!
interface GigabitEthernet0/1
 description METRO ETHERNET
 ip address 10.10.10.1 255.255.255.240
 ip helper-address 192.168.101.215
 duplex auto
 speed auto
!
interface FastEthernet0/0/0
 description VLAN10 MGMT-IT
 switchport access vlan 10
!
interface FastEthernet0/0/1
 description ASA 5510 FIREWALL
!
interface FastEthernet0/0/2
 description VLAN20 CITY HALL
 switchport access vlan 20
!
interface Serial0/1/0
 description T1 DIRECT LINK AIRPORT
 ip address 192.168.1.25 255.255.255.248
!
interface FastEthernet0/2/0
 description LINK TO OLD NETWORK
 ip address 192.168.101.5 255.255.255.0
 duplex auto
 speed auto
!
interface Vlan1
 no ip address
!
interface Vlan10
 description MGMT DEVICES CONNECTED TO FE0/0/0
 ip address 192.168.96.1 255.255.255.0
!
interface Vlan20
 description CITY HALL DEVICES CONNECTED TO FE0/0/2
 ip address 192.168.100.1 255.255.255.0
!
router eigrp 1
 network 192.168.96.0
 network 192.168.100.0
 network 192.168.101.0
 network 192.168.1.0
 network 10.10.10.0
 auto-summary
!
ip classless
ip route 0.0.0.0 0.0.0.0 FastEthernet0/2/0
ip route 192.168.96.0 255.255.255.0 FastEthernet0/0/0
ip route 192.168.100.0 255.255.255.0 FastEthernet0/0/2
ip route 192.168.101.0 255.255.255.0 GigabitEthernet0/0
ip route 192.168.102.0 255.255.255.0 192.168.101.9
ip route 192.168.103.0 255.255.255.0 192.168.101.9
ip route 192.168.114.0 255.255.255.0 192.168.101.9
ip route 192.168.104.0 255.255.255.0 10.10.10.5
ip route 192.168.105.0 255.255.255.0 10.10.10.6
ip route 192.168.106.0 255.255.255.0 10.10.10.7
ip route 192.168.107.0 255.255.255.0 10.10.10.9
ip route 192.168.108.0 255.255.255.0 Serial0/1/0
ip route 192.168.109.0 255.255.255.0 10.10.10.3
ip route 192.168.110.0 255.255.255.0 10.10.10.4
ip route 192.168.111.0 255.255.255.0 10.10.10.2
ip route 192.168.112.0 255.255.255.0 10.10.10.10
ip route 192.168.113.0 255.255.255.0 10.10.10.8
no ip http server
no ip http secure-server
!
!
control-plane
!
!
line con 0
 login local
line aux 0
line vty 0 4
 access-class 23 in
 privilege level 15
 password *****
 login local
 transport input telnet
line vty 5 15
 access-class 23 in
 privilege level 15
 password *****
 login local
 transport input telnet
!
scheduler allocate 20000 1000
end

~~~~~~~~~~~~~~~~~~~~~SITE B~~~~~~~~~~~~~~~~~~~~~~~~~~~~

!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname PDR1
!
boot-start-marker
boot-end-marker
!
enable secret 5 *****
enable password *****
!
no aaa new-model
!
resource policy
!
ip subnet-zero
!
!
no ip cef
!
!
!
!
!
interface FastEthernet0/0
 description VLAN100 traffic from CHR1
 ip address 10.10.10.2 255.255.255.240
 duplex auto
 speed auto
!
interface FastEthernet0/1
 description KPD SWITCH
 ip address 192.168.111.1 255.255.255.0
 duplex half
 speed auto
 no mop enabled
!
router eigrp 1
 network 10.10.10.0
 network 192.168.111.0
 auto-summary
!
ip classless
ip route 0.0.0.0 0.0.0.0 10.10.10.1
ip route 192.168.96.0 255.255.255.0 10.10.10.1
ip route 192.168.100.0 255.255.255.0 10.10.10.1
ip route 192.168.101.0 255.255.255.0 10.10.10.1
ip route 192.168.102.0 255.255.255.0 10.10.10.1
ip route 192.168.103.0 255.255.255.0 10.10.10.1
ip route 192.168.114.0 255.255.255.0 10.10.10.1
ip route 192.168.104.0 255.255.255.0 10.10.10.5
ip route 192.168.105.0 255.255.255.0 10.10.10.6
ip route 192.168.106.0 255.255.255.0 10.10.10.7
ip route 192.168.107.0 255.255.255.0 10.10.10.9
ip route 192.168.108.0 255.255.255.0 10.10.10.1
ip route 192.168.109.0 255.255.255.0 10.10.10.3
ip route 192.168.110.0 255.255.255.0 10.10.10.4
ip route 192.168.111.0 255.255.255.0 FastEthernet0/1
ip route 192.168.112.0 255.255.255.0 10.10.10.10
ip route 192.168.113.0 255.255.255.0 10.10.10.8
no ip http server
no ip http secure-server
!
!
control-plane
!
!
line con 0
line aux 0
line vty 0 4
 password *****
 login
!
scheduler allocate 20000 1000
!
end

~~~~~~~~~~~~~~~~~~~~~SITE C~~~~~~~~~~~~~~~~~~~~~~~~~~~~

!
version 12.2
no service pad
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname COURT
!
enable secret 5 *****
enable password *****
!
no aaa new-model
system mtu routing 1500
ip subnet-zero
ip routing
!
!
!
!
no file verify auto
spanning-tree mode pvst
spanning-tree extend system-id
!
vlan internal allocation policy ascending
!
interface FastEthernet0/1
 switchport mode access
 switchport access vlan 20
 spanning-tree portfast
!
~~~~~~~~INTERFACES TRUNCATED
!
interface FastEthernet0/24
 description VLAN20 traffic from CHR1
 no switchport
 ip address 10.10.10.3 255.255.255.240
!
interface GigabitEthernet0/1
!
interface GigabitEthernet0/2
!
interface Vlan1
 no ip address
 shutdown
!
interface Vlan10
 description MGMT ACCESS
 ip address 192.168.96.51 255.255.255.0
!
interface Vlan20
 description COURT
 ip address 192.168.109.1 255.255.255.224
 ip helper-address 192.168.101.215
!
router eigrp 1
 network 10.10.10.0
 network 192.168.96.0
 network 192.168.109.0
!
ip classless
ip route 0.0.0.0 0.0.0.0 10.10.10.1
ip route 192.168.96.0 255.255.255.0 10.10.10.1
ip route 192.168.100.0 255.255.255.0 10.10.10.1
ip route 192.168.101.0 255.255.255.0 10.10.10.1
ip route 192.168.102.0 255.255.255.0 10.10.10.1
ip route 192.168.103.0 255.255.255.0 10.10.10.1
ip route 192.168.114.0 255.255.255.0 10.10.10.1
ip route 192.168.104.0 255.255.255.0 10.10.10.5
ip route 192.168.105.0 255.255.255.0 10.10.10.6
ip route 192.168.106.0 255.255.255.0 10.10.10.7
ip route 192.168.107.0 255.255.255.0 10.10.10.9
ip route 192.168.108.0 255.255.255.0 10.10.10.1
ip route 192.168.110.0 255.255.255.0 10.10.10.4
ip route 192.168.111.0 255.255.255.0 10.10.10.2
ip route 192.168.112.0 255.255.255.0 10.10.10.10
ip route 192.168.113.0 255.255.255.0 10.10.10.8
no ip http server
!
!
control-plane
!
!
line con 0
line vty 0 4
 password *****
 login
line vty 5 15
 password *****
 login
!
end

~~~~~~~~~~~~~~~~~~~~~SITE D~~~~~~~~~~~~~~~~~~~~~~~~~~~~

!
version 12.2
no service pad
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname KSP
!
enable secret 5 *****
enable password *****
!
no aaa new-model
system mtu routing 1500
ip subnet-zero
ip routing
!
!
!
!
no file verify auto
spanning-tree mode pvst
spanning-tree extend system-id
!
vlan internal allocation policy ascending
!
interface FastEthernet0/1
 switchport mode access
 switchport access vlan 20
 spanning-tree portfast
!
~~~~~~~~~~~~~INTERFACES TRUNCATED
!
interface FastEthernet0/24
 description METRO ETHERNET PORT
 no switchport
 ip address 10.10.10.4 255.255.255.240
!
interface GigabitEthernet0/1
!
interface GigabitEthernet0/2
!
interface Vlan1
 no ip address
 shutdown
!
interface Vlan10
 description MGMT ACCESS
 ip address 192.168.96.54 255.255.255.0
!
!
interface Vlan20
 description KSP
 ip address 192.168.110.1 255.255.255.224
 ip helper-address 192.168.101.215
!
router eigrp 1
 network 10.10.10.0
 network 192.168.96.0
 network 192.168.110.0
!
ip classless
ip route 0.0.0.0 0.0.0.0 10.10.10.1
ip route 192.168.96.0 255.255.255.0 10.10.10.1
ip route 192.168.100.0 255.255.255.0 10.10.10.1
ip route 192.168.101.0 255.255.255.0 10.10.10.1
ip route 192.168.102.0 255.255.255.0 10.10.10.1
ip route 192.168.103.0 255.255.255.0 10.10.10.1
ip route 192.168.114.0 255.255.255.0 10.10.10.1
ip route 192.168.104.0 255.255.255.0 10.10.10.5
ip route 192.168.105.0 255.255.255.0 10.10.10.6
ip route 192.168.106.0 255.255.255.0 10.10.10.7
ip route 192.168.107.0 255.255.255.0 10.10.10.9
ip route 192.168.108.0 255.255.255.0 10.10.10.1
ip route 192.168.109.0 255.255.255.0 10.10.10.3
ip route 192.168.111.0 255.255.255.0 10.10.10.2
ip route 192.168.112.0 255.255.255.0 10.10.10.10
ip route 192.168.113.0 255.255.255.0 10.10.10.8
no ip http server
!
!
control-plane
!
!
line con 0
line vty 0 4
 password *****
 login
line vty 5 15
 password *****
 login
!
end
