Thanks for the reply. what happens in the first scenario if a failure occurs on one of the links and my internal core switch keeps forwarding the traffic over the link that no longers exists?
Main Topics
Browse All Topics
Loading Advertisement...
Question
Designing for two WAN (non Internet) links.
Hi Guys,
I have tried to make the attached diagram as simple as I could. The scenario is:
Till recently we had only one ISP1 giving us intrasite MPLS VPN connectivity. We ran into major support issues with them and have hence decided to bring in a second ISP2 providing us alternative MPLS VPN links to three of our Site offices spread across two continents. We are sitting in say: Site 1.
At all the three sites, the MPLS links terminate on ISP administered routers (1800 ciscos).
Till now, it was simple, the ethernet interface used to come in and terminate on our L3 core swiitches but the problem starts now when second ISP2 will terminate his connections.
Is there a way I can utilise both the links in a load balancing manner rather than keeping one link purely in the passive way?
Which all routing routers will I have to bring into picture? Can GLBP be of help here? I need to minimise my dependence on this I have to involve ISP1 for they take months to even ad a summarised route onto their network when we raise a request to them.
ISP2 will hopefully be more proactive and they are even willing to administer the 'ISP2 Router1' which will eventually sit in our premises.
Pls advise

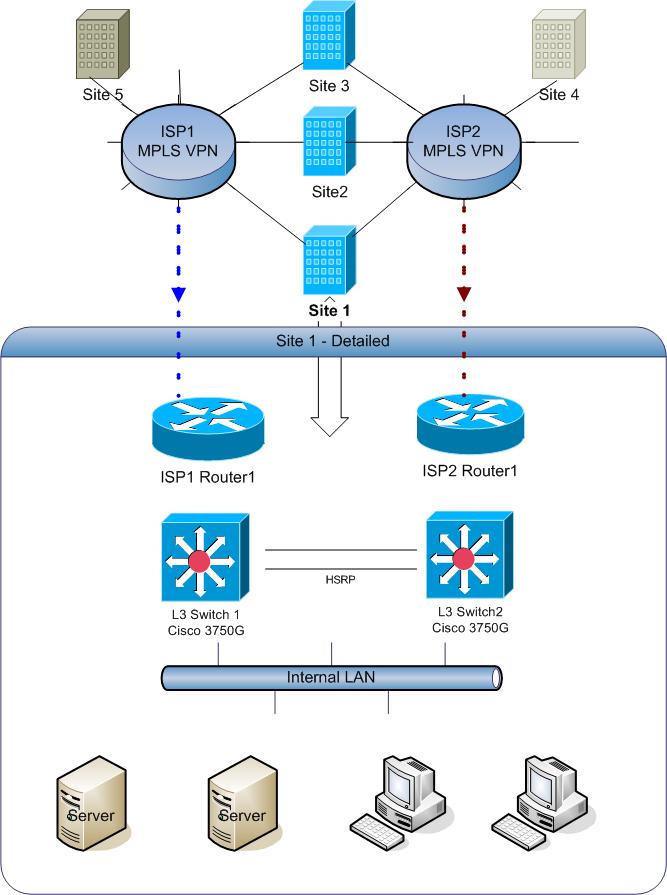

- MPLS-103.jpg
- 62 KB
WAN links diagram
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Subscribe now for full access to Experts Exchange and get
Instant Access to this Solution
- Plus...
- 30 Day FREE access, no risk, no obligation
- Collaborate with the world's top tech experts
- Unlimited access to our exclusive solution database
- Never be left without tech help again
Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.
- "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
- "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
- "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.
See what Experts Exchange can do for you.
Got a question?
We've got the answer.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
Need individual assistance?
Our experts are ready to help.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Want to learn from the best?
Read articles from industry experts.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Working on a long term project?
Store your work and research.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
What Makes Experts Exchange Unique?
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Trusted by the world's most respected brands.
Faithfully serving IT professionals since 1996.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Free Tech Articles
-
WARNING: 5 Reasons why you should NEVER fix a computer for free.
It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
-
SCCM OSD Basic troubleshooting
SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
-
Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
-
Create a Win7 Gadget
This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
-
Outlook continually prompting for username and password
There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
-
Backup Exchange 2010 Information Store using Windows Backup
There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...
Cloud Class Webinars
- Avoiding Bugs in Microsoft Access
Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
- Top 10 Best New Features in Visio 2010
Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
- IT Consultant Business Secrets Revealed
Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
- Disaster Recovery and Business Continuity
Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
- Organize Your Visio Diagrams with Containers and Lists
Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
- How to Us Objects, Properties, Events and Methods in Microsoft Access
Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...
Join the Community
Give a Little. Get a Lot.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Answers
You can terminate both the ISP routers on your L3 switch 1 and 2 ( refer the attached diagram, you can even use an unmanaged switch for splitting), and do dynamic routing with your ISP routers. IGP like EIGRP or OSPF are easiest to implement equal cost path load balancing.
You will need to do this at all 3 sites. Using a dynamic protocol will enable you to learn if any of the ISP is down.
ISPs generally run BGP within their network but you are fine if you convience them to run EIGRP between your switch and the ISP router. They can redistribute the routes on their router and your L3 switches will knw when the link is down.
Since you are running HSRP between switch 1 and 2, one of them would be active and the other would be passive. If you will not split the link between the ISP router and the L3 switches then you would unnecessarily send traffic over the trunk link between the two switches. It will also take care of the scenario when your primary L3 switch is completely down.

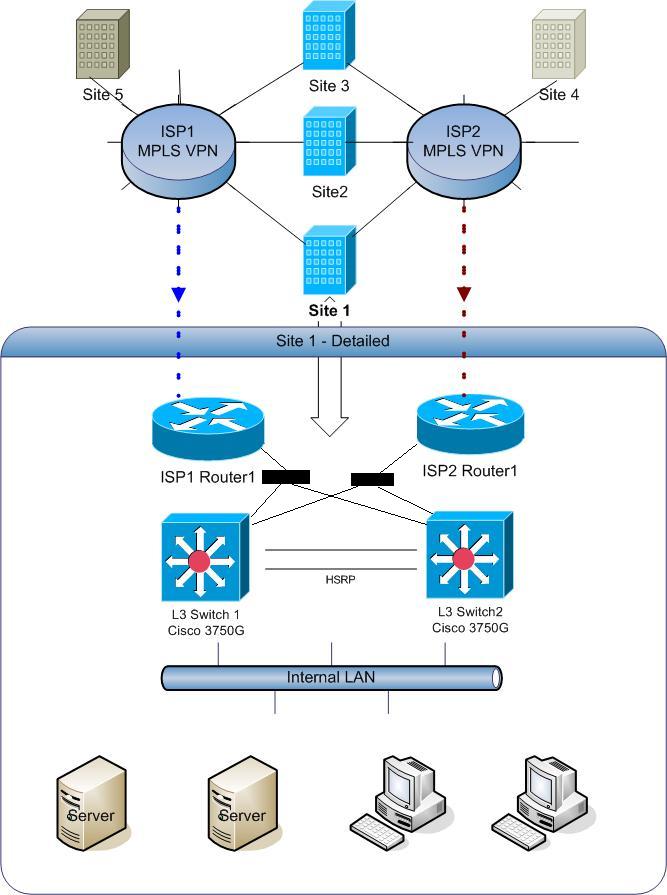

- MPLS-103.jpg
- 65 KB
suggestion to your MPLS architecture
Alternative to the complex cisco configurations and reduce my dependency on ISP1 and 2 for enabling BGP etc., is there a third party alternative who would give the required functionality of 'Links Redundancy', auto failover and certain level of 'load sharing' ot of the box?
If there was a way to increase the points I would have :(
If you want to keep things simple and load balance, then we are back to using equal cost static routes on your core switches. This will load balanace and send half the traffic out of ISP1 and half out of ISP2.
If you want automatic failover, then the best way to do this is using BGP.
what you are trying to do is by its nature complex, and there isn't really a simpler way of doing this.
3 Ways to Join
Business Accounts
- Perfect for organizations
- Multiple users
- Save over 36%
- Create a Business Account
Answer for Membership
- Earn free access
- Showcase your knowledge
- No credit card required
- Sign Up to Answer
Loading Advertisement...
by: cstosgalePosted on 2009-03-22 at 15:47:45ID: 23953736
Very simply, at each site, get your core switches to have equal cost routes to each ISPs edge router for your other . you can even do this with static routes, although this won't detect a failure on one of your MPLS links. If you are doing dynamic routing with your MPLS service providers, just manipulate the routing in such a way that you have equal cost routes in your core switches routing tables. They will then automatically load balance between the routes.
