Question

Migrating to VLAN solution

Asked by: irmando

Hello,

We are planning to change our current topology to use VLAN.  The main reason is due to relocation and hence not to restrict groups of users to the same location or floors in the building.  Please refer to attached diagram (simplified version).

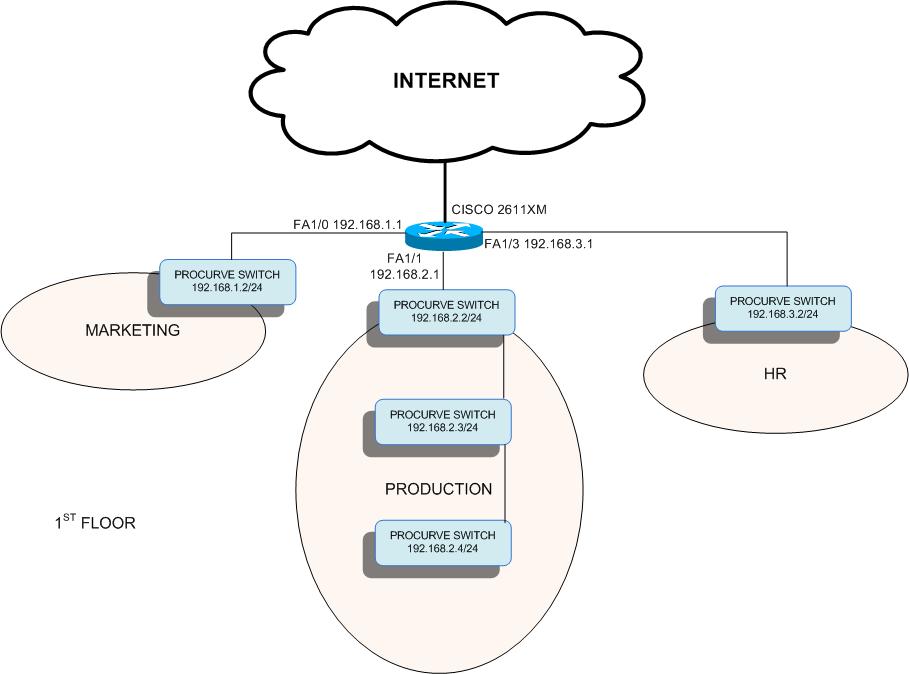

There is a router, Cisco 2611XM and several different models of HP ProCurve switches.

Router info:
Cisco IOS Software, C2600 Software (C2600-IPBASE-M), Version 12.4(3i), RELEASE ROM: System Bootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1)
ROM: C2600 Software (C2600-I-M), Version 12.3(23), RELEASE SOFTWARE (fc5)
System image file is "flash:c2600-ipbase-mz.124-3i.bin"

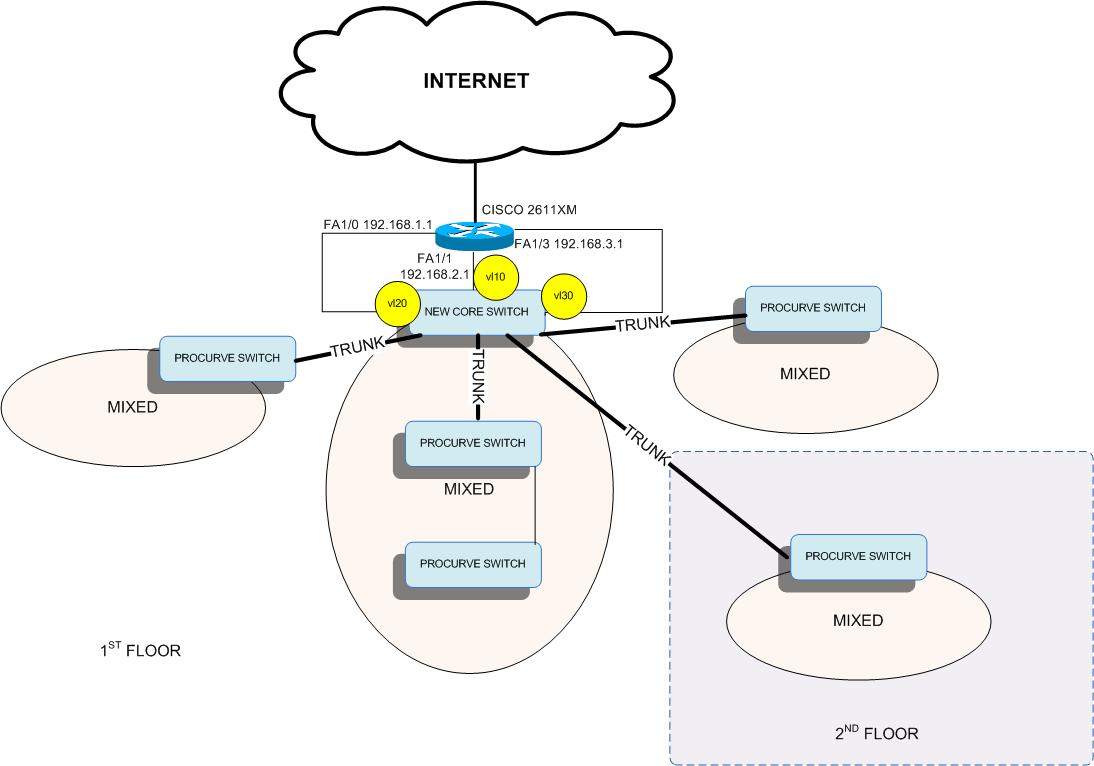

There are currently many interfaces on the router, each for one subnet.  Therefore, to migrate to a VLAN solution, there is no need to use "Router-on-a-stick" approach.  Can I retain the same interfaces on the router and configure VLANs on the Core Switch (diagram) to connect to these interfaces?  I believe I have to configure the VLANs with different IP addresses according to the subnets.

Vlan10: Marketing, Vlan20: Production, Vlan30: HR - for example.

Then, from the Core Switch, I will connect to the other switches on different parts of the building via a TRUNK link, passing through all VLANS.  On those remote switches, I will configure the VLAN assignment for each port.

Please advise:

1.  If there is any limitation on the router IOS to implement this?
2.  Do I need to make any changes on the router since there is no TRUNK between it and the CORE switch?
3.  If I have HSRP configured (a redundant router is available and connected to a separate link to Internet, do I even have to worry about it and make some change to the configuration?

Thanks in advance for any advice.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-15 at 02:20:54ID24814197
Tags

VLAN

,

cisco

,

procurve

Topics

Network Design & Methodology

,

Network Switches & Hubs

,

Network Routers

Participating Experts
1
Points
250
Comments
5

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Vlan and Trunk
    How to configure Trunk for VLAN, in order for VLAN talk to each other on Cisco Catalyst Multilayer 3550-48 switch, The following is the vlan diagram, Port VLAN VLAN IP Address ------ ------------- ----------------- 39-48 VLAN 1 -De...
  2. Inetr VLAN routing and trunking
    I have a number of cisco switchs (3560) and connecting all these I have a 3750. I have 4 VLANs and have set up trunking between the core and the 3560, but now I'm going to need to enable inte VLAN routing. I will do this on the core switch (3750) and my questions is if I enbl...
  3. VLAN Trunking and Routing
    Here is my situation, I have 1 Dell Powerconnect 6224 Layer 3 switch and 4 3448 Dell Power Connect Switches. I am trying to create multiple VLANS that are routable. In testing I have set up VLANs 10 and 20. I have set up trunk ports, one on the 6224 (g24) and one on the 3448 ...
  4. Cisco to Xtreme to Cisco VLAN Multi VLAN Trunking
    I have an Extreme Alpine 3804 Core switch with a working and connected Cisco 2960G connected to a trunked port with 2 VLANS. This switch works. Added a 2 3750G (stacked) switch and basically mimicked the 2960G config and connected it to a identical trunked port on the Extrem...
  5. Vlan Trunking
    Hi, If I implement vlan tranking between 2 Switches, and I send data from one vlan to another do the VLAN name have to match on both switches. as I understand the trunk will carry data for all Vlans and once the data is received at the far end of the trunk it will strip th...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: jodylemoinePosted on 2009-10-15 at 04:27:40ID: 25579365

You *can* do it without any configuration changes on the router simply by running each of the 2621XM's interfaces into a switch port on the core switch that is configured for the appropriate VLAN.  The HSRP standby router can similarly be configured to run its interfaces directly to the switch with no requirement for modification.



by: jodylemoinePosted on 2009-10-15 at 04:32:40ID: 25579387

That said...  assuming your new core switch is a layer 3 switch, there are a few disadvantages too.  You're using six physical connections to the switch when you really only need to be using two and your routing between VLANs is limited to the 100Mb/s bandwidth of the routers' interfaces.

If your core switch is a layer 2 switch though, this isn't a bad configuration.  Router-on-a-stick with a trunk to the 2621XM would limit your inter-VLAN traffic to a total of 100Mb/s where the sacrifice of a few extra ports gets you more bandwidth for this sort of thing.



by: irmandoPosted on 2009-10-15 at 06:13:19ID: 25580123

Thanks for the reply.  You mentioned "six physical links when you really only need to be using two".  This is refering to the core switch connecting to 2 routers with HSRP, correct?



by: jodylemoinePosted on 2009-10-15 at 06:24:43ID: 25580241

Correct.  Each router has three interfaces coming back to the core, which makes a total of six if you have a second doing HSRP and configured similarly to the first.  If the switch is doing all of your inter-VLAN routing and the two routers are just providing your internet connection, you can get away with each router only having one connection back to the switch for a total of two.



by: irmandoPosted on 2009-10-15 at 10:02:09ID: 25582480

thanks jodylemoine.
