Question

Vlan configurations

Asked by: rbmacct

Hardware:

Cisco ASA 5510 (Firewall)
Cisco 2801 (Router/Gateway)
Core Switch (Rack 1)  Force10 48 port
Switch (VMware Rack 2)  Force10 48 port
Switch (2nd Server Room)  Force10 48 port
Lan Room  Dell PowerConnects (unmanaged)

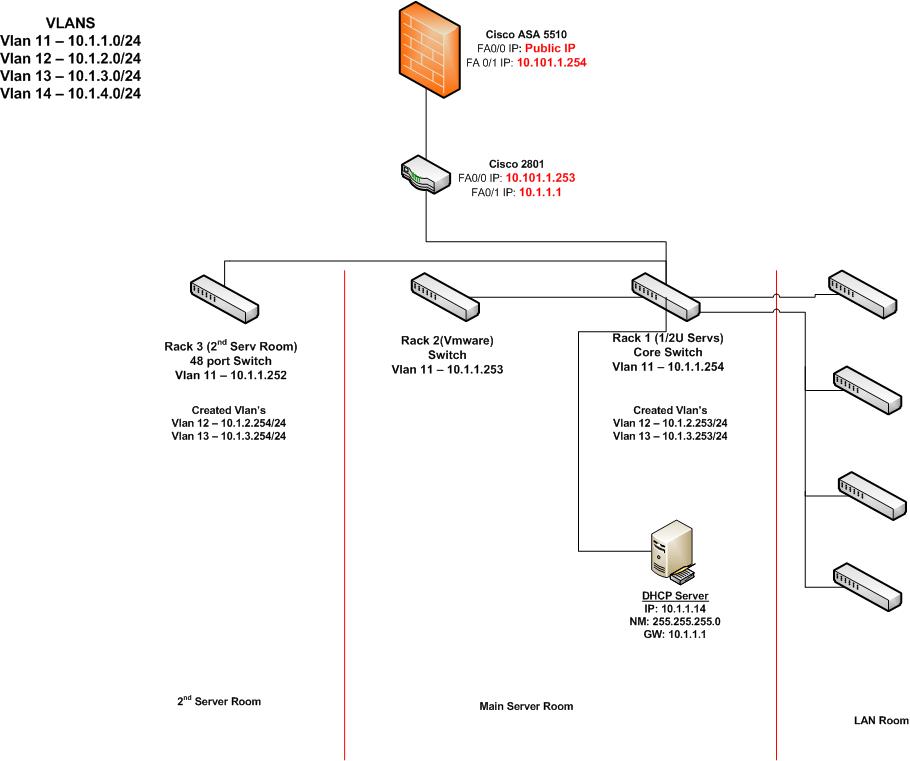

Current Topology:

We are using a flat network (10.1.1.0/24). We are about 10 IPs away from being completely out. Hence one of the reasons for this project.

What Im trying to achieve.

Im trying to split  up my 2nd Server Room switch into Vlans.

The vlans are:
Vlan 11  10.1.1.0/24 (already apart of the existing network)
Vlan 12  10.1.2.0/24
Vlan 13  10.1.3.0/24
Vlan 14  10.1.4.0/24

I have created those vlans on both the 2nd server room switch and the core switch. I can ping from the 2nd server room switch over to the core switch on the various networks.

I can and cant dos
Cant ping 10.1.1.1 (Core Switch) from 10.1.2.254 or 10.1.3.254 (2nd Server Room Switch)
Cant ping 10.1.1.14 (Core Switch) from 10.1.2.254 or 10.1.3.254 (2nd Server Room Switch)
CAN ping 10.1.2.253 (Core switch) from 10.1.2.254 (2nd Server Room Switch)
CAN ping 10.1.1.254 Core Switch) from 10.1.3.253 (2nd Server Room Switch)
Cant ping 10.1.1.14 (Core Switch) from 10.1.2.253 (Core Switch)

I was on the phone TAC today and they stated I needed to add static routes on my DHCP server for the BOOTP replies to be routed back to the proper destinations. I dont completely believe this. However from the above you can easily see that I cant ping from vlan to vlan within the same switch.

However each switch and ping the other switches vlan IP.

These all came up since I couldnt get an IP address from the other subnets from DHCP although its setup correctly and the switches are configured with the dhcp relay. This problem is within the switch somewhere. These switches dont need manual route entries since they do inter-switch vlaning.

Hopefully Im just missing something small here.

Any help would be greatly appreciated.




This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-11-05 at 22:06:40ID24877151
Tags

Vlan Switching

Topics

Network Design & Methodology

,

Network Operations

,

Network Switches & Hubs

Participating Experts
3
Points
500
Comments
9

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. VLANS
    how to setup VLANS
  2. To VLAN or not to VLAN
    I have a small office with 5 permanent workstations, 3 mobile workstations, 2 network printers (Xerox 8560 MFPT), a network FAX (Castelle Faxpress), a NAS (Infrant ReadyNAS) file server, a Cisco PIX 501 as our firewall and a netgear GSM7224 L2 manged switch. I would like all...
  3. VLAN Help on ASA 5505
    Hello, I was hoping someone could help me configure my cisco's ASA 5505 standard edition. I want to create a production environment and a test environment in my LAN. I want my production environment to access my test environment but I dont want my test environment able to ...
  4. Vlans and VMware
    I have a cisco switch that has multiple vlans. Currently, I have 2 vm servers with 4 nics. The 4 nics are plugged into ports that are vlan1. I am going to set up a new virtual machine that needs to be plugged into a vlan2 port. What would be the best way to accomplish this?
  5. NEED HELP with Cisco ASA VLANs configuration
    I have a new base ASA 5505 that I am using to connect to a cable modem as a second internet connection for all internal users internet access. I have an existing PIX 506e that manages the VPN passthrough, a DMZ, and another VLAN for a set of T1's. I have setup my new ASA with...
  6. Cisco ASA VLAN/trunking ESX configuration ?
    Hi experts, I need to configure trunking on DMZ interface and forward traffic via specific vlan to my VMware ESX host. Below is my ASA configuration and I have created different port group in vmwsitch but still I can't even ping to the host ( 192.168.2.1) from the firewall...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: ISoulPosted on 2009-11-05 at 22:32:11ID: 25757016

The primary purpose of VLANs are to separate network segments from each other, so by default, one VLAN should not have access to another VLAN.

Where you would add permissions between VLANs is on the firewall. You would need to specify access list rules for which VLANs have access to which VLANs.



by: rbmacctPosted on 2009-11-05 at 22:36:16ID: 25757039

So all my current clients have a Gateway address of 10.1.1.1 which is the inside interface of the router. But you're saying that if I put a client on the 10.1.2.0/24 network and it has a gateway of the Vlan IP (10.1.2.254). How would I know to go up to (10.101.1.254) inside interface of the ASA?

I setup a test configuration a few months ago, and I could of swore that I could ping/access from one subnet to another within 1 switch without having to add any ACL's to the firewall that was directly connected to the same switch.



by: ISoulPosted on 2009-11-05 at 22:40:59ID: 25757076

There should be a default route on the gateway to send everything through the firewall...



by: rbmacctPosted on 2009-11-05 at 22:50:25ID: 25757127

How does the switches know to pass the traffic up to 10.1.1.1 if there is no reference to it on the switches and the clients have a gateway address of something other than 10.1.1.1? Since they will be getting the GW IP of their respected subnets/vlan's their placed in?



by: ISoulPosted on 2009-11-05 at 23:29:07ID: 25757292

Each switch should have an IP, and also a default route which goes to the router/firewall. The switch should be connected to each other and the router through a trunk port.



by: prvnkumarkPosted on 2009-11-05 at 23:41:31ID: 25757340

HI,
If your Switch is Layer3 switch then you can create virtaul interface each vlan and you can give ip add for it and they can act as your default gateway. In firewall you have to do reverse routing.

Regards,
Praveen



by: rbmacctPosted on 2009-11-09 at 09:19:56ID: 25777928

I'm having a problem getting my other vlans (10.1.2.0 and 10.1.3.0) to the internet. If you look at the diagram I can reach the router interface (10.1.1.1) but nothing on the other side like (10.101.1.253 outside interface of route) and (10.101.1.254 inside interface of firewall). So I would assume this is the issue for no internet access since I can't even ping up into that network from 10.1.2.0 and 10.1.3.0.

Below are my routes for the 2 devices:

Cisco ASA

C    64.162.45.0 255.255.255.0 is directly connected, outside
S    10.1.2.0 255.255.255.0 [1/0] via 10.101.1.253, inside
S    10.2.1.0 255.255.255.0 [1/0] via 64.132.35.209, outside
S    10.1.1.0 255.255.255.0 [1/0] via 10.101.1.253, inside
C    10.101.1.0 255.255.255.0 is directly connected, inside
S    10.100.1.232 255.255.255.255 [1/0] via 64.132.35.209, outside
S    10.100.1.231 255.255.255.255 [1/0] via 64.132.35.209, outside
S*   0.0.0.0 0.0.0.0 [1/0] via 64.162.45.209, outside

Cisco Router


ip route 0.0.0.0 0.0.0.0 10.101.1.254
ip route 10.1.2.0 255.255.255.0 10.1.1.254
ip route 10.1.2.0 255.255.255.0 10.101.1.254


Any assistance would be appreciated.






by: rbmacctPosted on 2009-11-09 at 13:45:38ID: 25780465

I believe I have it figured out. Below are the routes I've added to the firewall, router and core switch. I hope this comes in handy for someone else.

Router

Gateway of last resort is 10.101.1.254 to network 0.0.0.0

     10.0.0.0/24 is subnetted, 5 subnets
S       10.1.3.0 [1/0] via 10.1.1.254
S       10.1.2.0 [1/0] via 10.1.1.254
C       10.1.1.0 is directly connected, FastEthernet0/1
S       10.1.4.0 [1/0] via 10.1.1.254
C       10.101.1.0 is directly connected, FastEthernet0/0
S*   0.0.0.0/0 [1/0] via 10.101.1.254

ip route 0.0.0.0 0.0.0.0 10.101.1.254
ip route 10.1.2.0 255.255.255.0 10.1.1.254
ip route 10.1.3.0 255.255.255.0 10.1.1.254
ip route 10.1.4.0 255.255.255.0 10.1.1.254

Firewall

Gateway of last resort is 64.162.45.209 to network 0.0.0.0

C    64.132.35.0 255.255.255.0 is directly connected, outside
S    10.1.3.0 255.255.255.0 [1/0] via 10.101.1.253, inside
S    10.1.2.0 255.255.255.0 [1/0] via 10.101.1.253, inside
S    10.2.1.0 255.255.255.0 [1/0] via 64.132.35.209, outside
S    10.1.1.0 255.255.255.0 [1/0] via 10.101.1.253, inside
S    10.1.4.0 255.255.255.0 [1/0] via 10.101.1.253, inside
C    10.101.1.0 255.255.255.0 is directly connected, inside
S    10.100.1.233 255.255.255.255 [1/0] via 64.132.35.209, outside
S    10.100.1.232 255.255.255.255 [1/0] via 64.132.35.209, outside
S    10.100.1.231 255.255.255.255 [1/0] via 64.132.35.209, outside
S*   0.0.0.0 0.0.0.0 [1/0] via 64.162.45.209, outside

route outside 0.0.0.0 0.0.0.0 64.162.45.209 1
route inside 10.1.1.0 255.255.255.0 10.101.1.253 1
route inside 10.1.2.0 255.255.255.0 10.101.1.253 1
route inside 10.1.3.0 255.255.255.0 10.101.1.253 1
route inside 10.1.4.0 255.255.255.0 10.101.1.253 1

Core-Switch

       Destination        Gateway                      Dist/Metric Last Change
       -----------        -------                      ----------- -----------
 *S    0.0.0.0/0          via 10.1.1.1, Vl 11                  1/0    01:17:53
  C    10.1.1.0/24        Direct, Vl 11                        0/0        6w2d
  C    10.1.2.0/24        Direct, Vl 12                        0/0        4d7h
  C    10.1.3.0/24        Direct, Vl 13                        0/0        4d7h
  S    10.101.1.0/24      via 10.1.1.1, Vl 11                  1/0    02:10:56

ip route 0.0.0.0/0 10.1.1.1
ip route 10.101.1.0/24 10.1.1.1



by: pgr09Posted on 2009-11-10 at 16:04:04ID: 25791342

Hi - not sure if you got everything fully sussed out however this is a possible solution to this problem.

You need to essentially create a default gateway for each of your VLAN subnets.  To do this, you can split the Fa0/0 interface of the 2801 router into sub-interfaces:

interface fa0/0.11
    encapsulation dot1q 11
    ip address 10.1.1.1 255.255.255.0
interface fa0/0.12
    encapsulation dot1q 12
    ip address 10.1.2.1 255.255.255.0
interface fa0/0.13
    encapsulation dot1q 13
    ip address 10.1.3.1 255.255.255.0
interface fa0/0.14
    encapsulation dot1q 14
    ip address 10.1.4.1 255.255.255.0

This allows a single physical interface to appear as 4 separate interfaces for the purpose of providing default gateways for each of your subnets.  You will need to change the switch configuration for the port connected to the router to put it in 'trunk' mode.  If its a cisco switch just go into the interface and type 'switchport mode trunk'.

All you will need to do then is change your dhcp configuration to allocate addresses from the correct subnet.  If you just have the one DHCP server which appears to be on vlan 11, you will just need to go into the .12, .13 and .14 sub-interfaces and issue an ip-helper address command to relay DHCP requests.

Hope that is of some help.
