Question

NAS drive setup

Asked by: Mal_k

Hi i have recently purchased a network hard-drive enclosue and added a 80GB HDD in it. The exact enclosure can be found at http://www.a-tecsubsystem.com/websys/atec/web/products.jsp?prodId=1191910612953 . This particular model offers the ability to have the NAS drive act as the DHCP server via its web interface. There's also a post about it here >> http://icablog.org/2007/01/landisk-network-drives/

My ISP is Be Broadband UK, they offer static IP address configuration as standard.

Problem i'm having is setting up the NAS drive as the DHCP server and my router (also known as BeBox) to correctly route info and offer access to the web for my 2 PC's.

So far i have spokent o Be technical support and though they did try to help they eventually gave up as we didn't resolve the problem. What we did was change over the IP settings in TCP/IP properties to "Obtain Automatically" for the network controller on PC1.

Via the web interface for the NAS drive i have enabled DHCP and entered the details provided by Be tech support to static details: IP:78.86.175.67 Mask:255.255.240.0 Gateway: 78.86.160.1 with DNS: 87.194.255.154

On the BeBox via its web interface i was told to change the IP Config Mode to Multi 4-port which is essentially a mode that makes the router into a bridge and thus disables DHCP on it.

So i have DHCP disabledo on the BeBox, but enabled on the NAS drive, both PCs have their network controllers set to "Obtain Auto" but i no longer am able to access the web or even my BeBox (whereas before i simply used to type in 192.168.1.254 and enter user details). There is the ability to hard-reset the BeBox if i really need to, but at the moment i just don't know how to progress from here.

When Be provided me with the static IP details as mentioned above, they are obviously meant to host a single PC, 1 static IP = 1 PC. What i am hoping to achieve is to have NAS drive exclusively hosted under the static IP (so i may access it via FTP on teh web) and it assigns the other computers on the network PC1 & PC2 their individual IP address using its built-in DHCP server. I'm not sure if this can be done however, but then doesn't that make the NAS drive pointless if it doesn't?

When i think about it logically though, the BeBox is kind of made redundant as its now just acting like a bridge and therefore even though there's another 2 computers connected to it they cannot access web because its the NAS drive that is controlling DHCP!

Im confused, i obviously don't understand netwoking very well and hope you can help or explain a little, sorry its so long, i wanted ot be sure i covered everything... i run XP Pro. Thanks

I think the problem

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-22 at 06:21:22ID24834353
Tags

network

,

network drive

,

static ip

,

bridge connections

,

port forwarding

,

NAT

Topics

TCP/IP

,

Network Routers

,

Miscellaneous Networking

Participating Experts
2
Points
50
Comments
22

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. can I buy just a NAS enclosure?
    I need to purchase some NAS for a small environment for backups - about 90GB data stored daily, then deleted for the next days use. I have my own disks - can I buy just a NAS enclosure?
  2. Request for recommendation: NAS enclosure with NTFS R…
    I have an NAS (Promise ns2300n) that supports RAID 1. It works but I have 2 reservations: 1. It runs Linux and does not store Windows file attributes correctly (biggest problem: hidden files) 2. If the box itself fails, I'd have a hard time reading the drives on Windows. I'm...
  3. Nas
    Hi all Can anyone explain. whats the advantage for using a home nas server connected to your tv compared to a extern harddrive Thanks

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: uklivePosted on 2009-10-22 at 06:56:52ID: 25634206

Sounds to me like the I P address that your NAS is giving out is not on the same subnet as your 'BeBox'

I think the best thing is to try and set your 'Bebox' back as it was. DHCP will be better there for a start



by: nociPosted on 2009-10-22 at 07:03:17ID: 25634302

Well you diagnosed the problem allready....
(quite well even).

Can de Bebox in routing mode also do NAT or PAT?
If so, Can you assign f.e. the FTP service to forward all requests to the NAS?

If the BeBox cannot disable the DHCP, have it assign a fixed address (based on MAC to the NAS)... if it cannot do eve that then you might need
a bit more capable firewall.
(NetGear, Zywall ) they can do at least portforwading & DHCP in the right way. (Then you will need to have the Bebox in bridging mode though).




by: Mal_kPosted on 2009-10-22 at 07:34:34ID: 25634689

Hi Guys thanks for your responses. I have just gotten off the phone to Be Broadband tech support whom have helped me re-establish my internet connection by simply assigning the BeBox with a static IP and removing the NAS drive from the equation completely (NAS no longer plugged into the router).

So now the BeBox is acting as DHCP server which is great however if i were to reconnect the NAS drive to the BeBox i'm unsure of what IP address i would need to enter into the browser of a remote computer in order to access it. I could connect the NAS drive allow, allow DHCP assign it an IP and record the IP details for the NAS via its web interface, but how would i connect directly to teh NAS from a remote PC?  The ip address that DHCP will provide will be a LAN IP such as 192.168.1.64 not accessible from a remote PC... or am i wrong?

As you mention noci, i should use portforwarding which as i understand it is supported but i fear it may be a little out my depth. Theres some commands here >> http://www.beusergroup.co.uk/technotes/index.php/BeBox_Commands i just dont knwo where to place them! I'will also post on the Be forum and let you know my results...

Thanks for now.. i'll be back!



by: nociPosted on 2009-10-22 at 07:39:12ID: 25634752

for that issue you need NAT... (Network Address Translation) support in your BeBox.

Exlained here:
http://en.wikipedia.org/wiki/Network_address_translation



by: Mal_kPosted on 2009-10-22 at 08:00:21ID: 25635012

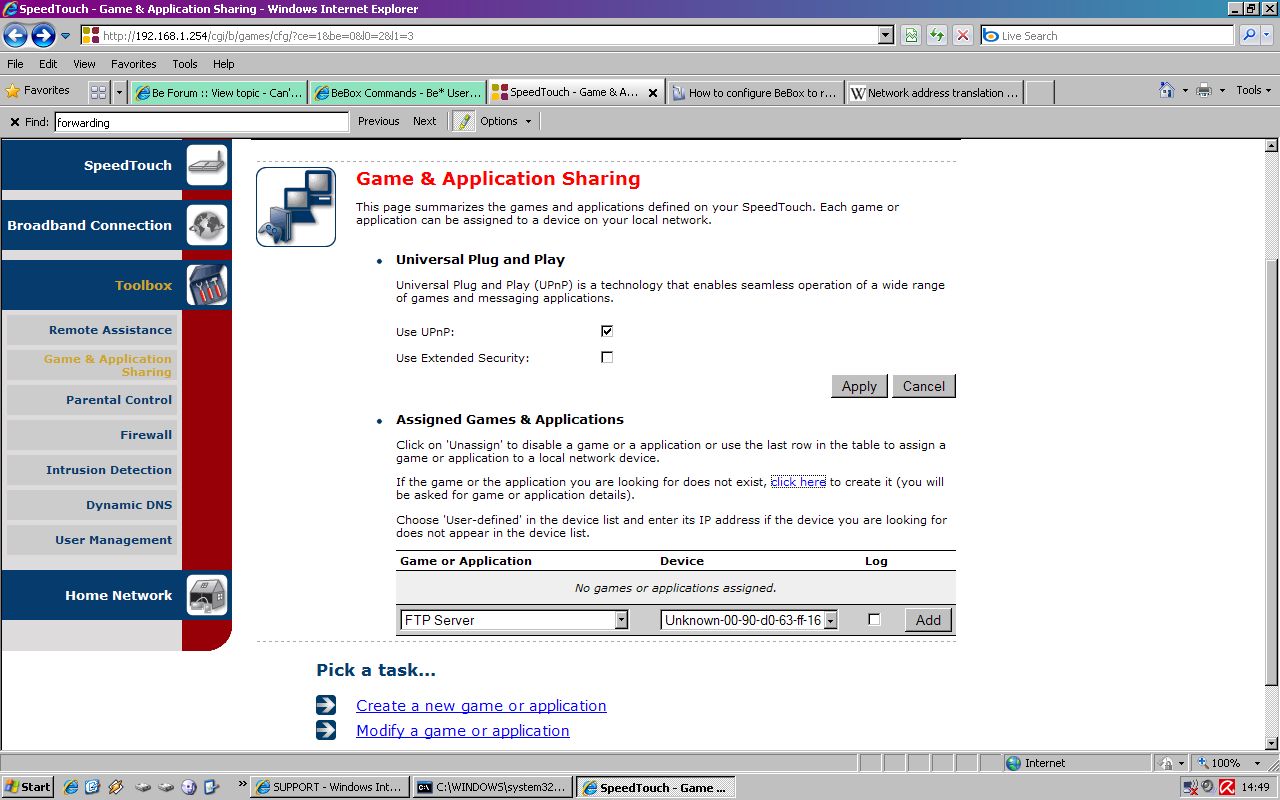

Well i have this utility on my BeBox menu (see attached). Im not too sure how i'd configure it, any thoughts? many thanks



by: nociPosted on 2009-10-22 at 08:10:46ID: 25635136

That might be the right option (although i would expect an IP address there not a MAC address.)



by: Mal_kPosted on 2009-10-22 at 08:59:13ID: 25635725

Hi again... i'm really sorry but i've been checking countless sites and it seems that no other interface has similar settings as my own... I really don't understand what to put in the fields shown in the image attached. I understand hat i should direct any traffic connecting on port 21 (default FTP) but to what? I'll keep looking for the answer...



by: Mal_kPosted on 2009-10-22 at 09:06:57ID: 25635798

in case anyone else is looking over this post and needs some insight into port forwarding... i found this link very helpful!

http://portforward.com/help/portforwarding.htm



by: nociPosted on 2009-10-22 at 09:53:11ID: 25636294

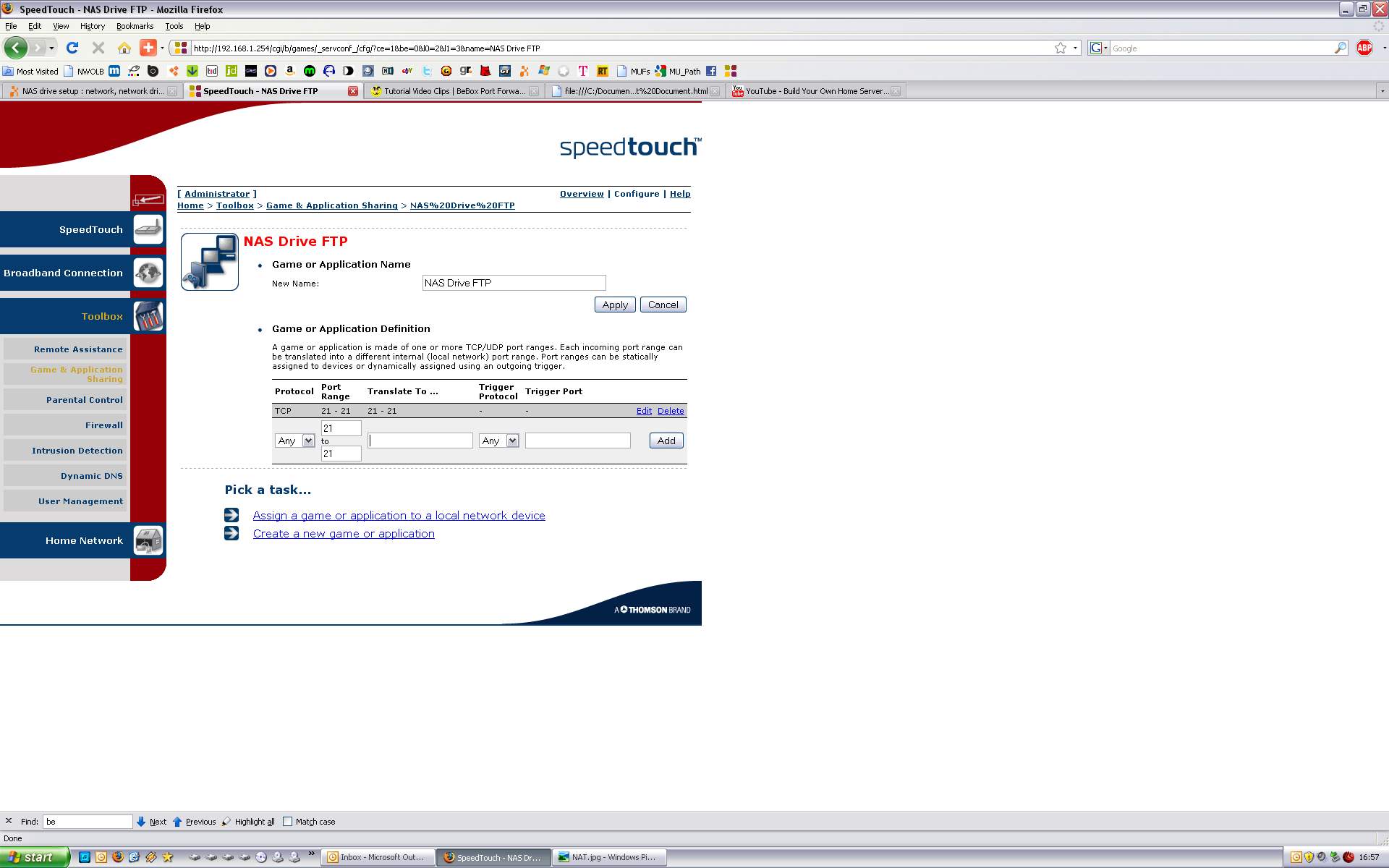

In the box right to the FTP box you need to add the IP address of your NAS.


BTW think again about FTP over the internet.
Anonymous is no problem, but username/password access can be easily broken as the username & pasword travel over the internet unencrypted.



by: Mal_kPosted on 2009-10-22 at 10:38:43ID: 25636862

Thanks for the advice noci, i dont know how to ascertain the IP address of the NAS drive. Do you know of a way? I used this utility http://www.youngzsoft.net/cc-get-mac-address/ but it just shows the mac address as 0000000000 so im unsure which device is which in the BeBox device listings...



by: Mal_kPosted on 2009-10-22 at 10:40:41ID: 25636890

I bought the drive so i can have a central place where i can store my work... i have both a Mac and PC and work on the same file file regularly with both... if i shouldn't use FTP then what do you suggest? I imagine a VPN would be good but i dont have a first idea how to set one up or even if it can be setup with this particular drive.



by: Mal_kPosted on 2009-10-22 at 12:31:43ID: 25638050

So 7 hours later and i'm still here... I now have the following configuration.

DHCP is controlled via my BeBox router.
NAS drive has DHCP disabled and i have manually entered static ip details so it can reside in the same work domain in my network. For some reason when leaving the Automatic IP radio button checked in the NAS interface, the router never seems to be able to map a working ip address (read above) hence my manual override.

I have the drive mapped as a network drive on my computer and can access it without problems, however i am unable to access it via FTP across the web. I have even setup port-forwarding via the BeBox web interface for the NAS but still doesn't work.

I suppose i don't even know what to type into a web browser to access the damn thing and i have tried all sorts including ftp://78.86.175.67/ & ftp://78.86.175.67/work-nas (the root directory to which i have setup access via the NAS gui).

Any thoughts... anyone?



by: nociPosted on 2009-10-22 at 12:31:43ID: 25638051

Ok A VPN would be OK...
If the box supports SSH & SCP that would be good enough.



by: Mal_kPosted on 2009-10-22 at 12:52:27ID: 25638258

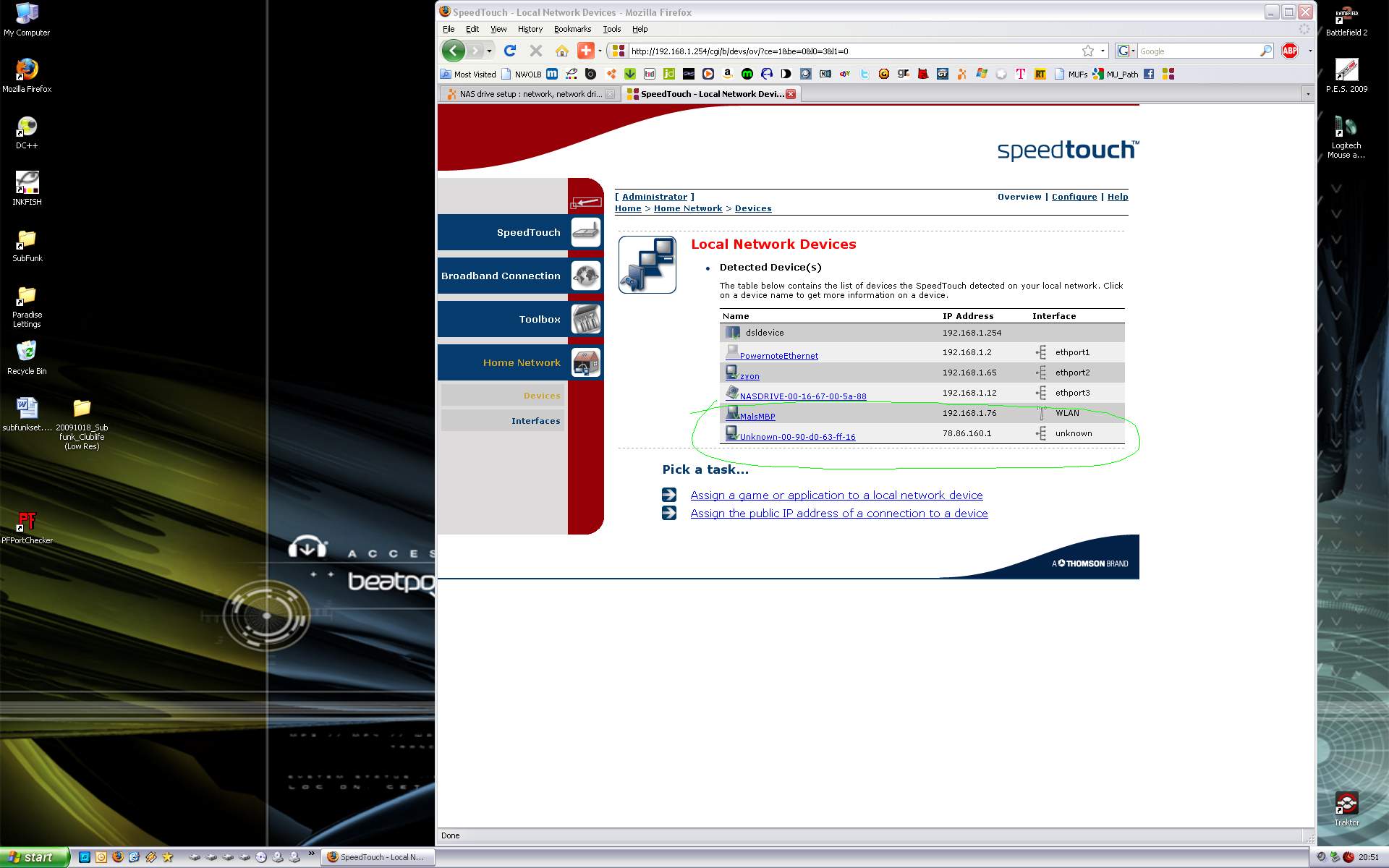

I always seem to have this Unknown Device connected to my router (illustrated in attached image and circled in green). Could this be the problem with the connection to my NAS?



by: nociPosted on 2009-10-22 at 16:07:26ID: 25639988

the unknown MAC address (00:90:d0...) has address ... 78.86.160.1 is your default gateway (needed to access the internet... its name is not published..)


Don't add a new service, FTP is port 21, but needs extra handling because it has more channels at different ports for the data transfer. So you need to use the EXISTING Fftp, and in the Device box select your NAS.



by: nociPosted on 2009-10-22 at 16:07:46ID: 25639991

your Bebox probably won't allow access to your NAS from the inside...
the ftp access should be like you do (ftp to your outside address).



by: Mal_kPosted on 2009-10-22 at 17:46:36ID: 25640490

OK... thanks.. i did think  that the mysterious mac address was my external gateway... honest...

i have followed your instructions using the built in FTP application selectable from teh drop-down menu and then selected my NAS drive from the device list from within the router gui...

When i try to connect via firefox ftp it comes back with: Alert 530: permission denied... i imagine thats because im trying to access the external gateway via the internal, right?

I will try tomorrow when i can get to a pc outside of my LAN.

Many thanks... heres hoping! I'll post back my findings...



by: nociPosted on 2009-10-23 at 00:13:25ID: 25641918

it could well be that you NAS doesn't known the anonymous user used by default by firefox.

try the url:

ftp://username:password@address/



by: nociPosted on 2009-10-23 at 00:14:58ID: 25641924

Also have you tried using the same URL from the inside with:
ftp://username:password@192.168.1.xxx/
(thus with the inside IP, that way you can can check if & how you can access your  nas)



by: Mal_kPosted on 2009-10-23 at 03:11:21ID: 25642834

Noci thank you very much for your continued support.... everything seems to be working fine now and that's a very useful tip for passing my account details along the URL to see my ftp server internally!

I have just one last question... do you know if its possible to directly save changes to a document on the NAS drive as opposed to having to save a copy locally and then replace copy on the NAS?

many thanks again for all your help... true genius!



by: Mal_kPosted on 2009-10-23 at 03:12:21ID: 31644483

Not only did i get the problem resolved... but i learned a few tricks too! Thanks



by: nociPosted on 2009-10-23 at 09:29:20ID: 25645964

No,

that needs a bit more intelligent handling of files & protocols.

You might want to look into a Linux distribution using KDE. That is based around the concept of having 'access engines' called IO-Slaves to access data through urls. (All data also local, hidden through a file:/// construction).

All editors use the load & edit & store-result work cycle, but not may allow ftp url's ;-)

A database engine cannot be called this way (also not in KDE), as it requires bi-directional data transport and FTP cannot do that.
