VPN Lan 2 lan problem
Tags:
Cisco, ASA and PIX, ASA 5505 and Pix 501
Hello
I have some problems with my test lan 2 lan conf.
I hope some one can help me. :-)
I have made a
packet-tracer input inside udp 192.168.1.1 isakmp 192.168.10.1 isakmp
The result:
Phase: 1
Type: FLOW-LOOKUP
Subtype:
Result: ALLOW
Config:
Additional Information:
Found no matching flow, creating a new flow
Phase: 2
Type: ROUTE-LOOKUP
Subtype: input
Result: ALLOW
Config:
Additional Information:
in 0.0.0.0 0.0.0.0 outside
Phase: 3
Type: ACCESS-LIST
Subtype:
Result: DROP
Config:
Implicit Rule
Additional Information:
Result:
input-interface: inside
input-status: up
input-line-status: up
output-interface: outside
output-status: up
output-line-status: up
Action: drop
Drop-reason: (acl-drop) Flow is denied by configured rule
I have some problems with my test lan 2 lan conf.
I hope some one can help me. :-)
I have made a
packet-tracer input inside udp 192.168.1.1 isakmp 192.168.10.1 isakmp
The result:
Phase: 1
Type: FLOW-LOOKUP
Subtype:
Result: ALLOW
Config:
Additional Information:
Found no matching flow, creating a new flow
Phase: 2
Type: ROUTE-LOOKUP
Subtype: input
Result: ALLOW
Config:
Additional Information:
in 0.0.0.0 0.0.0.0 outside
Phase: 3
Type: ACCESS-LIST
Subtype:
Result: DROP
Config:
Implicit Rule
Additional Information:
Result:
input-interface: inside
input-status: up
input-line-status: up
output-interface: outside
output-status: up
output-line-status: up
Action: drop
Drop-reason: (acl-drop) Flow is denied by configured rule
Attachments:
Question Stats
Zone:
Networking
Question Asked By:
deo112
Solution Provided By:
lrmoore
Participating Experts:
1
Solution Grade:
A
Views:
87
Translate:
Loading Advertisement...
Loading Advertisement...
| Microsoft |
- Internet Protocols
- Applications
- Development
- OS
- Hardware
- Windows Security
| Apple |
- Operating Systems
- Hardware
- Programming
- Networking
- Software
| Internet |
- Search Engines
- File Sharing
- WebTrends / Stats
- Spy / Ad Blockers
- Web Browsers
- New Net Users
- Web Development
- Chat / IM
- Anti Spam
- Web Servers
- Anti-Virus
- Email Clients
| Gamers |
- Tips
- Online / MMORPG
- Puzzle
- Emulators
- Action / Adventure
- Role Playing
- Consoles
- Game Programming
- Strategy
- Sports
- Misc
- Computer Games
| Digital Living |
- Hardware
- Automotive
- New Net Users
- New Users
- Software
- Digital Music
- Gaming World
- Home Security
- Apple
- Networking Hardware
| Virus & Spyware |
- Vulnerabilities
- IDS
- Encryption
- Anti-Virus
- Operating Systems Security
- Software Firewalls
- WebApplications
- Cell Phones
- Operating Systems
- Internet
- Hardware Firewalls
| Hardware |
- Displays / Monitors
- Handhelds / PDAs
- Components
- Peripherals
- Laptops/Notebooks
- Servers
- Misc
- Apple
- Embedded Hardware
- Networking Hardware
- Storage
- Desktops
- New Users
| Software |
- System Utilities
- Industry Specific
- Network Management
- Photos / Graphics
- Page Layout
- VMware
- Misc
- Web Development
- OS
- CYGWIN
- Voice Recognition
- Virtualization
- Message Queue
- Quality Assurance
- Security
- Firewalls
- MultiMedia Applications
- Development
- Database
- Office / Productivity
- Business Management
- OS/2 Apps
- Server Software
- Internet / Email
| ITPro |
- OS
- Storage
- Encryption
- Operating Systems Security
- Apple Hardware
- Laptops & Notebooks
- Servers
- Networking Hardware
- Peripherals
- Devices
- Displays / Monitors
- WebTrends / Stats
- Search Engines
- Firewalls
- Web Computing
- WebApplications
- IDS
- Vulnerabilities
- Email Clients
- File Sharing
- Spy / Ad Blockers
- Web Browsers
- Web Servers
- Networking
- Anti-Virus
- Consulting
- Chat / IM
- Anti Spam
| Developer |
- Web Servers
- Web Browsers
- Game Programming
- Dev Tools
- Industry Specific
- Office / Productivity
- Database
- CYGWIN
- Web Development
- Search Engines
- File Sharing
- WebTrends / Stats
- Programming
- Content Management
- Application Servers
- Protocols
| Storage |
- Removable Backup Media
- Storage Technology
- Servers
- Grid
- Remote Access
- Backup / Restore
- Misc
- Hard Drives
| OS |
- Miscellaneous
- Security
- Development
- Linux
- VMware
- MainFrame OS
- Unix
- Apple
- OS / 2
- AS / 400
- BeOS
- Microsoft
- VMS / OpenVMS
| Database |
- Oracle
- Miscellaneous
- MySQL
- Software
- Sybase
- Contact Management
- PostgreSQL
- Data Manipulation
- Clarion
- InterSystems Cache
- Siebel
- MUMPS
- OLAP
- SQLBase
- SAS
- GIS & GPS
- 4GL
- Berkeley DB
- DB2
- Informix
- Interbase / Firebird
- FoxPro
- Reporting
- LDAP
- Filemaker Pro
- MS SQL Server
- dBase
- MS Access
| Security |
- Misc
- Web Browsers
- Software Firewalls
- Operating Systems Security
- File Sharing
- Spy / Ad Blockers
- Vulnerabilities
- WebApplications
- IDS
- Anti-Virus
- Encryption
- Anti Spam
- Email Clients
- VPN
- Chat / IM
| Programming |
- Editors IDEs
- Installation
- Handhelds / PDAs
- Multimedia Programming
- System / Kernel
- Automation
- Algorithms
- Game
- Signal Processing
- Project Management
- Open Source
- Database
- Misc
- Languages
- Processor Platforms
- Theory
| Web Development |
- Scripting
- Blogs
- Web Servers
- Software
- Search Engines
- Web Graphics
- Web Services
- Images
- Internet Marketing
- Images and Photos
- Components
- Document Imaging
- Web Languages/Standards
- Illustration
- WebApplications
- Fonts
- WebTrends / Stats
- Authoring
- Digital Camera Software
- Miscellaneous
| Networking |
- Protocols
- Apple Networking
- Network Management
- Message Queue
- Application Servers
- Content Management
- File Servers
- Email Servers
- Misc
- Java Editors & IDEs
- Wireless
- Networking Hardware
- Backup / Restore
- System Utilities
- ISPs & Hosting
- Web Servers
- Storage Technology
- Removable Backup Media
- Servers
- Web Computing
- Broadband
- Grid
- OS / 2
- Novell Netware
- Unix Networking
- Windows Networking
- Security
- Telecommunications
- Operating Systems
- Linux Networking
| Other |
- Lounge
- Business Travel
- Community Support
- New Net Users
- Philosophy / Religion
- Math / Science
- Miscellaneous
- URLs
- Expert Lounge
- Politics
- Puzzles / Riddles
- Automotive
| Community Support |
- Suggestions
- New to EE
- New Topics
- CleanUp
- Announcements
- General
- Feedback
- Input
- EE Bugs
| 04.22.2008 at 03:14PM PDT, ID: 21416076 |
>crypto map outside_map 10 set pfs
You need to match this in the ASA on the PIX
Add to the PIX:
crypto map outside_map 20 set pfs
Also on the PIX, add "no-xauth no-config-mode" to the isakmp key entry
isakmp key ******** address 10.1.0.2 netmask 255.255.255.255
Should be
isakmp key ******** address 10.1.0.2 netmask 255.255.255.255 no-xauth no-config-mode
On both sides, you have transform set
set transform-set ESP_3DES_SHA
But, your isakmp policies are et for aes-256/sha
Make the policy match the transform sets on both sides.
On PIX:
isakmp policy 10 encryption 3des
On ASA
crypto isakmp policy 5
encryption 3des
Then post results of "show cry is sa" and "show access-list"
You need to match this in the ASA on the PIX
Add to the PIX:
crypto map outside_map 20 set pfs
Also on the PIX, add "no-xauth no-config-mode" to the isakmp key entry
isakmp key ******** address 10.1.0.2 netmask 255.255.255.255
Should be
isakmp key ******** address 10.1.0.2 netmask 255.255.255.255 no-xauth no-config-mode
On both sides, you have transform set
set transform-set ESP_3DES_SHA
But, your isakmp policies are et for aes-256/sha
Make the policy match the transform sets on both sides.
On PIX:
isakmp policy 10 encryption 3des
On ASA
crypto isakmp policy 5
encryption 3des
Then post results of "show cry is sa" and "show access-list"
Accepted Solution
| 04.23.2008 at 01:39AM PDT, ID: 21418600 |
Hello
Thanks for the reply, but it did not solve my problem.
Ping and show access.list on pix:
pixfirewall# ping inside 192.168.1.1
192.168.1.1 NO response received -- 1000ms
192.168.1.1 NO response received -- 1000ms
192.168.1.1 NO response received -- 1000ms
pixfirewall# shwo access-list
Type help or '?' for a list of available commands.
pixfirewall# show access-list
access-list cached ACL log flows: total 0, denied 0 (deny-flow-max 256)
alert-interval 300
access-list inside_nat0_outbound; 1 elements
access-list inside_nat0_outbound line 1 permit ip 192.168.10.0 255.255.255.0 192
.168.1.0 255.255.255.0 (hitcnt=0)
access-list outside_cryptomap_20; 1 elements
access-list outside_cryptomap_20 line 1 permit ip 192.168.10.0 255.255.255.0 192
.168.1.0 255.255.255.0 (hitcnt=0)
pixfirewall#
Show cry is sa and show access-list on ASA:
ciscoasa# show cry is sa
There are no isakmp sas
ciscoasa# show access-list
access-list cached ACL log flows: total 0, denied 0 (deny-flow-max 4096)
alert-interval 300
access-list crypto_test; 1 elements
access-list crypto_test line 1 extended permit ip 192.168.1.0 255.255.255.0 192.
168.10.0 255.255.255.0 (hitcnt=0) 0x044b44ad
access-list nonat; 1 elements
access-list nonat line 1 extended permit ip 192.168.1.0 255.255.255.0 192.168.10
.0 255.255.255.0 (hitcnt=0) 0x3dd75066
ciscoasa#
Thanks for the reply, but it did not solve my problem.
Ping and show access.list on pix:
pixfirewall# ping inside 192.168.1.1
192.168.1.1 NO response received -- 1000ms
192.168.1.1 NO response received -- 1000ms
192.168.1.1 NO response received -- 1000ms
pixfirewall# shwo access-list
Type help or '?' for a list of available commands.
pixfirewall# show access-list
access-list cached ACL log flows: total 0, denied 0 (deny-flow-max 256)
alert-interval 300
access-list inside_nat0_outbound; 1 elements
access-list inside_nat0_outbound line 1 permit ip 192.168.10.0 255.255.255.0 192
.168.1.0 255.255.255.0 (hitcnt=0)
access-list outside_cryptomap_20; 1 elements
access-list outside_cryptomap_20 line 1 permit ip 192.168.10.0 255.255.255.0 192
.168.1.0 255.255.255.0 (hitcnt=0)
pixfirewall#
Show cry is sa and show access-list on ASA:
ciscoasa# show cry is sa
There are no isakmp sas
ciscoasa# show access-list
access-list cached ACL log flows: total 0, denied 0 (deny-flow-max 4096)
alert-interval 300
access-list crypto_test; 1 elements
access-list crypto_test line 1 extended permit ip 192.168.1.0 255.255.255.0 192.
168.10.0 255.255.255.0 (hitcnt=0) 0x044b44ad
access-list nonat; 1 elements
access-list nonat line 1 extended permit ip 192.168.1.0 255.255.255.0 192.168.10
.0 255.255.255.0 (hitcnt=0) 0x3dd75066
ciscoasa#
| 04.23.2008 at 05:55AM PDT, ID: 21420085 |
>pixfirewall# ping inside 192.168.1.1
This will never work anyway. First, 192.168.1.1 is OUTside, not INside. Second, you cannot initiate the ping from the pix firewall itself, you must initiate it from a PC inside the PIX and you must ping a host on the inside of the ASA, not the ASA's inside interface.
>There are no isakmp sas
The tunnel is not getting negotiated properly.
What do you see on the PIX side from the same show cry is sa command?
Start a continuous host-host ping then look at this command. Do it several times in a row and see if the state changes. Then look at the access-lists again for hitcounters to increment
This will never work anyway. First, 192.168.1.1 is OUTside, not INside. Second, you cannot initiate the ping from the pix firewall itself, you must initiate it from a PC inside the PIX and you must ping a host on the inside of the ASA, not the ASA's inside interface.
>There are no isakmp sas
The tunnel is not getting negotiated properly.
What do you see on the PIX side from the same show cry is sa command?
Start a continuous host-host ping then look at this command. Do it several times in a row and see if the state changes. Then look at the access-lists again for hitcounters to increment
| 04.23.2008 at 05:58AM PDT, ID: 21420116 |
How do you have these two connected in the lab? Crossover cable, or through a switch or hub? If using a switch, is there anything else on the same switch?
| 04.23.2008 at 09:09AM PDT, ID: 21422265 |
OK
I will try this tomorrow.

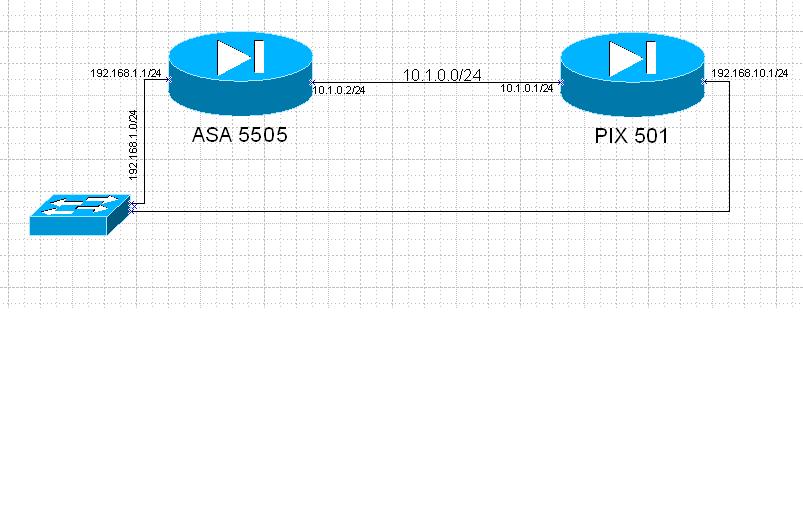

Here is the network diagram.
This is only a test setup, Yes it is in a lab.
I can ping fra ASA to PIX Outside interface and also from PIX to ASA outside.
I will try this tomorrow.
Here is the network diagram.
This is only a test setup, Yes it is in a lab.
I can ping fra ASA to PIX Outside interface and also from PIX to ASA outside.
| 04.23.2008 at 11:57AM PDT, ID: 21424050 |
You still have to have a host PC on the 192.168.1.x network and a host PC on the 192.168.10.x network and make sure they are two separate VLAN's on the switch..
20080236-EE-VQP-29 / EE_QW_2_20070628
