VPN Tunnel between draytek vigor 2700 and cisco router

Asked by nabeel92 in IPSec Security Protocol, Virtual Private Networking (VPN), Network Routers

Tags: VPN Tunnel between draytek vigor 2700 and cisco router

Hi,
I am trying to configure an IPSec tunnel between a cisco router and a draytek vigor 2700 series router. However, they don't seem to be negotiating Phase-1 parameters. I have throughly checked my settings in vigor and cisco which seem ok to me but i'm missing something in phase-1 parameters (possibly in the vigor 2700 series) which is why its not establishing the tunnel. Given below is an output of show crypto isakmp on the Cisco router

VPN-Hub#sh crypto isakmp sa | section 165.228.142.37
165.228.142.37  203.38.180.222  MM_NO_STATE          0    0 ACTIVE

The config for cisco router vpn is given below and ive attached snapshots of the vigor...Your help will be really appreciated !
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
crypto isakmp policy 15
 encr aes
 hash md5
 authentication pre-share
 group 2

crypto isakmp key xxx address 165.228.142.37
!
crypto ipsec transform-set ho_yha_darwin esp-aes 256 esp-sha-hmac
!

crypto map cj_map 130 ipsec-isakmp
 set peer 165.228.142.37
 set transform-set ho_yha_darwin
 match address HO_YHA_Darwin

Extended IP access list HO_YHA_Darwin
    10 permit ip 10.152.0.0 0.0.0.255 10.144.18.0 0.0.0.255 (30 matches)
    20 deny gre any any
    30 deny ip any any

And finally applied the cj_map on Pub interface of this router
Attachments:

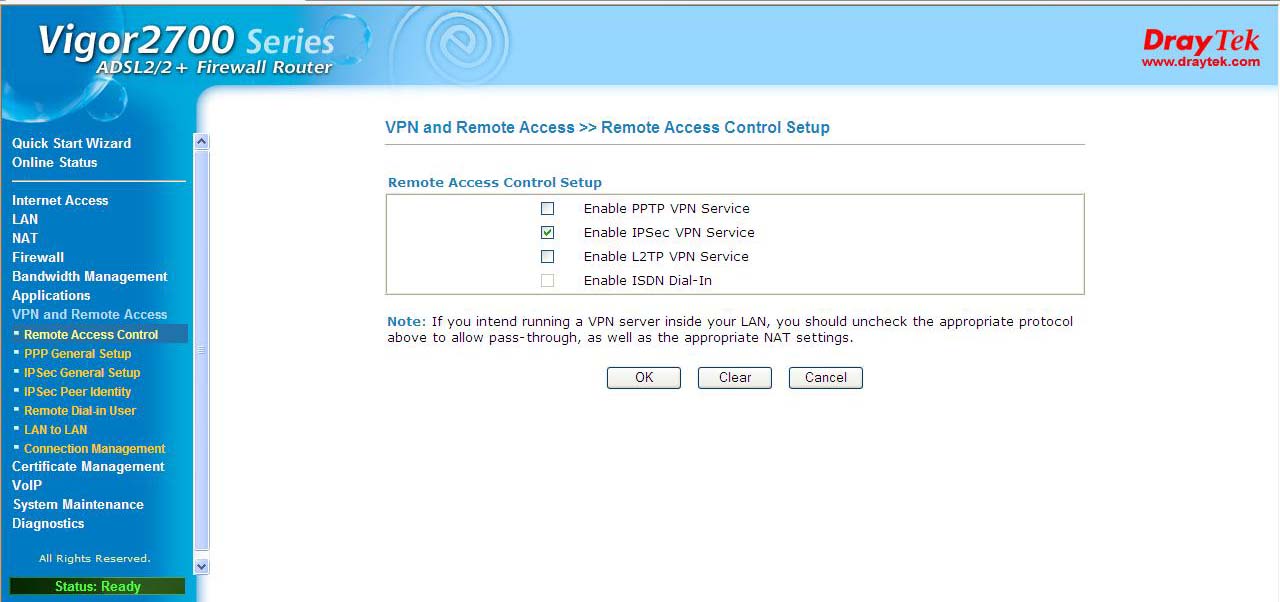

Remote Access Control page
Remote Access Control page


IpSec general setup page
IpSec general setup page

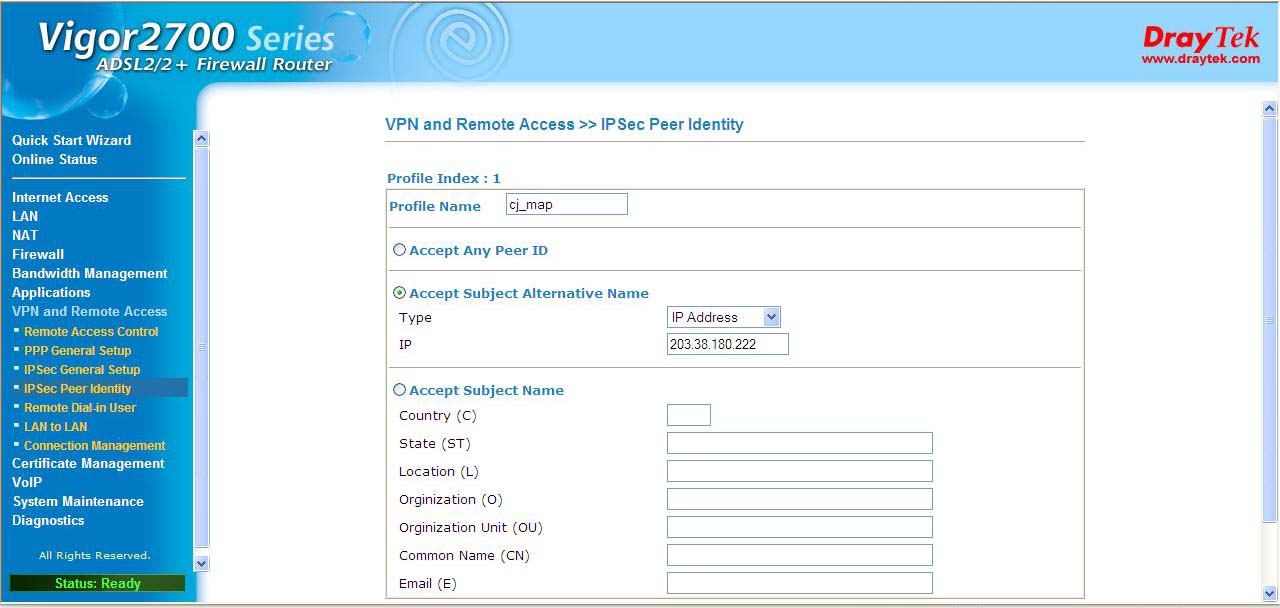

IpSec peer Identity page
IpSec peer Identity page

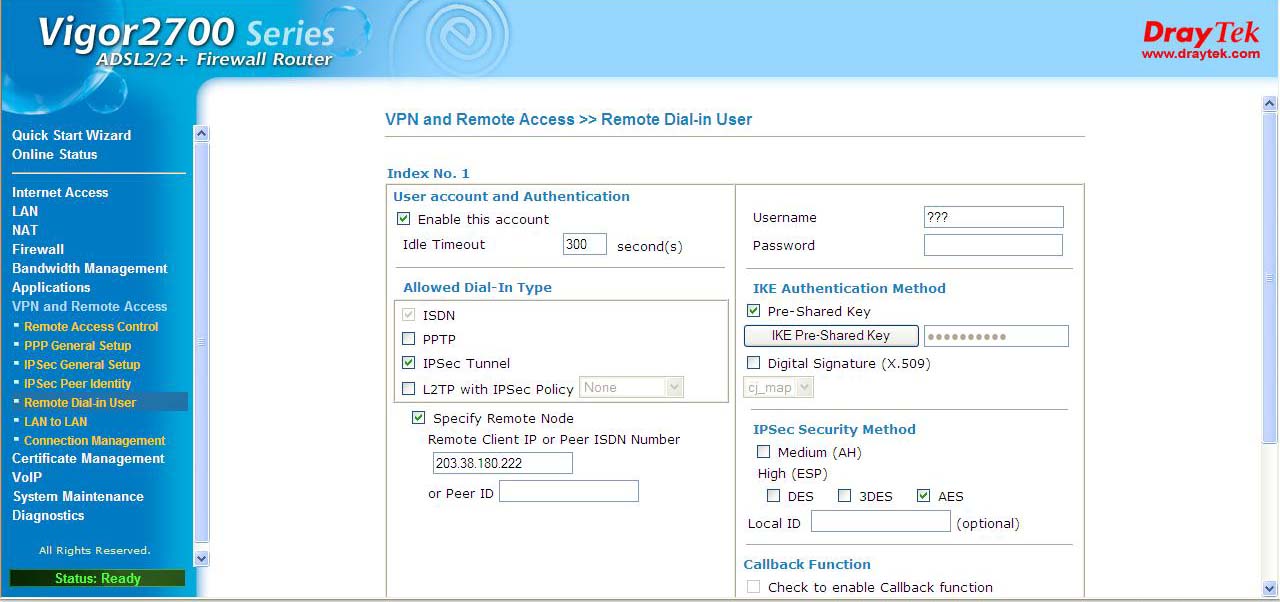

Remote Dial-In User page
Remote Dial-In User page







[+][-]10/20/09 11:33 PM, ID: 25621186Accepted Solution

View this solution now by starting your 30-day free trial. Setting up your free trial is quick, easy, and secure. We will return you to this solution, unlocked, when you're done.

About this solution

Zones: IPSec Security Protocol, Virtual Private Networking (VPN), Network Routers
Tags: VPN Tunnel between draytek vigor 2700 and cisco router
Sign Up Now!
Solution Provided By: ikalmar
Participating Experts: 1
Solution Grade: A

[+][-]10/21/09 04:10 PM, ID: 25629408Author Comment

Often, when Experts are collaborating with members who have asked questions, they will request additional information about the problem. Askers respond with an author comment like this one.

Start your 30-day free trial to view this Author Comment or ask the Experts your question.


[+][-]10/25/09 03:56 PM, ID: 25658884Author Comment

Often, when Experts are collaborating with members who have asked questions, they will request additional information about the problem. Askers respond with an author comment like this one.

Start your 30-day free trial to view this Author Comment or ask the Experts your question.
