Question

How to setup VOIP using VPN

Asked by: westdata

Hi Experts!

I have been thinking to setup VPN servers across the world at locations including USA, UK, Germany, Canada.

Then, I would like to setup VOIP system using my VPN setup.


Can anyone guide me what further infrastructure I would need to setup VOIP using VPN? I would love to avoid hardware as much as I can. I will prefer soft solutions :)

May be this could give you a rough picture of what I am looking to implement:

http://www.strongvpn.com/voip.shtml




Thankyou very much in advance!

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-03-28 at 08:53:36ID24273834
Tags

VOIP

,

VPN

,

IPSec

,

Encryption

Topics

Voice Over IP

,

Virtual Private Networking (VPN)

Participating Experts
1
Points
500
Comments
3

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. VoIP over VPN Tunneling
    Hi, We have a scenario here on our hand and we need urgent assistance... We've recently taken a project in a country that implementation of VoIP is illegal! (dont ask me why) We like to connect the VoIP equipment to allow use of local PSTN lines for providing termination. ...
  2. VoIP
    Dear Experts. What are some of the considerations an our organization should look at when moving from a traditional phone system to Voice over IP (VoIP)? I think that when we switch to VOIP we may have existing telephony folks that suddenly find themselves more dependent on ...
  3. VOIP over SSL VPN
    Utilizing Cisco SSL VPN , is VOIP communication possible, as the VPN operates at the application layer? If not, as I suspect, are there any work-arounds or alternatives?
  4. VOIP & VPN
    How many concurrent VOIP connections can reside in 1 VPN tunnel?

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: Roachy1979Posted on 2009-03-30 at 03:41:48ID: 24017517

Can I just clarify?

You would like to use softphones on client machines connected to a VoIP pbx through a VPN?

Personally, I'd look at a combination of OpenVPN and Asterisk to deliver this.  My OS of choice to do this would be linux, but there this can be achieved using Windows just as well.

You would need to set up the Asterisk at your parent site (the site where the clients connect in to).  You would then set up a linux firewall running OpenVPN at the gateway.  The remote clients would have OpenVPN clients and certs installed and would connect using a softphone such as Ekiga.  Remote VoIP traffic would be router to a provider unencrypted to your chosen SIP/IAX provider.  In the UK we have telepliant who natively support IAX (the Asterisk VoIP protocol, that is IMHO inherantly better than SIP).

The beauty of this solution is that the software is all FOSS - free of charge however you choose to use it.  The downside is that there is a learning curve (you would need to understand Asterisk, how VoIP works and understand routing pretty well).  This can be simplified by using an Asterisk solution such as Trixbox and by using a free appliance firewall such as pfSense....

Have a look at the following links:

http://www.trixbox.org

http://www.asterisk.org/

http://openvpn.net/

http://www.pfsense.com/

http://www.gnomemeeting.org/



by: westdataPosted on 2009-03-31 at 04:12:33ID: 24027529

Thank you very much for your detailed response, I understand the solution you gave. However, I was thinking about a setup like that in the picture I have attached. Please have your look.

I am thinking to get a dedicated 2 MB line here locally, connect to a SIP server (Locally or at remote location, which one you'd recommend?) Then my clients in Middle East would dial my VPN server, and relayed to the SIP device that will complete the connection.

Regarding the solution you have recommended, I have read and experience degraded QoS and ACD when using OpenVPN. The PPTP/L2TP would work fine....

P.S : I am not really a network literate, just know a few things by experience.....bear with me

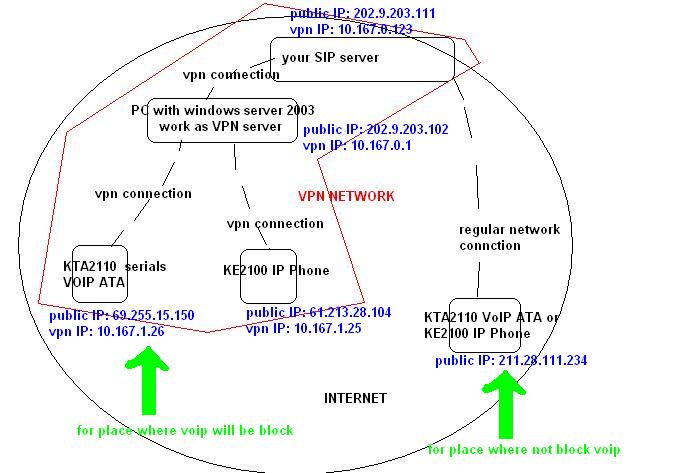

  • 3.JPG
    • 49 KB

    The VPN for Voip structure

    The VPN for Voip structure


by: Roachy1979Posted on 2009-04-01 at 04:19:01ID: 24037880

Ok....the best way to achieve this largely depends on the volume of "internal" calls as to whether you use an internal or external host, and also how comfortable you are with troubleshooting VoIP issues (which can involve packet capture and analysis).  Remember - if you host your own VoIP server then if there were problems with calls between your extensions would need to be able to troubleshoot yourself....

If you have a high number of internal calls then the way forward is probably to host your own SIP server (which in turn connects to a 3rd party server to connect externally to the PSTN network).  Otherwise you would be kicking the traffic out of the internal network to a 3rd party to then have the calls routed back in - which would double your bandwidth requirement for those calls.  But again this depends on your desire/ability to support it....

Does this help at all...?  No problem with not being "network literate" - looks to me like you're doing pretty well :)  And after all - that's what EE is for :)
