Question

How should I structure my LAN?

Asked by: chrisd_2k

I want to maximise my network speed as some users have complained of poor network performance.  I want to start by making sure my servers (x5 HP proliant...) are patched correctly into my switches (x3 netgear gsm7248 l2).

Can someone please provide a diagram or explain exactly how a LAN should be physically patched for optimum performance?  And also what actual cables should be used?

Also we have 5 different departments all use the same apps (MS Office mainly) apart from our Design department who use CAD and 3D rendering packages which I know will take up a lot of bandwidth.  Should I put them onto their own switches to seperate their traffic from everyone else?  Should I VLAN them? I basically want to organise the traffic through my LAN to optimise the speed.

Any ideas?





This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-09-29 at 03:45:20ID23770889
Topics

Telecommunications Providers

,

Network Management

,

Networking Hardware

Participating Experts
3
Points
125
Comments
8

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. CAD in Delphi 5
    Hi, I need to import a simple CAD drawing, and then redraw that drawing onto a forms canvas. Where do I get access to a "common" CAD file structure(ie the equivalent of txt)? Thanks, Dion
  2. Vlan questions
    Curious what sizes of VLANs people are running? My largest is about 2000 users. Even with IPX an average broadcast rate of 30pkts per sec. Now with no ipx less then 10pks per sec. HSRP is now my top multicast/broadcast hog With an all switched network and wanting top speed ...
  3. VLAN structure
    I have to design the vlan structure for a school which has 3 locations connected via fiber and was wondering if i should do an end-to-end vlan encompassing the entire district or should i create a seperate vlan structure at each school and route between the schools? What are...
  4. vlans
    I noticed the other day when backing up the configuration of a few switches on the network that the switches in the remote offices had a different name/number for accessing the LAN here is what i mean.....at the main office i have a vlan created called VLAN 25 for access to t...
  5. HP Proliant Vlan Tagging
    Hi Experts. We are building a new network to keep certain types of traffic off production/internet facing equipment. At layer 3 the network is flat...so for example on a 192.168.1.x/24 network. However, we would like to prevent certain parts of the network seeing other par...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: MysidiaPosted on 2008-09-29 at 05:35:16ID: 22595657

Switches are highly efficient; and generally, if there is a network performance issue it will be either due to either (A) bad wiring, (B) excessive broadcast traffic,  (C)  viruses/malware running rampant on the network and flooding,  (D) the servers or internet connection itself,   or

(E) a bottleneck between two switches when the total traffic exchanged between stations on different switches exceeds the total available bandwidth between switches.


Traffic between two workstations normally  is never forwarded to any ports other than the two workstation's port if they are on the same switch.    On the other hand: if they are on different switches, the traffic has to cross that one link along with traffic related to other workstations communicating with servers/PCs on different switches.



Generally you should concentrate machines that are near a central point to a switch connected with 100meg fastethernet, and connect the switches together with  gigabit (fiber)  trunk lines. If you use VLANs, the inter-switch links should use 802.1q  tagging.

If you have major servers that service multiple departments, attach them with Gig Ethernet also.     If you wish to connect more than a dozen or so workstations with GigE, then use  10GigE links between switches.



Using high-speed inter-switch links allows you to have flexibility without making your switch connections a bottleneck.


The advantage of organizing into VLANs on a multilayer switch is reduction of broadcast traffic.

I.E.   Place each department in its own VLAN on a multilayer switch, so that broadcast traffic from a workstation in one department will not be relayed to all PCs and servers in the other departments.

There should be a separate VLAN for the uplink to your internet providers.






by: chrisd_2kPosted on 2008-09-29 at 06:04:04ID: 22595909

Thanks for that.  Just a couple of questions:

1)Is using VLAN's for each department the best way to organise the traffic / reduce broadcast traffic, then or are there other options?
2) What software would you recommend if the problem is viruses/malware? We currently run McAfee Virus Scan Enterprise V8.5 on all workstations which hasnt found anything...

Thanks



by: dkarpekinPosted on 2008-09-29 at 06:30:19ID: 22596121

Recomendation will be endless, as many people - so many "solution"
To simplify understanding, I'd recomend follow simple rules.
Use single most powerful switch as a "core", to wich all other switches will be connected over fiber, in "star" topology(this way you prevent bottlenecks)
Not to exced 3 switches in a "raw"., and 300 feet over CAT5/6
 Use all 1gb rated patchpanel, plugs, cable- CAT6, not to bend and not to stratch it during install.
Stay with one brand, and do research for your particular needs.
Use VLAN to 'separate"  portions of the network, and at same time provide them with "shared" resources-servers access, internet access.
If servers ment to be used for external users, place them with dedicated WAN IP, up front of your router, connected directly to ISP- this way you will save on network trafiic.You can always use second NIC with LAN IP conected "behind" your router, to provide internal access.
For specific design  use cisco.com there is a lot of very good and easy touse recomendation , base on tha size, demand, usage.

http://www.cisco.com/web/about/ciscoitatwork/solution.html

check actual connection PC-to-Pc with:
Iperf 2.0.2 installer for Windows from
  http://dast.nlanr.net/Projects/Iperf/
 Look for kperf_setup.exe

This will help narrow down problem, find "bottleneck",cable problem, diffrents in file transfer type, and so on.




by: dkarpekinPosted on 2008-09-29 at 06:38:09ID: 22596188

VLAN does not save you any traffic, it is just the way make department "invisible" to each other , but still been on same subnet, therefore no need to segment your LAN by diffrent subnets, which makes more easy to manage.
I'm personaly against any kind of third party AV.
You very well protected by:
1.router firewall
2. windows defender on each PC, and have all updates
3. Having PC not in "adminisrative" mode, but in AD group policy
4. Having monitroring soft - like www.solarwinds.com  will allow more better intrusion prevention, and real time monitoring than any stupid third-party AV- which usialy cause more problem, than they preventing.



by: aleghartPosted on 2008-09-29 at 14:08:18ID: 22600703

The Netgear GSM7248 is not stackable, therfore you will have a bottleneck at your uplinks.

I have a GSM7352 at the top of a stack, which is stackable with a 24-gigabit cable.  Same slot could be used for 10GbE, if you had it.

Are these purchases recent enough to consider exchanging for a stackable model?  Yours is more of a standalone or core router.  Stacks will act and manage as one unit.  Also, the stacking cables offer far greater bandwidth than uplinks with patch cables.

Gigabit switches (even un-managed) are generally sufficient for most small offices.  You could increase your uplink speed by creating a LAG (link aggregate group) of ports.  This gives you a 2Gbps link between switches.

If you are stuck with these switches, I suggest getting the physical layout done before worrying about VLANs and QoS.  Those are icing on the cake.  You need the basic recipie.

You'll have to find out what your true bandwidth need are.  CAD and rendering are not bandwidth intensive if the functions are performed locally.  Does the application engineer have a spec for you on network bandwidth consumption?

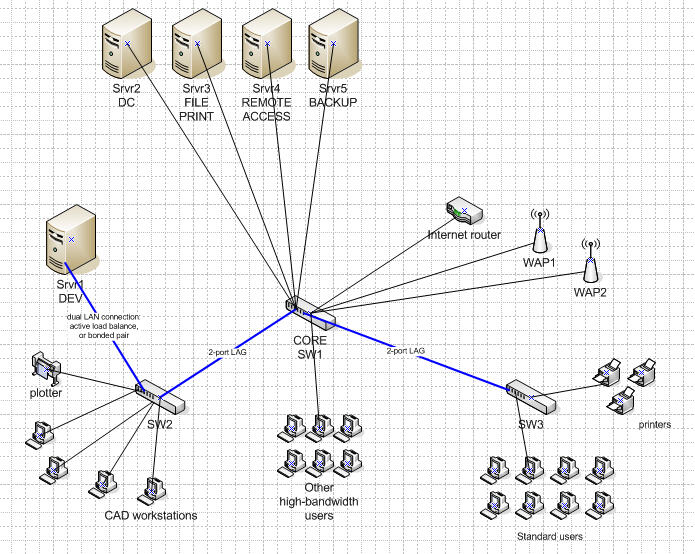

Without that information, here's a general recommendation:

The CAD workstations can also use two gigabit ethernet links in a LAG, which is better than just ALB.



by: MysidiaPosted on 2008-09-29 at 20:20:31ID: 22602525

In terms of AV software; I recommend ESET Nod32.     Not to say there is a virus infection for sure.
How many workstations are there in each department?
How many servers need to be used by each department?

Are there any specialty network apps in use other than say standard e-mail, surfing, sharing/downloading/uploading of reasonably sized office documents?


It may be helpful to compile an estimated  amount of traffic usage expected
for each department at various times of the day based on  per-user  usage
estimates AND total number of users/workstations



The single best thing you can do other than having plenty of inter-switch bandwidth, and have good wiring is to have managed switches that have some intelligence, and can provide you with information  about where traffic is coming from.

If your switches are managed switches such as  Cisco 45xx  units that provide monitoring functions,  you might setup a span session on a port,  and plug in a laptop running wireshark, to the monitoring port, turn the port on, at times when network usage should be minimal (but have PCs turned on), as a method of detecting unusual traffic.

This may also assist in seeing if there are background apps running hogging network bandwidth, and if they are essential to the business or dispensible in the name of network performance  (although when it comes to internet traffic, it is preferable to monitor that at a firewall).

Ideally: have managed switches that support SNMP-based interface statistics,  enable SNMP, setup a SNMP community, and have a server or workstation graph traffic on the inter-switch link ports 24/7, for assistance in locating bottlenecks.   There is useful free software such as MRTG and Cacti  that can help with this on a *ix server.   Or  commercial software like Intermapper  you can use on a Windows workstation.    The  "high-end" extremely expensive solution being tools like Solarwinds'  suite or HP Openview, full-blown monitoring packages.

(For security reasons,  set aside a special VLAN for managing
network equipment  and restrict access by ip to your approved management
stations)


For 5 departments, you probably do not need a super-powerful core switch, or $10,000 monitoring system.  In the absence the most likely bottleneck are your inter-switch links.

You should check vendor specifications for the specific models of
switches you are using for maximum total gbps traffic,  and be sure you are using
non-blocking switches, if you want maximum performance.

I  prefer  Cisco's  multilayer switches,  but  brand isn't all that important.
Make sure they are commercial-grade units with SNMP management and
full layer2 and layer3 capabilities,  no  5-port unmanaged linksys boxes should
be allowed on the organization's premises.

The portable 5-port devices should be regarded extremely as dangerous, especially in the hands of the computer illiterate,   who have an insidious  knack at creating bridging loops or  "accidentally"  introducing  unauthorized DHCP servers  and
rogue home routers with a "192.168.1.1"   ip conflicting with your network's gateways.

To that end, switches with port security, and ARP inspection/DHCP snooping capabilities  (to allow only the privileged ports to dish out DHCP) may be
administratively useful  to minimize problems later.

Admittedly  using VLANs does have some administrative overhead;
whenever  a new office is to be plugged in,  a switch technician needs to
assign the port to the right VLAN.

One possibility is to pre-allocate certain banks of ports to certain VLANs.
From a security standpoint though, it is best to have unused ports turned off.

When a new authorized device is being connected to a switch,
proper documentation should then be entered and filed with the request
for a  switch tech to turn on the new port.









by: MysidiaPosted on 2008-09-29 at 21:14:57ID: 22602738

Just to clarify something that may not be obvious:  if you use VLANs,  you don't need every switch to be multi-layer.

You can use mostly Layer2 switches and have one  multilayer switch as a central switch  plus possibly a backup  to  provide inter-VLAN routing   and connection to your ISP's equipment.

Multilayer switches are much more expensive, and it's better to spend that cash
on pure forwarding speed than on L3 capabilities, when only one device can handle
it.

But keep in mind you shouldn't want a lot of inter-vlan traffic coming back to the same L2 switch (on a different VLAN)

So this works optimally if the departments/VLANs are mostly concentrated on their own switch.




by: chrisd_2kPosted on 2008-10-01 at 08:16:04ID: 22615241

Thanks guys
