Question

Remote Active Directory Clients on Essential Business Server

Asked by: pfarber22

I have an EBS installation where some of the clients are located outside of the main office where EBS servers are located. 2 offices are on MPLS network with 2 routers that configured to allow all traffic between 2 subnets.  The other subnet is defined within the properties of the Internal Adapter. Static routing is set up on the Security Server with the default getaway pointing to the internal interface of the router on the EBS end and the same step was done on the other end's router.
Are there any additional steps that need to be done to ensure that AD is functioning correctly?
I noticed at least 2 troubling details:
1. Port query from a computer on the other side of EBS to the Security server shows all AD ports accessible but the same query to the Management server shows many ports as filtered.
2. There is a lot of denied connections in the TMG log file from the management server to the remote computers with the error: TCP_NOT_SYN_PACKET_DROPPED on ports higher than 1041

Any help is appreciated.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-07-26 at 23:08:27ID24602040
Tags

Essential Business Server

,

TMG

Topics

Essential Business Server

,

MS Forefront-ISA

Participating Experts
2
Points
500
Comments
6

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. raw packet syn
    I would like to know how I can send a raw packet syn to a machine on my network. I'm using delphi 6 enterprise edition. And show me an example please, the ip that I want to send a syn raw packet is 10.1.10.20 . Thanks, Alexandre Santos.
  2. FIN + SYN
    I have installed a Watchguard firewall on my system, however when I run an external security audit, It states that I have a firewall and that it reponding to FIN+SYN. How can I resolve this security issue with this firewall? Thanks BB
  3. MPLS and OSPF
    I'm setting up a network over two sites linked primarily by a LES circuit and as a backup a MPLS VPN link. I want to setup an OSPF area for the two sites as there are numerous vlans etc, this is all straight forward with the LES link but i've been informed by the MPLS service...
  4. ISA dropping SYN packets
    Hi, I am finding it very slow browsing on some websites, and after some investigation I found that ISA have the following entry in its logs: "fwx_e_tcp_not_syn_packet_dropped". We have a standard EdgeFirewall setup with 2 NICS. Setup is as follows: NIC1 to ADSL rout...
  5. EBS  and RWW
    Ok, I have finished setting up and migrating to EBS. I had a little hard time due to some of the tools not functioning, but that mostly seems behind me thanks to the MS support. The issue is that my RWW works from the inside and not from outside. DNS is configures and wh...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: HayesJupePosted on 2009-07-27 at 00:10:49ID: 24949333

any traffic that traverses an interface with ISA/TMG will be scanned and evaluated. I dont really do any SBS/EBS style of work - but im guessing that all products need to be one box ?

If this is the case, i'd be simply ensuring that all the internal ranges are defined in the internal network object, and creating a rule that allows all to all for local host/internal to internal/local host



by: pwindellPosted on 2009-07-27 at 06:46:08ID: 24951430

It is just a bad network design that most people never know about because most "hardware firewalls" are not fully "stateful" on all interfaces and so the [way too common] bad design "still works".   ISA is fully statefuil on all interfaces and will drop the traffic because it does not see "both sides" of the converstation.

You can't use the EBS/ISA as the LAN Router.  One of the other Routers used for the Remote Sites must be the LAN Router.  This means the Default Gateeway of the Hosts is the LAN Router,..not the EBS/ISA.

This is a well established and fully documented situation.

The Official SBS Blog : Network Behind a Network
http://blogs.technet.com/sbs/archive/2007/11/29/network-behind-a-network.aspx

Best Practices for Configuring ISA Server Networks
(http://www.microsoft.com/technet/prodtechnol/isa/2004/plan/bp_networks.mspx)
Tips and hints on configuring network objects in ISA Server, and how to
avoid "network-behind-network" misconfigurations.



by: pfarber22Posted on 2009-07-28 at 12:08:52ID: 24963913

The EBS does not act as a gateway for the the remote subnet, the router does.



by: pwindellPosted on 2009-07-28 at 13:22:42ID: 24964796

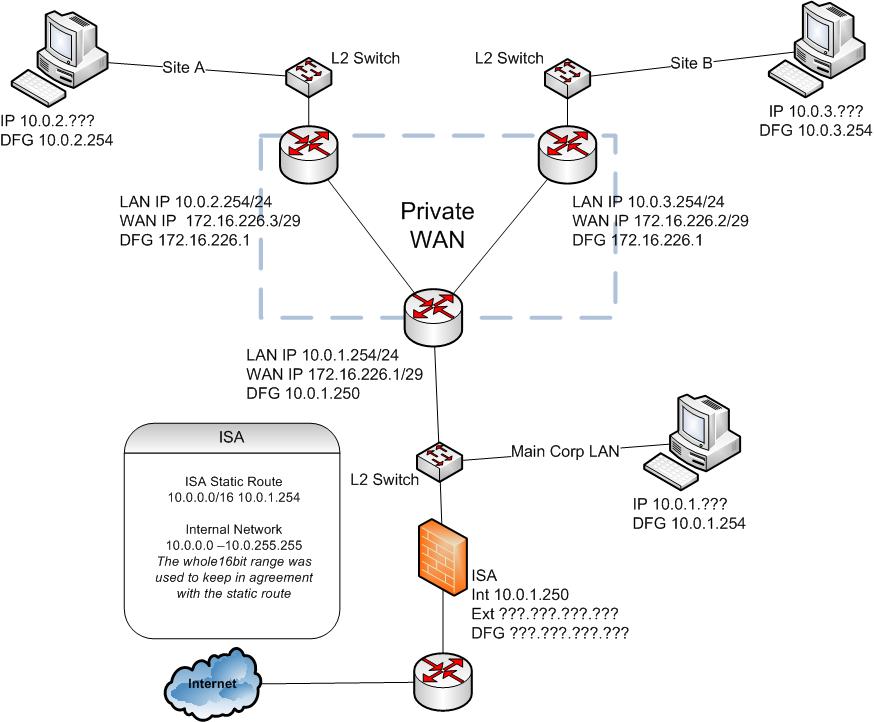

I don't mean the gateway for the remote subnet,...I mean the Default Gateway.  Note in this diagram, which should be nearly identical to your setup, that the Router (not the ISA) is the Default Gateway for the whole Main Site,...then that router (and only it) uses the ISA as a Default Gateway.







by: pwindellPosted on 2009-07-28 at 13:30:47ID: 24964880

One last thing,..because EBS is an "everything on one box" kind of thing,...the ISA will block traffic from the LAN (which includes all sites) destined for the EBS box.  The AD traffic should be a "given" because the ISA System Policys should already cover that,...but traffic that falls outside the realm of AD Traffic might be blocked.

In such a case each situation would use Access Rule similar to this:

From: Internal
To: LocalHost
Protocol: <whatever is required>
Users: "All Users"



by: pfarber22Posted on 2009-10-06 at 15:03:54ID: 31608101

no
