Question

Draw a circle diagram

Asked by: jockejocke

I'm trying to create flash application with a type of circle diagram; a half circle with three circle sectors of different angles which may vary over time.

This half circle (180 degrees) is not the problem, nor is calculating the actual angle of the sector I'm trying to draw. For example, if the diagram shows 0%-100% and the sector should represent 0%-40%, it is just to do simple math (40/100) * 180 to get the angle. However, i do need to draw the triangle that should display the sector. The radius of my circle is 5.

How do I get the X and Y position from knowing an angle of 72 (se example image).
(The arrow is not the problem.)

Thank you for any help!

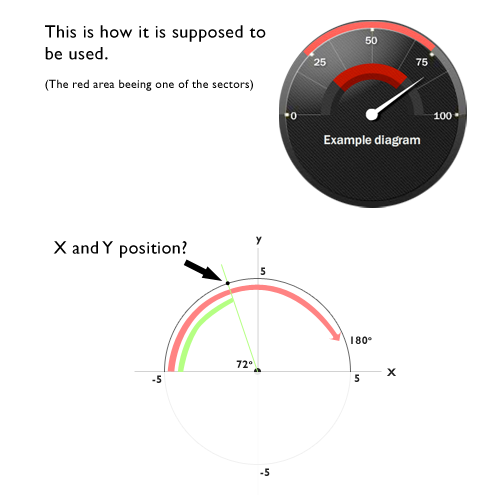

  • example.png
    • 57 KB

    Example of what I'm trying to accomplish

    Example of what I'm trying to accomplish

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-08-05 at 01:36:21ID24627285
Tags

actionscript

,

flash

,

circle

,

math

,

radian

,

angle

,

geometry

Topics

Math & Science

,

ActionScript

Participating Experts
2
Points
500
Comments
5

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Draw a polygon in a circle
    Hi guys. Need some mathematics assistance. Imagine you are given a circle that acts as a bounding box. How do you accurately draw a polygon in such a way that it fits the circle just nice? Note that I meant a polygon, meaning that the algorithm must be able to cater for any...
  2. Calculate a point on a circle by angle
    I need a formula to find points on a circle by angle using the leftmost point as 0 degrees. I am need to calculate this using a computer coordinate system (0, 0 at the top left with x increasing to the right and y increasing downwards). The diameter of my circle is d. The cen...
  3. circle and triangle intersection
    hi Experts, Here is my problem.I have a circle with (x,y) as center and 'R' as radius .Triangle with vertices (x1,y1),(x2,y2) ,(x3,y3) All i have to do is writing a function which returns true if circle touches or intersects the triangle and false if not. P...
  4. circle and triangle intersection
    hi Experts, Here is my problem.I have a circle with (x,y) as center and 'R' as radius .Triangle with vertices (x1,y1),(x2,y2) ,(x3,y3) All i have to do is writing a function which returns true if circle touches or intersects the triangle and false if not. P...
  5. draw triangle
    Hi, I want to draw a triangle with GDI system.drawing. Now What i want to do is the user to enter in 2 angles . To keep it simple say 100 is line distance in pixels for 1st line. if user enters in 30 and 80 the 3rd angle can be worked out to 70. It is confusing on how to con...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: ozoPosted on 2009-08-05 at 01:44:42ID: 25021229

-5 * cosine 72º
5 * sine 72º



by: CaptainCyrilPosted on 2009-08-05 at 01:46:08ID: 25021240

X = X of Center - Radius *Cos(angle)
Y = Y of Center + Radius *Sin(angle)

angle should be in radians
Radius is 5



by: jockejockePosted on 2009-08-05 at 03:37:21ID: 25021842

Thanks! It seems almost perfect ;)
It produces close to what I want now, but there are some error in my calculation.. When I calculate the angles I get the following results as plotted out in the attached image:
angle: 0, x: 16, y: 123
angle: -45, x: 67, y: 32
angle: -90, x: 171, y: 27
angle: -135, x: 230, y: 114
angle: -180, x: 187, y: 209

For some reason, it makes the circle larger than 180 degrees. For angles 0 and 180, y value should be exactly the same?

I'm attaching my AS code.

var centerX = 123;
var centerY = 123;
var radius = 112;

var minValue = 0;
var maxValue = 100;
var meter_steps = 5;

var singleStepValue = (radius*2)/meter_steps;

for (var i:Number = 0; i < meter_steps; i++ )
{
	var tAngle = ( ((i*singleStepValue)/(minValue-maxValue)) * 180 );
	var tX = ( centerX ) - ( radius * Math.cos ( tAngle ) );
	var tY = ( centerY ) + ( radius * Math.sin( tAngle ) );

	trace( "angle: "+Math.round(tAngle)+", x: "+Math.round(tX)+", y: "+Math.round(tY) );

	var tDot = new mc_point();
	mn.x = tX;
	mn.y = tY;
	addChild(mn);
}


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:

Select allOpen in new window

  • Bild-3.png
    • 55 KB

    The dots are spreaded out longer than 180 degrees.

    The dots are spreaded out longer than 180 degrees.


by: jockejockePosted on 2009-08-05 at 04:46:08ID: 25022250

Nevermind I managed, i got it all wrong and tried to do cosine and sine on degrees and not on radians. when i converted my degrees to radians, I get perfect result ;)
Thanks alot!

Attached the working code below for knowledgebase.

var centerX = 123;
var centerY = 123;
var radius = 112;

var minValue = 0;
var maxValue = 100;
var meter_steps = 5;

var singleStepValue = (radius*2)/meter_steps;

for (var i:Number = 0; i < meter_steps; i++ )
{
	var tAngle = ( ((i*singleStepValue)/(minValue-maxValue)) * 180 ) * ( math.PI/180 );
	var tX = ( centerX ) - ( radius * Math.cos ( tAngle ) );
	var tY = ( centerY ) + ( radius * Math.sin( tAngle ) );

	trace( "angle: "+Math.round(tAngle)+", x: "+Math.round(tX)+", y: "+Math.round(tY) );

	var tDot = new mc_point();
	mn.x = tX;
	mn.y = tY;
	addChild(mn);
}


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:

Select allOpen in new window



by: jockejockePosted on 2009-08-05 at 04:46:46ID: 31611802

Lovely!
