Can I embedd an external application within a delphi form?

Zones: Delphi Programming Language, Delphi Programming

Tags: Delphi

Hi all,
Bit of a stupid question here but...

I know how to open an external application and that is working fine, but i was wondering if its possible to open the application within the form its self.

The reason for this is that the external application we have can be closed by our call center agents, but we do not want this. Ideally i want to lunch the external application 'within' the delphi form so that i can set the delphi form properties to no minimise/maximise/close.

Hope I have explained that ok.

If anyone has any ideas I would love to hear them.
Many thanks,
Stu

Start your free trial to view this solution

Question Stats

Zone: Programming

Question Asked By: stuartbrereton

Solution Provided By: MerijnB

Participating Experts: 2

Solution Grade: A

Translate:

Loading Advertisement...

Microsoft

Internet Protocols
Applications

Development
OS

Hardware
Windows Security

Apple

Operating Systems
Hardware

Programming
Networking

Software

Internet

Search Engines
File Sharing
WebTrends / Stats
Spy / Ad Blockers

Web Browsers
New Net Users
Web Development
Chat / IM

Anti Spam
Web Servers
Anti-Virus
Email Clients

Gamers

Tips
Online / MMORPG
Puzzle
Emulators

Action / Adventure
Role Playing
Consoles
Game Programming

Strategy
Sports
Misc
Computer Games

Digital Living

Hardware
Automotive
New Net Users
New Users

Software
Digital Music
Gaming World
Home Security

Apple
Networking Hardware

Virus & Spyware

Vulnerabilities
IDS
Encryption
Anti-Virus

Operating Systems Security
Software Firewalls
WebApplications
Cell Phones

Operating Systems
Internet
Hardware Firewalls

Hardware

Displays / Monitors
Handhelds / PDAs
Components
Peripherals
Laptops/Notebooks

Servers
Misc
Apple
Embedded Hardware
Networking Hardware

Storage
Desktops
New Users

Software

System Utilities
Industry Specific
Network Management
Photos / Graphics
Page Layout
VMware
Misc
Web Development

OS
CYGWIN
Voice Recognition
Virtualization
Message Queue
Quality Assurance
Security
Firewalls

MultiMedia Applications
Development
Database
Office / Productivity
Business Management
OS/2 Apps
Server Software
Internet / Email

ITPro

OS
Storage
Encryption
Operating Systems Security
Apple Hardware
Laptops & Notebooks
Servers
Networking Hardware
Peripherals
Devices

Displays / Monitors
WebTrends / Stats
Search Engines
Firewalls
Web Computing
WebApplications
IDS
Vulnerabilities
Email Clients
File Sharing

Spy / Ad Blockers
Web Browsers
Web Servers
Networking
Anti-Virus
Consulting
Chat / IM
Anti Spam

Developer

Web Servers
Web Browsers
Game Programming
Dev Tools
Industry Specific
Office / Productivity

Database
CYGWIN
Web Development
Search Engines
File Sharing
WebTrends / Stats

Programming
Content Management
Application Servers
Protocols

Storage

Removable Backup Media
Storage Technology
Servers

Grid
Remote Access
Backup / Restore

Misc
Hard Drives

Miscellaneous
Security
Development
Linux
VMware

MainFrame OS
Unix
Apple
OS / 2
AS / 400

BeOS
Microsoft
VMS / OpenVMS

Database

Oracle
Miscellaneous
MySQL
Software
Sybase
Contact Management
PostgreSQL
Data Manipulation
Clarion
InterSystems Cache

Siebel
MUMPS
OLAP
SQLBase
SAS
GIS & GPS
4GL
Berkeley DB
DB2
Informix

Interbase / Firebird
FoxPro
Reporting
LDAP
Filemaker Pro
MS SQL Server
dBase
MS Access

Security

Misc
Web Browsers
Software Firewalls
Operating Systems Security
File Sharing

Spy / Ad Blockers
Vulnerabilities
WebApplications
IDS
Anti-Virus

Encryption
Anti Spam
Email Clients
VPN
Chat / IM

Programming

Editors IDEs
Installation
Handhelds / PDAs
Multimedia Programming
System / Kernel
Automation

Algorithms
Game
Signal Processing
Project Management
Open Source
Database

Misc
Languages
Processor Platforms
Theory

Web Development

Scripting
Blogs
Web Servers
Software
Search Engines
Web Graphics
Web Services

Images
Internet Marketing
Images and Photos
Components
Document Imaging
Web Languages/Standards
Illustration

WebApplications
Fonts
WebTrends / Stats
Authoring
Digital Camera Software
Miscellaneous

Networking

Protocols
Apple Networking
Network Management
Message Queue
Application Servers
Content Management
File Servers
Email Servers
Misc
Java Editors & IDEs

Wireless
Networking Hardware
Backup / Restore
System Utilities
ISPs & Hosting
Web Servers
Storage Technology
Removable Backup Media
Servers
Web Computing

Broadband
Grid
OS / 2
Novell Netware
Unix Networking
Windows Networking
Security
Telecommunications
Operating Systems
Linux Networking

Other

Lounge
Business Travel
Community Support
New Net Users

Philosophy / Religion
Math / Science
Miscellaneous
URLs

Expert Lounge
Politics
Puzzles / Riddles
Automotive

Community Support

Suggestions
New to EE
New Topics
CleanUp

Announcements
General
Feedback

Input
EE Bugs

04.07.2008 at 02:41AM PDT, ID: 21295379

Rank: Wizard

MerijnB:

what kind of application is this external application?

04.07.2008 at 02:43AM PDT, ID: 21295385

bryan7:

You probably need a hook for this and intercept the close query message

04.07.2008 at 02:46AM PDT, ID: 21295395

stuartbrereton:

Its another external EXE. It displays the number of calls waiting in the call center, and we do not want agents to close this application.

With refrence to 'hooks', could you expand please - i dont belive I have ever come across these before.

thanks
Stu

04.07.2008 at 02:48AM PDT, ID: 21295401

Rank: Wizard

MerijnB:

is it a normal win32 application, or a console application?

If it's a 'normal' application, you can try something like this (example for running notepad).

To test, simple start notepad, and run this code (assumes you have English windows)


             procedure TForm4.Button1Click(Sender: TObject);
var Handle: HWND;
begin
 Handle := FindWindow(nil, 'Untitled - Notepad');
 SetWindowLong(Handle, GWL_STYLE, (GetWindowLong(Handle, GWL_STYLE) and (not WS_SYSMENU)));
end;

Open in New Window

04.07.2008 at 02:55AM PDT, ID: 21295429

stuartbrereton:

ah wonderful, that removes it. The actual application, a standard win32 application (Its Avaya PC Wallboard) has a 'Compact' view whereby the File|View| etc can be hidden and just the 'message' from the phone server is displayed.

Would screen shots help at all?

Thank you all for the very quick replies

04.07.2008 at 02:57AM PDT, ID: 21295437

Rank: Wizard

MerijnB:

you need more than removing it?

04.07.2008 at 03:01AM PDT, ID: 21295451

stuartbrereton:

yes, becuse the File|View|Setup|Help menu is still visible, meaning that they can File|Exit and close it. the code above does however remove the Minimise/Close from the window. Let me get you a few screen shots as that will explain it much better than I can :o)

04.07.2008 at 03:05AM PDT, ID: 21295471

Rank: Wizard

MerijnB:

you said you can hide these menu's, isn't that a good option?

04.07.2008 at 03:07AM PDT, ID: 21295475

stuartbrereton:

Screen shots :

Normal View is the standard program. Screen shot 2 is how we select coompact, and the 3rd view is the application running compact. However at any time the user can click the compact view and restore the File menu, even if the windows hooks restrict the forms minimise/max/close.

Thanks for your help it is really appreciated.

Stu

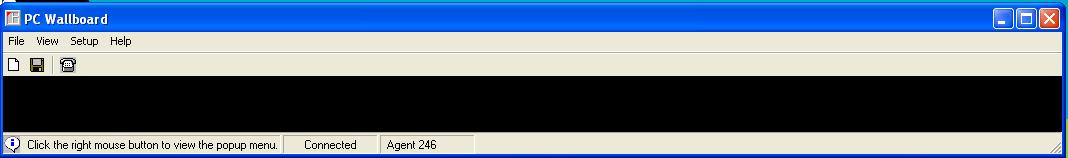

Normal application state

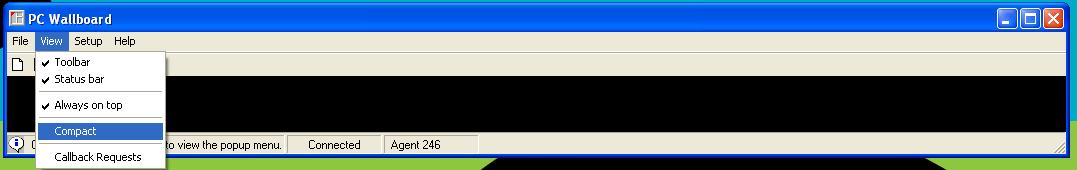

Compact view


Compact

04.07.2008 at 03:19AM PDT, ID: 21295505

stuartbrereton:

thinking about it, can I not intercept the 'close' command of the program using a hook to stop it from closing? Sorry to be such a pain in the backside....

04.07.2008 at 03:34AM PDT, ID: 21295549

Rank: Wizard

MerijnB:

ok, see this piece of code.

It will disable the file->exit menu item.

You will have to change the '8' in both the GetMenuItemInfo() and SetMenuItemInfo() calls to the correct value. This value is the menu item number counter from the top, starting with 0. You also need to count menu seperators.
For notepad its:

0 New
1 Open
2 Save
3 Save as
4 ---- (separator)
5 Page setup
6 Print
7 ---- (separator)
8 Exit





             procedure TForm4.Button1Click(Sender: TObject);
var Handle: HWND;
    MenuHandle: HWND;
    SubMenuHandle: HWND;
    MenuItemInfo: TMenuItemInfo;
begin
 Handle := FindWindow(nil, 'Untitled - Notepad');
 SetWindowLong(Handle, GWL_STYLE, (GetWindowLong(Handle, GWL_STYLE) and (not WS_SYSMENU)));
 MenuHandle := GetMenu(Handle);
 SubMenuHandle := GetSubMenu(MenuHandle, 0);
 MenuItemInfo.cbSize := SizeOf(MenuItemInfo);
 MenuItemInfo.fMask := MIIM_STATE;
 GetMenuItemInfo(SubMenuHandle, 8, true, MenuItemInfo);
 MenuItemInfo.fState := MenuItemInfo.fState or MFS_DISABLED;
 MenuItemInfo.fState := MenuItemInfo.fState and (not MFS_ENABLED);
 SetMenuItemInfo(SubMenuHandle, 8, true, MenuItemInfo);
end;




Open in New Window

04.07.2008 at 03:44AM PDT, ID: 21295583

stuartbrereton:

you are a STAR! Thank you so much! I take it I can re-enable the fratures by tweaking the code? Thanks again

04.07.2008 at 04:03AM PDT, ID: 21295650

Rank: Wizard

MerijnB:

yes, to re-enable, exchange MFS_DISABLED and MFS_ENABLED

04.07.2008 at 04:25AM PDT, ID: 21295759

stuartbrereton:

One last thing, if I right click in the window - guess what - you get another popup menu with properties, minimise, always on top and exit :o(

Can we remove that exit from the right click popup menu?

04.07.2008 at 04:33AM PDT, ID: 21295791

Rank: Wizard

MerijnB:

can you make a screen shot of that menu?

04.07.2008 at 04:37AM PDT, ID: 21295818

stuartbrereton:

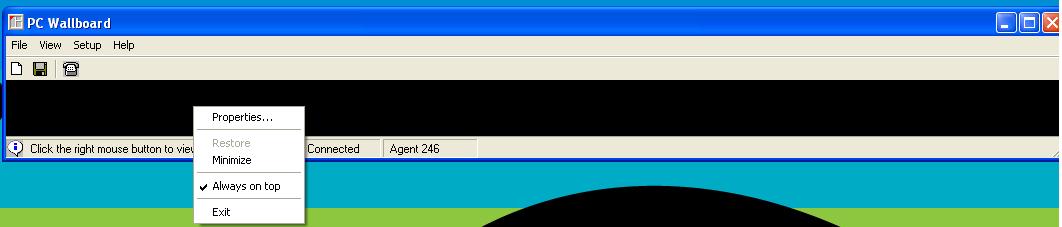

here it is...


the right click menu.

04.07.2008 at 05:00AM PDT, ID: 21295959

Rank: Wizard

MerijnB:

i'm afraid that menu is a lot harder to reach

04.07.2008 at 05:06AM PDT, ID: 21295983

stuartbrereton:

hard or impossible? I really appreciate all of your help by the way. I have not used this site before, so is there something I need to do with regards to the 'points' system?

Can I not just monitor the application, and intercept any close command?

If you have time, to point me in the right direction, or even advise what I need to research in order to stop that, it would be wonderful.

04.07.2008 at 05:22AM PDT, ID: 21296079

Rank: Wizard

MerijnB:

it's probably possible. The problem is that you'll need to find a handle to the popupmenu.

Doing a hook and trying to stop it might work, but is probably more complicated.

04.07.2008 at 05:37AM PDT, ID: 21296204

stuartbrereton:

if I was able to de-compile the original .exe (wall board) would I be able to see the handle for the pop up, or am I WAY off....

So I suppose its back to the original question. Can I load the wallboard application, within a Delphi form?

Stu

04.07.2008 at 05:48AM PDT, ID: 21296301

Rank: Wizard

MerijnB:

> if I was able to de-compile the original .exe (wall board) would I be able to see the handle for the pop up, or am I WAY off....

quite way off. The handle will change each time you start up the app.

> So I suppose its back to the original question. Can I load the wallboard application, within a Delphi form?

This won't help, because this menu will then still be there.

I think you should consider how far do you want to go to protect your users from accidentally closing this app? If you can disable this menu item, probably alt-f4 will still work, if you could disable that, you can still open the task manager and kill it. How far do you want to go?

04.07.2008 at 05:51AM PDT, ID: 21296324

stuartbrereton:

well ideally we do not want it closed under any circumstances. We would like it to start up with the PC, connect and not close at all untill the user logs off.

However I suppose this will be a step in the right direction and not allow any accidental closures.

04.07.2008 at 05:59AM PDT, ID: 21296390

Rank: Wizard

MerijnB:

as said, it will be very difficult to disable _all_ options.

How about you monitor if the app is closed and re-open it again if it is?

04.07.2008 at 06:03AM PDT, ID: 21296420

stuartbrereton:

yes that would be an acceptable option, infact that would probably be better as we can monitor for serial offenders.

On a scale of easy -> hard how easy would that be to do. I have never touched this side of Delphi programming before, and to be honest I am lost.

04.07.2008 at 06:31AM PDT, ID: 21296649

Rank: Wizard

MerijnB:

quite close to 'easy' :)

see example for 'monitoring' notepad:




             1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:



             unit Unit4;

interface

uses
  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
  Dialogs, StdCtrls, ExtCtrls;

type
  TForm4 = class(TForm)
    Button1: TButton;
    Timer1: TTimer;
    procedure Timer1Timer(Sender: TObject);
    procedure FormCreate(Sender: TObject);
  private
    { Private declarations }
    fProcessHandle: HWND;
    procedure StartApp;
  public
    { Public declarations }
  end;

var
  Form4: TForm4;

implementation

{$R *.dfm}

procedure TForm4.FormCreate(Sender: TObject);
begin
 StartApp();
end;

procedure TForm4.StartApp;
var StartupInfo: TStartUpInfo;
    ProcessInformation: TProcessInformation;
begin
 ZeroMemory(@StartupInfo, sizeof(StartupInfo));
 StartupI
