Question

Polygon Outlines : Small features at concave vertexes

Asked by: FalconZero

I have a function  to calculate a polygon which is outset a fixed distance from an input polygon (Fig 1). My function operates on a vector representing the input polygon by taking three consecutive vertexes and calculating new vertexes based on them.

For colinear vertexes it does not output any vertex.

For convex vertexes it calculates an arc of vertexes around the input vertex (Shown below)

For concave vertexes it calculates the intersection point of two lines offset from the segments described by the two vertexes. In Fig 2, The line AB becomes DE, the line BC becomes FG, the intersect of DE with FG (marked H) is the new vertex.

My problem is that the convex vertex C produces the new vertexes around K (circled green). which are too close to AB. The correct output would eliminate the vertexes around K, eliminate vertex H and add a new vertex at M.

The Figures below give a clearer explanation of the problem.

My program already has OpenGL tessalator functions available for CSG, which might be useful, but a pure solution would be much better.

bool polygon_c::outline_vertex(polygon_c* newpoly, doublePair prev, doublePair cur, doublePair next, double distance){
	//Get vectors representing the lines
	doublePair A = cur-prev;
	doublePair B = next-cur;

	//Calculate the offset vectors for the lines (rotate by 90degrees, divide by length to get unit perp vector, multiply by 'distance')
	doublePair offsetA=doublePair(-A.y,A.x).unit()*distance;
	doublePair offsetB=doublePair(-B.y,B.x).unit()*distance;

	//Determine if the angle made by A-B is convex, concave, straight or reverse
	double ang=A.angle(B);

	//Clamp really small angles to zero
	(abs(ang)<10e-5) && (ang=0);

	//Straight, convex or concave?
	if ((ang<0) || (prev==next)){			//Concave - return arc at 'distance' around cur starting from cur+offsetA, ending at cur+offsetB
		//TODO : Draw arc
		double incAng=PI2/18;
		double angle;
		double endAng;

		//Add arc startpoints
		newpoly->verts.push_back(cur+offsetA);

		//For straight lines (IE prev==next), 'fix' the angle to account for lack of 'clockwiseness' in doubleback nodes
		if (prev==next){ang=-PI;}

		//Determine start and end angles
		angle=atan2(offsetA.y, offsetA.x)-incAng;
		endAng=(angle+ang)+incAng;

		double points=ceil((endAng-angle)/incAng);
		incAng=(endAng-angle)/points;

		//Add arc
		while (angle>endAng){
			newpoly->verts.push_back(cur+doublePair(cos(angle)*distance,sin(angle)*distance));
			angle-=incAng;
		}

		//Add the arc endpoint
		newpoly->verts.push_back(cur+offsetB);

	}else if (ang>0){	//Convex - return intersect(prev+offsetA->cur+offsetA, cur+offsetB->next+offsetB)
		doublePair intersect=doublePair::line_intersect(prev+offsetA,cur+offsetA,  cur+offsetB,next+offsetB);
		newpoly->verts.push_back(intersect);
	}else{				//Straigh line - return cur+offsetA
		//Comment out to simplify the polygon
		//newpoly->verts.push_back(cur+offsetA);
	}

	return true;
}


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:

Select allOpen in new window

  • Poly2.png
    • 31 KB

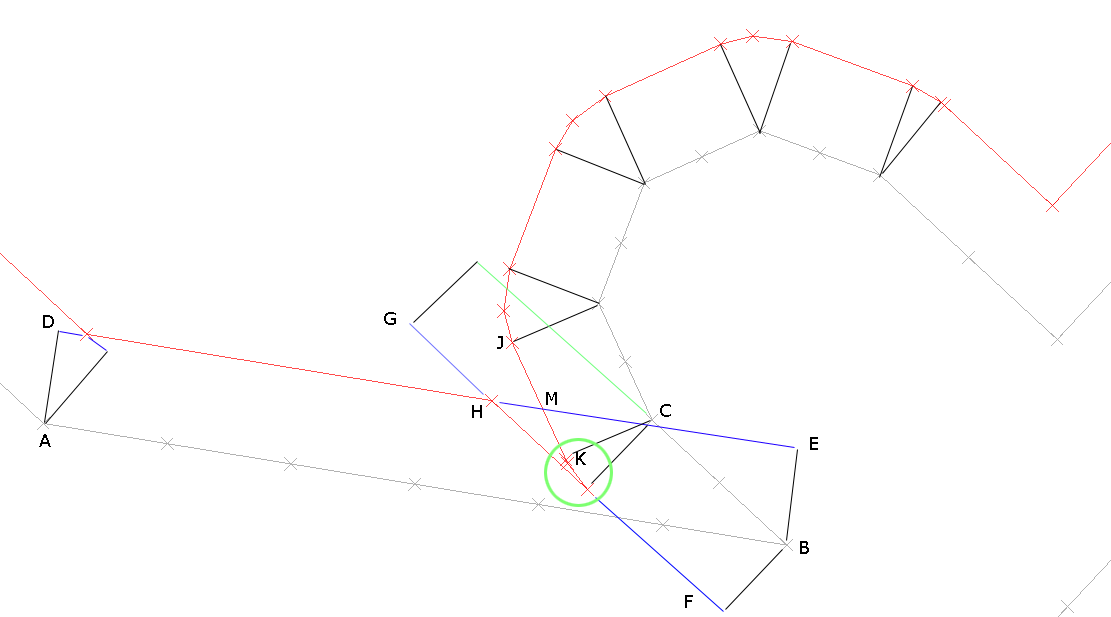

    Fig 2 : Extended graphical depiction of problem

    Fig 2 : Extended graphical depiction of problem
  • Poly1.png
    • 8 KB

    Fig 1 : Graphical depiction of problem

    Fig 1 : Graphical depiction of problem

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-29 at 09:44:16ID24770733
Tags

Polygon Outline

,

Concave Vertex

,

Geometry

Topics

3D Game Programming

,

Algorithms

,

C++ Programming Language

Participating Experts
4
Points
500
Comments
7

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. polygon offset algorithm
    looking for an algorithm to draw an offset from a polygon i have an array of vertices and the angle of each angle Thank's
  2. Flash Vertex Controll - Polygons
    I just mistakenly asked this question elsewhere, but here it is again. I've been writing an interactive 3d engine in flash, using "always facing" objects. I want to use polygons, (modelled objects) but have been unable to figure out how to access vector "poin...
  3. OpenGL Vertex Array Problem (C++)
    I'm using a vertex array and an index list to display my 3d objects. I'm also using a UVW array and UVW list to texture map them. It looks something like this: ------------------------------------------------ struct vertex {GLfloat x; GLfloat y; GLfloat z;}; struct face {un...
  4. Moving a vertex along a vector
    Hi, I am writing an app in Visual Basic.NET with DirectX 9 and have been trying to figure out a way to move a single vertex backwards along its normal vector. That is, pushing it "inward". Does anyone have any ideas to help me with this? Thusfar I have the x,y...
  5. REQ:algorithm for polygon subdivision using vertex normals
    i'm developig a real time 3D graphics renderer and i'm stuck on development of polygon mesh can u please give the algorithm for it and if possible code in OpenGL?

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: BitlabPosted on 2009-09-30 at 00:22:04ID: 25456226

Hello FalconZero.

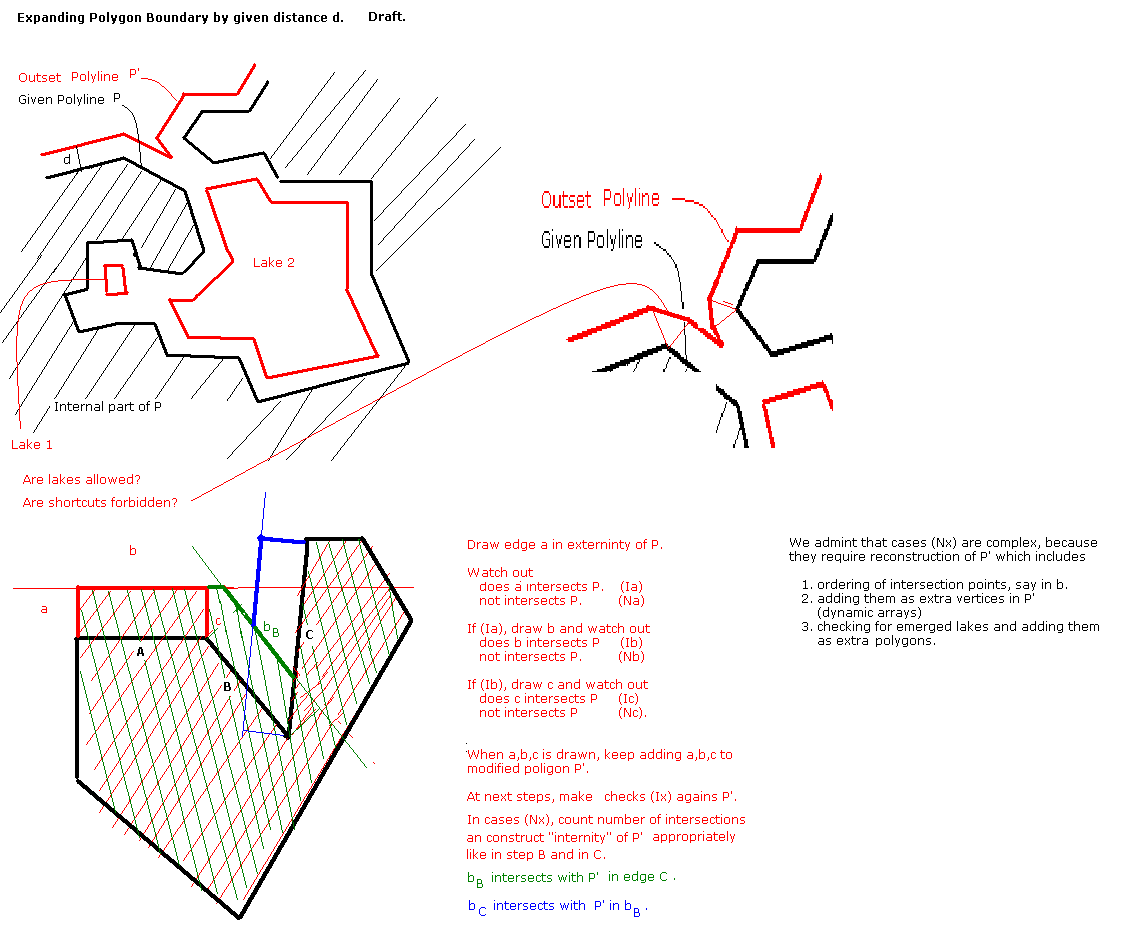

There are questions and draft of required algorithm: http://landkey.net/d/A/Polygons/outset_poligon.png

Possibly this library or its ideas can be used: http://landkey.net/d/z/Essays/PolygonsIntersection/S/Poly.cs.htm

in section "Auxiliary mehods for polylines. "

Apparenlty, the problem you pictured is that your algorithm do not check that point K and its segment is already in internity of P' while BF and FG have been drawing.

Hope to be helpful, Konstantin.



by: thehagmanPosted on 2009-09-30 at 01:48:13ID: 25456602

BTW, how would you want to treat the case where a whole (i.e. non-contiguous polygon) might be created?



by: NovaDenizenPosted on 2009-10-01 at 06:41:57ID: 25468506

I'm trying to rephrase your goal.  Do you get the same result if you create a circle (diameter d) for each vertex and a rectangle (width d, length centered on the line) for each segment, then took the union of all of these shapes, then traced the "left" edge of it?



by: JoseParrotPosted on 2009-10-03 at 13:24:46ID: 25486890

As you have noticed, for convex polygons, the algorithm solves the problem properly. For some non convex polygons solves quite well also. So, let me suggest to first classify the polygon as convex and non convex. This can be done simply finding the convex hull of the polygon. If the number of points of both polygon and convex hull the same, the the polygon is a convex one, then a simple algortithm solves the problem.

The non convex section (or more than one section) is the one with the sequential points which aren't in the convex hull (red), as the black lines in Fig. 1.

For non convex polygons, one of the approaches is to check the relative position of the intersections, which are different for external angles <180 degrees, as the ones at vertices 1 and 4, at Fig. 2.

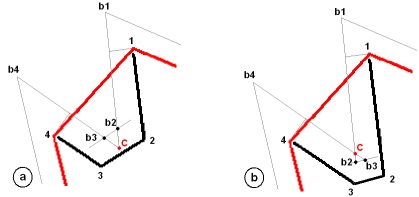

At Fig. 2a, the point c, in red, appears after the line (b1,b2), thus showing that (b2,b3) is the line of the "contour" polygon { b1, b2, ..., bn } and (b2,b3) is the next line. As matter of checking, point c will be in the line (b1,b2) but with a factor of less than zero or greater than one, relative to the segment (b1,b2).

At Fig. 2b, point c is between (b1,b2) thus showing that point c replaces both b2 and b3 in the "contour" polygon.

Depending on the next condiction, say, if the angle at point 4 had less than 180 degrees, then another similar situation would repeat and the new point c is the intersection of (b1,b2) with (b5,b6) as in Fig. 3.

Jose



by: FalconZeroPosted on 2009-10-05 at 04:40:29ID: 25494243

Thanks for the comments so far. I'm investigating these now and I'll let you know how I get on.



by: FalconZeroPosted on 2009-11-05 at 05:18:27ID: 31634972

This was the 'best' solution for my problem. I was able to modify my code rather than rewriting so have accepted this as the 'solution'. Thanks for your help.
