Question

Generalized Routines for a 10X10 array

Asked by: MikeLong

I'm trying to help a student create a game of Battleships for his computing class. He decided to create a 10 X 10 array of buttons. He's got 100 X 'on_click' handlers for each button already but he's found that, for most things he needs to do, he'd have to duplicate the code 100 times. For instance, in placing the ships, he clicks a button and, among other things, he wants to change the color of the button. But he obviously doesn't want to include the same code for each button. How, in a generalised routine called by the 'on_click' code for EACH button, can he know the name of the button that was pushed then, for instance,

SET [{the name of the clicked button}].backcolor = "blue"

"Ask the teacher" isn't an option, I'm afraid - he's teaching the class Quick Basic. My student is taking a bold leap into the 90's by trying to use a language which is somewhat more relevent today.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-08-07 at 23:12:32ID24636634
Tags

Visual Basic

Topics

Game Programming

,

Visual Studio

,

Visual Basic v1.0.5.x

Participating Experts
2
Points
250
Comments
4

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Leap Year validations
    How to do Leap Year Validations using Forms

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: newyuppiePosted on 2009-08-08 at 06:55:12ID: 25049814

You have a lot of options for this, and it would depend on the version of .net that you are using, and the language. We know its VB by the zones you posted your question in, but the coding is done in visual studio? which version?

The generals for the options I can think of are the following, in pseudo-code:

a) On the Handles part of the sub you can add any amount of buttons to handle on 1 same sub
              Private sub Change(...) Handles button1.click, button2.click, button3.click

              (button pressed is stored in sender object)
              dim but as button = directcast(sender, button)

              but.changecolor

b) On the Load event of the form, you could add handlers to all buttons in a loop to point to the same sub (its equivalent to option A)
           for each button in mybuttons
                   addhandler mybutton.change, address of Change
           next
c) You can use 1 sub, and reference the button by it's TAG property, which you would have to set manually 1 time only, could be at design time. you find this in the properties for each button, and you put a string there, which allows you to identify each button separately. You would have to use this option with the option a) as well.
                 Private sub Change(...) Handles button1.click, button2.click, button3.click

              (button pressed is stored in sender object)
              dim but as button = directcast(sender, button)

              if but.tag = "Destroyer" then
                      but.changecolor
              else
                    ...
              end if

Hope this helps something with the general structures you would need.

NY



by: Idle_MindPosted on 2009-08-08 at 09:35:09ID: 25050803

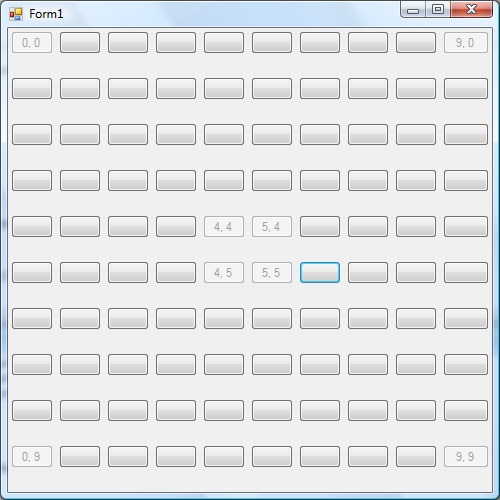

If you have VB.Net 2005 (or above) then you could use a TableLayoutPanel to help you arrange the Buttons in a nice Grid.  Then you can place the TableLayoutPanel into whatever container you want on the Form and your Buttons will resize themselves automatically.

This would be an example of newyuppies method "b".  I'm creating the Buttons dyanmically at run-time and adding them to the TableLayoutPanel.  I use AddHandler() to wire them all up to the same method.  When the buttons are clicked they report their position in the Grid and disable themselves.  You can hit the Escape key to reset them.  This also demonstrates how you could iterate over all the Buttons to make decisions about the game.

You could use a Dictionary (HashTable) to associate each button with external Data to store the "state" of the game.
(or you could go with a more OOP approach and Inherit from Button and add those to the Grid instead).

Public Class Form1

    Private Rows As Integer = 10
    Private Columns As Integer = 10
    Private Btns(,) As Button
    Private tlp As TableLayoutPanel

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        ReDim Btns(Columns - 1, Rows - 1)
        tlp = New TableLayoutPanel
        tlp.Dock = DockStyle.Fill
        tlp.RowCount = Rows
        tlp.ColumnCount = Columns
        tlp.RowStyles.Clear()
        tlp.ColumnStyles.Clear()
        For i As Integer = 1 To Rows
            tlp.RowStyles.Add(New RowStyle(SizeType.Percent, 100 / tlp.RowCount))
        Next
        For i As Integer = 1 To Columns
            tlp.ColumnStyles.Add(New ColumnStyle(SizeType.Percent, 100 / tlp.ColumnCount))
        Next
        For r As Integer = 0 To Rows - 1
            For c As Integer = 0 To Columns - 1
                Dim btn As New Button
                btn.Text = ""
                AddHandler btn.Click, AddressOf btn_Click
                Btns(c, r) = btn
                tlp.SetCellPosition(btn, New TableLayoutPanelCellPosition(c, r))
                tlp.Controls.Add(btn)
            Next
        Next
        Me.Controls.Add(tlp)
        Me.Size = New Size(500, 500)
        Me.KeyPreview = True
    End Sub

    Private Sub btn_Click(ByVal sender As Object, ByVal e As System.EventArgs)
        Dim btn As Button = CType(sender, Button)
        Dim pos As TableLayoutPanelCellPosition = tlp.GetCellPosition(btn)
        btn.Text = pos.Column & ", " & pos.Row
        btn.Enabled = False
    End Sub

    Private Sub Form1_KeyDown(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles Me.KeyDown
        If e.KeyCode = Keys.Escape Then
            ResetAll()
        End If
    End Sub

    Private Sub ResetAll()
        For c As Integer = 0 To Btns.GetUpperBound(0)
            For r As Integer = 0 To Btns.GetUpperBound(1)
                Btns(c, r).Enabled = True
                Btns(c, r).Text = ""
            Next
        Next
    End Sub

End Class

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:

Select allOpen in new window



by: MikeLongPosted on 2009-08-08 at 16:19:53ID: 31613199

Thanks Guys. Just a LITTLE different from COBOL ;-)
Pretty steep learning curve for me - not to mention my poor student.



by: Idle_MindPosted on 2009-08-08 at 16:45:20ID: 25052175

I remember learning a wee bit of COBOL long, long ago...something about defining the input "columns" as defined by start position/length and data type.  We were using Apple IIe's back then in High School...  =)

I actually still have a Quick Basic v4.5 on my computer here.  I'm not even sure it will run on my 64-bit Vista machine!  I've just kept copying it from machine to machine as I've upgraded for nostalgic purposes I guess...   =O

Let us know if we can help more with this quest...good luck!
