Sequence Diagram - Correct Structure and Messaging?

Asked by: DarrenD

Hi,

I'm fairly new to the area of modelling software systems so pleae bear with me!!

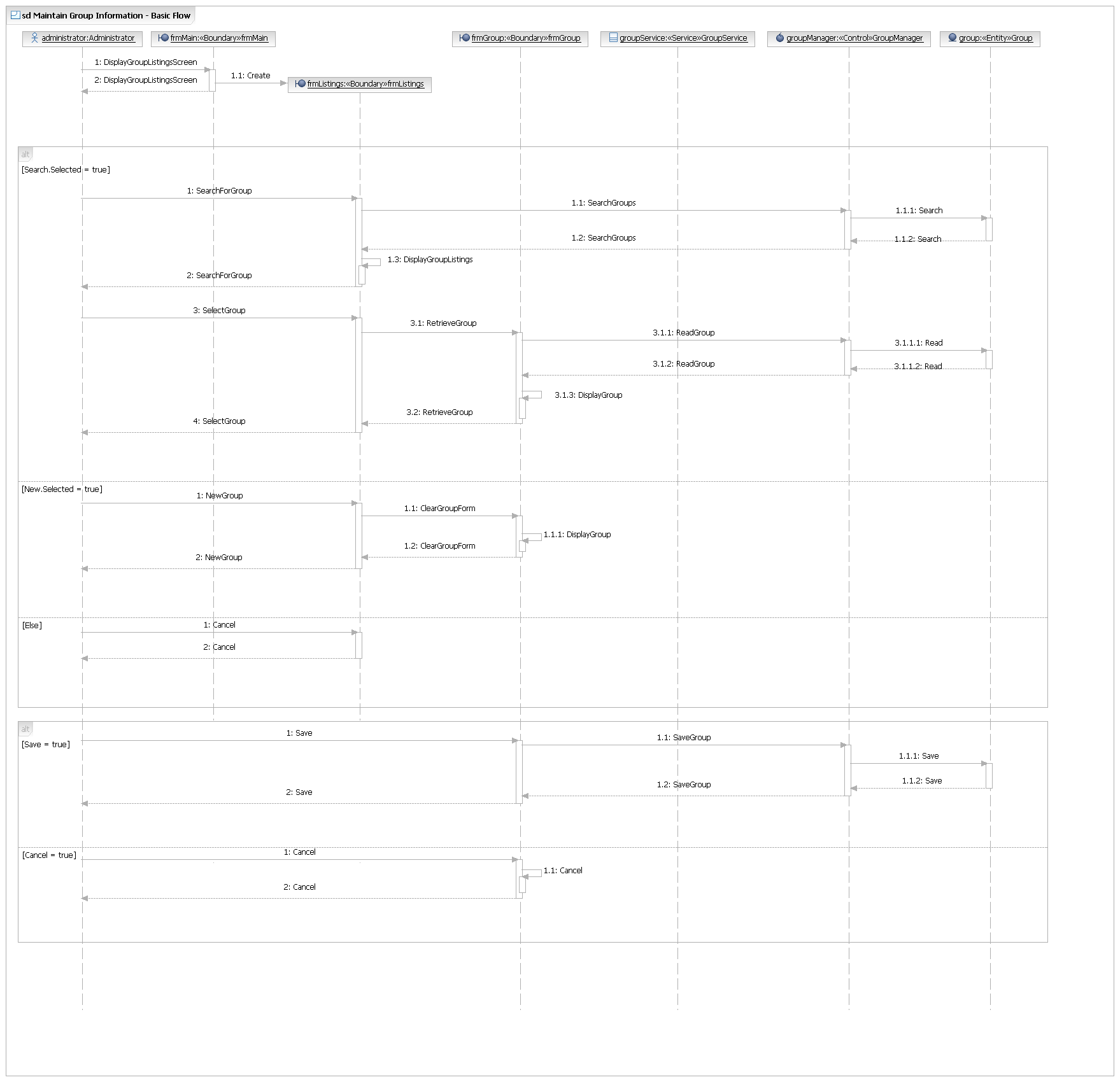

What I am trying to model in the message flow when an administrator wishes to search for an existing group within the system, add a new group to the system and then save or update the group information.

frmMain is an MDI form.

frmListings is a child form that displays the search criteria available to the user which they must enter or the user can select new to create a new group or cancel.

frmGroup is the actual form where group information is displayed to the user where they can then enter or edit information and then either Save or Cancel. If it is a new group then Save will automatically create otherwise Save will update an existing group.

GroupManager contains all of the business logic for the creation and validation of a group

Group is where the group information is saved to the database.

My Questions:
Does my diagram make sense?
What do I need to change in order to correct it?
What would you do diffeently?

Lastly:
If I wanted to make this a Web Service would you add in another timeline showing the calls to the web service before calling the GroupManager or just leave it?

If you need any more information please let me know.

Thanks,

Darren

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-08-03 at 05:03:53ID23617149
Tags

UML

,

.NET Windows Application

Topics

.NET

,

Miscellaneous Programming

,

Software/Systems Design

Participating Experts
1
Points
0
Comments
9

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. DataBase in Sequence Diagrams?
    Hi All, I am developing a sequence diagram for my program.. My GUI Window is supposed to save some info in the DB.. How can I show the Database in the sequence diagram? Can I draw an arrow from the the GUIObject to a new object called DataBase? Thanx SEstudent
  2. Visio UML - Sequence Diagram (500 pts)
    I have an actor on the far left of my diagram which has the name User under it, the problem is the timeline cuts right through the name Usser. Is there a way of startig the timeline at the word rather than the picture?
  3. Sequence Diagram.
    Hi experts, I want to know in sequence diagram, 1.How to show method call? 2. How to show one method call to another method in same class? Manish
  4. sequence diagram
    Hi, I am working on documenting a set of libraries. There is already a high level component diagram for the system but I wanted to prepare a low-level sequence diagram showing invovation call chains for various user/input cases. Since the system is complicated and highly int...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: TheLearnedOnePosted on 2008-08-08 at 15:35:10ID: 22194060

I would say that on the surface, it doesn't really make sense, since I can't really see how the methods are attached to the elements in the sequence.  Does the flow start at the top, and go to the bottom?



by: DarrenDPosted on 2008-08-09 at 01:59:29ID: 22195678

Hi Bob,

Thanks for you're input.

Yes the sequence does start at the top and run to the bottom.

The first area shows the user interaction with frmMain MDI Form. This then creates the frmListings.

The second area shows the different options that the user may select. If the user enters criteria and selects search then the search is performed. Otherwise the user can select New, enter the information and Save below or Cancel

The third area is trying to show that the user can save or cancel.

Can you explain what you mean by 'I can't really see how the methods are attached to the elements in the sequence'

I am trying to show is the message flow between the presentation layer, the control layer and the entity layer. Can you give me a simple example of a sequence diagram showing how to maintain for example either a list of customers or orders. In the system we are building we have to maintain many different lists.

If you need any more info let me know. I really need some help with this.

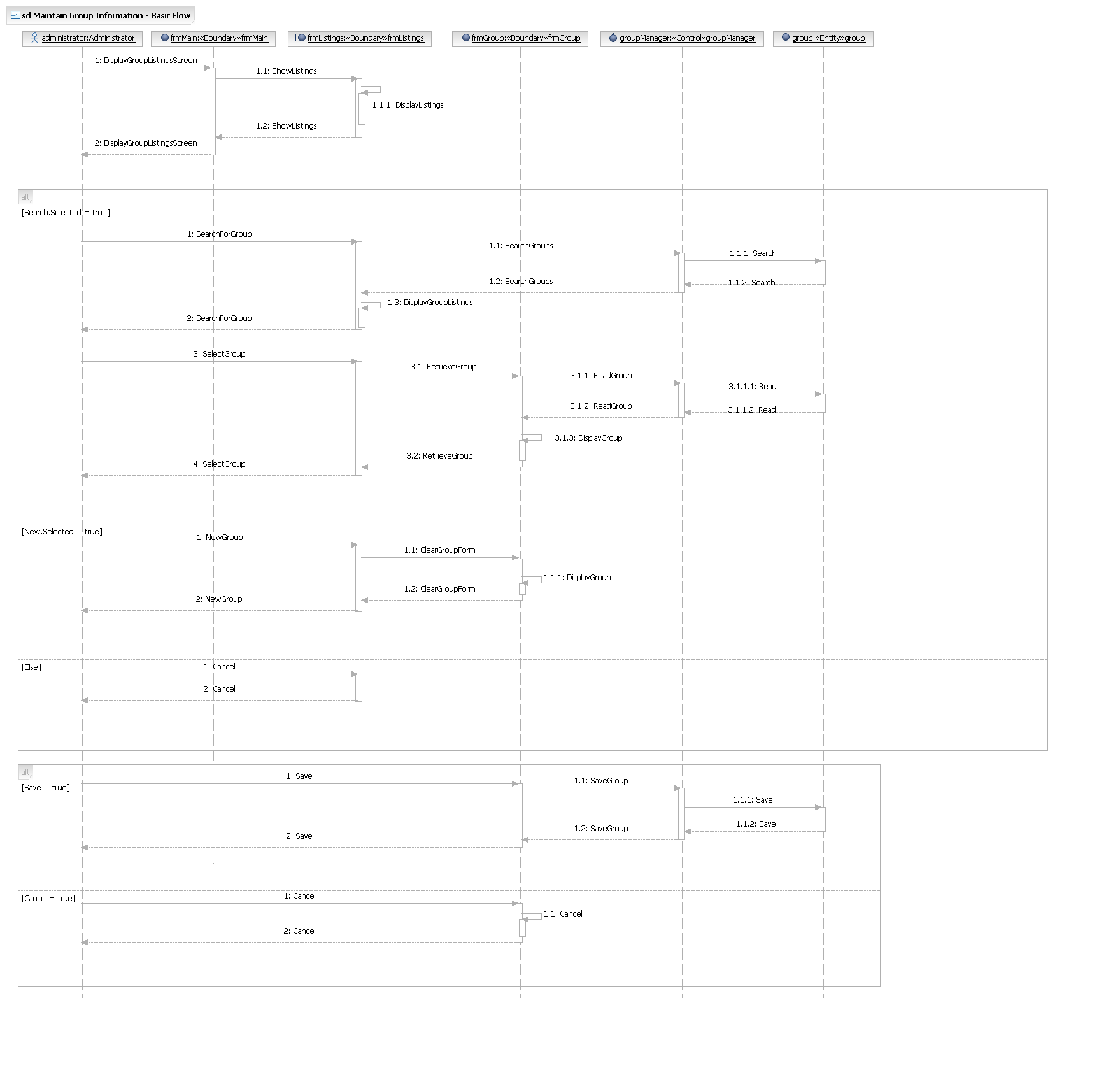

I have attached a new diagram where I have gotten rid of the Create in the first area, but I've left the rest as is.

Cheers,

Darren




by: DarrenDPosted on 2008-08-09 at 02:05:22ID: 22195690

Hi again,

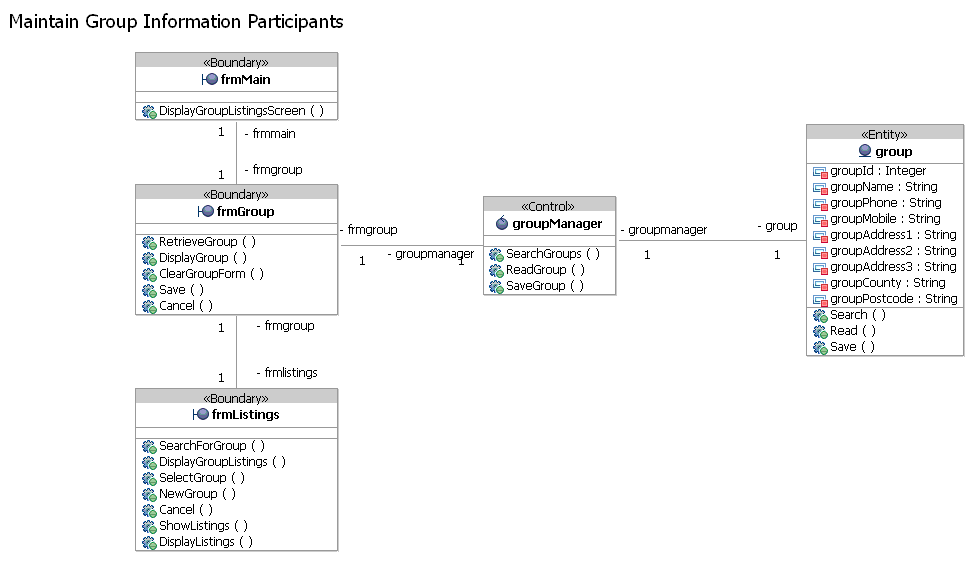

Here is the Participants class diagram I get from the sequence diagram. I've added some properties to the entity class.

Cheers,

Darren



by: TheLearnedOnePosted on 2008-08-09 at 06:37:08ID: 22196244

I meant that there isn't any mention of events that trigger sequences, so how are the different methods started?  Otherwise, to me, it looks more like a flow chart, and that is a horse of a different color.



by: DarrenDPosted on 2008-08-09 at 07:53:39ID: 22196472

Hi,

Are my methods not are started by the Administrator (Actor).

Can you give me an example of: 'events that trigger sequences' that might fit into my example.

Administrator ---------------->Event (User interaction DblClick)---------------->Show Groups

Thanks for you're continued help,

Darren



by: TheLearnedOnePosted on 2008-08-09 at 08:04:00ID: 22196499

Darren,

1) I don't use sequence diagrams very much.

2) I believe that I got something stuck in my head that is not right.

3) Let's review:

UML's Sequence Diagram
http://www.ibm.com/developerworks/rational/library/3101.html

4) From that article, I would surmise that your sequence diagram is pretty spot on.

5) I will have to go back to the drawing board on UML diagrams (d'oh).



by: DarrenDPosted on 2008-08-09 at 08:34:48ID: 22196622

Hi Bob,

Thanks for trying.

I'm not too sure how many people use these things in everyday situations. It seems to be for big organisations that can afford to spend a few months (depenging on the size of the system) developing diagrams. I'm developing a system for work which is also going to form part of my thesis on RSA and MDA.

I think with these types of diagrams it's pretty much trial an error. You never know how much detail you should go into until you're there.

Thanks for the article it's very good one.

Darren
