Question

XML Validation Problem

Asked by: Hojoformo

I am trying to validate my XML against my XML schema and I keep getting an error on a specific element AttributeGroupLink'.  Is this becuase the XML schema has a "Ref" for this element?

Error Message :
Error The element 'Attribute' has invalid child element 'AttributeGroupLink'. List of possible elements expected: 'ValueTemplate, UnitTemplate'. Line # = 13 Line Pos = 829

My XML being validated:
<Attribute ID="070_23000 " FullTextIndexed="false" ExternallyMaintained="false" ProductMode="Normal" Derived="false">
      <Name>Abduction 160 degrees</Name>
      <Validation BaseType="text" />
      <AttributeGroupLink AttributeGroupID="Product Specification" />
      <LinkType LinkTypeID="P" />
    </Attribute>

XML Schema

<xs:element name="Attribute">
    <xs:complexType>
      <xs:sequence>
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="Name" />
        <xs:choice>
          <xs:element ref="Validation" />
          <xs:element ref="ListOfValueLink" />
        </xs:choice>
        <xs:choice>
          <xs:element ref="ValueTemplate" />
          <xs:element ref="UnitTemplate" />
        </xs:choice>
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="DimensionLink" />
        <xs:element minOccurs="0" ref="MetaData" />
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="AttributeGroupLink" />
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="UserTypeLink" />
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="LinkType" />
      </xs:sequence>
      <xs:attribute name="ID" type="xs:string" use="required" />
      <xs:attribute default="false" name="Derived" use="optional">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKEN">
            <xs:enumeration value="true" />
            <xs:enumeration value="false" />
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute default="false" name="ExternallyMaintained" use="optional">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKEN">
            <xs:enumeration value="true" />
            <xs:enumeration value="false" />
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute default="Normal" name="ProductMode" use="optional">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKEN">
            <xs:enumeration value="Normal" />
            <xs:enumeration value="Property" />
            <xs:enumeration value="ClassValidated" />
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute default="false" name="FullTextIndexed" use="optional">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKEN">
            <xs:enumeration value="true" />
            <xs:enumeration value="false" />
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute default="false" name="MultiValued" use="optional">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKEN">
            <xs:enumeration value="true" />
            <xs:enumeration value="false" />
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute name="DefaultUnitID" type="xs:string" use="optional" />
    </xs:complexType>
  </xs:element>
  <xs:element name="AttributeGroup">
    <xs:complexType>
      <xs:sequence>
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="Name" />
        <xs:element minOccurs="0" ref="MetaData" />
        <xs:element minOccurs="0" maxOccurs="unbounded" ref="AttributeGroup" />
      </xs:sequence>
      <xs:attribute name="ID" type="xs:string" use="required" />
      <xs:attribute name="ParentID" type="xs:string" use="optional" />
    </xs:complexType>
  </xs:element>
  <xs:element name="AttributeGroupLink">
    <xs:complexType>
      <xs:attribute name="AttributeGroupID" type="xs:string" use="required" />
    </xs:complexType>
  </xs:element>


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:

Select allOpen in new window

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-05-04 at 14:13:16ID24379383
Topic

.NET

Participating Experts
1
Points
500
Comments
10

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. XML Validation using schema
    Hi all, In continuation to 5/15/2001 question which i asked. Still i am having problems. When i try validating my XML using Schema i get error. Is there any problem in the declarations that i have made in my Schema, XML Parser is not looking in to the schema(SCH.xsd) as ...
  2. Validation against XML Schema
    Is there a way of validating an XML file against a Schema so that when the XML file has an element declared like this: <some-field/> where the schema defines it like: <xsd:element name="some-field" type="xsd:nonNegativeInteger" /> as oppos...
  3. XML + XML Schema validation using PHP?
    How can I validate an XML file described by XML Schema using PHP? I've searched for a while now and I cannot find anything about it. I think there is something on XML file + DTD validation on PEAR, but I'm looking for XML + XML Schema validation... Thank you.
  4. xml schemas
    Does anyone have sanple vb .net code for validating an xml file against its schema
  5. XML Schema validation
    I have a xml file that I load from an xml file (test.xml). I also have a schema on my computer called (validate.xsd). The xml file changes constantly, and it doesn't reference the schema file. How do I load the xml file (preferably in an xmldocument object) and then valida...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: TheLearnedOnePosted on 2009-05-05 at 04:18:48ID: 24303391

It looks like you aren't defining the "AttributeGroupID" attribute...



by: HojoformoPosted on 2009-05-05 at 06:48:07ID: 24304599

Hi,  can you please expand on your comment.   The AttributeGroupID is defined in the SCHEMA but it is referenced under the PARENT item ATTRIBUTE.  Is this what you mean by defining?

<xs:element name="Attribute">
 <xs:element minOccurs="0" maxOccurs="unbounded" ref="AttributeGroupLink" />
</xs:attribute>

  <xs:element name="AttributeGroupLink">
    <xs:complexType mixed="true">
      <xs:attribute name="AttributeGroupID" type="xs:string" use="required" />
    </xs:complexType>
  </xs:element>



by: TheLearnedOnePosted on 2009-05-05 at 06:59:39ID: 24304743

Can you show me what that looks like in the schema designer?



by: HojoformoPosted on 2009-05-05 at 09:32:52ID: 24306468

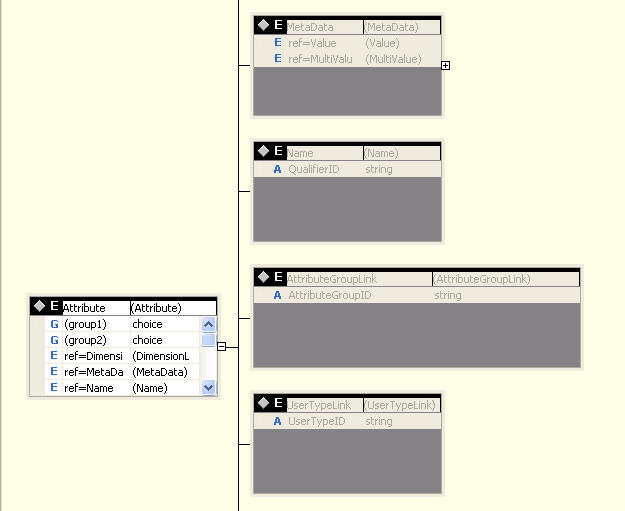

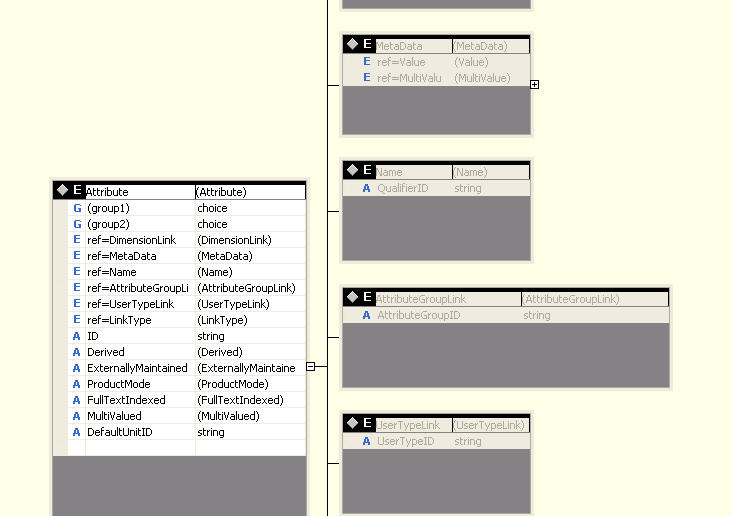

Hi,  I attached a snapshot of the schema designer showing these elements.




by: TheLearnedOnePosted on 2009-05-05 at 09:58:39ID: 24306724

1) I see 2 groups, which I assume are (Validation, ListOfValueLink) and (ValueTemplate, UnitTemplate), and 3 references (DimensionL, MetaData, Name).

2) Is that the entire XSD in the question body?



by: HojoformoPosted on 2009-05-05 at 11:18:52ID: 24307482

No there is a little more



by: TheLearnedOnePosted on 2009-05-05 at 12:11:06ID: 24308074

I don't normally use "ref" elements, so I am not sure that I can see how the validation works, but my first guess is that the validation is confused, because it looks correct to me.

How are you validating the XML?



by: HojoformoPosted on 2009-05-05 at 13:42:51ID: 24308957

Below is my code to validate XML against a SCHEMA

XmlReaderSettings settings = new XmlReaderSettings();
                settings.ValidationType = ValidationType.Schema;
                settings.Schemas.Add(null, @"c:\\stepexmlschema.xsd");
                settings.ValidationEventHandler += delegate(object sender, ValidationEventArgs vargs)
                {
                    //Console.WriteLine("{0}: {1}", vargs.Severity, vargs.Message);
                    errortext = vargs.Severity + " " + vargs.Message + " Line # = " + vargs.Exception.LineNumber + " Line Pos = " + vargs.Exception.LinePosition;

                    txtData.Text = string.Format("{0}{1}{2}\r\n", txtData.Text, errortext, ValidateCnt++);
                    XMLErrors++;

                };
                using (XmlReader reader = XmlReader.Create(dlgSave.FileName.ToString(), settings))
                //using (XmlReader reader = XmlReader.Create(@"c:\\FULLExported.xml", settings))
                {
                    while (reader.Read()) {
                        ValidateCnt++;
                    }
                }



by: TheLearnedOnePosted on 2009-05-06 at 06:34:08ID: 24314509

I took that XML fragment, and create a schema document.   Ran the validation code, and everything validated without error.

<?xml version="1.0"?>
<xs:schema id="Schema" xmlns="" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:msdata="urn:schemas-microsoft-com:xml-msdata">
  <xs:element name="Attribute">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="Name" type="xs:string" minOccurs="0" msdata:Ordinal="0" />
        <xs:element name="Validation" minOccurs="0" maxOccurs="unbounded">
          <xs:complexType>
            <xs:attribute name="BaseType" type="xs:string" />
          </xs:complexType>
        </xs:element>
        <xs:element name="AttributeGroupLink" minOccurs="0" maxOccurs="unbounded">
          <xs:complexType>
            <xs:attribute name="AttributeGroupID" type="xs:string" />
          </xs:complexType>
        </xs:element>
        <xs:element name="LinkType" minOccurs="0" maxOccurs="unbounded">
          <xs:complexType>
            <xs:attribute name="LinkTypeID" type="xs:string" />
          </xs:complexType>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="ID" type="xs:string" />
      <xs:attribute name="FullTextIndexed" type="xs:string" />
      <xs:attribute name="ExternallyMaintained" type="xs:string" />
      <xs:attribute name="ProductMode" type="xs:string" />
      <xs:attribute name="Derived" type="xs:string" />
    </xs:complexType>
  </xs:element>
  <xs:element name="Schema" msdata:IsDataSet="true" msdata:UseCurrentLocale="true">
    <xs:complexType>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="Attribute" />
      </xs:choice>
    </xs:complexType>
  </xs:element>
</xs:schema>


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:

Select allOpen in new window



by: HojoformoPosted on 2009-05-07 at 06:10:07ID: 31578976

Thank you very much!!!

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
