// I90ControllerDlg.cpp : implementation file
//
#include "atlimage.h"
#include "pixmap.h"
#include "imglib.h"
#include "ekfreal.cpp"
//#include "ukfreal.cpp"
//#include "ekfrealass.cpp"
#include "stdafx.h"
#include "direct.h"
#include "I90Controller.h"
#include "I90ControllerDlg.h"
#include <iostream>
#include <fstream>
using namespace std;
// create data structure to hold image
/*struct PIC
{
unsigned int nChannel;
bool InterLeaved;
unsigned int Width, Height, Maxval;
BYTE *img;
};*/

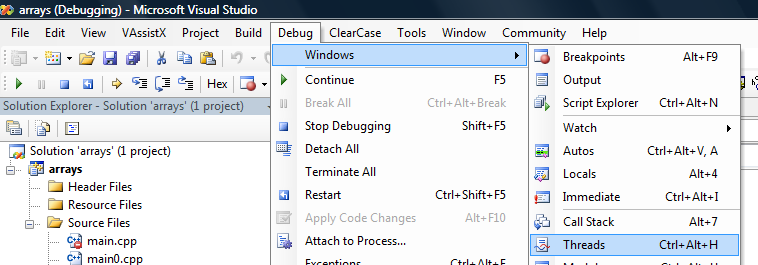

template <typename T>

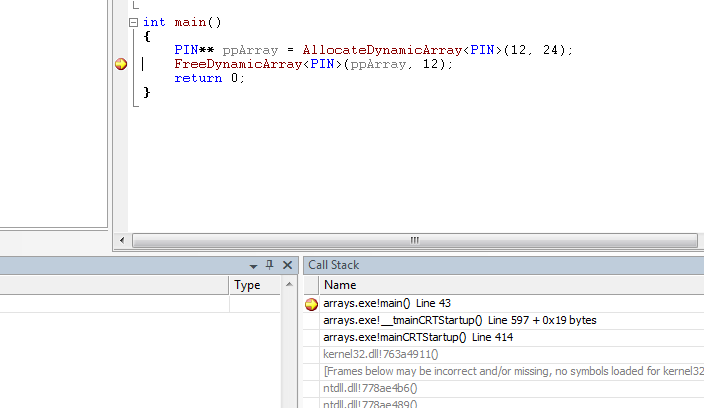

T **AllocateDynamicArray( int nRows, int nCols)
{
T **dynamicArray;
dynamicArray = new T*[nRows];
for( int i = 0 ; i < nRows ; i++ )
dynamicArray[i] = new T [nCols];
return dynamicArray;
}
template <typename T>
void FreeDynamicArray(T** dArray)
{
delete [] *dArray;
delete [] dArray;
}
//Position calculatematrices(bool firstTime,short thetaL1,short thetaL2,short distanceL1,short distanceL2,bool rightpixel,bool leftpixel,double currentxr,double currentyr,double angletravelled,double lastangletravelled,double lastxr,double lastyr,double *xL,double *yL);
//Position calculatematrices(bool firstTime,short thetaL1,short thetaL2,short distanceL1,short distanceL2,bool rightpixel,bool leftpixel,double currentxr,double currentyr,double angletravelled,double *xL,double *yL);
Position calculatematrices(bool firstTime,short thetaL1,short thetaL2,short distanceL1,short distanceL2,bool rightpixel,bool leftpixel,double currentxr,double currentyr,double angletravelled,double lastangletravelled,double lastxr,double lastyr,double *xL,double *yL,int numberofcolors);
#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif
#define wheelR 8.5 //cm
#define NO_CONTROL -32768
#define M_PWM 0
#define M_POSITION 1
#define M_VELOCITY 2
#define cFULL_COUNT 32767
#define cWHOLE_RANGE 1200
#define CIRCLE_CNT 800 //encoder resolution
#define WheelDis 0.31
#define robotwidth 30 //centimeters
int passedtime=0;
#define Nmax 10000;
#define PI 3.14
/////////////////////////////////////////////////////////////////////////////
// CAboutDlg dialog used for App About
BOOL SaveAudioFile(LPCTSTR FileName) ;
struct WAVEFileHeader{
short wFormatTag;
short nChannels;
long nSamplesPerSec;
long nAvgBytesPerSec;
short nBlockAlign;
short wBitsPerSample;
short cbSize;
}waveFormatHeader;
struct FileHeader
{
long lRiff;
long lFileSize;
long lWave ;
long lFormat;
long lFormatLength;
} audioFileHeader;
struct ChunkHeader
{
long lType;
long lLen;
}ch;
class CAboutDlg : public CDialog
{
public:
CAboutDlg();
// Dialog Data
//{{AFX_DATA(CAboutDlg)
enum { IDD = IDD_ABOUTBOX };
//}}AFX_DATA
// ClassWizard generated virtual function overrides
//{{AFX_VIRTUAL(CAboutDlg)
protected:
virtual void DoDataExchange(CDataExchange* pDX); // DDX/DDV support
//}}AFX_VIRTUAL
// Implementation
protected:
//{{AFX_MSG(CAboutDlg)
//}}AFX_MSG
DECLARE_MESSAGE_MAP()
};
CAboutDlg::CAboutDlg() : CDialog(CAboutDlg::IDD)
{
//{{AFX_DATA_INIT(CAboutDlg)
//}}AFX_DATA_INIT
}
void CAboutDlg::DoDataExchange(CDataExchange* pDX)
{
CDialog::DoDataExchange(pDX);
//{{AFX_DATA_MAP(CAboutDlg)
//}}AFX_DATA_MAP
}
BEGIN_MESSAGE_MAP(CAboutDlg, CDialog)
//{{AFX_MSG_MAP(CAboutDlg)
// No message handlers
//}}AFX_MSG_MAP
END_MESSAGE_MAP()
/////////////////////////////////////////////////////////////////////////////
// CI90ControllerDlg dialog
CI90ControllerDlg::CI90ControllerDlg(CWnd* pParent /*=NULL*/)
: CDialog(CI90ControllerDlg::IDD, pParent)
{
//colorlist=new int[5];
lastLeftEncoder = 0;
lastRightEncoder = 0;
currentLeftEncoder=0;
currentRightEncoder=0;
currentLeftEncoderValue=0;
currentRightEncoderValue=0;
m_Encoder1 = 0;
m_Encoder2 = 0;
m_Encoder11 = 0;
m_Encoder22 = 0;
distanceL1=255;
distanceL2=255;
m_IR1 = 0;
m_IR2 = 0;
m_IR3 = 0;
m_IR4 = 0;
m_IR5 = 0;
m_IR6 = 0;
m_IR7 = 0;
m_Sonar1 = 0;
m_Sonar2 = 0;
m_Sonar3 = 0;
m_IR8 = 0;
m_Encoderspeed1 = 0;
m_Encoderspeed2 = 0;
m_Encodercurrent1 = 0;
m_Encodercurrent2 = 0;
Ypix=0;
lastangletravelled=0;
currentangletravelled=0;
lastpoint1.x=510;
lastpoint1.y=520;
lastpoint11.x=510;
lastpoint11.y=520;
lastpoint12.x=510;
lastpoint12.y=520;
lastpoint2.x=510;
lastpoint2.y=520;
numberofgreenpixel=0;
numberoforangepixel=0;
numberofpinkpixel=0;
numberofbluepixel=0;
numberoflilapixel=0;
m_Width=IMAGE_WIDTH; //720 768
m_Height=IMAGE_HEIGHT; //576 576
m_Channels=3;
ismoving=false;
//initialize the true position xt and the position calculated x
xxt.x=new double *[2];
xxt.x[0]=new double [1];
xxt.x[1]=new double [1];
xxt.x[0][0]=0;
xxt.x[1][0]=0;
thetaL1=0;
thetaL2=0;
variabilax=0;
variabilay=0;
variabilax1=0;
variabilay1=0;
xxt.xt=new double *[2];
xxt.xt[0]=new double [1];
xxt.xt[1]=new double [1];
xxt.xt[0][0]=0;
xxt.xt[1][0]=0;
lastxr=0;
lastyr=0;
variabila=0;
rightpixelvalue=new unsigned char[3];
leftpixelvalue=new unsigned char[3];
angletravelled=0;
distravelled=0;
currentdisttravelled=0;
lastEncoderPulse1=0;
lastEncoderPulse2=0;
//initial position and angle
angle=0;
xr=0;
yr=0;
dx=0;
dy=0;
currentEncoderPulse1=0;
currentEncoderPulse2=0;
diffEncoder1=0;
diffEncoder2=0;
wheelDistanceL=0;
wheelDistanceR=0;
landmark =false;
maximum=0;
indexmax=0;
//}}AFX_DATA_INIT
// Note that LoadIcon does not require a subsequent DestroyIcon in Win32
m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
firstTime= true;
connectcamera=false;
rightpixel=false;
leftpixel=false;
//we need the vector with the position of the 2 landmarks
xL=new double [6];
yL=new double [6];
//blue landmark position in cm
xL[0]=70;
yL[0]=122;
//green landmark
xL[1]=120;
yL[1]=182;
//red landmark
xL[2]=200;
yL[2]=78;
//pink landmark 290 initial
xL[3]=200;
yL[3]=50;
//purple landmark
xL[4]=254;
yL[4]=172;
//orange landmark
xL[5]=200;
yL[5]=372;
beta=0;
//}}AFX_DATA_INIT
// Note that LoadIcon does not require a subsequent DestroyIcon in Win32
m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
}
void CI90ControllerDlg::DoDataExchange(CDataExchange* pDX)
{
CDialog::DoDataExchange(pDX);
//{{AFX_DATA_MAP(CI90ControllerDlg)
DDX_Control(pDX, IDC_PanSpeed, m_PanSlider);
DDX_Control(pDX, IDC_TiltSpeed, m_TiltSlider);
DDX_Control(pDX, IDC_DRROBOTSDKCONTROLCTRL1, m_MOTSDK);
DDX_Text(pDX, IDC_Encoder1, m_Encoder1);
DDX_Text(pDX, IDC_Encoder2, m_Encoder2);
DDX_Text(pDX, IDC_EDIT1,variabilax);
DDX_Text(pDX, IDC_EDIT2,variabilax1);
DDX_Text(pDX, IDC_EDIT3,dy);
DDX_Text(pDX, IDC_EDIT4,angletravelled);
DDX_Text(pDX, IDC_EDIT5,m_sTimerCnt);
DDX_Text(pDX, IDC_IR1, m_IR1);
DDX_Text(pDX, IDC_IR2, m_IR2);
DDX_Text(pDX, IDC_IR3, m_IR3);
DDX_Text(pDX, IDC_IR4, m_IR4);
DDX_Text(pDX, IDC_IR5, m_IR5);
DDX_Text(pDX, IDC_IR6, m_IR6);
DDX_Text(pDX, IDC_IR7, m_IR7);
DDX_Text(pDX, IDC_Sonar1, m_Sonar1);
DDX_Text(pDX, IDC_Sonar2, m_Sonar2);
DDX_Text(pDX, IDC_Sonar3, m_Sonar3);
DDX_Control(pDX, IDC_DRROBOTSDKCONTROLCTRL2, m_TISDK);
DDX_Control(pDX, IDC_VITAMINCTRL1, m_vitCtrl);
//}}AFX_DATA_MAP
}
BEGIN_MESSAGE_MAP(CI90ControllerDlg, CDialog)
//{{AFX_MSG_MAP(CI90ControllerDlg)
ON_WM_SYSCOMMAND()
ON_WM_PAINT()
ON_WM_QUERYDRAGICON()
ON_BN_CLICKED(IDC_Forward, OnForward)
ON_BN_CLICKED(IDC_Back, OnBack)
ON_BN_CLICKED(IDC_Stop, OnStop)
ON_BN_CLICKED(IDC_TurnLeft, OnTurnLeft)
ON_BN_CLICKED(IDC_TurnRight, OnTurnRight)
ON_WM_TIMER()
ON_BN_CLICKED(IDC_Record, OnRecord)
ON_BN_CLICKED(IDC_Connect, OnConnect)
ON_BN_CLICKED(IDC_CameraUp, OnCameraUp)
ON_BN_CLICKED(IDC_CameraDown, OnCameraDown)
ON_BN_CLICKED(IDC_CameraLeft, OnCameraLeft)
ON_BN_CLICKED(IDC_CameraRight, OnCameraRight)
ON_BN_CLICKED(IDC_CameraReset, OnCameraReset)
ON_BN_CLICKED(IDC_Pan, OnPan)
ON_BN_CLICKED(IDC_CameraStop, OnCameraStop)
ON_NOTIFY(NM_CUSTOMDRAW, IDC_PanSpeed, OnCustomdrawPanSpeed)
ON_NOTIFY(NM_RELEASEDCAPTURE, IDC_PanSpeed, OnReleasedcapturePanSpeed)
ON_NOTIFY(NM_RELEASEDCAPTURE, IDC_TiltSpeed, OnReleasedcaptureTiltSpeed)
ON_BN_CLICKED(IDC_SnapShot, OnSnapShot)
//}}AFX_MSG_MAP
END_MESSAGE_MAP()
/////////////////////////////////////////////////////////////////////////////
// CI90ControllerDlg message handlers
BOOL CI90ControllerDlg::OnInitDialog()
{
CDialog::OnInitDialog();
// Add "About..." menu item to system menu.
// IDM_ABOUTBOX must be in the system command range.
ASSERT((IDM_ABOUTBOX & 0xFFF0) == IDM_ABOUTBOX);
ASSERT(IDM_ABOUTBOX < 0xF000);
CMenu* pSysMenu = GetSystemMenu(FALSE);
if (pSysMenu != NULL)
{
CString strAboutMenu;
strAboutMenu.LoadString(IDS_ABOUTBOX);
if (!strAboutMenu.IsEmpty())
{
pSysMenu->AppendMenu(MF_SEPARATOR);
pSysMenu->AppendMenu(MF_STRING, IDM_ABOUTBOX, strAboutMenu);
}
}
GetDlgItem(IDC_EDIT_SERV_IP)->SetWindowText("192.168.0.99");
//GetDlgItem(IDC_EDIT_SERV_IP)->SetWindowText("192.168.4.12");
GetDlgItem(IDC_EDIT_PORT)->SetWindowText("8081");
GetDlgItem(IDC_EDIT_ROOT_ID)->SetWindowText("root");
GetDlgItem(IDC_EDIT_ROOT_PWD)->SetWindowText("drrobot");
m_PanSlider.SetRangeMin(-5, false);
m_PanSlider.SetRangeMax(5, false);
m_TiltSlider.SetRangeMin(-5, false);
m_TiltSlider.SetRangeMax(5, false);
// Set the icon for this dialog. The framework does this automatically
// when the application's main window is not a dialog
SetIcon(m_hIcon, TRUE); // Set big icon
SetIcon(m_hIcon, FALSE); // Set small icon
// TODO: Add extra initialization here
green_Dist = new double[32*32*32];
lila_Dist = new double[32*32*32];
orange_Dist = new double[32*32*32];
pink_Dist = new double[32*32*32];
Back_Dist = new double[32*32*32];
blue_Dist = new double[32*32*32];
m_iTimerCnt = 0;
m_MOTSDK.connectRobot ("motcom");
m_TISDK.connectRobot ("ticom");
GetDlgItem(IDC_CameraUp)->EnableWindow(false);
ReadMat();
m_bCameraConnected = false;
musicInPlay = false;
SetTimer(1, 450, NULL);
firstTime = true;
return TRUE; // return TRUE unless you set the focus to a control
}
void CI90ControllerDlg::OnSysCommand(UINT nID, LPARAM lParam)
{
if ((nID & 0xFFF0) == IDM_ABOUTBOX)
{
CAboutDlg dlgAbout;
dlgAbout.DoModal();
}
else
{
CDialog::OnSysCommand(nID, lParam);
}
}
// If you add a minimize button to your dialog, you will need the code below
// to draw the icon. For MFC applications using the document/view model,
// this is automatically done for you by the framework.
void CI90ControllerDlg::OnPaint()
{
if (IsIconic())
{
CPaintDC dc(this); // device context for painting
SendMessage(WM_ICONERASEBKGND, (WPARAM) dc.GetSafeHdc(), 0);
// Center icon in client rectangle
int cxIcon = GetSystemMetrics(SM_CXICON);
int cyIcon = GetSystemMetrics(SM_CYICON);
CRect rect;
GetClientRect(&rect);
int x = (rect.Width() - cxIcon + 1) / 2;
int y = (rect.Height() - cyIcon + 1) / 2;
// Draw the icon
dc.DrawIcon(x, y, m_hIcon);
}
else
{
CPaintDC dc(this);
//ofstream outfile_Pout;
//CPoint p5(577+xL[0]*0.1,467+yL[0]*0.1);
//dc.MoveTo(lastpoint11);
//dc.LineTo(p5);
//lastpoint11=p5;
/* CPoint p6(510+xL[0]*0.5,510-yL[0]*0.2);
//blue landmark
dc.SetPixel(510+xL[0]*0.5,520-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(511+xL[0]*0.5,520-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(509+xL[0]*0.5,520-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(512+xL[0]*0.5,520-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(508+xL[0]*0.5,520-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(510+xL[0]*0.5,521-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(510+xL[0]*0.5,522-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(510+xL[0]*0.5,518-yL[0]*0.2,RGB(0,0,255));
dc.SetPixel(510+xL[0]*0.5,519-yL[0]*0.2,RGB(0,0,255));
dc.MoveTo(lastpoint11);
dc.LineTo(p6);
lastpoint11=p6;
CPoint p7(510+xL[1]*0.5,520-yL[1]*0.2);
//green landmark
dc.SetPixel(510+xL[1]*0.5,520-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(511+xL[1]*0.5,520-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(509+xL[1]*0.5,520-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(512+xL[1]*0.5,520-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(508+xL[1]*0.5,520-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(510+xL[1]*0.5,521-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(510+xL[1]*0.5,522-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(510+xL[1]*0.5,518-yL[1]*0.2,RGB(0,238,0));
dc.SetPixel(510+xL[1]*0.5,519-yL[1]*0.2,RGB(0,238,0));
dc.MoveTo(lastpoint11);
dc.LineTo(p7);
lastpoint11=p7;
CPoint p8(510+xL[5]*0.5,520-yL[5]*0.2);
//orange landmark
dc.SetPixel(510+xL[5]*0.5,520-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(511+xL[5]*0.5,520-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(509+xL[5]*0.5,520-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(512+xL[5]*0.5,520-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(508+xL[5]*0.5,520-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(510+xL[5]*0.5,521-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(510+xL[5]*0.5,522-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(510+xL[5]*0.5,518-yL[5]*0.2,RGB(255,69,0));
dc.SetPixel(510+xL[5]*0.5,519-yL[5]*0.2,RGB(255,69,0));
dc.MoveTo(lastpoint11);
dc.LineTo(p8);
lastpoint11=p8;
CPoint p9(510+xL[3]*0.5,520-yL[3]*0.2);
//pink landmark
dc.SetPixel(510+xL[3]*0.5,520-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(511+xL[3]*0.5,520-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(509+xL[3]*0.5,520-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(512+xL[3]*0.5,520-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(508+xL[3]*0.5,520-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(510+xL[3]*0.5,521-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(510+xL[3]*0.5,522-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(510+xL[3]*0.5,518-yL[3]*0.2,RGB(255,20,147));
dc.SetPixel(510+xL[3]*0.5,519-yL[3]*0.2,RGB(255,20,147));
dc.MoveTo(lastpoint12);
dc.LineTo(p9);
lastpoint12=p9;
CPoint p10(510+xL[4]*0.5,520-yL[4]*0.2);
//purple landmark
dc.SetPixel(510+xL[4]*0.5,520-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(511+xL[4]*0.5,520-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(509+xL[4]*0.5,520-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(512+xL[4]*0.5,520-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(508+xL[4]*0.5,520-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(510+xL[4]*0.5,521-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(510+xL[4]*0.5,522-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(510+xL[4]*0.5,518-yL[4]*0.2,RGB(128,0,128));
dc.SetPixel(510+xL[4]*0.5,519-yL[4]*0.2,RGB(128,0,128));
dc.MoveTo(lastpoint12);
dc.LineTo(p10);
lastpoint12=p10;
*/
CDialog::OnPaint();
}
}
// The system calls this to obtain the cursor to display while the user drags
// the minimized window.
HCURSOR CI90ControllerDlg::OnQueryDragIcon()
{
return (HCURSOR) m_hIcon;
}
BEGIN_EVENTSINK_MAP(CI90ControllerDlg, CDialog)
//{{AFX_EVENTSINK_MAP(CI90ControllerDlg)
ON_EVENT(CI90ControllerDlg, IDC_DRROBOTSDKCONTROLCTRL1, 1 /* StandardSensorEvent */, OnStandardSensorEventDrrobotsdkcontrolctrl1, VTS_NONE)
ON_EVENT(CI90ControllerDlg, IDC_DRROBOTSDKCONTROLCTRL1, 3 /* CustomSensorEvent */, OnCustomSensorEventDrrobotsdkcontrolctrl1, VTS_NONE)
ON_EVENT(CI90ControllerDlg, IDC_DRROBOTSDKCONTROLCTRL1, 2 /* MotorSensorEvent */, OnMotorSensorEventDrrobotsdkcontrolctrl1, VTS_NONE)
ON_EVENT(CI90ControllerDlg, IDC_DRROBOTSDKCONTROLCTRL1, 5 /* VoiceSegmentEvent */, OnVoiceSegmentEventDrrobotsdkcontrolctrl1, VTS_NONE)
ON_EVENT(CI90ControllerDlg, IDC_DRROBOTSDKCONTROLCTRL2, 5 /* VoiceSegmentEvent */, OnVoiceSegmentEventDrrobotsdkcontrolctrl2, VTS_NONE)
ON_EVENT(CI90ControllerDlg, IDC_VITAMINCTRL1, 2 /* OnConnectionBroken */, OnOnConnectionBrokenVitaminctrl1, VTS_I4)
ON_EVENT(CI90ControllerDlg, IDC_VITAMINCTRL1, 5 /* OnConnectionOK */, OnOnConnectionOKVitaminctrl1, VTS_I4)
//}}AFX_EVENTSINK_MAP
END_EVENTSINK_MAP()
void CI90ControllerDlg::OnStandardSensorEventDrrobotsdkcontrolctrl1()
{
// TODO: Add your control notification handler code here
m_Sonar1= m_MOTSDK.GetSensorSonar1 ();
m_Sonar2= m_MOTSDK.GetSensorSonar2 ();
m_Sonar3= m_MOTSDK.GetSensorSonar3 ();
m_IR1 = m_MOTSDK.GetSensorIRRange ();
UpdateData(false);
}
void CI90ControllerDlg::OnCustomSensorEventDrrobotsdkcontrolctrl1()
{
// TODO: Add your control notification handler code here
m_IR2 = m_MOTSDK.GetCustomAD3 ();
m_IR3 = m_MOTSDK.GetCustomAD4 ();
m_IR4 = m_MOTSDK.GetCustomAD5 ();
m_IR5 = m_MOTSDK.GetCustomAD6 ();
m_IR6 = m_MOTSDK.GetCustomAD7 ();
m_IR7 = m_MOTSDK.GetCustomAD8 ();
UpdateData(false);
}
void CI90ControllerDlg::OnMotorSensorEventDrrobotsdkcontrolctrl1()
{
// TODO: Add your control notification handler code here
m_Encoder1 = m_MOTSDK.GetEncoderPulse1 ();
m_Encoder2 = m_MOTSDK.GetEncoderPulse2 ();
m_Encoderspeed1 =m_MOTSDK.GetEncoderSpeed1(); //left speed
m_Encoderspeed2 =m_MOTSDK.GetEncoderSpeed2(); //right speed
m_Encodercurrent1 = (double)m_MOTSDK.GetMotorCurrent1() / 728.0; //left current
m_Encodercurrent2 =(double)m_MOTSDK.GetMotorCurrent2() /728.0; //right current
currentLeftEncoder = m_Encoder1;
currentRightEncoder = m_Encoder2;
if((m_Encoderspeed1!=0)&&(m_Encoderspeed2!=0))
{
direction = m_MOTSDK.GetEncoderDir1();
if (firstTime==false)
{
currentLeftEncoder=m_Encoder1;
//currentLeftEncoder=cFULL_COUNT-m_Encoder1;
//currentLeftEncoderValue=cFULL_COUNT-m_MOTSDK.GetEncoderPulse1 ();
//currentRightEncoder=cFULL_COUNT-m_Encoder2;
currentRightEncoder=m_Encoder2;
//currentRightEncoderValue=cFULL_COUNT-m_MOTSDK.GetEncoderPulse2 ();
//different = currentLeftEncoderValue - lastLeftEncoder ;
//currentRightEncoderValue=m_MOTSDK.GetEncoderPulse2 ();
//m_MOTSDK.DcMotorVelocityTimeCtrAll ((short)(leftcmd/10), (short)(rightcmd/10),NO_CONTROL,NO_CONTROL,NO_CONTROL,NO_CONTROL,10000);
//for(int i=0;i<1000;i++)
//{
diffEncoder1=currentLeftEncoder-lastLeftEncoder;
//eliminate the encoder rollover
if(abs(diffEncoder1) > 16384)
{
if(currentLeftEncoder<lastLeftEncoder)
diffEncoder1=cFULL_COUNT-lastLeftEncoder+currentLeftEncoder;
else
diffEncoder1=currentLeftEncoder-lastLeftEncoder-cFULL_COUNT;
}
diffEncoder1 = -(diffEncoder1*2*3.14*wheelR)/800;
diffEncoder2=currentRightEncoder-lastRightEncoder;
if(abs(diffEncoder2)>16384)
{
if(currentRightEncoder<lastRightEncoder)
diffEncoder2=cFULL_COUNT-lastRightEncoder+currentRightEncoder;
else
diffEncoder2=currentRightEncoder-lastRightEncoder-cFULL_COUNT;
}
diffEncoder2 = (diffEncoder2*2*3.14*wheelR)/800;
//diffEncoder2 = diffEncoder2*angletravelled;
//refresh the lastencoder
//calculate the wheeldistance--they say is the circumference 2pir/(counts/cycle)---and it is 2pir/800
wheelDistanceL = diffEncoder1 ;
wheelDistanceR = diffEncoder2 ;
//wheelDistanceL=-(2*3.14*wheelR*diffEncoder1)/CIRCLE_CNT;
//wheelDistanceR=(2*3.14*wheelR*diffEncoder2)/CIRCLE_CNT;
//calculate the wheeldistance at t-1 because I need the position at t-1
//wheelDistanceL=(2*3.14*wheelR*currentLeftEncoderValue)/CIRCLE_CNT;
//wheelDistanceL=((2*3.14*wheelR)/CIRCLE_CNT)*currentLeftEncoderValue;
//wheelDistanceR=((2*3.14*wheelR)/CIRCLE_CNT)*currentRightEncoderValue;
//calculate the wheeldistance at t-1 because I need the position at t-1
//lastwheelDistanceL=(2*3.14*wheelR*lastLeftEncoder)/CIRCLE_CNT;
//lastwheelDistanceR=(2*3.14*wheelR*lastRightEncoder)/CIRCLE_CNT;
//calculate angle and distance travelled at the current time
distravelled=(wheelDistanceL+wheelDistanceR)/2;
angletravelled=((double)wheelDistanceR-(double)wheelDistanceL)/31;
//angletravelled=Angle2PI(angletravelled);
//angletravelled=AnglePI(angletravelled);
//if (abs(wheelDistanceR)==abs(wheelDistanceL))
//{
// angletravelled=0;
//}
currentdisttravelled = distravelled;
//angletravelled=(angletravelled*180)/3.14;
//lastdx=lastdistravelled*cos(angle+(double)lastangletravelled/2);
//lastdy=lastdistravelled*sin(angle+(double)lastangletravelled/2);
//calculate the position at current time
angletravelled=angletravelled+lastangletravelled;
dx=0.5*(diffEncoder1+diffEncoder2)*cos((double)angle+(double)angletravelled);
dy=0.5*(diffEncoder1+diffEncoder2)*sin((double)angle+(double)angletravelled);
currentxr=dx+lastxr;
currentyr=dy+lastyr;
//lastxr=currentxr-lastdx;
//lastyr=currentyr-lastdy;
}//end if first time
else
{
lastLeftEncoder = currentLeftEncoder;
lastRightEncoder = currentRightEncoder;
angletravelled=0;
lastxr=0;
lastyr=0;
currentxr=0;
currentyr=0;
variabilax=0;
variabilay=0;
variabilax1=0;
variabilay1=0;
m_Encoder2=0;
m_Encoder1=0;
firstTime = false;
}
}//end if m_encoderspeed1!=0
//angletravelled=angletravelled+lastangletravelled;
//distravelled=distravelled+lastdistravelled;
UpdateData(false);
}
void CI90ControllerDlg::OnForward()
{
// TODO: Add your control notification handler code here
short desiredWheelSpeed1=-10*CIRCLE_CNT/(2*3.14*wheelR);//left has to be clockwise
short desiredWheelSpeed2=10*CIRCLE_CNT/(2*3.14*wheelR);//right has to be counterclockwise so it should go forward
m_MOTSDK.SetDcMotorControlMode (0,M_VELOCITY);
m_MOTSDK.SetDcMotorControlMode (1,M_VELOCITY);
m_MOTSDK.SetDcMotorVelocityControlPID (0, 30, 10, 0);
m_MOTSDK.SetDcMotorVelocityControlPID (1, 30, 10, 0);
//m_MOTSDK.DcMotorVelocityNonTimeCtrAll(-100,150,NO_CONTROL,NO_CONTROL,NO_CONTROL,NO_CONTROL);
m_MOTSDK.DcMotorVelocityNonTimeCtrAll (desiredWheelSpeed1,desiredWheelSpeed2,NO_CONTROL,NO_CONTROL,NO_CONTROL,NO_CONTROL);
ismoving=true;
}
void CI90ControllerDlg::OnBack()
{
// TODO: Add your control notification handler code here
m_MOTSDK.SetDcMotorControlMode (0,M_VELOCITY);
m_MOTSDK.SetDcMotorControlMode (1,M_VELOCITY);
m_MOTSDK.SetDcMotorVelocityControlPID (0, 30, 10, 0);
m_MOTSDK.SetDcMotorVelocityControlPID (1, 30, 10, 0);
m_MOTSDK.DcMotorVelocityNonTimeCtrAll (200, -200,NO_CONTROL,NO_CONTROL,NO_CONTROL,NO_CONTROL);
}
void CI90ControllerDlg::OnStop()
{
// TODO: Add your control notification handler code here
m_MOTSDK.DisableDcMotor (0);
m_MOTSDK.DisableDcMotor (1);
angletravelled=0;
lastxr=0;
lastyr=0;
currentxr=0;
currentyr=0;
variabilax=0;
variabilay=0;
variabilax1=0;
variabilay1=0;
m_Encoder2=0;
m_Encoder1=0;
firstTime=true;
}
void CI90ControllerDlg::OnTurnLeft()
{
// TODO: Add your control notification handler code here
long cmd1,cmd2;
cmd1 = m_Encoder1 + cWHOLE_RANGE / 3;
cmd2 = m_Encoder2 + cWHOLE_RANGE / 3;
//change cmd1, cmd2 to valid data range
if (cmd1 < 0) cmd1 = cmd1 + cFULL_COUNT;
if (cmd2 < 0) cmd2 = cmd2 + cFULL_COUNT;
if (cmd1 > cFULL_COUNT) cmd1 = cmd1 - cFULL_COUNT;
if (cmd2 > cFULL_COUNT) cmd2 = cmd2 - cFULL_COUNT;
m_MOTSDK.SetDcMotorControlMode (0,M_POSITION);
m_MOTSDK.SetDcMotorControlMode (1,M_POSITION);
m_MOTSDK.SetDcMotorVelocityControlPID (0, 30, 10, 0);
m_MOTSDK.SetDcMotorPositionControlPID (0, 600,30,600);
m_MOTSDK.SetDcMotorPositionControlPID (1, 600,30,600);
m_MOTSDK.DcMotorPositionTimeCtrAll (cmd1,cmd2,NO_CONTROL,NO_CONTROL,NO_CONTROL,NO_CONTROL,1000);
}
void CI90ControllerDlg::OnTurnRight()
{
// TODO: Add your control notification handler code here
long cmd1,cmd2;
cmd1 = m_Encoder1 - cWHOLE_RANGE / 3;
cmd2 = m_Encoder2 - cWHOLE_RANGE / 3;
// change cmd1, cmd2 to valid data range
if (cmd1 < 0) cmd1 = cmd1 + cFULL_COUNT;
if (cmd2 < 0) cmd2 = cmd2 + cFULL_COUNT;
if (cmd1 > cFULL_COUNT) cmd1 = cmd1 - cFULL_COUNT;
if (cmd2 > cFULL_COUNT) cmd2 = cmd2 - cFULL_COUNT;
m_MOTSDK.SetDcMotorControlMode (0,M_POSITION);
m_MOTSDK.SetDcMotorControlMode (1,M_POSITION);
m_MOTSDK.SetDcMotorVelocityControlPID (0, 30, 10, 0);
m_MOTSDK.SetDcMotorPositionControlPID (0, 600,30,600);
m_MOTSDK.SetDcMotorPositionControlPID (1, 600,30,600);
m_MOTSDK.DcMotorPositionTimeCtrAll (cmd1,cmd2,NO_CONTROL,NO_CONTROL,NO_CONTROL,NO_CONTROL,1000);
}
void CI90ControllerDlg::OnCancel()
{
// TODO: Add extra cleanup here
m_MOTSDK.StopAudioPlay ();
m_MOTSDK.DisableDcMotor (0);
m_MOTSDK.DisableDcMotor (1);
if (m_vitCtrl.GetControlStatus() != 0 &&
m_vitCtrl.GetControlStatus() != 3)
{
m_vitCtrl.Disconnect();
}
delete []green_Dist;
green_Dist = 0;
delete []lila_Dist;
lila_Dist = 0;
delete []orange_Dist;
orange_Dist = 0;
delete []pink_Dist;
pink_Dist = 0;
delete []Back_Dist;
Back_Dist = 0;
delete []blue_Dist;
blue_Dist = 0;
CDialog::OnCancel();
}
void CI90ControllerDlg::OnTimer(UINT nIDEvent)
{
// TODO: Add your message handler code here and/or call default
CDialog::OnTimer(nIDEvent);
if(m_bCameraConnected)
{
UpdateData(true);
++m_iTimerCnt;
m_sTimerCnt.Format("%d",m_iTimerCnt);
UpdateData(false);
//do upate the UI here
// get color ID
VARIANT pvData;
VariantInit(&pvData);
VARIANT pvInfo;
VariantInit(&pvInfo);
unsigned char *pData;
long captureresult=m_vitCtrl.GetSnapshot(4,&pvData,&pvInfo);
//long captureresult=m_vitCtrl.GetSnapshot(2,&pvData,&pvInfo);
CString strName,strName2;
//CImage * image1,*image2,image3,image4;
//strName = ".\\tempSnapShot1.bmp";
strName = ".\\tempSnapShot1.bmp";
//strName2=".\\tempSnapShot.bmp";
//image1 = new CImage();
m_vitCtrl.SaveSnapshot(2,strName);
if (landmark)
{
if ((m_Sonar1 <255)&&(distravelled+50 < m_Sonar1))
{
OnStop();
}
}
// image1->Load(".\\tempSnapShot1.bmp");
// image1=&image3;
//CImage* returnImage = new CImage();
//Sobel(image1,returnImage);
ifstream infile_Pin1,infile_Pin2; /* input file */
char inFileName_Pin1[128]="tempSnapShot1.pgm";/* input file name */
//char inFileName_Pin1[128]="Doi.pgm";
PIC Pin1, Pin2; //source image
/* open input/output file */
infile_Pin1.open(inFileName_Pin1, ios::binary);
// check input file
if(!infile_Pin1)
{
cout<<"Cannot open input file "<< inFileName_Pin1 <<endl;
//return 1;
}
/*int Gaussian_Mask[5][5] = {{2, 4, 5, 4, 2},
{4, 9, 12, 9, 4},
{5, 12, 15, 12, 5},
{4, 9, 12, 9, 4},
{2, 4, 5, 4, 2}};
*/
int numpix =0;
double Gaussian_Mask[5][5] = {{0.0378,0.0394, 0.04, 0.0394, 0.0378},
{0.0394, 0.0411, 0.0417, 0.0411,0.0394},
{0.04, 0.0417, 0.0423,0.0417,0.04},
{0.0394,0.0411, 0.0417, 0.0411, 0.0394},
{0.0378, 0.0394, 0.04, 0.0394, 0.0378}};
if (LoadP5Header(infile_Pin1, Pin1)) // load pgm (Pin) image header information
{
// allocate the memory for the input image
//the dimensions of the original
Pin1.img = new BYTE[Pin1.Width*Pin1.Height];
LoadImage(infile_Pin1, Pin1);
Canny_Edge(Pin1,Gaussian_Mask, "Trei.pgm");
delete []Pin1.img;
Pin1.img =NULL;
}
if (captureresult==0)
{
pData=(unsigned char *)pvData.parray->pvData;
double dx1,dy1,phi;
//ReadMat();
ImageSegmentation(pData,Back_Dist,blue_Dist,green_Dist,pink_Dist,lila_Dist,orange_Dist);
}
//here make decison based on color ID
if((colorposition.character=='b')&&(colorposition.col[0]<176))
{
//we detected the blue landmark in the left side of the robot
leftpixel=true;
distanceL1=m_Sonar1;
thetaL1=asin((currentyr-yL[0])/distanceL1);
}
else if ((colorposition.character=='b')&&(colorposition.col[0]>=176))
{
//we detected the blue landmark in the right side of the robot
rightpixel=true;
distanceL2=m_Sonar2;
//calculate the angle between the robot and the landmarks
thetaL2=asin((currentyr-yL[0])/distanceL2);
}
else if((colorposition.character=='g')&&(colorposition.col[1]<176))
{
//we detected the green landmark in the left side of the robot
leftpixel=true;
distanceL1=m_Sonar1;
thetaL1=asin((currentyr-yL[1])/distanceL1);
}
else if ((colorposition.character=='g')&&(colorposition.col[1]>=176))
{
//we detected the green landmark in the right side of the robot
rightpixel=true;
distanceL2=m_Sonar2;
//calculate the angle between the robot and the landmarks
thetaL2=asin((currentyr-yL[1])/distanceL2);
}
else if((colorposition.character=='o')&&(colorposition.col[2]<176))
{
//we detected the orange landmark in the left side of the robot
leftpixel=true;
distanceL1=m_Sonar1;
thetaL1=asin((currentyr-yL[5])/distanceL1);
}
else if ((colorposition.character=='o')&&(colorposition.col[2]>=176))
{
//we detected the orange landmark in the right side of the robot
rightpixel=true;
distanceL2=m_Sonar2;
//calculate the angle between the robot and the landmarks
thetaL2=asin((currentyr-yL[5])/distanceL2);
}
else if((colorposition.character=='l')&&(colorposition.col[3]<42420))
{
//we detected the lila landmark in the left side of the robot
leftpixel=true;
distanceL1=m_Sonar1;
thetaL1=asin((currentyr-yL[4])/distanceL1);
}
else if ((colorposition.character=='l')&&(colorposition.col[3]>=42420))
{
//we detected the lila landmark in the right side of the robot
rightpixel=true;
distanceL2=m_Sonar2;
//calculate the angle between the robot and the landmarks
thetaL2=asin((currentyr-yL[4])/distanceL2);
}
else if((colorposition.character=='p')&&(colorposition.col[4]<42420))
{
//we detected the pink landmark in the left side of the robot
leftpixel=true;
distanceL1=m_Sonar1;
thetaL1=asin((currentyr-yL[3])/distanceL1);
}
else if ((colorposition.character=='p')&&(colorposition.col[4]>=42420))
{
//we detected the pink landmark in the right side of the robot
rightpixel=true;
distanceL2=m_Sonar2;
//calculate the angle between the robot and the landmarks
thetaL2=asin((currentyr-yL[3])/distanceL2);
}
else if (colorposition.character=='n')
{
rightpixel=false;
leftpixel=false;
thetaL1=0;
thetaL2=0;
distanceL1=0;
distanceL2=0;
}
if(ismoving && m_Encoderspeed1!=0 && m_Encoderspeed2!=0)
{
//xxt=calculatematrices(firstTime,thetaL1,thetaL2,distanceL1,distanceL2,rightpixel,leftpixel,currentxr,currentyr,angletravelled,xL,yL);
//xxt=calculatematrices(firstTime,thetaL1,thetaL2,distanceL1,distanceL2,rightpixel,leftpixel,currentxr,currentyr,angletravelled,lastangletravelled,lastxr,lastyr,xL,yL);
xxt=calculatematrices(firstTime,thetaL1,thetaL2,distanceL1,distanceL2,rightpixel,leftpixel,currentxr,currentyr, angletravelled, lastangletravelled, lastxr,lastyr, xL, yL, numberofcolors);
variabilax =xxt.x[0][0];
variabilay =xxt.x[1][0];
variabilax1 = xxt.xt[0][0];
variabilay1 = xxt.xt[1][0];
CClientDC dc(this);
CPoint p1(510+variabilax1,520-variabilay1);
dc.MoveTo(lastpoint1);
dc.LineTo(p1);
lastpoint1=p1;
CPen myPen2,myPen3;
//CPen penBlack(PS_COSMETIC,1,RGB(255,0,0));
LOGBRUSH logBrush,logBrush1;
logBrush.lbStyle = BS_SOLID;
logBrush.lbColor = RGB(255,0,0);
myPen2.CreatePen(PS_DOT|PS_GEOMETRIC|PS_ENDCAP_ROUND, 2, &logBrush);
dc.SelectObject(&myPen2);
CPoint p3(510+variabilax,520-variabilay);
dc.MoveTo(lastpoint2);
dc.LineTo(p3);
lastpoint2=p3;
//angletravelled=angletravelled+lastangletravelled;
//CPaintDC dc(this);
logBrush1.lbStyle = BS_SOLID;
logBrush1.lbColor = RGB(0,190,0);
myPen3.CreatePen(PS_DOT|PS_GEOMETRIC|PS_ENDCAP_ROUND, 2, &logBrush1);
dc.SelectObject(&myPen3);
dc.SetPixel(510 + m_Sonar1,520 - variabilay1,RGB(0,190,0));
dc.SetPixel(510 + m_Sonar2,520 - variabilay1,RGB(200,0,0));
dc.SetPixel(510 + m_Sonar3,520 - variabilay1,RGB(0,0,200));
}
lastdistravelled = currentdisttravelled;
lastangletravelled=angletravelled;
lastdistravelled=distravelled;
lastxr=currentxr;
lastyr=currentyr;
lastRightEncoder = currentRightEncoder;
lastLeftEncoder = currentLeftEncoder;
}
}
void CI90ControllerDlg::OnRecord()
{
// TODO: Add your control notification handler code here
}
void CI90ControllerDlg::OnVoiceSegmentEventDrrobotsdkcontrolctrl1()
{
// TODO: Add your control notification handler code here
}
void CI90ControllerDlg::OnVoiceSegmentEventDrrobotsdkcontrolctrl2()
{
// TODO: Add your control notification handler code here
}
BOOL SaveAudioFile(LPCTSTR FileName)
{
return TRUE;
}
void CI90ControllerDlg::OnConnect()
{
// TODO: Add your control notification handler code here
if (m_vitCtrl.GetControlStatus() != 0 &&
m_vitCtrl.GetControlStatus() != 3)
{
m_vitCtrl.Disconnect();
return;
}
CString strServIP, strRootPwd, strUserName, strTemp;
GetDlgItem(IDC_EDIT_SERV_IP)->GetWindowText(strServIP);
GetDlgItem(IDC_EDIT_PORT)->GetWindowText(strTemp);
GetDlgItem(IDC_EDIT_ROOT_ID)->GetWindowText(strUserName);
GetDlgItem(IDC_EDIT_ROOT_PWD)->GetWindowText(strRootPwd);
m_vitCtrl.SetPassword(strRootPwd);
m_vitCtrl.SetUserName(strUserName);
m_vitCtrl.SetRemoteIPAddr(strServIP);
long lPort = atoi(strTemp);
if (lPort <= 0 || lPort > 65535)
lPort = 80;
m_vitCtrl.SetHttpPort(lPort);
//m_vitCtrl.SetMediaType(1);
m_vitCtrl.Connect();
GetDlgItem(IDC_EDIT_SERV_IP)->EnableWindow(FALSE);
GetDlgItem(IDC_EDIT_PORT)->EnableWindow(FALSE);
GetDlgItem(IDC_EDIT_ROOT_ID)->EnableWindow(FALSE);
GetDlgItem(IDC_EDIT_ROOT_PWD)->EnableWindow(FALSE);
GetDlgItem(IDC_Connect)->SetWindowText("Stop");
GetDlgItem(IDC_CameraUp)->EnableWindow(true);
}
void CI90ControllerDlg::OnOnConnectionBrokenVitaminctrl1(long eConnType)
{
// TODO: Add your control notification handler code here
GetDlgItem(IDC_EDIT_SERV_IP)->EnableWindow(TRUE);
GetDlgItem(IDC_EDIT_PORT)->EnableWindow(TRUE);
GetDlgItem(IDC_EDIT_ROOT_ID)->EnableWindow(TRUE);
GetDlgItem(IDC_EDIT_ROOT_PWD)->EnableWindow(TRUE);
GetDlgItem(IDC_Connect)->SetWindowText("Connect");
m_bCameraConnected = false;
}
void CI90ControllerDlg::OnCameraUp()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("up",30000);
}
void CI90ControllerDlg::OnCameraDown()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("down",30000);
}
void CI90ControllerDlg::OnCameraLeft()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("left",30000);
}
void CI90ControllerDlg::OnCameraRight()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("right",30000);
}
void CI90ControllerDlg::OnCameraReset()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("home",30000);
}
void CI90ControllerDlg::OnPan()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("pan",30000);
}
void CI90ControllerDlg::OnCameraStop()
{
// TODO: Add your control notification handler code here
m_vitCtrl.SendCameraCommand ("stop",30000);
}
void CI90ControllerDlg::OnCustomdrawPanSpeed(NMHDR* pNMHDR, LRESULT* pResult)
{
// TODO: Add your control notification handler code here
}
void CI90ControllerDlg::OnReleasedcapturePanSpeed(NMHDR* pNMHDR, LRESULT* pResult)
{
// TODO: Add your control notification handler code here
int nPos;
nPos = m_PanSlider.GetPos ();
m_vitCtrl.SendCameraControlSpeed (1,nPos);
*pResult = 0;
}
void CI90ControllerDlg::OnReleasedcaptureTiltSpeed(NMHDR* pNMHDR, LRESULT* pResult)
{
// TODO: Add your control notification handler code here
int nPos;
nPos = m_TiltSlider.GetPos ();
m_vitCtrl.SendCameraControlSpeed (2,nPos);
*pResult = 0;
}
void CI90ControllerDlg::OnOnConnectionOKVitaminctrl1(long eConnType)
{
// TODO: Add your control notification handler code here
GetDlgItem(IDC_EDIT_SERV_IP)->EnableWindow(FALSE);
GetDlgItem(IDC_EDIT_PORT)->EnableWindow(FALSE);
GetDlgItem(IDC_EDIT_ROOT_ID)->EnableWindow(FALSE);
GetDlgItem(IDC_EDIT_ROOT_PWD)->EnableWindow(FALSE);
GetDlgItem(IDC_Connect)->SetWindowText("Stop");
GetDlgItem(IDC_SnapShot)->EnableWindow(TRUE);
m_bCameraConnected = true;
}
void CI90ControllerDlg::OnSnapShot()
{
// TODO: Add your control notification handler code here
CString strName;
strName = ".\\tempSnapShot.jpg";
m_vitCtrl.SaveSnapshot(1, strName);
}
int* CI90ControllerDlg::MaxofVector(int *vect,int size)
{
int* result=new int[2];
maximum=vect[0];
indexmax=0;
for(int i=0;i<size;i++)
{
if(vect[i]>maximum)
{
maximum=vect[i];
indexmax=i;
}
}
result[0]=maximum;
result[1]=indexmax;
return result;
}
void CI90ControllerDlg::ReadMat()// read data from matlab
{
// TODO: Add your command handler code here
MATFile *pmatFile,*pmatFile1,*pmatFile2,*pmatFile3,*pmatFile4,*pmatFile5;
mxArray *pMxArray,*pMxArray1,*pMxArray2,*pMxArray3,*pMxArray4,*pMxArray5;
const char *filename="C:\\Documents and Settings\\ogvalent\\Desktop\\I90Controller_V2\\I90Controller\\BackDist1D.mat";
pmatFile = matOpen(filename,"r");
pMxArray = matGetVariable(pmatFile,"back_dist_1D");
Back_Dist = (double *)mxGetData(pMxArray);
matClose(pmatFile);
mxFree(pMxArray);
mxFree(pmatFile);
const char *filename1="C:\\Documents and Settings\\ogvalent\\Desktop\\I90Controller_V2\\I90Controller\\bluePattern1D.mat";
pmatFile1 = matOpen(filename1,"r");
pMxArray1 = matGetVariable(pmatFile1,"blue_dist_1D");
blue_Dist = (double *)mxGetData(pMxArray1);
matClose(pmatFile1);
mxFree(pMxArray1);
mxFree(pmatFile1);
const char *filename2="C:\\Documents and Settings\\ogvalent\\Desktop\\I90Controller_V2\\I90Controller\\greenPattern1D.mat";
pmatFile2 = matOpen(filename2,"r");
pMxArray2= matGetVariable(pmatFile2,"green_dist_1D");
green_Dist = (double *)mxGetData(pMxArray2);
matClose(pmatFile2);
mxFree(pMxArray2);
mxFree(pmatFile2);
const char *filename3="C:\\Documents and Settings\\ogvalent\\Desktop\\I90Controller_V2\\I90Controller\\lilaPattern1D.mat";
pmatFile3 = matOpen(filename3,"r");
pMxArray3 = matGetVariable(pmatFile3,"lila_dist_1D");
lila_Dist = (double *)mxGetData(pMxArray3);
matClose(pmatFile3);
mxFree(pMxArray3);
mxFree(pmatFile3);
const char *filename4="C:\\Documents and Settings\\ogvalent\\Desktop\\I90Controller_V2\\I90Controller\\orangePattern1D.mat";
pmatFile4 = matOpen(filename4,"r");
pMxArray4 = matGetVariable(pmatFile4,"orange_dist_1D");
orange_Dist = (double *)mxGetData(pMxArray4);
matClose(pmatFile4);
mxFree(pMxArray4);
mxFree(pmatFile4);
const char *filename5="C:\\Documents and Settings\\ogvalent\\Desktop\\I90Controller_V2\\I90Controller\\pinkPattern1D.mat";
pmatFile5 = matOpen(filename5,"r");
pMxArray5 = matGetVariable(pmatFile5,"pink_dist_1D");
pink_Dist = (double *)mxGetData(pMxArray5);
matClose(pmatFile5);
mxFree(pMxArray5);
mxFree(pmatFile5);
}
detect CI90ControllerDlg::ImageSegmentation(const unsigned char* pBGR,double* Back_Dist,double* blue_Dist,double* green_Dist,double* pink_Dist,double* lila_Dist,double* orange_Dist)
{
//Define some parameters for segmentation
char colordetect1;
int HIST_RES = 32; //number of classes in each color band
int HIST_SUB_FACTOR;
double P_fg = 0.09; //probability of foreground
double K_TH = 0.0673; // ratio of probability of foreground to probability of background
HIST_SUB_FACTOR = 256 / HIST_RES;
double P_bg;
P_bg = 1 - P_fg;
unsigned int* m_bdata=new unsigned int[m_Width*m_Height];
unsigned int* m_gdata=new unsigned int[m_Width*m_Height];
unsigned int* m_rdata=new unsigned int[m_Width*m_Height];
unsigned int* index=new unsigned int[m_Width*m_Height];
double* p_blue_pixel=new double[m_Width*m_Height];
double* p_green_pixel=new double[m_Width*m_Height];
double* p_pink_pixel=new double[m_Width*m_Height];
double* p_orange_pixel=new double[m_Width*m_Height];
double* p_lila_pixel=new double[m_Width*m_Height];
double* p_back_pixel=new double[m_Width*m_Height];
//int *colorlist=new int [5];
for(int i=0;i<5;i++)
{
colorlist[i]=0;
}
//defined by gabi for detecting the color and returning the position of the pixel
//Initialize the output
//RGB version
// Read in the frame
for (unsigned int i = 0; i < m_Width*m_Height; i++)
{
m_bdata[i] = *pBGR++;
m_gdata[i] = *pBGR++;
m_rdata[i] = *pBGR++;
}
// Rescale R, G, B to be between 0 and HIST_RES
for (unsigned int z = 0; z < m_Width*m_Height;z++)
{
m_bdata[z] = m_bdata[z] / HIST_SUB_FACTOR + 1;
m_gdata[z] = m_gdata[z] / HIST_SUB_FACTOR + 1;
m_rdata[z] = m_rdata[z] / HIST_SUB_FACTOR + 1;
}
// Convert R, G, B into idices to be used in indexing the skin and background distributions
for (unsigned int z = 0; z < m_Width*m_Height; z++)
{
index[z] = (m_bdata[z] - 1) * HIST_RES*HIST_RES + (m_gdata[z] - 1) * HIST_RES + m_rdata[z];
//index[z] = (m_rdata[z] - 1) * HIST_RES*HIST_RES + (m_gdata[z] - 1) * HIST_RES + m_bdata[z];
}
// Get the probability of being foreground and background at each pixel
int index_temp;
colordetect1='a';
//for(int k=0;k<5;k++)
//{
//colordetect1[k]='a';
//}
for (unsigned int z = 0; z <m_Width*m_Height; z++)
{
index_temp = index[z];
p_blue_pixel[z] = blue_Dist[index_temp-1];
p_green_pixel[z]= green_Dist[index_temp-1];
p_pink_pixel[z] = pink_Dist[index_temp-1];
p_lila_pixel[z] = lila_Dist[index_temp-1];
p_orange_pixel[z] = orange_Dist[index_temp-1];
p_back_pixel[z] = Back_Dist[index_temp-1];
}
// Find the indices of pixels that are classified as skin by Bayes'
double suma=0;
for(int i=0;i<m_Width*m_Height;i++)
{
suma=suma+p_lila_pixel[i];
}
double indice=0;
for (unsigned int z = 0; z < m_Width*m_Height; z++)
{
p_temp = p_blue_pixel[z] / (K_TH * P_bg / P_fg);
if (p_temp > p_back_pixel[z])
{
colblue = z % m_Width-1;//this are the index of the pixel
rowblue = z / m_Width;
colorposition.col[0]=colblue;
colorposition.row[0]=rowblue;
numberofbluepixel++;
}
double suma11=0;
p_temp1 = p_green_pixel[z] / (K_TH * P_bg / P_fg);
if (p_temp1 > p_back_pixel[z])
{
colgreen = z % m_Width-1;//this are the index of the pixel
rowgreen = z / m_Width;
indice = (IMAGE_HEIGHT - 1)*colgreen + IMAGE_WIDTH;
colorposition.col[1]=colgreen;
colorposition.row[1]=rowgreen;
numberofgreenpixel++;
}
//for(int i=0;i<m_Width*m_Height;i++)
//{
// suma11=suma11 + p_green_pixel[i];
// }
p_temp2 = p_orange_pixel[z] / (K_TH * P_bg / P_fg);
if (p_temp2 > p_back_pixel[z])
{
colorange = z % m_Width-1;//this are the index of the pixel
roworange = z / m_Width;
colorposition.col[2]=colorange;
colorposition.row[2]=roworange;
numberoforangepixel++;
}
p_temp3 = p_lila_pixel[z] / (K_TH * P_bg / P_fg);
if (p_temp3 > p_back_pixel[z])
{
collila = z % m_Width-1;//this are the index of the pixel
rowlila = z / m_Width;
colorposition.col[3]=collila;
colorposition.row[3]=rowlila;
numberoflilapixel++;
}
p_temp4 = p_pink_pixel[z] / (K_TH * P_bg / P_fg);
if (p_temp4 > p_back_pixel[z])
{
colpink = z % m_Width-1;//this are the index of the pixel
rowpink = z / m_Width;
colorposition.col[4]=colpink;
colorposition.row[4]=rowpink;
numberofpinkpixel++;
}
}
colorlist[0]=numberofbluepixel;
colorlist[1]=numberofgreenpixel;
colorlist[2]=numberoforangepixel;
colorlist[3]=numberoflilapixel;
colorlist[4]=numberofpinkpixel;
int indexofcolors[6];
int* maxcolorandindex;
maxcolorandindex=MaxofVector(colorlist,5);
if (maxcolorandindex[0]!=0)
{
if(maxcolorandindex[1]==0)
{
colordetect1='b';
}
if(maxcolorandindex[1]==1)
{
colordetect1='g';
}
if(maxcolorandindex[1]==2)
{
colordetect1='o';
}
if(maxcolorandindex[1]==3)
{
colordetect1='l';
}
if(maxcolorandindex[1]==4)
{
colordetect1='p';
}
}
else
{
colordetect1='n';
}
colorposition.character=colordetect1;
delete [] m_bdata;
m_bdata = 0;
delete [] m_gdata;
m_gdata = 0;
delete []m_rdata;
m_rdata = 0;
delete [] index;
index = 0;
delete [] p_blue_pixel;
p_blue_pixel =0;
delete [] p_green_pixel;
p_green_pixel = 0;
delete [] p_pink_pixel;
p_pink_pixel = 0;
delete [] p_orange_pixel;
p_orange_pixel = 0;
delete [] p_lila_pixel;
p_lila_pixel = 0;
delete [] p_back_pixel;
p_back_pixel = 0;
return colorposition;
}
double CI90ControllerDlg::Angle2PI(double tempAngle)
{
double numberPI;
numberPI = abs(tempAngle) / (3.14 * 2);
if (( abs(tempAngle) - numberPI * (3.14 * 2)) >= 0)
{
numberPI = numberPI ;
}
else
{
numberPI =numberPI - 1;
}
tempAngle = (abs(tempAngle) - numberPI * (3.14 * 2));
return tempAngle;
}
double CI90ControllerDlg::AnglePI(double tempAngle)
{
if (tempAngle > 3.14)
tempAngle = tempAngle - (3.14 * 2);
if (tempAngle < -3.14)
tempAngle = tempAngle + (3.14* 2);
return tempAngle;
}
//CImage* CI90ControllerDlg::Sobel(CImage* image)
void CI90ControllerDlg::Sobel(CImage* image,CImage *returnImage)
{
returnImage->Create(image->GetWidth(),image->GetHeight(), image->GetBPP(),0);
double GX[3][3],GY[3][3];
int sumX = 0;
int sumY = 0;
int SUM = 0;
// Masks //////////////////////////////////////
//X//
GX[0][0] = -1; GX[0][1] = 0; GX[0][2] = 1;
GX[1][0] = -2; GX[1][1] = 0; GX[1][2] = 2;
GX[2][0] = -1; GX[2][1] = 0; GX[2][2] = 1;
//Y//
GY[0][0] = 1; GY[0][1] = 2; GY[0][2] = 1;
GY[1][0] = 0; GY[1][1] = 0; GY[1][2] = 0;
GY[2][0] = -1; GY[2][1] = -2; GY[2][2] = -1;
//int r=image->GetHeight();
Ypix=0;
for(int Ypix; Ypix < image->GetHeight(); Ypix++)
{
for(int X=0; X < image->GetWidth(); X++)
{
sumX = 0;
sumY = 0;
if(Ypix==0 || Ypix == image->GetHeight()-1)
SUM = 0;
else if(X==0 || X == image->GetWidth()-1)
SUM = 0;
else
{
for(int I=-1; I<=1; I++)
{
for(int J=-1; J<=1; J++)
{
int piX = J + X;
int piY = I + Ypix;
COLORREF pixVal = image->GetPixel(piX,piY);
int R = GetRValue(pixVal);
int G = GetGValue(pixVal);
int B = GetBValue(pixVal);
int NC = (R+G+B)/3;
sumX = sumX + (NC) * GX[J+1][I+1];
sumY = sumY + (NC) * GY[J+1][I+1];
}
}
SUM = abs(sumX) + abs(sumY);
}
if(SUM>255) SUM=255;
if(SUM<0) SUM=0;
int newPixel = (255 - (unsigned char)(SUM));
COLORREF newPixCol = RGB(newPixel,newPixel,newPixel);
returnImage->SetPixel(X,Ypix,newPixCol) ;
}
}
// return returnImage;
}
//function that loads in the header
bool CI90ControllerDlg::LoadP5Header(ifstream &infile, PIC &pic)
{
bool rtv = true;
char buf[16];
int bufIndex;
int width, height, maxval;
infile.read(buf, 2); // get the magic number
buf[2]='\0';
if(buf[0] == 'P' && buf[1] == '5')
//if(buf[0] == 'P' && buf[1] == '2')
{
infile.read(buf, 1);
while(isspace(buf[0])) // Skip white space(s)
{
infile.read(buf,1);
}
// get width
bufIndex = 0;
while(bufIndex < 15 && !isspace(buf[bufIndex]))
{
bufIndex++;
infile.read(buf+bufIndex, 1);
}
buf[bufIndex] = NULL; // null terminated string
width = atoi(buf);
// get height
infile.read(buf,1);
while(isspace(buf[0])) // Skip white space(s)
{
infile.read(buf,1);
}
bufIndex = 0; //line
while(bufIndex < 15 && !isspace(buf[bufIndex]))
{
bufIndex++;
infile.read(buf+bufIndex, 1);
}
buf[bufIndex] = NULL; // null terminated string
height = atoi(buf);
// get Maxval
infile.read(buf,1);
while(isspace(buf[0])) // Skip white space(s)
{
infile.read(buf,1);
}
bufIndex = 0;
while(bufIndex < 15 && !isspace(buf[bufIndex]))
{
bufIndex++;
infile.read(buf+bufIndex, 1);
}
buf[bufIndex] = NULL; // null terminated string
maxval = atoi(buf);
// Skip white space(s)
//infile.read(buf,1);
// set the image information in the struct
pic.InterLeaved = false;
pic.Width = width;
pic.Height = height;
pic.Maxval = maxval;
}
else rtv = false;
return rtv;
}; // end of LoadP5Header()
//function that accepts an infile object and a PIC Object
//and reads in the PIC object
void CI90ControllerDlg::LoadImage(ifstream &infile, PIC &pic)
{
infile.read(reinterpret_cast<char *>(pic.img), pic.Width*pic.Height);
}
//function that accepts an outstream file and a PIC object to
//and writes the output stream to the PIC object
void CI90ControllerDlg::WritePGM(ofstream & outfile, PIC pic)
{
//outfile << "P5" << endl;
outfile << "P5" << endl;
outfile << pic.Width << " " << pic.Height << endl;
outfile << pic.Maxval << endl;
outfile.write(reinterpret_cast<char *>(pic.img), pic.Width*pic.Height);
}
//void CI90ControllerDlg::Canny_Edge(PIC Pin_t, int Mask[5][5], char *outFileName_Pout)
void CI90ControllerDlg::Canny_Edge(PIC Pin_t, double Mask[5][5], char *outFileName_Pout)
{
ofstream outfile_Pout;
outfile_Pout.open(outFileName_Pout, ios::binary);
int **IMG__gaussian_matrix = AllocateDynamicArray<int>(Pin_t.Width+6,Pin_t.Height+6);
int **IMG_temp_matrix = AllocateDynamicArray<int>(Pin_t.Width,Pin_t.Height);
int **IMG_temp_matrix_2 = AllocateDynamicArray<int>(Pin_t.Width+2,Pin_t.Height+2);
int **IMG_final_matrix = AllocateDynamicArray<int>(Pin_t.Width,Pin_t.Height);
int **IMG__sobel_matrix = AllocateDynamicArray<int>(Pin_t.Width+2,Pin_t.Height+2);
float **IMG__gradient_matrix = AllocateDynamicArray<float>(Pin_t.Width+1,Pin_t.Height+1);
int **IMG__direction_matrix = AllocateDynamicArray<int>(Pin_t.Width,Pin_t.Height);
int Sobel_Filter_x [3][3] = {{-1,0,1},
{-2,0,2},
{-1,0,1}};
int Sobel_Filter_y [3][3] = {{1,2,1},
{0,0,0},
{-1,-2,-1}};
int Npixels, numberpixel,pixelCnt, gaussianValue, Gx, Gy, finalAngle;
float tempAngle;
int upperThresh, lowerThresh;
upperThresh=60;
lowerThresh=10;
Npixels = Pin_t.Width*Pin_t.Height;
Pin_t.Maxval = 255;
//Create a two pixel layer of black border around the original image to apply the gaussian mask to boundary values
for(int j = 0; j <= Pin_t.Height+3; j++)
{
IMG__gaussian_matrix[0][j] = 0;
IMG__gaussian_matrix[1][j] = 0;
IMG__gaussian_matrix[Pin_t.Width+2][j] = 0;
IMG__gaussian_matrix[Pin_t.Width+3][j] = 0;
}
for(int k = 0; k <= Pin_t.Width+3; k++)
{
IMG__gaussian_matrix[k][0] = 0;
IMG__gaussian_matrix[k][1] = 0;
IMG__gaussian_matrix[k][Pin_t.Height+2] = 0;
IMG__gaussian_matrix[k][Pin_t.Height+3] = 0;
}
pixelCnt = 0;
//make 2D matrix of input
for(int j = 2; j < Pin_t.Height + 2; j++)
{
for(int k = 2; k < Pin_t.Width + 2; k++)
{
IMG__gaussian_matrix[k][j] = (int) Pin_t.img[pixelCnt];
pixelCnt++;
}
}
// Gaussian Smooth the Original Image
for(int j=2; j <= Pin_t.Height+1; j++)
{
for(int k=2; k <= Pin_t.Width+1; k++)
{
gaussianValue = Mask[0][0]*IMG__gaussian_matrix[k-2][j-2] + Mask[0][1]*IMG__gaussian_matrix[k-2][j-1] + Mask[0][2]*IMG__gaussian_matrix[k-2][j] + Mask[0][3]*IMG__gaussian_matrix[k-2][j+1] + Mask[0][3]*IMG__gaussian_matrix[k-2][j+2]
+ Mask[1][0]*IMG__gaussian_matrix[k-1][j-2] + Mask[1][1]*IMG__gaussian_matrix[k-1][j-1] + Mask[1][2]*IMG__gaussian_matrix[k-1][j] + Mask[1][3]*IMG__gaussian_matrix[k-1][j+1] + Mask[1][4]*IMG__gaussian_matrix[k-1][j+2]
+ Mask[2][0]*IMG__gaussian_matrix[k][j-2] + Mask[2][1]*IMG__gaussian_matrix[k][j-1] + Mask[2][2]*IMG__gaussian_matrix[k][j] + Mask[2][3]*IMG__gaussian_matrix[k][j+1] + Mask[2][4]*IMG__gaussian_matrix[k][j+2]
+ Mask[3][0]*IMG__gaussian_matrix[k+1][j-2] + Mask[3][1]*IMG__gaussian_matrix[k+1][j-1] + Mask[3][2]*IMG__gaussian_matrix[k+1][j] + Mask[3][3]*IMG__gaussian_matrix[k+1][j+1] + Mask[3][4]*IMG__gaussian_matrix[k+1][j+2]
+ Mask[4][0]*IMG__gaussian_matrix[k+2][j-2] + Mask[4][1]*IMG__gaussian_matrix[k+2][j-1] + Mask[4][2]*IMG__gaussian_matrix[k+2][j] + Mask[4][3]*IMG__gaussian_matrix[k+2][j+1] + Mask[4][4]*IMG__gaussian_matrix[k+2][j+2];
// IMG_temp_matrix[k-2][j-2] = (int)(gaussianValue/159);
IMG_temp_matrix[k-2][j-2] = (int)(gaussianValue);
}
}
//Create a single pixel layer of black border around the smoothed image to apply the sobel mask to boundary values
for(int j = 0; j <= Pin_t.Height+1; j++)
{
IMG_temp_matrix_2[0][j] = 0;
IMG_temp_matrix_2[Pin_t.Width+1][j] = 0;
}
for(int k = 0; k <= Pin_t.Width+1; k++)
{
IMG_temp_matrix_2[k][0] = 0;
IMG_temp_matrix_2[k][Pin_t.Height+1] = 0;
}
for(int j=1; j <= Pin_t.Width;j++)
{
for(int k =1; k <= Pin_t.Height;k++)
{
IMG_temp_matrix_2[k][j]=IMG_temp_matrix[k-1][j-1];
}
}
// Filter the Smoothed Image with both the x and y direction sobel masks and in each iteration determine the magnitude of the gradient as well as the direction
for(int j=1; j <= Pin_t.Height; j++)
{
for(int k=1; k <= Pin_t.Width; k++)
{
Gx = Sobel_Filter_x[1][1]*IMG_temp_matrix_2[k][j]
+ Sobel_Filter_x[2][1]*IMG_temp_matrix_2[k+1][j]
+ Sobel_Filter_x[0][1]*IMG_temp_matrix_2[k-1][j]
+ Sobel_Filter_x[1][2]*IMG_temp_matrix_2[k][j+1]
+ Sobel_Filter_x[1][0]*IMG_temp_matrix_2[k][j-1]
+ Sobel_Filter_x[0][0]*IMG_temp_matrix_2[k-1][j-1]
+ Sobel_Filter_x[2][0]*IMG_temp_matrix_2[k+1][j-1]
+ Sobel_Filter_x[0][2]*IMG_temp_matrix_2[k-1][j+1]
+ Sobel_Filter_x[2][2]*IMG_temp_matrix_2[k+1][j+1];
Gy = Sobel_Filter_y[1][1]*IMG_temp_matrix_2[k][j]
+ Sobel_Filter_y[2][1]*IMG_temp_matrix_2[k+1][j]
+ Sobel_Filter_y[0][1]*IMG_temp_matrix_2[k-1][j]
+ Sobel_Filter_y[1][2]*IMG_temp_matrix_2[k][j+1]
+ Sobel_Filter_y[1][0]*IMG_temp_matrix_2[k][j-1]
+ Sobel_Filter_y[0][0]*IMG_temp_matrix_2[k-1][j-1]
+ Sobel_Filter_y[2][0]*IMG_temp_matrix_2[k+1][j-1]
+ Sobel_Filter_y[0][2]*IMG_temp_matrix_2[k-1][j+1]
+ Sobel_Filter_y[2][2]*IMG_temp_matrix_2[k+1][j+1];
// Compute gradient value
//IMG__gradient_matrix[k-1][j-1] = sqrt(pow(Gx,2.0) + pow(Gy,2.0));
IMG__gradient_matrix[0][0] = 0;
IMG__gradient_matrix[k][j] = sqrt(pow(Gx,2.0) + pow(Gy,2.0));
// Calculate direction of edge
tempAngle = (atan2((float)Gx, (float)Gy)/3.14159) * 180.0;
// Convert edge direction to approximate value //
if ( ( (tempAngle < 22.5) && (tempAngle > -22.5) ) || (tempAngle > 157.5) || (tempAngle < -157.5) )
finalAngle = 0;
if ( ( (tempAngle > 22.5) && (tempAngle < 67.5) ) || ( (tempAngle < -112.5) && (tempAngle > -157.5) ) )
finalAngle = 45;
if ( ( (tempAngle > 67.5) && (tempAngle < 112.5) ) || ( (tempAngle < -67.5) && (tempAngle > -112.5) ) )
finalAngle = 90;
if ( ( (tempAngle > 112.5) && (tempAngle < 157.5) ) || ( (tempAngle < -22.5) && (tempAngle > -67.5) ) )
finalAngle = -45;
IMG__direction_matrix[k-1][j-1] = finalAngle;
}
}
/*pixelCnt = 0;
for(int j = 0; j < Pin_t.Height; j++)
{
for(int k = 0; k < Pin_t.Width; k++)
{
Pin_t.img[pixelCnt] = (unsigned char) ( IMG__direction_matrix[k][j]);
pixelCnt++;
}
}
WritePGM(outfile_Pout,Pin_t);
*/
// Perform Nonmaxima suppression
for(int j=0; j < Pin_t.Height; j++)
{
for(int k=0; k < Pin_t.Width; k++)
{
switch (IMG__direction_matrix[k][j]){
case 0:
if(j == 0)
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k][j+1])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else if( j == (Pin_t.Height - 1))
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k][j-1])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else
{
if((IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k][j-1]) || (IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k][j+1]))
{
IMG__gradient_matrix[k][j] = 0;
}
}
break;
case 45:
if((k == 0) && (j == (Pin_t.Height - 1)))
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k+1][j-1])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else if((k == Pin_t.Width -1) && (j == 0))
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k-1][j+1])
{
IMG__gradient_matrix[k][j] = 0;
}
}
/*else
{
if((IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k-1][j+1]) || (IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k+1][j-1]))
{
IMG__gradient_matrix[k][j] = 0;
}
}*/
break;
case 90:
if(k == 0)
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k+1][j])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else if( k == (Pin_t.Width - 1))
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k+1][j])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else
{
if((IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k-1][j]) || (IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k-1][j]))
{
IMG__gradient_matrix[k][j] = 0;
}
}
break;
case -45:
if((k == 0) && (j == 0))
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k+1][j+1])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else if((k == Pin_t.Width -1) && (j == (Pin_t.Height -1)))
{
if(IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k-1][j-1])
{
IMG__gradient_matrix[k][j] = 0;
}
}
else
{
if((IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k+1][j+1]) || (IMG__gradient_matrix[k][j] < IMG__gradient_matrix[k-1][j-1]))
{
IMG__gradient_matrix[k][j] = 0;
}
}
break;
}
if(IMG__gradient_matrix[k][j] >= upperThresh)
{
IMG__gradient_matrix[k][j] = 255;
}
else if (IMG__gradient_matrix[k][j] < lowerThresh)
{
IMG__gradient_matrix[k][j] = 0;
}
/*
else
{
if((IMG__gradient_matrix[k-1][j-1] > upperThresh ) || (IMG__gradient_matrix[k][j-1] > upperThresh) || (IMG__gradient_matrix[k+1][j+1] > upperThresh) || (IMG__gradient_matrix[k+1][j] > upperThresh) || (IMG__gradient_matrix[k+1][j+1] > upperThresh) || (IMG__gradient_matrix[k][j+1] > upperThresh) || (IMG__gradient_matrix[k-1][j-1] > upperThresh) || (IMG__gradient_matrix[k-1][j] > upperThresh))
{
IMG__gradient_matrix[k][j] = 255;
}
else
{
IMG__gradient_matrix[k][j] = 0;
}
}*/
}
}
// Insert Hysterisys Algorithm here //
//output the calculated 2D matrix to original 1D
numberpixel = 0;
pixelCnt = 0;
for(int j = 0; j < Pin_t.Height; j++)
{
for(int k = 0; k < Pin_t.Width; k++)
{
if ((IMG__gradient_matrix[k][j]==255)&&(IMG__gradient_matrix[k][j-1]==255)&&(IMG__gradient_matrix[k][j+1]==255)) // && (IMG__gradient_matrix[k+1][j]==255) && (IMG__gradient_matrix[k-1][j]==255) && (IMG__gradient_matrix[k+1][j+1]==255) && (IMG__gradient_matrix[k-1][j+1]==255))
{
numberpixel ++;
if ((numberpixel > 0)&& (numberpixel < 800))
{
IMG__gradient_matrix[k][j]=0;
}
landmark = true;
}
Pin_t.img[pixelCnt] = (unsigned char) (IMG__gradient_matrix[k][j]);
pixelCnt++;
}
}
WritePGM(outfile_Pout, Pin_t);
FreeDynamicArray(IMG__gaussian_matrix);
FreeDynamicArray(IMG_temp_matrix);
FreeDynamicArray(IMG_temp_matrix_2);
FreeDynamicArray(IMG_final_matrix);
FreeDynamicArray(IMG__sobel_matrix);
FreeDynamicArray(IMG__gradient_matrix);
FreeDynamicArray(IMG__direction_matrix);
}
|
