Question

FFT code issue

Asked by: montu_12

Hi guys,

I am having hard time to figure out the 8 point FFT algorithm, I am passing thie input array which is currect according to the requirement but my FFT algorithm is not working and not giving me right values

Please check my code and see - what am i doing wrong....

Please Help
Its urgent

x = 0:1:40;
t = 0:1:40;

phas1 = 0;
phas2 = (2*pi)*(1/8);
phas3 = (2*pi)*(2/8);
phas4 = (2*pi)*(3/8);
phas5 = phas4;

i(1) = 0;

for i= 2:9
    x(i) = x(i - 1) + phas1;
end

for i = 10:17
    x(i) = x(i - 1) + phas2;
end

for i = 18:25
    x(i) = x(i - 1) + phas3;
end

for i = 26:33
    x(i) = x(i - 1) + phas4;
end

for i = 34:41
    x(i) = x(i - 1) + phas5;
end


for i = 1:41
    x(i) = cos(x(i));
end


stem(t, x);

s = ones(1,8);
fft(s)

% Bit Reversal
% To do Bit Reversal we need to Flip the array values

temp = x(1);
x(1) = x(8);
x(8) = temp;

temp = x(2);
x(2) = x(7);
x(7) = temp;

temp = x(3);
x(3) = x(6);
x(6) = temp;

temp = x(4);
x(4) = x(5);
x(5) = temp;

% Bit Reversal End

%%%%%%%% STAGE 1 %%%%%%%%%

x(1) = x(1) - x(2);
x(5) = x(2) + x(1);

x(3) = x(3) - x(4);
x(7) = x(4) + x(3);

x(2) = x(5) - x(6);
x(6) = x(6) + x(5);

x(4) = x(7) - x(8);
x(8) = x(8) + x(7);


%%%%%%%% STAGE 2 %%%%%%%%%
w = -0.707;


x(1) = x(1) - x(3);
x(5) = x(2) - x(4);

x(3) = x(3) + x(1);
x(7) = (x(4)* w) + x(2);

x(2) = x(5) - x(7);
x(6) = x(6) - x(8);

x(4) = x(7) + x(5);
x(8) = (x(8) * w) + x(6);

%%%%%%%% Stage 3 %%%%%%%%

x(1) = x(1) - x(5);
x(5) = x(2) - x(6);

x(3) = x(3) - x(7);
x(7) = x(4) - x(8);

x(2) = x(5) + x(1);
x(6) = (x(6)*w)  + x(2);

x(4) = (x(7) * w* w) + x(3);
x(8) = (x(8)* w *w *w) + x(4);



x(1)
x(2)
x(3)
x(4)
x(5)
x(6)
x(7)
x(8)


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:
97:
98:
99:
100:
101:
102:
103:
104:
105:
106:
107:
108:
109:
110:
111:
112:
113:
114:
115:
116:
117:
118:

Select allOpen in new window

This question is in progress. Our experts are working on an answer right now.
Sign up for immediate access to the solution once it becomes available.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-05-09 at 17:57:00ID24395379
Topic

MatLab Programming Language

Participating Experts
2
Points
500
Comments
4

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Kruskals Algorithm Implementation
    Hi, I am doing Krushkal's algorithm implementation with the following program. There are 2 files airports.txt, flights.txt airports.txt contains(for example):- 3 // number of airports airport1 5 //airport name and takeoff/landing cost airport2 ...
  2. How to retrieve these keywords
    Hi experts, I am working on a keyword retrieval project. Here is an example. Assume that the following is a keyword file. Serial Number Keywords 10 this 11 this is 33 ...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: yuk99Posted on 2009-05-10 at 16:33:10ID: 24350494

Can you attach any doc describing the algorithm you are implementing? Then I can check it. Also if possible please tell what result do you expect.

Your code is very unvectorized, not Matlab style. For example, to show 1st 8 values of x just use x(1:8).
To flip values you can say x(1:8)=x(8:1);

I would also recommend to add zones: Signal Processing and Math & Science. If you cannot do it yourself ask EE for help.



by: KendorPosted on 2010-06-02 at 14:20:55ID: 32903283

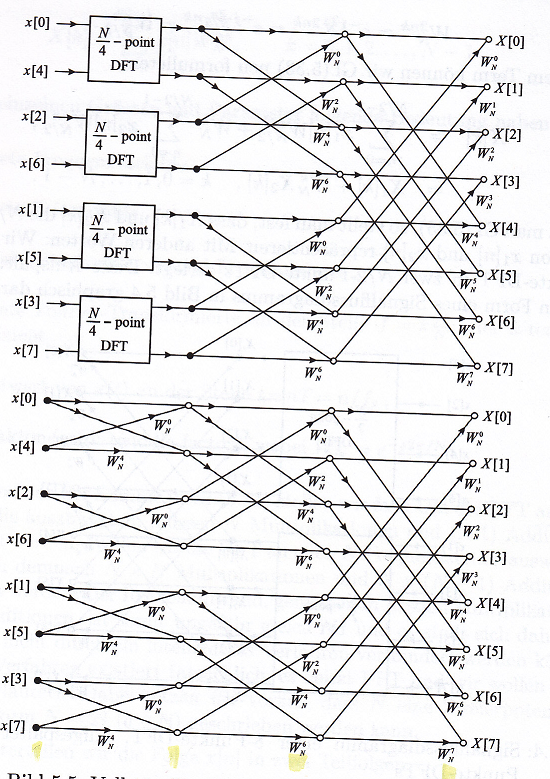

ok i looked at your code and i guess you are on the right track. I scanned you the image out of the book when I had to learn all that stuf fin detail and I believe this to be very helful for your task.  Try to follow what you see.
