Question

UML depiction

Asked by: ank9

In my class diagram, Class A calls a method of Class B. Class B uses an instance of Class C.
I have depicted it using the attached image

In the both these cases the arrows that I am using are the same. So it does not depict the relationship correctly. Please let me know how to correct this.

thank you

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-08-31 at 02:43:42ID24694309
Topics

OMG UML Programming Language

,

Java Programming Language

,

Modeling Programming Languages

Participating Experts
3
Points
500
Comments
9

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. state diagram in UML.
    I am not sure this is a right place to post my question. in uml, during domain modeling , we can use class diagram to collect method & attritute for a class. but why we use state diagram. it help us collect what kind of info? thanks
  2. UML diagram
    I'm trying to document via some type of UML diagram message passing between a Subject, a Bridge and 4 Listeners. The subject has 8 buffers - 4 Transmit and 4 Receive - that I'll read from (incoming data) or write to (outgoing data). Incoming data (it's a for loop over 4 i...
  3. UML Class Diagram
    I'm taking a class that includes a high-level review of UML. For a small assignment, we need to develop a Class Diagram based on a "Morphological Box" (see JPG posted at: http://img682.imageshack.us/content.php?page=done&l=img682/8663/morphologicalboxtouml.jpg...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: objectsPosted on 2009-08-31 at 02:51:57ID: 25221544



by: DarrenDPosted on 2009-08-31 at 03:08:16ID: 25221599

Hi,

I cannot view the attached image. Can you put the image up?

Darren



by: ank9Posted on 2009-08-31 at 03:10:29ID: 25221605

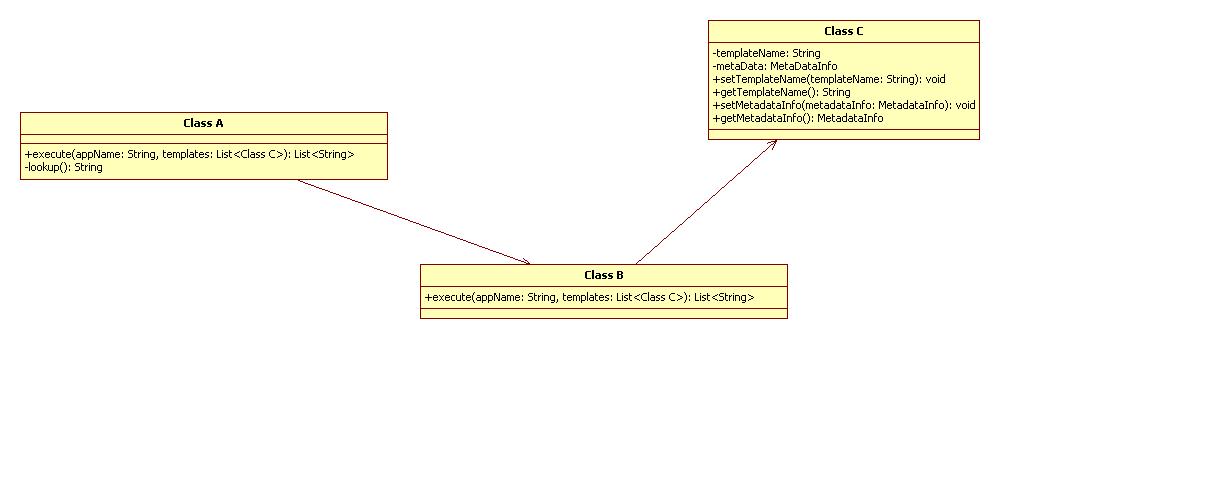

I think tiff does not display. Adding JPG



by: objectsPosted on 2009-08-31 at 03:14:05ID: 25221619

class diagrams are used to show relationships at the class level, not what methods get called



by: ank9Posted on 2009-08-31 at 03:14:19ID: 25221620

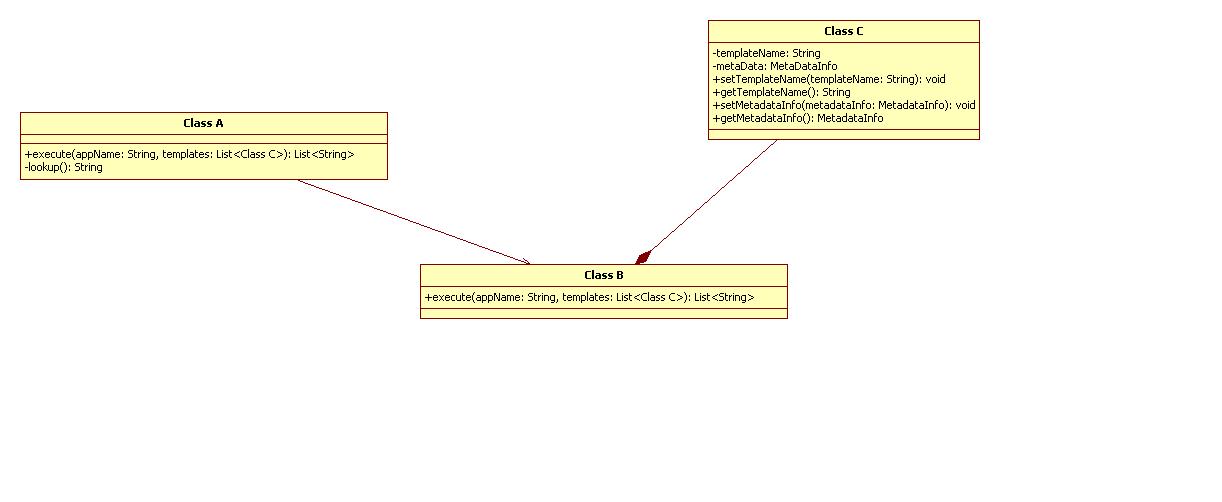

Adding an updated one. Does this make sense?



by: ank9Posted on 2009-08-31 at 03:16:01ID: 25221622

Class A calls a method of Class B. Class B creates an instance of Class C. Does this qualify for a Class diagram? I do not intend to depict which method is called.



by: marklorenzPosted on 2009-08-31 at 05:36:14ID: 25222238

You should be using a sequence diagram.  The "creation" arrow on the sequence diagram goes to the BOX for the class instance being created.

Check out details here:
http://www.tracemodeler.com/articles/a_quick_introduction_to_uml_sequence_diagrams/



by: marklorenzPosted on 2009-08-31 at 05:38:38ID: 25222251

Should have explained more...

Class diagrams are for static relationships, such as inheritance (is-a) and composition (has-a).  e.g. a Honda is-a Car; a Car has-an Engine.

Sequence diagrams are for dynamic messaging (execution).  They show calls, instantiation (creation), ... in order of execution.

HTH, Mark



by: DarrenDPosted on 2009-08-31 at 06:38:11ID: 25222656

Hi again,

As you stated 'I do not intend to depict which method is called.' I presume you do not wish to see which method is called...

The first relationship from A to B in your last posted diagram is a Dependency relationship. This means that A uses a B to perform some task or event.

The second relationship from B to C in your last posted diagram is a composition relationship. This is very strong relationship that basically says that Class C is part of Class B. On this occassion class B may own class C and so when Class B is destroyed usually class C is destroyed as well.

The main relationships in UML Class Diagrams are:
Dependency
Association
Aggregation
Composition
Generalisation

Hope this helps,

Darren
