Sum Total Question in Query

Asked by: bobby6055

How can I list sum total of all records in a query but add all QFlow sum total for a group of similar records.
The current QryTest I put together list sum total for  Record IDs 9,10,12,15 and 16 as "0.0619"  '<=== This is wrong

The correct thing is that:
(1).   Only Sum total for  Record IDs 9,10,12 and 15 should be listed as "0.0509 "
(2).   And QFlow for record ID should be listed separately as "0.011"

In other words, list each record's QFlow but add together all QFlows for all similar records WHERE tblMain.Group = True

What are group of similar records.
"What makes these four rows so similar that they must be counted as one?"

===> In tblMain, the following fields would contain similar data plus tblMain.Group = "Yes"   <====

For example in tblMain (See the attached sample db and text file:

Record ID        CatID          SCTypeID         SType             Group    Value
    9                    GPS                SD                   DY               Yes       0.0122
   10                   GPS                SD                   DY               Yes       0.0142
   12                   GPS                SD                   DY               Yes       0.0025
   15                   GPS                SD                   DY               Yes       0.022
    ********************************************************
                                                                             Sum Total       = 0.0509   '<--- QFlow Sum total for Record IDs 9,10,12 and 15

   16                  GPS                 SD                   DY                Yes      0.011       <- QFlow Sum for record id 16 listed separately

Note1: Record ID 9, 10, 12 and 15 are in the same group with tblMain.Group = "Yes"
....and all the four (4) members in that group will be added and the sum total listed in the Query

this means that the "Yes" value in each record will determine the qroup if the members in the group have similar characteristics.

whereas.....
Note2:
Record ID 16 is also in that category as in the "4 member group".... above

.......EXCEPT that (tblMain.Group = Null) for record ID 16
'<========= QFlow for record id 16 will remain as "0.011" as shown in tblMain.QFlow.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-11-07 at 18:56:31ID24881150
Topic

SQL Query Syntax

Participating Experts
2
Points
250
Comments
40

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. case vs characteristic function
    I know that there are several factors that play into this, but is there a rule or a set of rules that can help define when it would be quicker to use a characteristic function vs using the case statement? We are currently using 11.9, and are upgrading to 12.0 by the end of th...
  2. Summing up fields of records with certain characteristics
    Hi!! I'm stuck witha little problem. I'm working with a FORM on which I would like to display the sum of values of certain fields of previous records. Only those records should be taken into account that fulfill certain criteria. For instance: I have a list of providers of di...
  3. Characteristics of .NET
    I am expected to do a bit of research into the characteristics of .NET. If somebody can tell me what they are that would really help me in focusing on those points during my research.

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: bobby6055Posted on 2009-11-07 at 19:20:01ID: 25769295

Attached is a sample db and a text file for the test



by: harfangPosted on 2009-11-07 at 20:01:24ID: 25769352

You can't really have subtotals in a query. You would need a report for that. In a query, you can see either the full list, sorted any way you like, or the subtotals, but without the details. For example, this shows you the two subtotals:

  SELECT Sum(QFlow)
  FROM tblMain
  WHERE ID Between 9 And 15
  GROUP BY [Group];

In a report, you can show all your columns, add a grouping on tblMain.Group, and request subtotals on any fields in the group's footer.

(°v°)

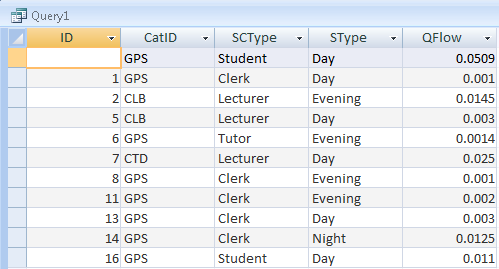

by: MikeToolePosted on 2009-11-08 at 04:29:45ID: 25770267

A slight modification of the qryGroupThem query from the previous question will do it.

I've switched around the Select statements in the UNION ALL so that Access picks up the field type for ID from the non-Grouped select.
Then the first Select just returns QFlow from the individual rows and the second select returns Sum(QFlow) for the Grouped rows.

You won't be able to Order the list exactly as your target output showed since the grouped row has no ID.

SELECT ID,tblMain.CatID, tblSCType.SCType, tblSType.SType, QFlow
FROM tblSType INNER JOIN (tblSCType INNER JOIN tblMain ON tblSCType.SCTypeID = tblMain.SCTypeID) ON tblSType.STypeID = tblMain.STypeID
WHERE (((tblMain.Appdate)>=[forms]![frmDateRange]![BeginDate] And (tblMain.Appdate)<=[forms]![frmDateRange]![EndDate])) and not nz([Group], false)

         UNION ALL

SELECT Null, tblMain.CatID, tblSCType.SCType, tblSType.SType, sum(QFlow) as QFlowA
FROM tblSType INNER JOIN (tblSCType INNER JOIN tblMain ON tblSCType.SCTypeID = tblMain.SCTypeID) ON tblSType.STypeID = tblMain.STypeID
WHERE (((tblMain.Appdate)>=[forms]![frmDateRange]![BeginDate] And (tblMain.Appdate)<=[forms]![frmDateRange]![EndDate]))
AND [Group] = true
GROUP BY tblMain.CatID, tblSCType.SCType, tblSType.SType

Order By ID


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:

Select allOpen in new window



by: bobby6055Posted on 2009-11-08 at 06:44:14ID: 25770613

Mike:
From the template I made up (see QryTest) in the attached sample DB of my original question, I added one more field on the select statement INNER JOIN to process....

"tblCat.CatType"...

This means that my Select Statement is slightly different from yours...


FROM (tblSType INNER JOIN (tblSCType INNER JOIN tblMain ON tblSCType.SCTypeID = tblMain.SCTypeID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblCat ON tblMain.CatID = tblCat.CatID

Would you mind re-posting your suggested solution query using my posted (QryTest) for me to test on the posted sample db?

SELECT tblCat.CatType, tblSCType.SCType, tblSType.SType, tblMain.QFlow
FROM (tblSType INNER JOIN (tblSCType INNER JOIN tblMain ON tblSCType.SCTypeID = tblMain.SCTypeID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblCat ON tblMain.CatID = tblCat.CatID
WHERE (((tblMain.Appdate)>=[forms]![frmDateRange]![BeginDate] And (tblMain.Appdate)<=[forms]![frmDateRange]![EndDate]))
ORDER BY tblSCType.SCType;

1:
2:
3:
4:

Select allOpen in new window



by: bobby6055Posted on 2009-11-08 at 06:50:09ID: 25770640

I just noticed another error in my original question.

Record Id 16 has no "Yes" checked in the sample db for tblMain.Group. The correct record for record id 16 is shown below:


Record ID        CatID          SCTypeID         SType       Group       QFlow
    16                  GPS                 SD                   DY                            0.011       <- QFlow Sum for record id 16 listed separately

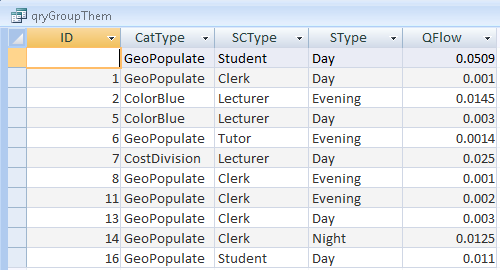

by: MikeToolePosted on 2009-11-08 at 07:16:54ID: 25770702

Here you go:

qryGroupThem:

SELECT ID,CatType, tblSCType.SCType, tblSType.SType, QFlow
FROM (tblSType INNER JOIN (tblSCType INNER JOIN tblMain ON tblSCType.SCTypeID = tblMain.SCTypeID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblCat ON tblMain.CatID = tblCat.CatID
WHERE (((tblMain.Appdate)>=[forms]![frmDateRange]![BeginDate] And (tblMain.Appdate)<=[forms]![frmDateRange]![EndDate])) and not nz([Group], false)

         UNION ALL
SELECT Null,CatType, tblSCType.SCType, tblSType.SType, sum(QFlow) as QFlowA
FROM (tblSType INNER JOIN (tblSCType INNER JOIN tblMain ON tblSCType.SCTypeID = tblMain.SCTypeID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblCat ON tblMain.CatID = tblCat.CatID
WHERE (((tblMain.Appdate)>=[forms]![frmDateRange]![BeginDate] And (tblMain.Appdate)<=[forms]![frmDateRange]![EndDate]))
AND [Group] = true
GROUP BY CatType, tblSCType.SCType, tblSType.SType
ORDER BY ID;

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:

Select allOpen in new window



by: harfangPosted on 2009-11-08 at 10:48:45ID: 25771372

I did say "you can't really have subtotals in a query", and this looks a bit odd now (thanks to you Mike!).

bobby,

What I meant to say was more along the lines of "you don't want subtotals in queries anyway". You have difficulties understanding the queries and adjusting them only because of the requirement to show both details and summaries in query view.

Although you can UNION a table with a query for this purpose, during development you should concentrate on each individual query. Only when they work flawlessly in ever possible context will you UNION them, if you really need is.

Take Mike's suggestion, but test and debug the part above and below the UNION keyword separately. Only once both queries work should you worry about combining them.

Does that make sense?
(°v°)



by: bobby6055Posted on 2009-11-08 at 12:14:07ID: 25771692

Mike / Harfang:
Since Mike's last updated query, I have tried executing his suggestion in another sample db with an elaborated "query" ..........and I ran into problems.

To clarify it I have attached a new sample db here very much similar to very first one I uploaded earlier in my original question.

In it, you find a new query object "qrySumQFlow" which I now have a hard time coming up with sum(QFlow)/4 as QFlowA ....per Mike's UNION AL  Query.

I will appreciate a good solution based on the question request.



by: bobby6055Posted on 2009-11-08 at 12:20:13ID: 25771715

TESTING:
To test the new sample, please do the following:

(a). Doubleclick the Query object "qrySumQFlow"
(b). Type in:
      BeginDate = 07/01/09
      End Date  =  09/30/09

(c). Query opens with all the data in it.

If you could assist further by processing (sum(QFlow)/4 as QFlowA WHERE tblMain.Group = True) in the query it would great.



by: bobby6055Posted on 2009-11-08 at 12:24:03ID: 25771728

In other words..
.......list each record of QFlowNew for all records in the Date range; and process (sum(QFlow)/4 as QFlowA WHERE tblMain.Group = True)
...per my original question.

My regards

Bobby




by: harfangPosted on 2009-11-08 at 15:36:15ID: 25772568

I'm sure I don't follow. Anyway, this is the query:

SELECT Sum(Qflow)/4 AS QFlowNew
FROM tblMain
WHERE [Group]
 AND CatID In ('Gen','pks','CED')
 AND AppDate Between #7/1/2009# And #9/30/2009#
 AND STypeID In ('NT','DY')
 AND CIDate Is Not Null
 AND PNo Is Not Null

Since it's a single number, I don't know how you expect to incorporate it into your detail query. Note that when you don't use fields from a table, it's usually safe to remove them from the source.

Basically, you are trying to write a SELECT query and a GROUP BY query at the same time. It's really one or the others.

Working from the above, you can try to re-introduce some fields. Your query will be GROUPed BY those fields, and your total becomes a subtotal. For each field, you can also display the highest, the lowest. For numbers, you could display the total, the average, etc.

At the very least, is the figure the one you expected?

(°v°)



by: bobby6055Posted on 2009-11-08 at 17:02:12ID: 25772824

Mike / Harfang,
Please disregard the sample I uploaded under ID:25771692. I have refined the sample further to include Mike's Query "UNION_QUERY_Mike"

I tested the attached Mike's suggested query and "QFlowA" did not give the desired result. I presume that it was due to the fact that I could not figure out
how the UNION ALL Query calculated the "QFlowA" moreso that "similar records now depends solely on BNo on one hand followed by
CatID, SCTypeID, SType WHERE tblMain.Group = True on the other......

In other words, in tblMain, similar record consist of the following in that order:

BNo   "<------ "BNo" is the major deciding factor here due to the fact that the BNo must be a Unique number throughout the group
                        ..... as you could see here from record Id 87,88,89,90,91 and 81

followed by the following fields on the other hand......
CatID
SCTypeID
SType
Group MUST BE set to "Yes"

NOTE: "LNo" is not part of the similar record hence, it was not used when I utilized Mike's suggested query
.....but I will still like to list the "LNo" against the "BNo" as shown below

(See the attached sample db):

Record ID        BNo      LNo      CatID          SCTypeID         SType           Group         QFlow            QFlowNew
                                                                                                                                                                     =(QFlow) /4
    87                 5888     1552     GPS                SD                   DY               Yes              0.091              0.02275
   88                 5888         53      GPS                SD                   DY               Yes              0.091              0.02275
   89                 5888     1549     GPS                SD                   DY               Yes              0.091              0.02275
   90                 5888     1550     GPS                SD                   DY               Yes              0.091              0.02275
   91                 5888     1548     GPS                SD                   DY               Yes              0.091              0.02275
   81                 5888     1547     GPS                SD                   DY               Yes              0.091              0.02275
   ********************************************************************************************************************************
                                                                                                                            Sum Total (QFlowA)      = 0.1365   '<-------- = Sum(QFlowNew)


   Note:
Upon processing Mike's Query, this formular =Sum(QFlowNew) produce a calculated value of 0.11375  '<===== This is wrong
........compare with the above manually calculated result.

TESTING MIKES' method:
To simulate Mike's test result, please doubleclick on "UNION_QUERY_Mike", then type in 07/01/09 & 09/30/09

Question Objective:
What I will like to achieve with this question is to be able to configure almost any query then......
........list each record of QFlowNew for all records in the Date range; and process (sum(QFlow)/4 as QFlowA WHERE tblMain.Group = True)
...per my original question.

In this case, my new query "qrySumQFlow" - (attached with this sample) is what I will now appreciate assistance with and this I believe will allow
me to be able to manipulate the query or any other query as needed.

So, any assistance in using "qrySumQFlow" to get QFlowA that listed all records QFlow as well a sum up similar records where tblMain.Group = True
will be appreciated.

Please see the attached new sample db here.

TESTING My included new Query:
If a new Query is formulated using my query "qrySumQFlow",
.....then simply test it by doubleclicking on "qrySumQFlow"
.....and type 07/01/09 (BeginDate) and 09/30/09 (End Date)

.......the result for record id 87 - 91 and 81 altogether should produce a QFlowA of 0.1365 using the formular =Sum(QFlowNew) or
simply
(sum(QFlow)/4 as QFlowA WHERE tblMain.Group = True)

Please let me know if you need additional information

Bobby



by: bobby6055Posted on 2009-11-08 at 17:14:25ID: 25772867

Harfang:
I just tested your suggested Query using my most recent sample db under ID:25772824.

Result:
I received a single result of 0.1382.
I am unable to make meanings out of this result since there are several groups of similar records in tblMain...as such, I expect to receive a list of all
QFlow in tblMain PLUS QFlowA for all groups of similar records in tblMain.

Please open Mike's suggested Query and test, this will give you an idea of the result I expect to get from a successful Query.



by: harfangPosted on 2009-11-08 at 19:26:42ID: 25773217

Hi Bobby.

Let's see if I can help.


> I could not figure out...

As I was trying to explain in {http:#25771372}, do not even try to modify the UNION query. Instead, use either the query before the word UNION, or the one below. You will have better chances of success.

Basically, the top query is just a selection. Every record in the date range, for which the Group is unchecked. These records will be shown in detail.

The bottom query, on the other hand, performs a grouping. Every column displayed is part of the grouping. If you don't want that level of detail, you can't display that column: it must be left blank, just like the column ID.


> "similar records now depends solely on BNo [...]"

Precisely. BNo is included, so records are grouped by that field. Should this field be blank for the subtotals? That would leave a grouping on CatType and SCType (constant over your current group selection), and SType (with two possible values: Day and Evening). In other words, removing BNo will collapse your subtotals into two records.


> I will still like to list the "LNo" against the "BNo"

If you add more grouping keys, you create more groups. It's the opposite effect. In the end, it won't be a subtotal any more. For example, BNo=5888 is one group. If you add the column LNo, since all values of LNo are different, you are no longer grouping on BNo. Instead, you will see one record for each different value of LNo.

Note: these records are marked for grouping.


> [Total for BNo=5888] = 0.1365 [compared to:] 0.11375  '<===== This is wrong

I must disagree. You calculate 0.02275 × 6, because you include record ID=81. As per your instructions:

> type in 07/01/09 & 09/30/09

Please verify in your table that record ID=81 has no value in AppDate, and therefore does not fall between those dates. Furthermore, your own query, qrySumQFlow, contains the explicit (although redundant) clause:

    WHERE ... And (tblMain.AppDate) Is Not Null ...

You may also verify that 0.02275 × 5 = 0.11375


I hope this sheds some light onto your adventures.

Regards
(°v°)



by: bobby6055Posted on 2009-11-09 at 02:20:16ID: 25774654

Harfang / Mike:
Thanks for the analysis:

My qrySumQFlow was designed specifically to exclude all records missing data in that range...
"Between [Forms]![frmDateRange]![BeginDate] And [Forms]![frmDateRange]![EndDate] And (tblMain.AppDate) Is Not Null)"

I have added the missing data for record id 81 as shown below and my query now picks up record id 81:

ID      CatID      BNo      LNo      SCTypeID      STypeID      QFlow      Group      LocalID      AppDate           PNo        CIDate          SerialNo   HConNo
81      GEN      5888      1547      SD      DY      0.091      Yes      CTVE      9/11/2009    550431  9/3/2009    0029-08     1  '<------Note

Mike's query has also added record id 81 and I now get a calculated value for all BNo with 5888 as 0.1365.

That being said, I will appreciate a solution using my query "QrySumQFlow", even if it's Mike's UNION All type so long I am able to manipulate the fields
to contain all fields I want to utilize in my report....as the result is meant for the report ultimately.

Bobby.



by: bobby6055Posted on 2009-11-09 at 02:40:30ID: 25774736

Mike:
Please disregard my comment under ID:25772824, .....your query works as originally designed, However, I still need help to figure out ways to include fields like LNo
(etc..) to be listed against the BNo ...specifically for printing report,

I will prefer that my query (QrySumQFlow) be utilized in evolving a new solution...this will assist me in being able to manipulate the query in order to get the desired result
in my reports.

The sample db I uploaded under ID:25772824 is a better sample which you may want to utilize in evolving a solution on the subject matter.

Bobby.



by: MikeToolePosted on 2009-11-09 at 03:43:47ID: 25774974

Bobby,
As harfang explained in his last post, my solution for your request consists of two seperate SELECT statements to get the two distinct result set types that you want, then UNIONs them together into a single result set.

The first SELECT gets the rows that will appear as individual rows in the final reult set, for this you include all the columns that you want for your report

The second SELECT groups together rows tagged with GROUP=True in the original data. To be able to concatenate these two result sets using UNION there must be the same number of columns in this second select as in the first one and they must be of compatible data type.

For this second SELECT to successfully GROUP the data as you want it to, any column that would break the grouping must be effectively ignored. This is achieved by supplying Null as the value for the column - this is demonstrated by the ID column in the answers I've already provided.

To add any further columns to your final result set all you need to do is include the column name in the column list in the first Select and add the selection of a NULL value in the corresponding position in the column list of the second Select.
(NB, although I supplied an Alias name, QFlowA, for the calculated result of QFlow in the second select, there wasn't any need for it, the column names in a UNION come from the first Select statement)

E.g. If the values in Locality would break the GROUPing, add it like this:

SELECT ID, Locality, CatType, BNo, tblSCType.SCType, tblSType.SType, QFlow
...
UNION ALL

SELECT Null, Null, CatType, BNo, tblSCType.SCType, tblSType.SType, sum(QFlow)/4 as QFlowA

I believe that you will profit more by trying this for yourself rather than




by: MikeToolePosted on 2009-11-09 at 03:48:33ID: 25775000

Sorry, hit the wrong button,
...
I believe that you will profit more by trying this for yourself and asking for clarification if you don't succeed, rather than have us supply cut and dried solutions to an ever-moving target.

Hope this helps,
Mike




by: bobby6055Posted on 2009-11-09 at 03:54:34ID: 25775043

Mike:
Believe me sincerely, I have tried all the options myself...I am not one of those tht rely on "Cut and Dry" solutions....

The sample db I provided under ID:25772824 proves it..anyway...I'll give it another shot.

Bobby



by: MikeToolePosted on 2009-11-09 at 04:12:10ID: 25775142

Bobby,
I appreciate that.
As harvang suggested, you can test the first and second select statements separately - put them in separate queries if you like - then only UNION them together when you're satisfied that both pieces work.
Mike



by: MikeToolePosted on 2009-11-09 at 05:18:26ID: 25775603

oops: harfang, apologies for the misspelling.



by: harfangPosted on 2009-11-09 at 08:41:19ID: 25777511

Bobby,

If this is ultimately destined for a report, why not try to create both lists in separate sub-reports? You can show a total row for each, and print them one below the other from a main report.

This avoid the UNION query, and will probably be more readable.

Mike,

No problem. In German, the 'v' is pronounced 'f'...

(°v°)



by: bobby6055Posted on 2009-11-09 at 09:02:41ID: 25777765

Mike:
I am not an SQL: guy and not that familiar with UNION ALL. I know my limitations.
The SQL in the code snippet was how far I could go. I grouped everything and provide data for the QFlowNew by dividing QFlow / 4.

Any further assistance from here will be appreciated.

SELECT DISTINCTROW tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, ([Qflow])/4 AS QFlowNew, tblSCType.SCType
FROM (tblSType INNER JOIN (tblMain INNER JOIN tblLocality ON tblMain.LocalID = tblLocality.LocalID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblSCType ON tblMain.SCTypeID = tblSCType.SCTypeID
WHERE (((tblMain.CatID) In ('Gen','pks','CED')) AND ((tblMain.AppDate) Between [Forms]![frmDateRange]![BeginDate] And [Forms]![frmDateRange]![EndDate] And (tblMain.AppDate) Is Not Null) AND ((tblMain.STypeID) In ('NT','DY')) AND ((tblMain.CIDate) Is Not Null) AND ((tblMain.PNo) Is Not Null))
GROUP BY tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, ([Qflow])/4, tblSCType.SCType
ORDER BY tblMain.BNo;

1:
2:
3:
4:
5:

Select allOpen in new window



by: bobby6055Posted on 2009-11-09 at 09:04:42ID: 25777779

Harfang:
You said...
.....why not try to create both lists in separate sub-reports?

.....I am willing to try anything that would work.

Thanks



by: MikeToolePosted on 2009-11-09 at 10:01:51ID: 25778333

Bobby,
All that a UNION ALL does is to concatenate the rows returned from two or more select statements into one result set.
In your case you want to do something different with rows marked Group=True, so I suggested to separated them from the reset into their own Select statement so they could be grouped, the rows returned from that Select get tagged onto the end of the rows returned from the non-grouped Select statement.

In order to successfully advise you we need to know more about the content of your data, specifically which fields can be included in the GROUP BY without breaking the the logic of your intended grouping. For example, in your sample data at least, the field Location can be included in the GROUP BY because it always has a single value for the rows you want to group together, however some fields will break the grouping - an obvious one being ID which if includeded as a GROUP BY column would cause every row to be returned as its own group. That's why I have Null as the selected Value for ID in the second select statement.

However, we can't know whether the sample data is covering all cases. Could it be that with a full set of data, there might be a set of rows you want to group together that have more than one location - only you know the anwer to that.

So, is it possible that you could list the fields from the final query that are safe to use in GROUP BY without breaking the logic behing the use of Group=True? Then it will be possible to provide a definitive solution to your problem.

Mike



by: MikeToolePosted on 2009-11-09 at 10:15:27ID: 25778460

@harfang
Yes, my wife's Dutch so my use of V rather than F probably slipped in from there.
But harfang is the French for a snowy owl, isn't it? - which confuses even more.
And for tonight's piece of trivia, the Owl is the mascot of the soccer team I support, Sheffield Wednesday.
Cheers,
Mike



by: bobby6055Posted on 2009-11-09 at 14:37:13ID: 25780888

Mike:
The sample data covered all cases (that is all fields I needed for my reports are there....

and the last query I uploaded also has all the data  for my report EXCEPT the column that will output result of  "Group=True"

List of fields that are safe to use are:
Locality, SerialNo, BNo, LNo, PNo, AppDate, HConNo, SCType, SType, QFlow



by: harfangPosted on 2009-11-09 at 15:16:30ID: 25781110

Bobby,

Mike is trying very hard to answer your actual question, which is about performing subtotals "in a query". As you have seen, it's difficult to mix details and subtotals in a query window.

About the reporting idea:

To avoid confusion with your own data structure, imagine I'm inviting people to an event. I have a table 'People', with names, etc. Some are VIP, others are parts of various groups. I want a list with every VIP spelled out, but just count people that are in a group ("Knitting Club: 8; Carl's Party: 2; ...").

Since the list is simple (two-three columns), you can perform the UNION query exercise as you are trying to do here.

The other solution would be one main report, used as a frame, showing two sub-reports.

------------------------------------------
 INVITATION LIST
   VIP List
   ------------------------------
   Dr. K. Faust
   Ms Julie Bonjour
   ...
   ------------------------------
   Groups
   ------------------------------
   Knitting Club             8
   Carl's Party               2
   ...
   ------------------------------
------------------------------------------

Going back to your own project, this means creating two distinct queries, used in two sub-reports. They don't even need to have the same number of columns. And it's easy to get various totals per list. It's also possible to add both totals from the sub-reports.

I hope this explains it better.

(°v°)


@Mike: Yes 'chouette harfang' is the snowy owl in French. I think it comes from a Scandinavian language; it also used to be the scientific name. I do like owls, as you might have guessed! -- (^v°)



by: MikeToolePosted on 2009-11-10 at 02:16:03ID: 25783938

Bobby,
Fell at the first fence - SerialNo breaks the grouping.
Attached example shows a single BNo split into three rows by differing SerialNo.
Are there any of the others like that?



by: bobby6055Posted on 2009-11-10 at 03:40:52ID: 25784390

Mike / Harfang:
Based on your suggestions, I came up with these two attached queries. Upon doubleclicking on Qry_First to test I received the following error:

"The number of columns in the two selected tables or queries of a UNION queries do not match"

If you could assist with these two queries it would be great.

(1). Qry_First
SELECT tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, tblSCType.SCType, Sum(tblMain.QFlow)/4 AS QFlowA
FROM qryGroupThem AS tblMain
GROUP BY tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, ([Qflow])/4, tblSCType.SCType
ORDER BY tblMain.ID;

(2). QryGroupThem
SELECT tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, tblSCType.SCType
FROM (tblSType INNER JOIN (tblMain INNER JOIN tblLocality ON tblMain.LocalID = tblLocality.LocalID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblSCType ON tblMain.SCTypeID = tblSCType.SCTypeID
WHERE (((tblMain.CatID) In ('Gen','pks','CED')) AND ((tblMain.AppDate) Between [Forms]![frmDateRange]![BeginDate] And [Forms]![frmDateRange]![EndDate] And (tblMain.AppDate) Is Not Null) AND ((tblMain.STypeID) In ('NT','DY')) AND ((tblMain.CIDate) Is Not Null) AND ((tblMain.PNo) Is Not Null))
AND [Group] = True
GROUP BY  tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, tblSCType.SCType
         UNION ALL SELECT Null,  tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, tblSCType.SCType
FROM (tblSType INNER JOIN (tblMain INNER JOIN tblLocality ON tblMain.LocalID = tblLocality.LocalID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblSCType ON tblMain.SCTypeID = tblSCType.SCTypeID
WHERE (((tblMain.CatID) In ('Gen','pks','CED')) AND ((tblMain.AppDate) Between [Forms]![frmDateRange]![BeginDate] And [Forms]![frmDateRange]![EndDate] And (tblMain.AppDate) Is Not Null) AND ((tblMain.STypeID) In ('NT','DY')) AND ((tblMain.CIDate) Is Not Null) AND ((tblMain.PNo) Is Not Null));

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:

Select allOpen in new window



by: MikeToolePosted on 2009-11-10 at 05:17:28ID: 25784995

Bobby,
>>> (2) qryGroupThem

This does not follow in any way the solution description and examples I have provided.
From a previous post:

>>>>The first SELECT gets the rows that will appear as individual rows in the final reult set, for this you include all the columns that you want for your report

>>>>The second SELECT groups together rows tagged with GROUP=True in the original data. To be able to concatenate these two result sets using UNION there >>>>must be the same number of columns in this second select as in the first one and they must be of compatible data type.

>>>>For this second SELECT to successfully GROUP the data as you want it to, any column that would break the grouping must be effectively ignored. This is achieved >>>>by supplying Null as the value for the column - this is demonstrated by the ID column in the answers I've already provided.

What you have posted has the Grouping query as the first one, the reverse of my suggestion, and includes all the fields that will break your grouping logic. The error message is only repeating what was in my post:  "there must be the same number of columns in this second select as in the first one " You've kept the Null I put in for ID, albeit in the wrong select statement, then added the ID column after it, thus adding an extra column to the second query, hence the mismatch in column numbers.

qry_first doesn't do anything at all useful. Harfang's advice, which I supported, was to take the two select statements from the Union query and put each into its own query that could be tested separately. These could then have be pulled together in a UNION as so:

Select * From qryDetailRows
UNION ALL
Select * From qryGroupedRows

I'll clean it all up and post a solution




by: MikeToolePosted on 2009-11-10 at 06:05:29ID: 25785410

Bobby,
Here it is. Three queries that give you the overall structure. I don't know the intent of dividing QFlow by 4, so I've just left it as-is in the Group=True query.
Hopefully this is clear enough for you now to be able to make any final adjustments.

qryFilterMain: Joins all the tables together and applies your selection criteria

qrySumQFlow: Handles the Group=True records, using qryFilterMain as data source

qryReport: Selects the non-grouped rows from qryFilterMain and concatenates the rows from qrySumQFlow using UNION ALL

qry FilterMain

SELECT tblMain.ID, tblLocality.Locality, tblMain.SerialNo, tblMain.BNo, tblMain.LNo, tblMain.PNo, tblMain.AppDate, tblMain.HConNo, tblSType.SType, tblSCType.SCType, tblMain.QFlow, tblMain.Group
FROM (tblSType INNER JOIN (tblMain INNER JOIN tblLocality ON tblMain.LocalID = tblLocality.LocalID) ON tblSType.STypeID = tblMain.STypeID) INNER JOIN tblSCType ON tblMain.SCTypeID = tblSCType.SCTypeID
WHERE (((tblMain.PNo) Is Not Null) AND ((tblMain.AppDate) Between [BeginDate] And [EndDate]) AND ((tblMain.CatID) In ('Gen','pks','CED')) AND ((tblMain.STypeID) In ('NT','DY')) AND ((tblMain.CIDate) Is Not Null));

qrySumQFlow

SELECT DISTINCTROW Null AS ID, qryFilterMain.Locality, Null AS SerialNo, qryFilterMain.BNo, Null AS LNo, Null AS PNo, Null AS AppDate, qryFilterMain.HConNo, qryFilterMain.SType, qryFilterMain.SCType, Sum([Qflow]/4) AS QFlowNew
FROM qryFilterMain
WHERE (((qryFilterMain.Group)=True))
GROUP BY qryFilterMain.Locality, qryFilterMain.BNo, qryFilterMain.HConNo, qryFilterMain.SType, qryFilterMain.SCType;

qryReport

SELECT ID, Locality, SerialNo, BNo, LNo, PNo, AppDate, HConNo, SType, SCType, QFlow
FROM qryFilterMain Where not nz(Group,True)
UNION ALL Select ID, Locality, SerialNo, BNo, LNo, PNo, AppDate, HConNo, SType, SCType, QFlowNew
FROM qrySumQFlow
ORDER BY ID;

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:

Select allOpen in new window



by: bobby6055Posted on 2009-11-10 at 18:49:28ID: 25791964

Mike:
Thank you for the attachment and the suggested queries. I tried them all and the closest to what I am hoping for are: qryFinal and qryRawdata in that it listed all the fields I want to populate as well as the data for QFlowA field.
I exported the output generated by the Date Range 07/01/09 & 09/30/09 and pasted the output into Microsoft Excel and named it "QryRawData_Amended.xls". I deleted what are not necessary and left only fields that must be populated and the way each field is expected to be populated.

In the attachment ("QryRawData_Amended.xls"),  you will find the following:

(a). LNos matching each BNo are populated right next to the BNo field (The LNos needs to be populated for the report.

(b). There is a UNIQUE (DISTINCT) record of Serial No for each listed BNo - Serial No field is equally important for the report.

(c). QFLOWA field populated data for QFlow for each BNo in which [Group] = False
      as well as populated aggregate "QFLOWA" value for each BNo which [Group] = True


If you can assist in getting Access Queries to populate data in the EXACT format of the attached Excel file
("QryRawData_Amended.xls"),  -  it would be greatly appreciated.

Cheers !!!

Bobby



by: bobby6055Posted on 2009-11-10 at 18:52:55ID: 25791984

Mike:
Sorry...
I renamed your qryFilterMain to "qryFinal"; I also renamed your qryReport to qryRawdata for logistic reasons in my own sample db.....
...so please no reason to wonder why?



by: bobby6055Posted on 2009-11-11 at 08:25:45ID: 25796390

Mike:
Diregard my previous sample Excel file...After I pasted data from the Query result in Excel and amended everything, I sorted all records by BNo field....It escaped my mind that Excel is not like the Database sorting.

I have eleiminated all fields that could break the grouping. All that is needed now is a way to list all LNos
against each matching BNo WHERE tblMain.Group = "Yes"

In other words....I have included a new excel file that showed QFlow and QFlowA, including unique Serial no for each record.
I have also deleted fields like CIEDate, PNo..etc..which I think could break the Groupings.

(1). Qflow is a value for each record in tblMain.
(2). QFlowA ia a value for "similar records "sum together all the [QFlow] and divided by 4 - this is the formular.
(3) (a). Similar records are records with same "BNo" but different LNos matching the BNo.
      (b). Once all the records of the same BNos are collated, and the following fields:
             SConnType, SType are also similar
               ....AND tblMain.Group = "Yes" Then
(c). Calculate QFlowA using the formular =Sum([tblMain.Group])/4
(d). List the group of similar BNo with matching LNos as one record with the QFlowA value.

Note:
The new qryRawdata_Amended_2.xls would clarify the above statement.

If there is a way to list the LNos against each matching BNo for my report - it should resolve my concern.

Cheers !!!
Bobby



by: MikeToolePosted on 2009-11-11 at 13:22:05ID: 25799226

Bobby,
It seems that each time I give an answer to a question you pose in this thread the question immediately mutates into something different.
I suggest that you close-out this question and ask a follow up, since your target now differers so much from any iteration of the question so far.



by: bobby6055Posted on 2009-11-11 at 13:43:10ID: 25799419

Mike:
I did not....I was only trying to figure out the best to include "LNo" or any other important field with a query even if to separate the field(s) in a separate query since UNION ALL Query has proved to be problematic. I hope you'll understand.



by: bobby6055Posted on 2009-11-11 at 13:46:39ID: 25799449

For example, if you check out "qryReport" that you posted,, When you run the query, it did not list out all the LNos, it listed it to a point and stopped. It is this field I was only trying to sort out how to get it in a query format which I can later use for a report - since the ultimate goal is to use the query in a report and getting LNo field to that report is very important..



by: bobby6055Posted on 2009-11-12 at 03:06:52ID: 25803200

Mike / Harfang:
I awarded the points based on the fact that Mike's original post answered the question and I have since gotten assistance from an outside source for the LNo / other field listings in the final SQL result using VBA.

Thanks for your assistance.

Regards

Bobby.



by: harfangPosted on 2009-11-12 at 07:42:27ID: 25805477

I'm glad to head that. Success with your project! -- (°v°)

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
