Using jQuery tooltipsy with json

Hi experts

I asked a previous question. This is the link to my previous question.
https://www.experts-exchange.com/questions/28154576/tooltipsy-jquery-plugin-fetch-json.html

So I got a similar example working. This is what I have.

Example 1
Using jQuery tooltipsy with static json file

I have a json file called testEmployees.js
this is the code:

{
"employees" : [
    {
        "EmployeeID"   : "1",
        "LastName" : "Davolio",
        "FirstName" : "Nancy",
        "Title" : "Sales Representative"
    },
    {
        "EmployeeID"   : "2",
        "LastName" : "Fuller",
        "FirstName" : "Andrew",
        "Title" : "Vide President Sales"
    },
    {
        "EmployeeID"   : "3",
        "LastName" : "Leverling",
        "FirstName" : "Janet",
        "Title" : "Sales Representative"
    },
    {
        "EmployeeID"   : "4",
        "LastName" : "Peacock",
        "FirstName" : "Margaret",
        "Title" : "Sales Representative"
    },
    {
        "EmployeeID"   : "5",
        "LastName" : "Buchanan",
        "FirstName" : "Steven",
        "Title" : "Sales Manager"
    },
    {
        "EmployeeID"   : "6",
        "LastName" : "Suyama",
        "FirstName" : "Michael",
        "Title" : "Sales Representative"
    },
    {
        "EmployeeID"   : "7",
        "LastName" : "King",
        "FirstName" : "Robert",
        "Title" : "Sales Representative"
    },
    {
        "EmployeeID"   : "8",
        "LastName" : "Callahan",
        "FirstName" : "Laura",
        "Title" : "Inside Sales Coordinator"
    },
    {
        "EmployeeID"   : "9",
        "LastName" : "Dodsworth",
        "FirstName" : "Anne",
        "Title" : "Sales Representative"
    }
          ]
}

Open in new window

I have a file called tooltipsyjson3.aspx
this is the code:

<%@ Page Language="vb" AutoEventWireup="false" CodeBehind="tooltipsyjson3.aspx.vb" Inherits="tt1.tooltipsyjson3" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
    <%-- CSS Style --%>
<style type="text/css">

span.hastip {
    background:#FFFFFF;
    width:15px;
    height:15px;
    display:inline-block;
    margin-left:10px;
}

</style>
    <%-- referening jquery library --%>
    <script language="javascript" type="text/javascript" src="Scripts/jquery-1.9.1.js"></script>

    <%-- referening the tooltipsy plugin --%>
    <script language="javascript" type="text/javascript" src="Scripts/tooltipsymin.js"></script>

    <%-- tooltipsy Function --%>
    <script language="javascript" type="text/javascript">

        $(document).ready(function () {

            $('.hastip').tooltipsy({

                content: function ($el, $tip) {
                    var $el = $("#myTestTooltip");
                    var active_tooltip = $el.attr('rel');
                    $el.text="DAHBDGTSHFDH"

                    $.getJSON('testEmployees.js', function (data) {

                        $tip.html(function () {
                            var EmployeeIDtext = data.employees[active_tooltip].EmployeeID;
                            var LastNametext = data.employees[active_tooltip].LastName;
                            var FirstNametext = data.employees[active_tooltip].FirstName;
                            var Titletext = data.employees[active_tooltip].Title;
                            return '<div>' + 'EmployeeID:' + ' ' + EmployeeIDtext + ' ' + '<br/>' + 'LastName:' + ' ' + LastNametext + '<br/>' + 'FirstName:' + ' ' + FirstNametext + '<br/>' + 'Title:' + ' ' + Titletext + '</div>';
                        });
                    });
                    return 'Fallback content';
                },
                css: {
                    'padding': '10px',
                    'max-width': '200px',
                    'color': '#000000',
                    'background-color': '#f5f5f5',
                    'border': '1px solid #e3e3e3'
                }
            });
        });

    </script>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <br />
        <br />
        <br />
        <br />
        <br />
        <br />
        This tooltip gets the first element of the json array<span id= "myTestTooltip" class="hastip" rel="0"><a href="http:www.google.com">tooltipsy</a></span>
    </div>
    </form>
</body>
</html>

Open in new window

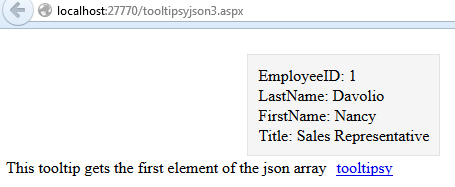

When I run my asp page I get this. So when I click on the word tooltipsy the tooltip is correctly bound to my json file.

So now I'm working on a different example but tooltipsy will get the json data from a .asmx web service.

Example 2
Using jQuery tooltipsy with a json file returned from a Web Service that uses a sql server stored procedure.

For this example I'm using SQL Server 2008, Visual Studio 2010, and VB
I'm using the Employees table from the Northwind database.

I have a Web Service called EmployeeJSONformattedSP.asmx
This Web Service uses a Stored Procedure called GetEmployeesJsonFormatted2

This is the code for GetEmployeesJsonFormatted2:

CREATE PROCEDURE [dbo].[GetEmployeesJsonFormatted2]

AS
BEGIN

SELECT '{' + ' ' + '"' + 'employees' + '"' + ' ' + ':' + ' ' + '[' + ' ' + STUFF((
        SELECT
            ', { "EmployeeID":' + '"' + cast(EmployeeID as varchar(max)) + '"'
            + ',"LastName":"' + LastName + '"'
            + ',"FirstName":' + '"' + cast(FirstName as varchar(max)) + '"'
            + ',"Title":' + '"' + cast(Title as varchar(max)) + '"'
            + ' ' + '}'
        FROM [Northwind].[dbo].[Employees]
        FOR XML PATH(''), TYPE
    ).value('.', 'varchar(max)'), 1, 1, '') + ' ' +  ']' + ' ' +  '}'  AS 'MyString'


END

Open in new window

This is the code for my Web Service called EmployeeJSONformattedSP.asmx

When I run the web service in the browser I get this:

When I click on the GetEmployeesString method I get this:

So no I want to create my asp page with the jquery to fetch this string that is formatted as json.

So I created a page called tooltipsyjson4.aspx

This is the code for this page:

<%@ Page Language="vb" AutoEventWireup="false" CodeBehind="tooltipsyjson4.aspx.vb" Inherits="tt1.tooltipsyjson4" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
    <%-- CSS Style --%>
<style type="text/css">

.TestText1 {font-family: Arial; color: #FF0000; font-size: 12px; font-weight: normal;}

span.hastip {
    background:#FFFFFF;
    width:15px;
    height:15px;
    display:inline-block;
    margin-left:10px;
}

</style>
    <%-- referening jquery library --%>
    <script language="javascript" type="text/javascript" src="Scripts/jquery-1.9.1.js"></script>

    <%-- referening the tooltipsy plugin --%>
    <script language="javascript" type="text/javascript" src="Scripts/tooltipsymin.js"></script>

    <%-- tooltipsy Function --%>
    <script language="javascript" type="text/javascript">

        $(document).ready(function () {

            $('.hastip').tooltipsy({

                content: function ($el, $tip) {
                    var $el = $("#myTestTooltip");
                    var active_tooltip = $el.attr('rel');
                    $el.text="DAHBDGTSHFDH"

                    // $.getJSON('testEmployees.js', function (data) {

                    $.getJSON('EmployeeJSONformattedSP.asmx/GetEmployeesString', function (data) {
                    //$.getJSON('EmployeeReturnJSON.asmx/GetEmployeesJSON', function (data) {

                        $tip.html(function () {
                            var EmployeeIDtext = data.employees[active_tooltip].EmployeeID;
                            var LastNametext = data.employees[active_tooltip].LastName;
                            var FirstNametext = data.employees[active_tooltip].FirstName;
                            var Titletext = data.employees[active_tooltip].Title;
                            return '<div>' + 'EmployeeID:' + ' ' + EmployeeIDtext + ' ' + '<br/>' + 'LastName:' + ' ' + LastNametext + '<br/>' + 'FirstName:' + ' ' + FirstNametext + '<br/>' + 'Title:' + ' ' + Titletext + '</div>';
                        });
                    });
                    return 'Fallback content';
                },
                css: {
                    'padding': '10px',
                    'max-width': '200px',
                    'color': '#000000',
                    'background-color': '#f5f5f5',
                    'border': '1px solid #e3e3e3'
                }
            });
        });

    </script>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <br />
        <br />
        <br />
        <br />
        <br />
        <br />
        This tooltip gets the first element of the json array<span id= "myTestTooltip" data-url='employees' class="hastip" rel="0"><a href="http:www.google.com">tooltipsy</a></span>
    </div>
    </form>
</body>
</html>

Open in new window

So when I run my asp page I get this:

When I hover over the word tooltipsy I get this.

Does anyone know where I'm making a mistake that is causing tooltipsy not to bind to the json data correctly?
Is it in my javascript when I call the web service using the $.getJSON function ?

At first I thought my Web Service is formatted wrong so I created this other web service called EmployeeReturnJSON.asmx

This is the code:

Imports System.Web.Services
Imports System.Web.Services.Protocols
Imports System.ComponentModel
Imports System.Web
Imports System.Web.Script.Services
Imports System.Data
Imports System.Data.SqlClient

' To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
<System.Web.Script.Services.ScriptService()> _
<System.Web.Services.WebService(Namespace:="http://tempuri.org/")> _
<System.Web.Services.WebServiceBinding(ConformsTo:=WsiProfiles.BasicProfile1_1)> _
<ToolboxItem(False)> _
Public Class EmployeeReturnJSON
    Inherits System.Web.Services.WebService

    <WebMethod()> _
    Public Function HelloWorld() As String
        Return "Hello World"
    End Function

    ' This method returns a Json type.
    <WebMethod()> _
    <ScriptMethod(UseHttpGet:=False, ResponseFormat:=ResponseFormat.Json)> _
    Public Function GetEmployeesJSON() As List(Of Employee)
        'Dim reports As New List(Of ModelReport.Report)()
        Dim reports As New List(Of Employee)()
        Dim connectionString As String = ConfigurationManager.ConnectionStrings("NorthwindConnectionString").ConnectionString
        Using connection As New SqlConnection(connectionString)
            Using command As SqlCommand = connection.CreateCommand
                Dim sql As String = "SELECT EmployeeID, LastName, FirstName, Title FROM Employees"
                connection.Open()

                command.CommandText = sql
                Using reader As SqlDataReader = command.ExecuteReader()
                    While reader.Read()
                        'Dim report As New ModelReport.Report()
                        Dim report As New Employee()
                        report.EmployeeID = reader("EmployeeID").ToString()
                        report.LastName = reader("LastName").ToString()
                        report.FirstName = reader("FirstName").ToString()
                        report.Title = reader("Title").ToString()

                        reports.Add(report)
                    End While
                End Using
            End Using
        End Using

        Return reports
    End Function

End Class

Public Class Employee
    ' Integer type
    Private privateEmployeeID As String
    Public Property EmployeeID() As String
        Get
            Return privateEmployeeID
        End Get
        Set(ByVal value As String)
            privateEmployeeID = value
        End Set
    End Property
    ' String type
    Private privateLastName As String
    Public Property LastName() As String
        Get
            Return privateLastName
        End Get
        Set(ByVal value As String)
            privateLastName = value
        End Set
    End Property
    ' String type
    Private privateFirstName As String
    Public Property FirstName() As String
        Get
            Return privateFirstName
        End Get
        Set(ByVal value As String)
            privateFirstName = value
        End Set
    End Property
    ' String type
    Private privateTitle As String
    Public Property Title() As String
        Get
            Return privateTitle
        End Get
        Set(ByVal value As String)
            privateTitle = value
        End Set
    End Property
End Class

Open in new window

When I run this web service I get this:

Then if I run the GetEmployeesJSON method I get this:

Since my 1st Web Service didn't work, I tried this one instead.

But neither one seemed to work.

Can anyone help with Example 2. Where am I making a mistake?
Example 2 should work just like example 1.

Ioannis Paraskevopoulos

Hi,

I haven't tried your code, but i would like to make a notice. Your web service is returning an XML and not a JSON, so that is your problem. You could check how to modify it in order to return JSON.

By the way, having answered your other question about tooltipsy, and seen the way you ask questions, i would like to comment that you do a great job asking. Rarely i've seen so specific questions...

Giannis
