Question

No connection could be made because the target machine actively refused it

Asked by: John500

I'm trying to create a bare-bones socket application.  I'm using the following code from MSDN to see how the connection is made etc, etc.  Using the code from the snippet below, I get the following error:

No connection could be made because the target machine actively refused it

The error appears on the line with asteriks.  Although I'm connected to a LAN and the Internet, I'm assuming this is all being attempted on my own machine.  The IP and port provided by the error message is indeed my machine.

Thanks!

Imports System
Imports System.Net
Imports System.Net.Sockets
Imports System.Threading
Imports System.Text


' State object for receiving data from remote device.

Public Class StateObject
    ' Client socket.
    Public workSocket As Socket = Nothing
    ' Size of receive buffer.
    Public Const BufferSize As Integer = 256
    ' Receive buffer.
    Public buffer(BufferSize) As Byte
    ' Received data string.
    Public sb As New StringBuilder
End Class 'StateObject


Public Class AsynchronousClient
    ' The port number for the remote device.
    Private Const port As Integer = 11000

    ' ManualResetEvent instances signal completion.
    Private Shared connectDone As New ManualResetEvent(False)
    Private Shared sendDone As New ManualResetEvent(False)
    Private Shared receiveDone As New ManualResetEvent(False)

    ' The response from the remote device.
    Private Shared response As String = String.Empty


    Public Shared Sub Main()
        ' Establish the remote endpoint for the socket.
        ' For this example use local machine.
        Dim ipHostInfo As IPHostEntry = Dns.GetHostEntry(Dns.GetHostName())
        Dim ipAddress As IPAddress = ipHostInfo.AddressList(0)
        Dim remoteEP As New IPEndPoint(ipAddress, port)

        ' Create a TCP/IP socket.
        Dim client As New Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp)

        ' Connect to the remote endpoint.
        client.BeginConnect(remoteEP, New AsyncCallback(AddressOf ConnectCallback), client)

        ' Wait for connect.
        connectDone.WaitOne()

        ' Send test data to the remote device.
        Send(client, "This is a test<EOF>")
        sendDone.WaitOne()

        ' Receive the response from the remote device.
        Receive(client)
        receiveDone.WaitOne()

        ' Write the response to the console.
        Console.WriteLine("Response received : {0}", response)

        ' Release the socket.
        client.Shutdown(SocketShutdown.Both)
        client.Close()
    End Sub 'Main


    Private Shared Sub ConnectCallback(ByVal ar As IAsyncResult)
        ' Retrieve the socket from the state object.
        Dim client As Socket = CType(ar.AsyncState, Socket)

        ' Complete the connection.
        client.EndConnect(ar)            ****************************  ERROR HERE  ****************************

        Console.WriteLine("Socket connected to {0}", client.RemoteEndPoint.ToString())

        ' Signal that the connection has been made.
        connectDone.Set()
    End Sub 'ConnectCallback


    Private Shared Sub Receive(ByVal client As Socket)

        ' Create the state object.
        Dim state As New StateObject
        state.workSocket = client

        ' Begin receiving the data from the remote device.
        client.BeginReceive(state.buffer, 0, StateObject.BufferSize, 0, New AsyncCallback(AddressOf ReceiveCallback), state)
    End Sub 'Receive


    Private Shared Sub ReceiveCallback(ByVal ar As IAsyncResult)

        ' Retrieve the state object and the client socket
        ' from the asynchronous state object.
        Dim state As StateObject = CType(ar.AsyncState, StateObject)
        Dim client As Socket = state.workSocket

        ' Read data from the remote device.
        Dim bytesRead As Integer = client.EndReceive(ar)

        If bytesRead > 0 Then
            ' There might be more data, so store the data received so far.
            state.sb.Append(Encoding.ASCII.GetString(state.buffer, 0, bytesRead))

            ' Get the rest of the data.
            client.BeginReceive(state.buffer, 0, StateObject.BufferSize, 0, New AsyncCallback(AddressOf ReceiveCallback), state)
        Else
            ' All the data has arrived; put it in response.
            If state.sb.Length > 1 Then
                response = state.sb.ToString()
            End If
            ' Signal that all bytes have been received.
            receiveDone.Set()
        End If
    End Sub 'ReceiveCallback


    Private Shared Sub Send(ByVal client As Socket, ByVal data As String)
        ' Convert the string data to byte data using ASCII encoding.
        Dim byteData As Byte() = Encoding.ASCII.GetBytes(data)

        ' Begin sending the data to the remote device.
        client.BeginSend(byteData, 0, byteData.Length, 0, New AsyncCallback(AddressOf SendCallback), client)
    End Sub 'Send


    Private Shared Sub SendCallback(ByVal ar As IAsyncResult)
        ' Retrieve the socket from the state object.
        Dim client As Socket = CType(ar.AsyncState, Socket)

        ' Complete sending the data to the remote device.
        Dim bytesSent As Integer = client.EndSend(ar)
        Console.WriteLine("Sent {0} bytes to server.", bytesSent)

        ' Signal that all bytes have been sent.
        sendDone.Set()
    End Sub 'SendCallback
End Class 'AsynchronousClient

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:
97:
98:
99:
100:
101:
102:
103:
104:
105:
106:
107:
108:
109:
110:
111:
112:
113:
114:
115:
116:
117:
118:
119:
120:
121:
122:
123:
124:
125:
126:
127:
128:
129:
130:
131:
132:
133:
134:
135:
136:
137:
138:
139:
140:

Select allOpen in new window

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-03 at 11:52:37ID24705638
Tags

VB .NET

,

Sockets

Topics

Winsock

,

Signal Processing

,

Microsoft Visual Basic.Net

Participating Experts
1
Points
500
Comments
19

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Setting up a bare bones computer.
    I purchased a bare bones computer. I put in a cd-rom and a floppy drive. It came with 256 of ram. I tried to put in my hard drive from my old machine and it will not work. It comes up and says that windows start up is unsuccessful. I have tried to start it in the safe mo...
  2. Installing Oracle 9.2 Client -- Bare Bones (Win 2K)
    I was wondering if anyone has done a successful “bare bones” 9.2 Client installation (Windows 2K)? By that I mean, instead of choosing the “Runtime” option during setup, choosing “Custom” and only selecting the bare minimum components that the end-user requires for connectin...
  3. Moving Main (Boot) Drive to New Bare Bones PC - Wher…
    (A friend's 3 year old Dell is acting up - on-line research points to motherboard issues and/or power-supply issues - I've tried a bunch of things - nothing seems to cure it. So what I'd like to do is...) I'd like to take a perfectly working boot drive from a PC with hardwar...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: ladarlingPosted on 2009-09-03 at 12:35:15ID: 25254145

You probably need to unblock port 11000 in the windows firewall. Failing that, you may need to install a loopback adapter.

http://support.microsoft.com/kb/839013



by: John500Posted on 2009-09-03 at 13:09:33ID: 25254427

Appreciate this info.

How would this loopback adapter be done?



by: ladarlingPosted on 2009-09-03 at 13:23:43ID: 25254571

What OS are you using?



by: John500Posted on 2009-09-03 at 13:34:21ID: 25254670

I'm using XP and I went through the Add Hardware wizard and installed the loopback adapter.  Then I rebooted but got the same thing.

Tell me, when these lines are executed:

      Dim ipAddress As IPAddress = ipHostInfo.AddressList(0)
        Dim remoteEP As New IPEndPoint(ipAddress, port)

What's going on with the IPEndPoint?  This is where I should establish the endpoint - right?  Should I hardcode my own IP ?

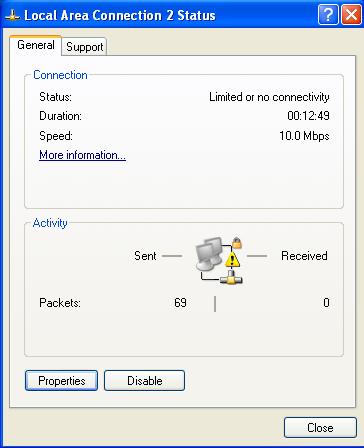

Also, you can see by the picture below that my new 2nd network connection isn't looking good.

Thanks!



by: John500Posted on 2009-09-03 at 13:40:37ID: 25254723

Also, when I look at the 'ipAddress' variable from this line:

 Dim remoteEP As New IPEndPoint(ipAddress, port)

It shows the message below for the loopback object



by: ladarlingPosted on 2009-09-03 at 13:45:05ID: 25254759

Yeah, you can, and you have to do it with a byte array. The loopback address is 127.0.0.1, so:

Dim localHost() As Byte = {127, 0, 0, 1}
Dim ipAddress As New IPAddress(localHost)



by: ladarlingPosted on 2009-09-03 at 13:46:32ID: 25254766

You most likely need an IPv4 address...



by: John500Posted on 2009-09-03 at 13:53:51ID: 25254829

>> You most likely need an IPv4 address...

Can you tell me how is would be accomplished?

Also, do you think I need to get rid of the Dynamic IP assignment and hard code my IP or the loop back IP?

Thanks



by: ladarlingPosted on 2009-09-03 at 14:26:02ID: 25255124

The IPv4 loopback address for *all* network adapters is 127.0.0.1

This address refers to your machine even if you have a DHCP address assigned to it, or whatever.



by: ladarlingPosted on 2009-09-03 at 14:28:56ID: 25255145

So, to put it another way, any computer that you sit down at can be though of as 127.0.0.1

Or, every computer thinks that it is 127.0.0.1



by: John500Posted on 2009-09-04 at 05:08:58ID: 25258685

>>  So, to put it another way, any computer that you sit down at can be though of as 127.0.0.1

Ok, I'm with you on that.

Since I enabled the loopback hardware, my computer now has two network cards per say.  This new, second network adapter has received a new IP address through DHCP but apparently it is only partially configured.  That is, it does not have a default gateway.  Also, my primary adapter starts with '192'...  but the loop back virtual network card shows a number starting with '169'...

I see this using the IPCONFIG command and the adapter is identified by the words 'Connection 2'.   I would think the IPCONFIG command would have shown an address of 127.0.0.1 - what's up with that?  This is supposed to be the loopback network card and it shows something other than 127.0.0.1

I tried to hard code the 127.0.0.1 in the IP properties but it wouldn't allow me saying, " this IP is reserved for loopback purposes only.  Pick another number starting with ..."

Thus, there must be some other step of configuration I'm leaving out - yes/no?

Thanks!



by: ladarlingPosted on 2009-09-04 at 06:05:13ID: 25259157

Yeah, you can completely uninstall the loopback adapter if 127.0.0.1 works in your code.

Go to the command prompt an ping 127.0.0.1, it will already be live... You can also use 'localhost', which resolves internally in the system to 127.0.0.1

The loopback adapter is a hardware representation of a loopback which allows you to configure some other IP address as the address, but it is in addition to localhost.



by: John500Posted on 2009-09-04 at 06:51:04ID: 25259642

>> uninstall the loopback adapter if 127.0.0.1 works in your code.

No, I haven't got anything to work yet.

>> Go to the command prompt an ping 127.0.0.1

Yes, I get a reply but something still isn't right if I consider the 2nd adapter's icon in the tray (see the picture)

>> You can also use 'localhost', which resolves internally in the system to 127.0.0.1

To put it yet another way, the call to
          Dns.GetHostEntry(Dns.GetHostName())

... is supposed to also obtain the local host IP - right?  But for some reason, the attempt to obtain an end-point of my local address is failing.  Look again at these lines of code from the snippet in my first post:

 ' Establish the remote endpoint for the socket.
 ' For this example use local machine.
        Dim ipHostInfo As IPHostEntry = Dns.GetHostEntry(Dns.GetHostName())
        Dim ipAddress As IPAddress = ipHostInfo.AddressList(0)
        Dim remoteEP As New IPEndPoint(ipAddress, port)

Yet when the code hits this line:

        ' Complete the connection.
        client.EndConnect(ar)            ****************************  ERROR HERE  ****************************

It doesn't like the value of 'ar'  --  and gives the following error:

No connection could be made because the target machine actively refused it IP # 192....  : 11000

As we talked about earlier, I made an exception for this port in the firewall but still the same thing.

Any ideas??  Thanks!





Private Shared Sub ConnectCallback(ByVal ar As IAsyncResult)
        ' Retrieve the socket from the state object.
        Dim client As Socket = CType(ar.AsyncState, Socket)
        Try
            ' Complete the connection.
            client.EndConnect(ar)        *********************** ERROR HERE *************************
            Console.WriteLine("Socket connected to {0}", client.RemoteEndPoint.ToString())

            ' Signal that the connection has been made.
            connectDone.Set()
        Catch ex As Exception

        End Try

    End Sub 'ConnectCallback


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:

Select allOpen in new window



by: ladarlingPosted on 2009-09-04 at 06:59:05ID: 25259718

Forget about the loopback adapter for a moment... :-), It is *not* necessary if you can use the machines internal loopback IP address... Have you tried?

' Establish the remote endpoint for the socket.
' For this example use local machine.
  Dim localHost() As Byte = {127, 0, 0, 1}
   Dim ipAddress As New IPAddress(localHost)
  Dim remoteEP As New IPEndPoint(ipAddress, port)



by: John500Posted on 2009-09-04 at 07:40:31ID: 25260142

>> Forget about the loopback adapter for a moment

Surely.  I disabled that adapter so my machine would certainly now be using the one true adapter.

I ran the program with the code you provided.  However, I got the same error except it now read like this:

                    No connection could be made because the target machine actively refused it IP # 127.0.0.1 : 11000

What do you think?



by: ladarlingPosted on 2009-09-04 at 08:22:47ID: 25260521

Hmmmm. Try to connect to your port via telnet from the command prompt:

telnet localhost 11000

And see what you get.



by: John500Posted on 2009-09-04 at 08:46:04ID: 25260731

Ok, here's what I have:

C:\>telnet localhost 11000
Connecting To localhost...Could not open connection to the host, on port 11000:
Connect failed

Could this be due to 'Trend Micro' ?  As I say, I already have an exception set up for the Windows Firewall..........



by: ladarlingPosted on 2009-09-04 at 08:52:47ID: 25260812

It very well could be... A lot of antivirus products block unknown port activity.



by: John500Posted on 2009-09-04 at 11:45:00ID: 25262248

Looks like I'm forced to use an offline computer on this one.  I can't fool with these Trend Micro settings.

Thanks a lot for you help on this!  If you get bored, I have another one dealing with sockets that isn't getting any action.

http://www.experts-exchange.com/Programming/Languages/Winsock/Q_24704379.html

The code is all right there from a sample project, I was looking for some help interpreting it.

John

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
