Question

Database Design ERD - Anyone good with Visio?

Asked by: vand

I'm in a bit of a time crunch with this one and I am NO DBA. Three scenerios. Points go to whoever can answer all three with an ERD.

A company wants to maintain data on field operations of its sales force. Specifically, it wants to know which of its salesreps are calling on which customers, when and where the visits take place, and a summary of what happened during the call.

This question has three cases, A, B and C.  In each case, assume the relation, T, shown below is in first normal form. Then, do the following:

1) Derive a workable logical design that supports the company's requirements.

2) Map (translate) your design into a relational database model.  Make sure that all tables are in third normal form and that you indicate the primary key by underscoring the column name(s) and all foreign keys (if any exist) by bold font for each table in your design.

T = {Custno, Custname, Salesrepno, Salesrepname, Calldate, Callcity, Callsummary}


      Where  Custno       = Customer Number;
                   Custname   = Customer Name;
       Salesrepno = Sales Representative Number;
       Salesrepname = Sales Representative Name;
       Calldate = Date on which a sales representative calls on (has a meeting with) a
                         customer;
       Callcity = City where a call takes place;
       Callsummary = Summary of what took place at the call (customer places order,
                                customer requests more information, customer says no thanks, etc.)



Case A: Assume the following:

   1. No more than one call by a given salesrep to a given customer will occur on the same day.

   2. The Callcity" is always at the customer's headquarters location, which does not change.

   3. A salesrep may make several calls to different customers on the same day.

   4. Only one salesrep will call on a customer at one time.

   5. A customer may be called upon by different salesreps.




Case B:

Remove Assumption No. 2 from Case A, and redo your logical design.  That is, the "Callcity" may be any city that is agreeable to both the customer and salesrep.  Other assumptions from Case A apply.



Case C:

Change Assumption No. 5 from Case A so that only one specific salesrep will call on a given customer.  That is, the company assigns a specific salesreps to each customer.  Other assumptions from Case A apply.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-11-02 at 11:57:58ID24864995
Topics

Design & Methodology

,

Databases Miscellaneous

Participating Experts
1
Points
500
Comments
10

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Datase Design Software: ERD to DDL
    I'm looking for a good software tool that will allow me to do the following: 1) Support for Microsoft SQL Server 2000 2) Generate ERD diagram. (this includes support for platform independent datatypes, and specialized, or maybe custom datatypes) 3) Reverse Engineering of exis...
  2. MS Visio Entity Relationship Diagram (ERD) doesn't allo…
    I have a 'material' table and a 'composition' table. 'composition' has 2 foreign keys: 'Input' and 'Product'. 'material' primary key is 'Id'. I created two 1 to many relationships: Id --> Input and Id --> Product. Although this works well in "real life" (in ...
  3. ERD
    ERD ..i was hoping to get some suggestions and point of view and/or tips if this ERD made sense the way i created it. Entity: Movie: Actor, customer, Director, Rating Organization, Cinema. Relationships: One or more actors appear in one or more movies. Director creates ...
  4. Questions on my first ERD (foreign key newbie)
    I am using DBDesigner 4 to creat my database model. This is for a simple project management application. This is my ERD. It should be pretty self-explanatory. http://vinsonmediagroup.com/images/project.jpg I want to know if I am doing this correctly ( are my keys correct? )...
  5. ERD Commander
    Where can I download ERD Commander that will work on a XP box for free?
  6. ERD using Visio
    Can i create a logical ERD in IDEF1X format in Visio? how do you do that? I found ERD relational format but I could not change the arrows to reflect one to one or one to many or optional or mandatory. I would like to either use IDEF1X sandard or at least be able to use crow...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: slightwvPosted on 2009-11-02 at 12:11:12ID: 25723228

This sounds a lot like homework.



by: vandPosted on 2009-11-02 at 12:18:52ID: 25723298

Well, class work any way.



by: slightwvPosted on 2009-11-02 at 12:24:43ID: 25723349

Sorry but we can only provide advice on homework and will not be able to provide a complete solution.

Is there any specific piece of the assignement that's holding you up?



by: vandPosted on 2009-11-02 at 12:28:28ID: 25723378

Yes. The ERD drawings.

Should I re-submit with different wording to avoid the apperance of class work?



by: slightwvPosted on 2009-11-02 at 12:34:41ID: 25723429

Probably shouldn't resubmit since we know it's homework.

For information on homework here and EE check out: http://www.experts-exchange.com/help.jsp#hs=23&hi=21

For guidence I'm afraid I'll need more than "the ERD drawings".  Do you already have the design and need help creating the ERD with Visio or similar product?

If you are asking for help with the design itself,  I'm guessing the first hang-up is 'third normal form'?




by: vandPosted on 2009-11-02 at 13:14:14ID: 25723802

Third normal form is the first hang up.

Also having trouble understanding how to force verification of the city.



by: vandPosted on 2009-11-02 at 13:17:12ID: 25723831

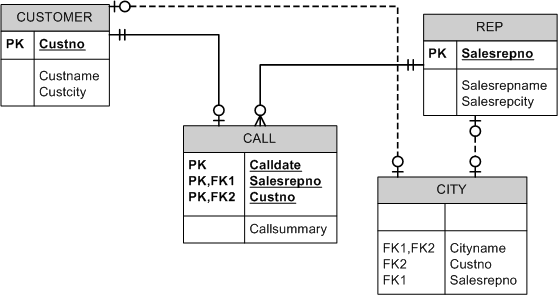

Here is what I have so far. Can I get some guidance?



by: slightwvPosted on 2009-11-02 at 14:43:08ID: 25724569

I'm at home now and probably won't be able to respond later but had a few minutes.  Since you provided some work and mentioned it's rather urgent I wanted to get back to you tonight.  I just briefely went over the requirements so don't take any of this as 100% accurate (not that you will EVER get two designers to agree 100%).

Not sure about this one because I tend to over-engineer everything but Callsummary looks like it might be a pick-list.  Depending on the class it might be argued this is another entity and FK constraint in the Call entity.

You might also look at a state and state-city lookup table.  Again, depends on how complex the class is.

Case-A: looks OK with one exception.  Remove callCity from the call entity because of requirement 2.

Case-B: looks to me like the curent case-A.

Case-C:  Unless I'm oversimplifying it but take new case-A and add move salesrepno from Call to Customer?



by: vandPosted on 2009-11-02 at 14:54:17ID: 25724635

It is just an intro, so I think the suggestions will work well. I appreciate you getting back to me.



by: slightwvPosted on 2009-11-02 at 15:16:52ID: 25724789

Thanks for accepting but are you sure you don't want to leave it open longer to see if any other experts have more information?

Remember I didn't look into the requirements in great detail.  I'd hate for you to get a C or worse based only on my inputs.  Now if you get an A, I'll take full credit.

Let me know and I can unaccept the question.
