Question

Checkpoint VPN

Asked by: skywalker101

Hi,

I am trying to set-up a Securemote VPN connection however my fw keeps dropping fw1_topo 264 connections.

I have set-up a rule src: All Users@any  Dest: Net Internal Net   vpn:RemoteAccess  services: Any

My ISP Nats the public IP to an Internal addressi.e.200.0.0.1 - 10.15.20.16

Any Idea's why this is happening I must be missing something ?

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-20 at 05:44:10ID24826625
Topics

Checkpoint Firewall

,

Networking Hardware Firewalls

,

Miscellaneous Networking

Participating Experts
1
Points
500
Comments
24

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. site-to-site VPN Checkpoint  and Cisco
    I am trying to setup site-to-site VPN between Checkpoint FW-1/VPN NG FP2 and Cisco 7120 Enterprise Router. The configuration is as follows. FTP Client--->Cisco Router------>Checkpoint FW------->FTP Server FTP Client and Cisco Router has a valid public ip address. FT...
  2. CheckPoint VPN Gateway with private IP address.
    Dear Sir/Madam I've a trouble with how to implement the complex Vpn solution as follows. I have CheckPoint Firewalls ( Clustering with StoneBeat ) at my data center and are opened to the internet. Our customer would like to join our facilities and data network. T...
  3. PIX Checkpoint VPN Problem
    hi all, i am having a strange problem and i have tried doing googling but still not getting any strong answer to overcome the issue. we have one partner in another country and we are trying to setup VPN Tunnel between us and this partner using PIX 515E and Checkpoint FW NXG...
  4. VPN tunnel from PIX to CheckPoint (Behind F5 BigIP)
    Is there a way to setup a VPN tunnel from a PIX to a Checkpoint Firewall (with its external interface running with a private IP address) behind a F5 BigIP that is NATing a Public IP address to the private IP address. When debuging I get the following error message: crypto_...
  5. Need to create a Checkpoint to Checkpoint VPN that present…
    We have a requirement to create a VPN site-to site from NGX to NGX. The partner is saying "Partner MUST present a public ipaddress through the VPN tunnel". The problem is I am getting a lot of the information 2nd hand and I would assume that they want us to NAT traf...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: grimkinPosted on 2009-10-20 at 06:13:58ID: 25613701

Hi,

Go to the gateway properties, VPN -> Link Selection and enter the external IP i.e. 200.0.0.1 in the box. Push policy and test.

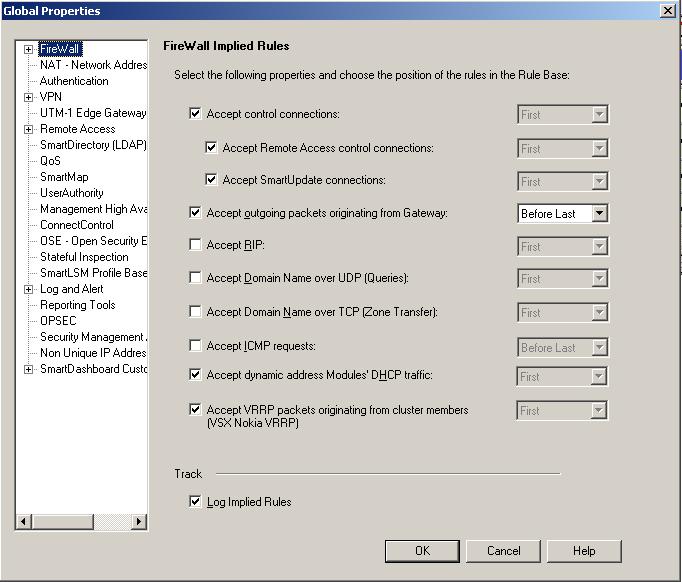

The fw1_topo connections should be dealt with in your implied rules: Policy -> Global Properties -> Firewall Implied Rules, first 4 boxes should be checked.

Let us know the outcome, HTH



by: skywalker101Posted on 2009-10-20 at 07:37:07ID: 25614599

Yea,

I can confirm I am logging Implied rules and I have selected my external IP in the link selection settings.

The FW is still dropping packets

I have tested my telnet 200.0.0.1 264



by: grimkinPosted on 2009-10-20 at 07:41:29ID: 25614643

Hi,

Not concerned about logging them, rather that they are ticked in the box so that they are allowed.

What does Tracker say?
Which rule is it dropped on?
Is it rule 0?
What is the drop reason?



by: skywalker101Posted on 2009-10-20 at 08:29:05ID: 25615166

The connection is being drop by the last rule clean up



by: grimkinPosted on 2009-10-20 at 09:00:58ID: 25615495

Go to View -> Implied Rules - you should see the FW1_topo specified about 9 from the top. If it's not there then you need to either check implied rules as shown in the screenshot or, if you have disabled them for whatever reason, you need to specify a rule allowing ANY to the GATEWAY and MGMT SERVER.

HTH



by: skywalker101Posted on 2009-10-20 at 10:00:56ID: 25616141

Hi,

My SD in global properties is already configured as above



by: grimkinPosted on 2009-10-20 at 10:21:30ID: 25616345

Try opening your fw1_topo service, click advanced and make sure nothing is configured for source port or protocol type. Also, "match for any" should be ticked.



by: skywalker101Posted on 2009-10-20 at 10:39:20ID: 25616530

yea all as above



by: grimkinPosted on 2009-10-20 at 13:55:49ID: 25618509

Is this a new deployment or has it worked in the past?



by: skywalker101Posted on 2009-10-21 at 00:18:16ID: 25621337

It a new deploymnet of a vpn, the firewall has been operating for about 6 months running NGX R65



by: grimkinPosted on 2009-10-21 at 03:25:58ID: 25622403

Try adding a rule in:

Src: ANY
Dst: Gateway, Mgmt server
Service: fw1_topo
Action: Accept, Log



by: skywalker101Posted on 2009-10-21 at 03:49:40ID: 25622524

The same thing drops the packet by the cleanup rule

On the log for the drop packets src:public IP Dest: 10.15.20.16

On the topology tab the External Interface is on the 10.15.20.0 subnet

I have another rule configured for the 10.15.20.16 address which nat to an internal server in the DMZ for services smtp,https and pptp



by: skywalker101Posted on 2009-10-21 at 03:54:57ID: 25622551

I added 10.15.21.16 and firewall accepted the packets on SVT, although the connection is still timing out when i telnet publicIP 264

Src: ANY
Dst: Gateway, Mgmt server,10.15.20.16
Service: fw1_topo
Action: Accept, Log



by: skywalker101Posted on 2009-10-21 at 03:59:51ID: 25622582

I think I have found the reason

I have a NAT rule which transalates ANY - 10.15.20.16 to Internal Server any Service



by: grimkinPosted on 2009-10-21 at 04:35:23ID: 25622832

Ah well, that wouldn't help matters :-)



by: skywalker101Posted on 2009-10-21 at 04:37:34ID: 25622850

Although why would this affect the implied rules as the connection should be getting applied before explict rules ?



by: grimkinPosted on 2009-10-21 at 04:44:28ID: 25622894

The implied security rules are applied BEFORE explicit manual security rules, the implied NAT rules are applied AFTER manual NAT rules.

HTH



by: skywalker101Posted on 2009-10-21 at 04:55:46ID: 25622944

Ah that would explain why it is not working!

Were do you view the implied NAT rules ?



by: grimkinPosted on 2009-10-21 at 06:16:16ID: 25623555

All the automatic NAT rules are in the NAT tab, underneath those you have created manually.



by: skywalker101Posted on 2009-10-21 at 06:29:30ID: 25623668

OK,

I have 3 manually NAT rules and 2 automatic rules

The automatic rules are office_mode_address pool

net 172.17.10.0 nat hide behind gateway

This net object is not be used is it ok to disable or delete this object ?



by: grimkinPosted on 2009-10-21 at 12:30:18ID: 25627421

If that's the network for your office mode then you should leave it alone otherwise you may run into problems later on, if its just a random network then you can delete it.



by: skywalker101Posted on 2009-10-22 at 01:16:15ID: 25631740

OK that network can be used as it is not in use.

Can I delete the explicit rule for fw1_topo

Src: ANY
Dst: Gateway, Mgmt server,10.15.20.16
Service: fw1_topo
Action: Accept, Log



by: grimkinPosted on 2009-10-22 at 01:21:20ID: 25631760

Yes, absolutely, the implied rule should take care of it.



by: skywalker101Posted on 2009-11-12 at 09:28:20ID: 25806621

n/a
