Asked by SpinnerAdam in Cisco PIX Firewall, Networking Hardware Firewalls

Tags: Cisco, PIX, 501, Cisco VPN Firewall Router

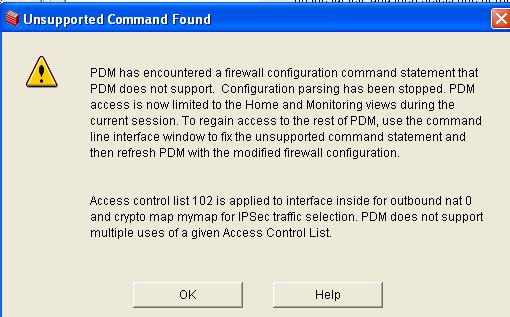

When I try to access the PDM of the Cisco VPN Router, I receive the error message that is shown in the screen capture. I have no idea how to fix it. This is the first Cisco device I have ever worked on, I know how to access the command window, and however I do not know any commands. With the answer, please include detailed instructions on the commands needed to rectify the problem. My boss also changed his ISP from Road Runner to Verizon, and I need to change the VPN from getting its IP from the ISP via DHCP to getting it by static IP. I have the static ip info, along with the ISP DNS and so on, but I do not know how or put it in the router. Guys, I would really appreciate your help, seriously!!!!!!!!!!!!!!!! Thanks! :)))Start Free Trial
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:
97:
98:
99:
100:
101:
102:
103:
104:
105:
106:

Result of firewall command: "write terminal"

Building configuration...
: Saved
:
PIX Version 6.3(5)
interface ethernet0 10baset
interface ethernet1 100full
nameif ethernet0 outside security0
nameif ethernet1 inside security100
enable password XA/BRgbbTVgC2XXGK encrypted
passwd XA/BRgbbTVgCXXGK encrypted
hostname BT-MASS
domain-name bornemantusa.com
fixup protocol dns maximum-length 512
fixup protocol ftp 21
fixup protocol h323 h225 1720
fixup protocol h323 ras 1718-1719
fixup protocol http 80
fixup protocol rsh 514
fixup protocol rtsp 554
fixup protocol sip 5060
fixup protocol sip udp 5060
fixup protocol skinny 2000
fixup protocol smtp 25
fixup protocol sqlnet 1521
fixup protocol tftp 69
names
access-list acl_out permit icmp any any
access-list 102 permit ip 192.168.20.0 255.255.255.0 192.168.10.0 255.255.255.0
pager lines 24
mtu outside 1500
mtu inside 1500
ip address outside dhcp setroute
ip address inside 192.168.20.254 255.255.255.0
ip audit info action alarm
ip audit attack action alarm
pdm logging informational 100
pdm history enable
arp timeout 14400
global (outside) 1 interface
nat (inside) 0 access-list 102
nat (inside) 1 0.0.0.0 0.0.0.0 0 0
access-group acl_out in interface outside
timeout xlate 0:05:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00
timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00
timeout sip-disconnect 0:02:00 sip-invite 0:03:00
timeout uauth 0:05:00 absolute
aaa-server TACACS+ protocol tacacs+
aaa-server TACACS+ max-failed-attempts 3
aaa-server TACACS+ deadtime 10
aaa-server RADIUS protocol radius
aaa-server RADIUS max-failed-attempts 3
aaa-server RADIUS deadtime 10
aaa-server LOCAL protocol local
aaa authentication ssh console LOCAL
aaa authentication enable console LOCAL
http server enable
http 192.168.20.0 255.255.255.0 inside
no snmp-server location
no snmp-server contact
snmp-server community public
no snmp-server enable traps
floodguard enable
sysopt connection permit-ipsec
sysopt noproxyarp inside
crypto ipsec transform-set myset esp-3des esp-md5-hmac
crypto map mymap 10 ipsec-isakmp
crypto map mymap 10 match address 102
crypto map mymap 10 set peer 69.XXX.XXX.XXX
crypto map mymap 10 set transform-set myset
crypto map mymap interface outside
isakmp enable outside
isakmp key ******** address 69.XXX.XXX.XXX netmask 255.255.255.255 no-xauth no-config-mode
isakmp identity address
isakmp nat-traversal 20
isakmp policy 10 authentication pre-share
isakmp policy 10 encryption 3des
isakmp policy 10 hash md5
isakmp policy 10 group 2
isakmp policy 10 lifetime 86400
isakmp policy 20 authentication pre-share
isakmp policy 20 encryption des
isakmp policy 20 hash md5
isakmp policy 20 group 1
isakmp policy 20 lifetime 1000
telnet 192.168.20.0 255.255.255.0 inside
telnet timeout 10
ssh 0.0.0.0 0.0.0.0 outside
ssh 0.0.0.0 0.0.0.0 inside
ssh timeout 10
console timeout 0
dhcpd address 192.168.20.65-192.168.20.96 inside
dhcpd dns 192.168.10.1
dhcpd wins 192.168.10.1
dhcpd lease 3600
dhcpd ping_timeout 750
dhcpd domain borneman-tusa.com
dhcpd auto_config outside
dhcpd enable inside
username American password 1KQOPRUW6PmwWtww encrypted privilege 15
terminal width 80
Cryptochecksum:342e18aa708e15bea1ba7116bc845295
: end
[OK]
Attachments:

Error Message
Error Message
