7.5

help setting up ASA 5505

Asked by otvedten in Cisco PIX Firewall

Tags: Cisco, ASA, 5505, asdm 5.2(4), asa 7.2(4)

I am trying to setup my new ASA 5505 (ASA 7.2(4) + ASDM 5.2(4)) basic license.

One slight problem I noticed is that the examples given in the "Getting Started Guide software version 7.2" don't fit my version of ASDM, even tho both show as ASDM 5.2. I found an ASDM 6 guide which looks to have the right descriptions mostly.

Setup:
LAN: 192.168.1.0
DMZ: 192.168.2.0
WAN: x.x.x.162-169 (tho I'd like all traffic outgoing from LAN to only go out as x.x.x.162)

We have several webservers in our DMZ which are all accessed via different public IPs, and I've added static NAT rules as per the setup book example and how I'd assume it should look for the different public IPs.
How should the access rules be configured? I really only wish for web and webproxy (8080) traffic to reach the webservers. Should I still add a 'blanket' access rule that is: Interface Outside, Permit, Source any, Destination x.x.x.169, Service tcp, Traffic In? or should I change service to only be tcp/http and tcp/8080?

Attacked is also my running-config as it stands now. I have not actually tried it yet, cause I'd like to understand a little how it should be done right before I turn it on.

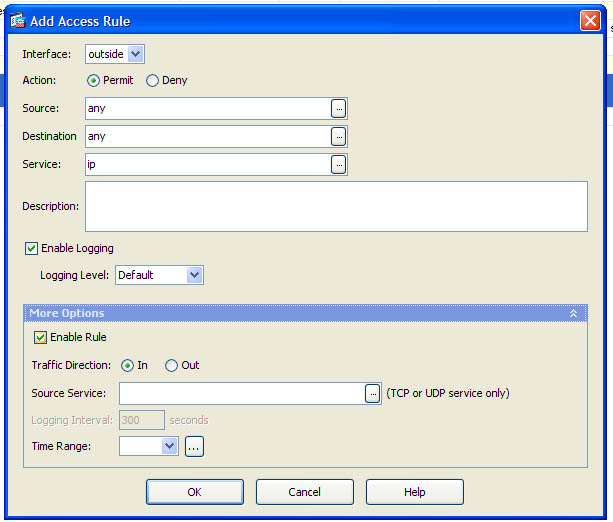

(attached is also how my add access rule window looks, since it's different from examples of 5505 things I've browsed here)Start Free Trial
