TCP & ICMP NO CONNECTION THROUGH THE ASA 8.0(4)16 FIREWALL

Asked by Andres2007 in Cisco PIX Firewall

Hi,
first sorry by my poor english.
I've got a connectivity problem in my intranet area

FROM 10.1.27.10 host:
I cannot ping to one interface of ASA 10.1.127.4, but I can do telnet to it.
I cannot ping to 10.1.127.20, 10.1.127.21
I cannot telnet to 10.1.127.20, 10.1.127.21
I do ping and telnet to 10.1.127.51, 52, 53, 54 as weel

Please, what should i do to make allways ping and telnet to all interfaces outside the ASA.
I need telnet and ping to 10.1.127.48 / 28 (i do it as weel from 10.1.27.4)
I need telnet and ping to 10.1.127.4 (i do only telnet from 10.1.27.4)
I need telnet and ping to 10.1.127.16 / 28 (I can't reach nothing in this network from 10.1.27.4)

So I need to ping and telnet anywhere outside the ASA. ANY TRAFFIC THAT ENTER THE ASA FOR ANY INTERFACE CAN RETURN TO THE ORIGIN HOST FOR OTHER DIFFERENT INTERFACE THAN FIRST.

View the Solution FREE for 30 Days



             1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:
97:
98:
99:
100:
101:
102:
103:
104:
105:
106:
107:
108:
109:
110:
111:
112:
113:
114:
115:
116:
117:
118:
119:
120:
121:
122:
123:
124:
125:
126:
127:
128:
129:
130:
131:
132:
133:
134:
135:
136:
137:
138:
139:
140:
141:
142:
143:
144:
145:
146:
147:
148:
149:
150:
151:
152:
153:
154:
155:
156:
157:
158:
159:
160:
161:
162:
163:
164:
165:
166:
167:
168:
169:
170:
171:
172:
173:
174:
175:
176:
177:
178:
179:
180:
181:
182:
183:
184:
185:
186:
187:
188:
189:
190:
191:
192:
193:
194:
195:
196:
197:
198:
199:
200:
201:
202:
203:
204:
205:
206:
207:
208:
209:
210:
211:
212:
213:
214:
215:
216:
217:
218:
219:
220:
221:
222:
223:
224:
225:
226:
227:
228:
229:
230:
231:
232:
233:
234:
235:
236:
237:
238:
239:
240:
241:
242:
243:
244:



             this is the config:

Result of the command: "sh run"

: Saved
:
ASA Version 8.0(4)16
!
hostname ESCFWLA


names
!
interface GigabitEthernet0/0
 description Conexion a Internet
 shutdown
 nameif Conex_Internet_V279
 security-level 0
 ip address 10.1.127.97 255.255.255.240 standby 10.1.127.98
!
interface GigabitEthernet0/1
 nameif Interconex_Firewall_Nokia_V1270
 security-level 100
 ip address 10.1.127.4 255.255.255.240 standby 10.1.127.5
!
interface GigabitEthernet0/2
 description Trunk vlan 1271/1272/1273  (Vpn_ clara y cifrada, gestion_gateways)
 nameif Trk_v1271_v1272_v1273
 security-level 50
 no ip address
!
interface GigabitEthernet0/2.1
 description Conexin con la vlan clara. ESCGWCONMA 1/0/4
 vlan 1271
 nameif vlan_clara
 security-level 50
 ip address 10.1.127.17 255.255.255.240 standby 10.1.127.18
!
interface GigabitEthernet0/2.2
 description Conexin con la vlan cifrada. ESCGWCONMA 1/0/10
 vlan 1272
 nameif vlan_cifrada
 security-level 50
 ip address 10.1.127.33 255.255.255.240 standby 10.1.127.34
!
interface GigabitEthernet0/2.3
 description VLAN de Gestion para C3845
 vlan 1273
 nameif gestion_gateways
 security-level 50
 ip address 10.1.127.49 255.255.255.240 standby 10.1.127.50
!
interface GigabitEthernet0/3
 description LAN Failover Interface
!
interface Management0/0
 description Solo para gestion
 nameif management
 security-level 100
 ip address 10.1.127.68 255.255.255.240 standby 10.1.127.69
!
boot system disk0:/asa804-16-k8.bin
ftp mode passive
same-security-traffic permit inter-interface
same-security-traffic permit intra-interface

object-group network Cluster_Network_NO_Management
 description Todas las redes del Cluster ASA excepto la Gestion
 network-object 10.1.127.0 255.255.255.240
 network-object 10.1.127.16 255.255.255.240
 network-object 10.1.127.32 255.255.255.240
 network-object 10.1.127.48 255.255.255.240
 network-object 10.1.127.96 255.255.255.240

access-list Interconex_Firewall_Nokia_V1270_access_in extended permit ip any any
access-list vlan_clara_access_in extended permit ip any any
access-list vlan_cifrada_access_in extended permit ip any any
access-list Trk_v1271_v1272_v1273_access_in extended permit ip any any
access-list gestion_gateways_access_in extended permit ip any any
access-list management_access_out extended permit ip any any
access-list Interconex_Firewall_Nokia_V1270_access_out extended permit ip any any
access-list management_access_in extended permit ip any any
access-list management_access_in_1 extended permit ip any any
access-list Interconex_Firewall_Nokia_V1270_access_in_1 extended permit ip any any
access-list management_access_in_2 extended permit ip any any
access-list Interconex_Firewall_Nokia_V1270_access_in_2 extended permit ip any any
access-list management_access_in_3 extended permit ip any any
access-list gestion_gateways_access_out extended permit ip any any
pager lines 24
logging enable
logging timestamp
logging standby
logging console informational
logging monitor informational
logging buffered emergencies
logging trap informational
logging history informational
logging asdm informational
logging mail informational
mtu Conex_Internet_V279 1500
mtu Interconex_Firewall_Nokia_V1270 1500
mtu Trk_v1271_v1272_v1273 1500
mtu vlan_clara 1500
mtu vlan_cifrada 1500
mtu gestion_gateways 1500
mtu management 1500

ip verify reverse-path interface Conex_Internet_V279
ip verify reverse-path interface vlan_clara
ip verify reverse-path interface vlan_cifrada

failover
failover lan unit primary
failover lan interface failover GigabitEthernet0/3
failover interface ip failover 10.1.127.81 255.255.255.248 standby 10.1.127.82
no monitor-interface Conex_Internet_V279
monitor-interface vlan_clara
monitor-interface vlan_cifrada
monitor-interface gestion_gateways
icmp unreachable rate-limit 1 burst-size 1
asdm image disk0:/asdm-61551.bin
no asdm history enable
arp timeout 14400
global (gestion_gateways) 1 interface
access-group Interconex_Firewall_Nokia_V1270_access_in_2 in interface Interconex_Firewall_Nokia_V1270
access-group Interconex_Firewall_Nokia_V1270_access_out out interface Interconex_Firewall_Nokia_V1270
access-group Trk_v1271_v1272_v1273_access_in in interface Trk_v1271_v1272_v1273
access-group vlan_clara_access_in in interface vlan_clara
access-group vlan_cifrada_access_in in interface vlan_cifrada
access-group gestion_gateways_access_in in interface gestion_gateways
access-group gestion_gateways_access_out out interface gestion_gateways
access-group management_access_in_3 in interface management
access-group management_access_out out interface management
route Interconex_Firewall_Nokia_V1270 10.0.0.0 255.0.0.0 10.1.127.1 1
route management 10.1.27.10 255.255.255.255 10.1.127.65 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout sip-provisional-media 0:02:00 uauth 0:05:00 absolute
timeout tcp-proxy-reassembly 0:01:00
dynamic-access-policy-record DfltAccessPolicy
aaa-server ACS protocol tacacs+
 accounting-mode simultaneous
 max-failed-attempts 5
aaa-server ACS (Interconex_Firewall_Nokia_V1270) host 10.1.27.11
 key qwerty
aaa authentication enable console ACS LOCAL
aaa authentication http console ACS LOCAL
aaa authentication ssh console ACS LOCAL
aaa authentication telnet console ACS LOCAL

http server enable
http 10.1.27.9 255.255.255.255 management
http 10.1.27.10 255.255.255.255 management
http 10.1.27.0 255.255.255.192 management
snmp-server host Interconex_Firewall_Nokia_V1270 10.1.30.3 community pagina version 2c
snmp-server host Interconex_Firewall_Nokia_V1270 10.1.30.45 community pagina version 2c
snmp-server location SSCC
snmp-server contact CGR
snmp-server community *****
snmp-server enable traps snmp authentication linkup linkdown coldstart
snmp-server enable traps entity config-change fru-insert fru-remove
snmp-server enable traps remote-access session-threshold-exceeded
auth-prompt prompt CISCO ASA 5540
service resetoutside
crypto ipsec security-association lifetime seconds 28800
crypto ipsec security-association lifetime kilobytes 4608000
no crypto isakmp nat-traversal
telnet 0.0.0.0 0.0.0.0 Interconex_Firewall_Nokia_V1270
telnet 10.1.27.9 255.255.255.255 management
telnet 10.1.27.10 255.255.255.255 management
telnet 10.1.27.0 255.255.255.192 management
telnet timeout 5
ssh 10.1.27.10 255.255.255.255 management
ssh 10.1.27.9 255.255.255.255 management
ssh 10.1.27.0 255.255.255.192 management
ssh timeout 5
console timeout 0
threat-detection basic-threat
threat-detection statistics access-list
no threat-detection statistics tcp-intercept

!
class-map inspection_default
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect http
  inspect netbios
  inspect rsh
  inspect rtsp
  inspect skinny
  inspect esmtp
  inspect sqlnet
  inspect sunrpc
  inspect tftp
  inspect sip
  inspect xdmcp
  inspect icmp
!
service-policy global_policy global
prompt hostname context
Cryptochecksum:7791611eaf7fbe1943c881a5f6166439
: end


When I do ping from 10.1.27.10 to 10.1.127.20:
6|Jan 28 2009|12:41:40|302021|10.1.127.20|0|10.1.27.10|512|Teardown ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:40|302021|10.1.127.20|0|10.1.27.10|512|Teardown ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:36|302020|10.1.127.20|0|10.1.27.10|512|Built inbound ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:36|302020|10.1.27.10|512|10.1.127.20|0|Built outbound ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:35|302021|10.1.127.20|0|10.1.27.10|512|Teardown ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:35|302021|10.1.127.20|0|10.1.27.10|512|Teardown ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:34|110002|10.1.27.6|1027|||Failed to locate egress interface for UDP from Interconex_Firewall_Nokia_V1270:10.1.27.6/1027 to 128.8.10.90/53
6|Jan 28 2009|12:41:31|302010|||||17 in use, 122 most used
6|Jan 28 2009|12:41:31|302020|10.1.127.20|0|10.1.27.10|512|Built inbound ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:31|302020|10.1.27.10|512|10.1.127.20|0|Built outbound ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:30|302021|10.1.127.20|0|10.1.27.10|512|Teardown ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:30|302021|10.1.127.20|0|10.1.27.10|512|Teardown ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:26|302020|10.1.127.20|0|10.1.27.10|512|Built inbound ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:26|302020|10.1.27.10|512|10.1.127.20|0|Built outbound ICMP connection for faddr 10.1.127.20/0 gaddr 10.1.27.10/512 laddr 10.1.27.10/512
6|Jan 28 2009|12:41:23|110002|10.1.27.7|3659|||Failed to locate egress interface for UDP from Interconex_Firewall_Nokia_V1270:10.1.27.7/3659 to 172.27.48.51/53
6|Jan 28 2009|12:41:12|110002|10.1.27.6|1027|||Failed to locate egress interface for UDP from Interconex_Firewall_Nokia_V1270:10.1.27.6/1027 to 202.12.27.33/53
6|Jan 28 2009|12:41:11|302015|10.1.127.54|161|10.1.30.3|62674|Built outbound UDP connection 20675 for gestion_gateways:10.1.127.54/161 (10.1.127.54/161) to Interconex_Firewall_Nokia_V1270:10.1.30.3/62674 (10.1.30.3/62674)

When I do telnet from 10.1.27.10 to 10.1.127.20:
6|Jan 28 2009|12:42:09|106015|10.1.127.20|23|10.1.27.10|1675|Deny TCP (no connection) from 10.1.127.20/23 to 10.1.27.10/1675 flags ACK  on interface gestion_gateways
6|Jan 28 2009|12:42:08|110002|10.1.27.6|1027|||Failed to locate egress interface for UDP from Interconex_Firewall_Nokia_V1270:10.1.27.6/1027 to 192.5.5.241/53
6|Jan 28 2009|12:42:06|106015|10.1.127.20|23|10.1.27.10|1675|Deny TCP (no connection) from 10.1.127.20/23 to 10.1.27.10/1675 flags SYN ACK  on interface gestion_gateways
6|Jan 28 2009|12:42:03|106015|10.1.127.20|23|10.1.27.10|1675|Deny TCP (no connection) from 10.1.127.20/23 to 10.1.27.10/1675 flags ACK  on interface gestion_gateways
6|Jan 28 2009|12:42:02|106015|10.1.127.20|23|10.1.27.10|1675|Deny TCP (no connection) from 10.1.127.20/23 to 10.1.27.10/1675 flags SYN ACK  on interface gestion_gateways
6|Jan 28 2009|12:42:00|106015|10.1.127.20|23|10.1.27.10|1675|Deny TCP (no connection) from 10.1.127.20/23 to 10.1.27.10/1675 flags SYN ACK  on interface gestion_gateways
6|Jan 28 2009|12:42:00|302013|10.1.127.20|23|10.1.27.10|1675|Built outbound TCP connection 20684 for vlan_clara:10.1.127.20/23 (10.1.127.20/23) to Interconex_Firewall_Nokia_V1270:10.1.27.10/1675 (10.1.27.10/1675)
6|Jan 28 2009|12:41:57|110002|10.1.27.7|3659|||Failed to locate egress interface for UDP from Interconex_Firewall_Nokia_V1270:10.1.27.7/3659 to 172.27.48.51/53

Please, can anybody help me??




Attachments:

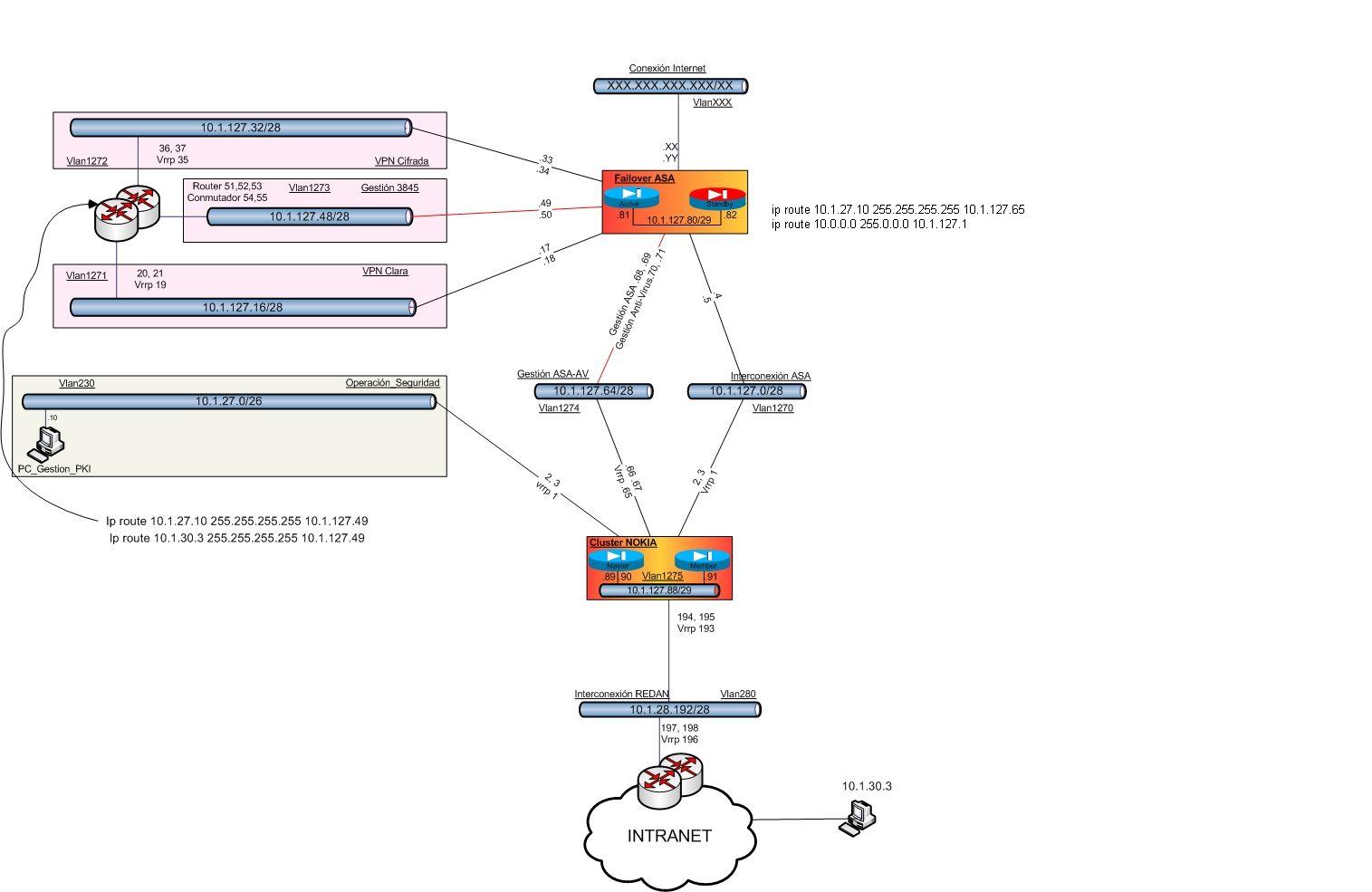

INTRANET AREA TOPOLOGY

20100308-EE-VQP-140 - Hierarchy / EE_QW_3_20080625

Your technology problems solved.

Close See Plans and Pricing. Try it FREE for 30 days.

Hall of Fame

1. MikeKane147,314
2. PeteLong71,426
3. ikalmar62,330
4. GuruChiu40,032
5. lrmoore38,482
6. memo_tnt37,730
7. Vito_Corl...26,800
8. qbakies23,032
9. mediavisio...22,132
10. 3nerds21,464
11. RustyZ3217,414
12. jodylemoine16,796
13. asavener14,400
14. bignewf14,314
15. Donboo14,068
16. chosmer13,100
17. StrifeJester12,500
18. kenboonejr12,200
19. nkwizz11,568
20. that1guy1510,800
21. Rick_O_...10,368
22. RPPreacher10,000
23. rsivanandan9,868
24. JFrederic...9,600
25. Faber828,498

1. lrmoore2,972,053
2. batry_boy1,062,290
3. JFrederic...691,515
4. MikeKane569,590
5. PeteLong561,610
6. rsivanandan420,050
7. nodisco367,074
8. grblades356,435
9. MrHusy344,771
10. Voltz-dk340,824
11. Cyclops3...281,486
12. ikalmar279,354
13. calvinetter255,090
14. 3nerds199,429
15. harbor235176,266
16. bignewf158,349
17. asavener150,920
18. RPPreacher136,741
19. tim_holman120,177
20. mkielar118,985
21. keith_ala...114,219
22. _jesper_111,537
23. carribeant...108,132
24. jodylemoine101,348
25. decoleur93,509

TCP & ICMP NO CONNECTION THROUGH THE ASA 8.0(4)16 FIREWALL

Asked by Andres2007 in Cisco PIX Firewall

About this solution
