Cisco ASA 5505 SSL AnyConnect VPN ERROR ???

Asked by: Shakthi777

Hi Experts,

I'm running ASA Version 8.0(2) and ASDM Version 6.0(2) on my ASA 5505.

And I have set up Anyconnect VPN using SSL VPN Wizard. Also uploaded anyconnect-win-2.1.0148-k9pkg

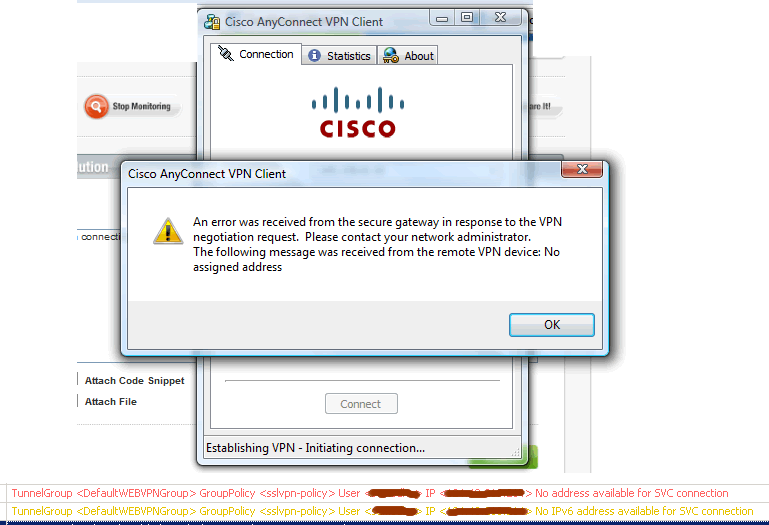

When I connect using the VPN it's authorizing but not log in to the network.

"No address available for SVC connection" listed in the event log. So referred http://www.cisco.com/en/US/products/ps6120/products_configuration_example09186a008071c428.shtml and IP pool has already assigned but it's giving the same message.

Please advice and thanks a lot !

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-08 at 01:00:05ID24714103
Topics

Cisco PIX Firewall

,

Networking Hardware Firewalls

,

Virtual Private Networking (VPN)

Participating Experts
2
Points
500
Comments
18

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. How to Setup SSL VPN on ASA 5510
    I have an ASA 5510 that is sitting behind a WatchGuard FW. I'm trying to set it up so I can use SSL VPN from home and the road. Is there a step by step doc on how to setup SSL VPN without using ASDM? Thanks
  2. SSL Client VPN on a ASA - The ssl vpn http response cod…
    I tried to setup a VPN SSL Client on ASA 5520 as stated in the link below: http://www.cisco.com/en/US/products/ps6120/products_configuration_example09186a008071c428.shtml WebVPN works fine but the SSL VPN client refuses to install with the error: "The ssl vpn http resp...
  3. SSL VPN on ASA 5510
    Hello, i currently have a cisco asa 5510 that i would like to setup with vpn ssl. What i want to enable for my users is to have access to owa, document access, and the ability to download a remote desktop client and access their computer in the office when they are on the ro...
  4. CISCO VPN SSL CONFIGURATION ON ASA 5510
    I tried configuring Cisco VPN SSL on Cisco ASA 5510 using vpn wizard. The configuration is not working. I need a sample working confiuration. (Note no certificates, I will use local database for authentication). Attached is my current configuration

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: wiscomPosted on 2009-09-08 at 01:21:47ID: 25279669

Hi,

Is the error message one of these two ?

%ASA-6-722022: TunnelGroup tunnel_group GroupPolicy group_policy User user-name IP IP_address No address available for SVC connection

%ASA-3-722020: Group group User user-name IP IP_address No address available for SVC connection

If other please send !

A/



by: Shakthi777Posted on 2009-09-08 at 01:37:34ID: 25279749

yes i see below;

TunnelGroup tunnel_group GroupPolicy group_policy User user-name IP IP_address No address available for SVC connection



by: wiscomPosted on 2009-09-08 at 02:34:43ID: 25279996

Hi,

How is your split tunneling policy?

Is the inside interface of the firewall reachable to your whole network? (The subnet which the pool is part of).

Please provide me your configuration!

A/



by: Shakthi777Posted on 2009-09-08 at 02:56:44ID: 25280093

How is your split tunneling policy?
SSL PVN clients should have access to the local network

Please find the config below !


ASA Version 8.0(2)
!
hostname firewall
domain-name domainname.local
enable password jHjhgJHGd3oGBuvv9 encrypted
names
!
interface Vlan1
 nameif inside
 security-level 100
 ip address 192.168.10.252 255.255.255.0
!
interface Vlan2
 nameif outside
 security-level 0
 ip address 1xx.xx9.x.10 255.255.255.240
!
interface Vlan3
 nameif dmz
 security-level 50
 ip address 192.168.10.252 255.255.255.0
!
interface Ethernet0/0
 switchport access vlan 2
!
interface Ethernet0/1
!
interface Ethernet0/2
 switchport access vlan 3
!
interface Ethernet0/3
 switchport access vlan 3
!
interface Ethernet0/4
 switchport access vlan 3
!
interface Ethernet0/5
 switchport access vlan 3
!
interface Ethernet0/6
 switchport access vlan 3
!
interface Ethernet0/7
 switchport access vlan 3
!
passwd 2KFQnbNIdI.2KYOU encrypted
boot system disk0:/asa802-k8.bin
ftp mode passive
dns server-group DefaultDNS
 domain-name name01as.local
access-list name01-VPN_splitTunnelAcl standard permit 192.168.10.0 255.255.255.0
access-list inside_nat0_outbound extended permit ip 192.168.10.0 255.255.255.0 192.168.20.0 255.255.255.128
access-list inside_nat0_outbound extended permit ip 192.168.10.0 255.255.255.0 192.168.1000.0 255.255.255.128
access-list name01-VPN-Group_splitTunnelAcl standard permit 192.168.10.0 255.255.255.0
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.5 eq www
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.5 eq https
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.5 eq 3389
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.6 eq 3389
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.2 eq smtp
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.2 eq https
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.2 eq pop3
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.3 eq ssh
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.4 eq ssh
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.4 eq https
access-list outside_access_in extended permit tcp any host 1xx.xx9.x.2 eq 995
pager lines 24
logging enable
logging asdm informational
mtu inside 1500
mtu outside 1500
mtu dmz 1500
ip local pool name01-POOL 192.168.100.1-192.168.100.120 mask 255.255.255.0
ip local pool SSLVPN-POOL 192.168.25.1-192.168.25.25 mask 255.255.255.0
no failover
icmp unreachable rate-limit 1 burst-size 1
icmp permit any inside
asdm image disk0:/asdm-602.bin
no asdm history enable
arp timeout 14400
global (outside) 1 interface
nat (inside) 0 access-list inside_nat0_outbound
nat (inside) 1 0.0.0.0 0.0.0.0
static (inside,outside) 1xx.xx9.x.5 192.168.10.12 netmask 255.255.255.255
static (inside,outside) 1xx.xx9.x.6 192.168.10.13 netmask 255.255.255.255
static (inside,outside) 1xx.xx9.x.2 192.168.10.10 netmask 255.255.255.255
static (inside,outside) 1xx.xx9.x.3 192.168.10.14 netmask 255.255.255.255
static (inside,outside) 1xx.xx9.x.4 192.168.10.11 netmask 255.255.255.255
access-group outside_access_in in interface outside
route outside 0.0.0.0 0.0.0.0 1xx.xx9.x.1 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout uauth 0:05:00 absolute
dynamic-access-policy-record DfltAccessPolicy
http server enable
http 192.168.10.0 255.255.255.0 inside
no snmp-server location
no snmp-server contact
snmp-server enable traps snmp authentication linkup linkdown coldstart
crypto ipsec transform-set ESP-AES-256-MD5 esp-aes-256 esp-md5-hmac
crypto ipsec transform-set ESP-DES-SHA esp-des esp-sha-hmac
crypto ipsec transform-set ESP-DES-MD5 esp-des esp-md5-hmac
crypto ipsec transform-set ESP-AES-192-MD5 esp-aes-192 esp-md5-hmac
crypto ipsec transform-set ESP-3DES-MD5 esp-3des esp-md5-hmac
crypto ipsec transform-set ESP-AES-256-SHA esp-aes-256 esp-sha-hmac
crypto ipsec transform-set ESP-AES-128-SHA esp-aes esp-sha-hmac
crypto ipsec transform-set ESP-AES-192-SHA esp-aes-192 esp-sha-hmac
crypto ipsec transform-set ESP-AES-128-MD5 esp-aes esp-md5-hmac
crypto ipsec transform-set ESP-3DES-SHA esp-3des esp-sha-hmac
crypto dynamic-map SYSTEM_DEFAULT_CRYPTO_MAP 65535 set pfs
crypto dynamic-map SYSTEM_DEFAULT_CRYPTO_MAP 65535 set transform-set ESP-AES-128-SHA ESP-AES-128-MD5 ESP-AES-192-SHA ESP-AES-192-MD5 ESP-AES-256-SHA ESP-AES-256-MD5 ESP-3DES-SHA ESP-3DES-MD5 ESP-DES-SHA ESP-DES-MD5
crypto map outside_map 65535 ipsec-isakmp dynamic SYSTEM_DEFAULT_CRYPTO_MAP
crypto map outside_map interface outside
crypto isakmp enable outside
crypto isakmp policy 10
 authentication pre-share
 encryption 3des
 hash sha
 group 2
 lifetime 86400
no crypto isakmp nat-traversal
telnet 192.168.10.0 255.255.255.0 inside
telnet timeout 5
ssh 192.168.10.0 255.255.255.0 inside
ssh 0.0.0.0 0.0.0.0 outside
ssh timeout 5
console timeout 0
management-access inside
dhcpd auto_config outside
!
dhcpd address 192.168.10.253-192.168.10.254 inside
!

threat-detection basic-threat
threat-detection statistics access-list
!
class-map inspection_default
 match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect dns preset_dns_map
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect rsh
  inspect rtsp
  inspect esmtp
  inspect sqlnet
  inspect skinny
  inspect sunrpc
  inspect xdmcp
  inspect sip
  inspect netbios
  inspect tftp
  inspect pptp
!
service-policy global_policy global
webvpn
 enable outside
 svc image disk0:/anyconnect-win-2.1.0148-k9.pkg 1
 svc enable
group-policy sslvpn-policy internal
group-policy sslvpn-policy attributes
 vpn-tunnel-protocol svc webvpn
 split-tunnel-policy tunnelspecified
 split-tunnel-network-list value name01-VPN_splitTunnelAcl
 webvpn
  svc dtls enable
group-policy DfltGrpPolicy attributes
 vpn-tunnel-protocol IPSec l2tp-ipsec svc webvpn
group-policy name01-VPN-Group internal
group-policy name01-VPN-Group attributes
 dns-server value 192.168.10.10
 vpn-tunnel-protocol IPSec
 split-tunnel-policy tunnelspecified
 split-tunnel-network-list value name01-VPN-Group_splitTunnelAcl
 default-domain value name01as.local
username user02 password yhK1oj.zZzQLnCkB encrypted privilege 0
username user02 attributes
 vpn-group-policy sslvpn-policy
username user01 password eqHgLulX23CHGwyw encrypted privilege 0
username user01 attributes
 vpn-group-policy name01-VPN-Group
tunnel-group name01-VPN-Group type remote-access
tunnel-group name01-VPN-Group general-attributes
 address-pool name01-POOL
 default-group-policy name01-VPN-Group
tunnel-group name01-VPN-Group ipsec-attributes
 pre-shared-key *
tunnel-group sslvpn type remote-access
tunnel-group sslvpn general-attributes
 address-pool SSLVPN-POOL
 default-group-policy sslvpn-policy
tunnel-group TunnelGroup1 type remote-access
tunnel-group TunnelGroup1 general-attributes
 address-pool name01-POOL
prompt hostname context
Cryptochecksum:19e7bf7062c2cfe4d3a854b108dec30e
: end


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:
97:
98:
99:
100:
101:
102:
103:
104:
105:
106:
107:
108:
109:
110:
111:
112:
113:
114:
115:
116:
117:
118:
119:
120:
121:
122:
123:
124:
125:
126:
127:
128:
129:
130:
131:
132:
133:
134:
135:
136:
137:
138:
139:
140:
141:
142:
143:
144:
145:
146:
147:
148:
149:
150:
151:
152:
153:
154:
155:
156:
157:
158:
159:
160:
161:
162:
163:
164:
165:
166:
167:
168:
169:
170:
171:
172:
173:
174:
175:
176:
177:
178:
179:
180:
181:
182:
183:
184:
185:
186:
187:
188:
189:
190:
191:
192:
193:
194:
195:
196:
197:
198:
199:
200:
201:
202:
203:
204:
205:
206:

Select allOpen in new window



by: wiscomPosted on 2009-09-08 at 03:25:24ID: 25280264

Hi,

I will test the configuration on a test ASA. I'll be back with the results ...

A/



by: Shakthi777Posted on 2009-09-08 at 03:27:02ID: 25280273

I'll wait, thanks a lot wiscom:



by: wiscomPosted on 2009-09-09 at 02:06:38ID: 25289356

Hi,

I set it up. I was able to connect with anyconnect to the ASA5510 and reach the inside network.

Are you able to ping from both sides ? VPN client to server en visa versa ?

Could you please chech the gateway address of the Server.

A/



by: Shakthi777Posted on 2009-09-09 at 02:33:55ID: 25289466

when I'm connecting using AnyConnect Client it's Authenticating but gives following errors from the clients side and the ASA end.

Please note I'm using ASA 5505.



by: wiscomPosted on 2009-09-09 at 02:43:40ID: 25289514

Hi,

I just forgot to say that I added some condifuration to the yours, because firstly I got also this message.

I will send you the extra config info!

A/



by: Shakthi777Posted on 2009-09-09 at 03:15:59ID: 25289670

please send me soon !



by: wiscomPosted on 2009-09-09 at 06:27:48ID: 25290964

Hi,

I finally found it !!!

Add these statements to you config and il will work:

webvpn
 tunnel-group-list enable

tunnel-group TunnelGroup1 webvpn-attributes
 group-alias TunnelGroup1 enable

A/



by: Shakthi777Posted on 2009-09-09 at 09:53:25ID: 31625942

Thanks wiscom now it's works fine !



by: eriksmtkaPosted on 2009-09-23 at 08:06:19ID: 25403987

line 53: access-list inside_nat0_outbound extended permit ip 192.168.10.0 255.255.255.0 192.168.1000.0 255.255.255.128

192.168.1000.0?

what is that third octet supposed to be?



by: Shakthi777Posted on 2009-09-23 at 08:41:25ID: 25404497

eriksmtka: plz ignore it b'coz i have changed the IP range before i made it public !



by: eriksmtkaPosted on 2009-09-23 at 08:44:43ID: 25404530

right, but i'm trying to make this work by matching it up with my own.  trying to figure out what it's refering to.

so, did you mean 1? 10? 100?



by: Shakthi777Posted on 2009-09-23 at 08:49:30ID: 25404582

it should be 100 ! (192.168.100.0)

and good luck !

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
