Question

Plotting a OWC Graph using VBA in Ms Excel

Asked by: Navgod

Hi Folks,

I am trying to plot a graph entirely using VBA and no user interaction on a form using the OWC chart.

I have managed to assign the datasource to the graph and cant get over the next hurdle of assigning the data fields to the various axis. See code below. The last line is the problem and i get the following error " Method 'SetData' of object ' chchart' failed"

I can confirm that the datasource is assigned correctly on the chart and that i can manually arrange the fields as i like. I would just like to automate this process.

Please help.

regards,

Nav

Dim cn As ADODB.Connection, strSQL As String, rst As ADODB.Recordset
strSQL = "SELECT Table1.* FROM Table1"
Menu.ChartSpace1.DataSource = Nothing
Set cn = New ADODB.Connection
   With cn
      .Provider = "Microsoft.Jet.OLEDB.4.0"
      .ConnectionString = "Data Source=O:"
      .Open
   End With
Set rst = New ADODB.Recordset

rst.Open strSQL, cn, adOpenStatic, adLockOptimistic, adCmdText

Menu.ChartSpace1.DataSource = rst
Menu.ChartSpace1.Charts(0).Type = chChartTypeColumnStacked
Menu.ChartSpace1.Charts(0).HasTitle = True
Menu.ChartSpace1.Charts(0).HasLegend = True
Menu.ChartSpace1.Charts(0).Title.Caption = "Total Number of Documents By Date"
Menu.ChartSpace1.Charts(0).SetData chDimXValues, 0, "Date"


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:

Select allOpen in new window

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-08-14 at 02:05:54ID23647430
Topics

Microsoft Excel Spreadsheet Software

,

Access Coding/Macros

Participating Experts
3
Points
500
Comments
25

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. VBA - Plot Range of Data
    I know VB, but not VBA. One of the guys I work with wants to plot a Range of data points instead of explicitly defining each one. He has a line like: ActiveChart.SetSourceData Source:=Sheets("ET Data").Range("mins,sstatex10"), PlotBy:=xlColumns The syn...
  2. Excel Graph Plot Area Management
    (PC, Excel 2000 on Windows 2000 and also Excel XP on Windows XP, two PCs on the same network server) I have a large spreadsheet full of survey data. It contains about 70 different graphs - pie charts and scatter plots. I have become very good at managing many factors about ...
  3. Plotting Problem
    Hi experts, I have chart1, chart2, chart3, and chart4. I want to combine to plot 4 charts into 1 (2 X 2). Can I do this in Excel? Thanks in advance. JB
  4. Chart plot: setting automatically maxiumum value for X-axis
    Hi there, I'd like to know how to set the maximum value for the X-axis of a graph plot. At the moment, if I leave the option as "auto", it'll show a value wich is 10, 15 or 20 units higher that the maxium value to be represented. I want the X-axis to range between z...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: hippohoodPosted on 2008-08-14 at 02:44:43ID: 22228808

I think you are getting error because you are trying to assign X values before setting Y values. Excel Charts can't have X values until they have at least one Y series. Also, I ma not sure if method SetData can be applied correct here

You may run something like code below to add several series at once

 Menu.ChartSpace1.Charts(0).SetSourceData Source:= chDimYValues

Or, create Series one by one with adding corresponding YValues arrays



by: NavgodPosted on 2008-08-14 at 02:58:53ID: 22228864

Hippohood

I have tried assigning yvalues first and get same error. Tried your code but i do not have the .setsourcedata method for chartspace

I am looking at this and it is still hard to get it to work

http://support.microsoft.com/kb/235885



by: roryaPosted on 2008-08-14 at 04:00:21ID: 22229086

You're not using an XY scatter chart so you can't set the XValues. You want chDimCategories.

Regards,

Rory



by: NavgodPosted on 2008-08-14 at 05:13:30ID: 22229452

Rory,

I changed the line to

Menu.ChartSpace1.Charts(0).SetData chDimCategories, 0, "Date"

and still get the same error message.

Are there any examples of how to get the OWC controls working correctly?



by: roryaPosted on 2008-08-14 at 05:20:02ID: 22229485

What is your actual data source - your connection string looks odd. Have you checked there is actually data in your recordset, and is Date a field in your table (I'm assuming you actually have a table)?



by: roryaPosted on 2008-08-14 at 05:20:52ID: 22229492

PS As an aside, it's a bad idea to name a field in a database Date as it is a reserved word in so many languages!



by: roryaPosted on 2008-08-14 at 05:24:48ID: 22229515

Just tested your code using a database with a Table1 containing Date field and Value field and it worked fine.



by: NavgodPosted on 2008-08-14 at 05:27:12ID: 22229534

Rory,

Yup, there is data in the recordset. After line 14 of the code, i can manually drag and drop the fileds on the chart and the chart plots as i want it to to.

The date field is only for testing, the actual field name is different in production.

The data returned looks something like this:

Date             Location    Unit0000   Unit0001
01/01/2008   LOC            2                  1
01/01/2008   MEC           3                   1

The stacked graph  x axis is Date and location, y -axis total of the units stacked into one bar chart for each location.

It works if i do it manually, i just cant get the code right to automate it. I hope this helps.

regards,

Nav



by: NavgodPosted on 2008-08-14 at 05:34:28ID: 22229600

Here is a snapshot of what the graph looks like plotted manually



by: roryaPosted on 2008-08-14 at 05:47:38ID: 22229692

My mistake - you need to use the SetData method on the Chartspace object not on the Charts(0) object!



by: roryaPosted on 2008-08-14 at 05:52:28ID: 22229723

For example, binding to a table in an Access database:



   Set Me.ChartSpace1.DataSource = Nothing
   With Me.ChartSpace1
      .ConnectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=C:\test1.mdb"
      .DataMember = "Table1"
      .SetData chDimValues, chDataBound, "Value"
      .SetData chDimCategories, 0, "Date"
      With .Charts(0)
         .Type = chChartTypeColumnStacked
         .HasTitle = True
         .HasLegend = True
         .Title.Caption = "Total Number of Documents By Date"
      End With
   End With

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:

Select allOpen in new window



by: NavgodPosted on 2008-08-14 at 05:55:08ID: 22229744

We are getting somewhere now!

Ok it adds the date field to the x axis but i also need another field to be added to the same axis.

If i run the same line twice, it removes the previous field that was added.

How can i add multiple fields to the same axis?



by: roryaPosted on 2008-08-14 at 06:02:53ID: 22229797

Use an array:

.SetData chDimCategories, 0, Array("Date", "Value")

for example.



by: NavgodPosted on 2008-08-14 at 06:10:53ID: 22229870

Ok we are getting even further now.

got all the fields added to the graph, now how can i plot the graph like the snapshot above?

which basicallly adds all the Y fields and plots according to the x axis summing the values for each location?



by: NavgodPosted on 2008-08-14 at 06:17:30ID: 22229925

ok i got one value working but cant get the array working just like the categories

Menu.ChartSpace1.SetData chDimValues, 0, ["1000"]

any ideas?



by: roryaPosted on 2008-08-14 at 06:23:18ID: 22229978

I guess you would use the same syntax:

Me.ChartSpace1.SetData chDimValues, 0, Array("1000", "2000", "3000")

Note: it is better to use Me to refer to the running form.



by: NavgodPosted on 2008-08-14 at 06:29:32ID: 22230039

Nope, I tried that already. I get a runtime error - Invalid procedure call or arguement



by: NavgodPosted on 2008-08-14 at 07:32:38ID: 22230649

cannot figure it out. Tried many different ways

this is what i want to be added to the graph as a multiple series

Me.ChartSpace1.SetData chDimValues, 0, "0000"
Me.ChartSpace1.SetData chDimValues, 0, "1000"
Me.ChartSpace1.SetData chDimValues, 0, "2000"
Me.ChartSpace1.SetData chDimValues, 0, "3000"

at the moment each executes separately replacing the previous added series value.



by: NavgodPosted on 2008-08-14 at 07:39:47ID: 22230711

got it!!

Menu.ChartSpace1.PlotAllAggregates = chPlotAggregatesSeries
Menu.ChartSpace1.SetData chDimValues, chDataBound, Array("0000", "1000", "2000", "3000")

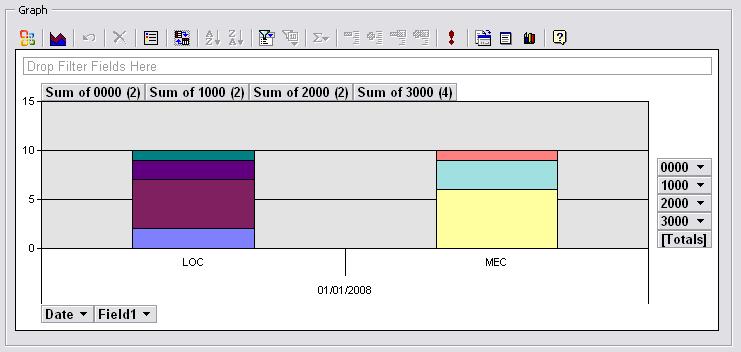

only issue now is the headings that come up above the chart (see snapshot above)

i.e sum of 0000, sum of 1000 and so on.

Is there a way to get rid these headings?



by: roryaPosted on 2008-08-14 at 07:39:51ID: 22230709

What is the layout of your source table, so I can replicate it to test on?



by: NavgodPosted on 2008-08-14 at 07:53:57ID: 22230846

i figured it is to do with drop areas.

how can i disable this via code?

cant seem to find the property



by: NavgodPosted on 2008-08-14 at 07:56:57ID: 22230877

displayfields = false!

finally!

Thanks Rory once again for helping!. You truly are a maestro at all things vba!

cheers,

Nav



by: roryaPosted on 2008-08-14 at 08:01:34ID: 22230919

You can use the DisplayFieldButtons property of the Chartspace object set to False to hide them.



by: roryaPosted on 2008-08-14 at 08:02:21ID: 22230929

You beat me to it! :)

Thanks for the grade.

Rory



by: LukeBPosted on 2010-12-06 at 13:49:48ID: 34287057

Rorya

would you mind looking at open question 26656996 ? I can close it there and re-post here if you prefer.

thanks

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
