Making a secondary axis intersect at zero

Asked by: davesbuxton

Hi -

I'm stuck. I have a normal excel chart show 2 sets of data - one of which i plot on a secondary axis.

But how can I fix it so the horizontal axis intersects both at zero without manually changing the scale? When I put change the axis setting to force it to 'intersect the horizontal axis at 0', nothing happens.

I can't keep doing this manually - i've about 50 charts that update on a daily basis!

The problem is - it scale wrong

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-08 at 06:50:25ID24795884
Tags

Excel 2003

,

VBA

,

Charts

Topics

Microsoft Excel Spreadsheet Software

,

Visual Basic Programming

Participating Experts
1
Points
250
Comments
7

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Excel chart scale
    Is there a way to have a break in the chart scale (scatter) in Excel? Let's say the X axis runs from 0-500, but my first plot is ~200 on that axis. I would like to have one of those squiggly lines that denote a change in the scale so I don't have so much open space on the lef...
  2. a Graph with Multiple Axis Plots
    Hello, I need to Graph with two diffent axis scales. and when i use the "Line - Column on 2 Axes" they pot on top of each other, is there a way to get them to plot side by Side, all have the same Catagory axis. First Axis Sec...
  3. Cross hairs that intersect a point on a multipoint chart
    I need a chart in excel that will plot 1 to 3 data points. I need to have x & y crosshairs that run the width and high of the chart. the x & y scales are dynamic based on the data point values. I need to be able to chose programmatically the data point in which to pla...
  4. Format Axis Y the scale
    Hi The Question: Is it possible to format the Axis Y from two given values on the sheet, rather than having to use the Minimum and Maximum within the Format Axis option? The background: I have an Excel Bar Graph which acts like a Gantt Chart, which works fine, based on a ...
  5. Chart axis question
    Hi all, I have a line chart. On the X axis is the year and on the Y axis are some numbers. My data looks like this for a chart: YEAR DATA 2000.5 100 2001 150 2001 200 2002 37 2003 450 2004 502 2005 60 The labels are the years, b...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: byundtPosted on 2009-10-08 at 10:44:43ID: 25527994

davesbuxton,
The macro in the snippet sets the secondary axis for every chart on the active sheet to start at 0. If the chart doesn't have a secondary axis, then no change is made to it.

Brad

Sub SecondaryAxisCrossAtZero()
Dim cht As ChartObject
On Error Resume Next
For Each cht In ActiveSheet.ChartObjects
    With cht.Chart.Axes(xlValue, xlSecondary)
        .MinimumScaleIsAuto = False
        .MaximumScaleIsAuto = True
        .MinimumScale = 0
    End With
Next
On Error GoTo 0
End Sub


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:

Select allOpen in new window



by: davesbuxtonPosted on 2009-10-08 at 12:07:56ID: 25528964

Cheers - that's definately made a difference - but they'll still not crossing at zero. I thinks its because the data on the primary scale both have negative values and they're both set to cross at 0. Excel doesn't seem to be able to acheive a balance.

Any thoughts?



by: davesbuxtonPosted on 2009-10-08 at 12:30:16ID: 25529167

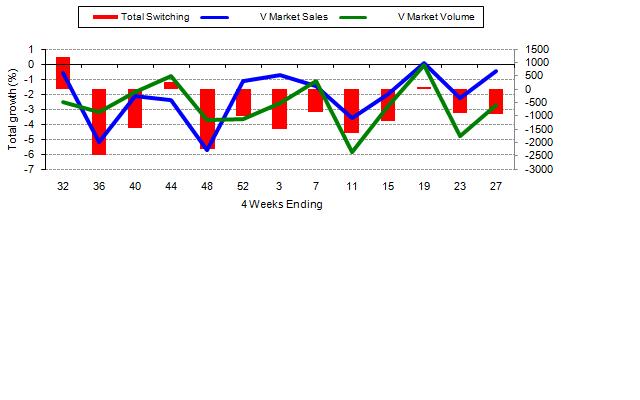

See the jPeg to see what i mean -
