I am not sure where the input values are to actually change the rotation, any ideas?
Main Topics
Browse All Topics
Loading Advertisement...
Question
draw or rotate lines based on cell values
I have looked around and cannot find a solution to this problem so maybe someone out there can help. We have a chart that right now is an image on the worksheet. We have drawn lines and edit points accordingly so that one end stays in the center of the graph and the other goes to whatever angle we need. Above the chart are 3 angles and we make a line for each angle. Does anyone know of a way to automate this? Where we type the angles and the existing lines rotate accordingly (but stay snapped on one end to the center) or by creating new lines in the correct placement? here is an example, we will say the angles 0, 117, and -135 are used in cells b2, b4 and b6. this is the graph...
Also is there a way to lock the graph into a cell also? The placement may change according to content so I am not sure if x,y coordinates would be accurate? im not sure you guys are the experts so please enlighten me.
- Drawing1.jpg
- 8 KB
ideal chart
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Subscribe now for full access to Experts Exchange and get
Instant Access to this Solution
- Plus...
- 30 Day FREE access, no risk, no obligation
- Collaborate with the world's top tech experts
- Unlimited access to our exclusive solution database
- Never be left without tech help again
Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.
- "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
- "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
- "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.
See what Experts Exchange can do for you.
Got a question?
We've got the answer.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
Need individual assistance?
Our experts are ready to help.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Want to learn from the best?
Read articles from industry experts.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Working on a long term project?
Store your work and research.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
What Makes Experts Exchange Unique?
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Trusted by the world's most respected brands.
Faithfully serving IT professionals since 1996.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Free Tech Articles
-
WARNING: 5 Reasons why you should NEVER fix a computer for free.
It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
-
SCCM OSD Basic troubleshooting
SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
-
Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
-
Create a Win7 Gadget
This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
-
Outlook continually prompting for username and password
There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
-
Backup Exchange 2010 Information Store using Windows Backup
There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...
Cloud Class Webinars
- Avoiding Bugs in Microsoft Access
Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
- Top 10 Best New Features in Visio 2010
Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
- IT Consultant Business Secrets Revealed
Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
- Disaster Recovery and Business Continuity
Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
- Organize Your Visio Diagrams with Containers and Lists
Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
- How to Us Objects, Properties, Events and Methods in Microsoft Access
Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...
Join the Community
Give a Little. Get a Lot.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Answers
Right, I guess I ment how to incorporate the inputs into an existing sheet. I found a wind rose here http://www.edferrero.com/E
xemophora,
The link you have given to a wind rose gives, in my view, an utterly useless solution. The reason I say that is that the background is completely independant of the pointers (arrows/lines). This means you cannot scale or move the whole windrose without difficulty. In contrast the solution given by ssaqibh is both scalable and moveable.
Patrick
xemophora,
The link you have given to a wind rose gives, in my view, an utterly useless solution. The reason I say that is that the background is completely independant of the pointers (arrows/lines) - see screenshot below. This means you cannot scale or move the whole windrose without difficulty. In contrast the solution given by ssaqibh is both scalable and moveable.
Patrick
- MWSnap-010-2009-11-03--23-04-45.jpg
- 11 KB
.jpg
xemophora,
You claimed the windrose was:
>It was much more tidy and organized.
I know what you mean but... If seeing the numbers bother you, have a look at the attached file. It is ssaqibh's file but with the data moved out of sight and the input cells made a little more obvious.
No points to me - it's all ssaqibh's work.
Patrick
patrick,

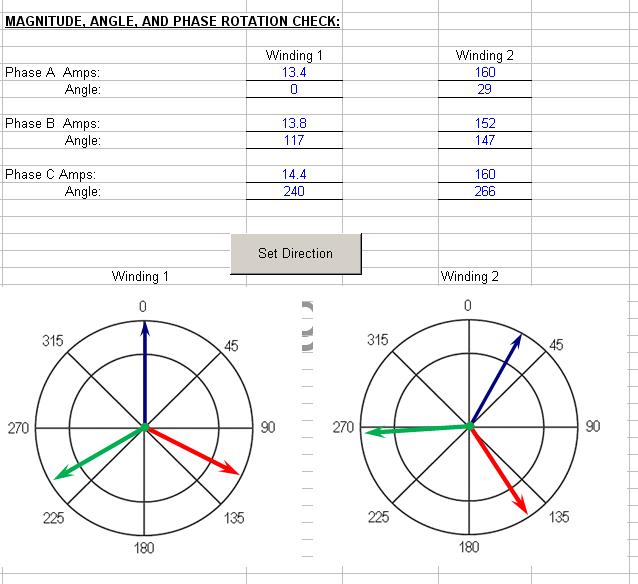

I worked out the issues on the windrose already. I replaced the background image and worked out the scaling troubles. The arrows are aligned to the center of the image so as long as the center of the graph is the center of the image it scales fine. The reason I wanted it to be as clean as possible is this chart actualy shows up in a few places on a form that we use on documenting project data. I did have to scale it down to fit with the aloted areas of the page and modify the code to work with the cells on the page. It was probably something easy that I am not sure how to do but all of the numbers given in ssaqibh's file were one of the issues. The way it is setup in the file I was unsure how to add another arrow much less control it, then position it on the existing forms and clean up. The windrose is a different approach that I understood better and was able to easily manipulate. The image below shows it in place on a form, although it is not real time like I had hoped and the way the compass is. The button does not print and clicking on it is fine for now. I will look at the compass file and try disecting it but like I said, I am unfamiliar with charts and graphs because I have never actually used them. I will look further into it and could possibly replace the model that is in place. If nothing else, it is automated like I originally wanted. That is enough for me to want to figure it out and possibly replace what is there now.
- windings.JPG
- 56 KB
after modifications
3 Ways to Join
Business Accounts
- Perfect for organizations
- Multiple users
- Save over 36%
- Create a Business Account
Answer for Membership
- Earn free access
- Showcase your knowledge
- No credit card required
- Sign Up to Answer
Loading Advertisement...
by: ssaqibhPosted on 2009-11-03 at 05:49:51ID: 25728848
One way to do this
Sample using chart
