Question

Display issues with SolidWorks and Nvidia FX3700

Asked by: knobbylowboy

We are experiencing some intermittent display issues when using SolidWorks with several identical specification systems.

System configuration:
Intel S5000XVN Motherboard; Intel Xeon Quad Core X5460 CPU; 4Gb ECC DDR2 RAM; SAS HDD; Nvidia FX3700 Hewlett Packard Display Adaptor; Windows XP Pro (32-bit); Solid Works 2008 SP5.0.

The following problems happen intermittently when using Solid Works but are hard to reproduce on demand.

* Solid Works toolbar icons turn black
* Solidwork background turns black (ie. what is displayed when no drawings are open) and Solid Works logo is not displayed
* Acrobat documents appear behind Solid Works window, but Acrobat window borders appear in front
* When rotating objects in Solid Works it sometimes fails to repaint them but partial object appears below mouse pointer when moved

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-03-18 at 23:29:26ID24244619
Topics

SolidWorks CAD Software

,

Video Cards

Participating Experts
2
Points
500
Comments
11

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. VIDEO CARD -- NVidia TNT2 -- NVRotate -- Newest…
    This one is for anyone with an Nvidia video card and the latest driver (43.45) -- particularly anyone with an Nvidia Riva TNT2 Model 64/64 Pro. Nvidia's website says: NVIDIA®'s NVRotate™ technology allows users to pivot *any* display connected to an NVIDIA GPU from landscap...
  2. NVIDIA FX5200 Driver
    I've installed the proper NVIDIA drivers on my Linux machine. Although, when I type "startx" I get a fatal error that no screens have been found. Below are links to my "XF86Config-4" file and "XFree86.0.log". What is it that I have to do to fix t...
  3. nvidia riva tnt
    I reinstalled win98 on my pc and now I cannot switch the resolution to 800x600. I installed a lot of drivers for my nvidia riva tnt video card but I couldn't solve the problem. I saw the following data on the vido card: AGP-RI30G1-162S0 CH8543-1 S/N: i 9907034233 I offer 500...
  4. Parameter Incorrect and NVIDIA
    Earlier today I was trying to update my drivers for my week old Verto GeForce Nividia FX 5700 VE, and I think I might of messed up my drive completely. After I uninstalled the Nividia display Drivers I tried to uninstall a second Nividia driver from Add/Remove Programs. I not...
  5. NVIDIA Display Drivers Issues in Windows XP
    Hi, I got a nVIDIA Geforce MX 4000 AGP card..i installed the drivers and when i reboot after the setup ends, i can see the motherboard loading the drives, and the Windows XP loading screen, but right before the "Welcome" screen shows up my monitor goes to StandBy a...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: knobbylowboyPosted on 2009-03-18 at 23:53:44ID: 23926941

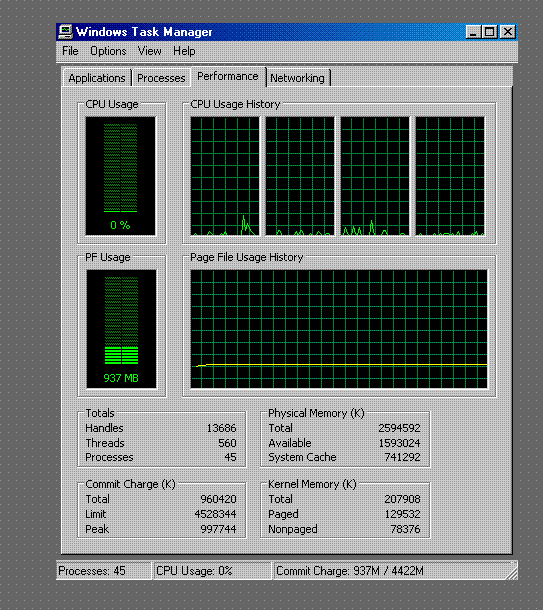

here's an example of one of the issues... see image



by: NeilParbrookPosted on 2009-03-24 at 08:46:42ID: 23969581

This would sound like a graphics driver problem.

Are you using the certified solidworks drivers?



by: NeilParbrookPosted on 2009-03-24 at 08:51:07ID: 23969647

Try Checking the "Use Software OpenGL" Under Tools>Options>System options>performance.

You must do this before you open any files or it will be greyed out.  If stable with this option on then probally a video card issue.
If you are using the certified driver try downloading the latest driver from the cards manufacturer and try that.



by: knobbylowboyPosted on 2009-03-29 at 22:42:12ID: 24016205

Drivers currently in use are the most recent drivers for this card from the Solidworks website.

When "Use Software OpenGL" is checked the system is extremely slow and not very usable so we have not been able to test in this mode for very long.



by: NeilParbrookPosted on 2009-03-30 at 01:05:26ID: 24016751

Yes that's right it would be very slow as it would be trying to use software for graphics acceleration and not the card.

However if the problem goes away during the test then it is more than likely a grphics card driver issue.

I would also try and use the card vendors latest driver as the certified solidworks drivers are not always good.

We have a machine here that up untill recently crashed every five seconds with the solidworks driver but worked fine for 3 years with the ATI driver.

I would if I were you give it a go as you can always uninstall and roll back to the old driver if you want to.

Cheers

Neil



by: NeilParbrookPosted on 2009-04-07 at 01:19:52ID: 24084914

Any Luck with this issue?



by: knobbylowboyPosted on 2009-04-07 at 16:27:11ID: 24092874

Our customer does not wish to run in "Use Software OpenGL" mode as it is too slow for them to work.

We did try downloading the latest drivers from Nvidia (dated Feb 2009) and the problem still occurs.

We are going to swap the cards to see if it is a hardware fault but that seems unlikely.



by: ShineOnPosted on 2009-04-11 at 09:23:21ID: 24122566

The "Use Software OpenGL" mode is generally used for diagnostic purposes only.  As has been said.

If they use software-based OpenGL and have no problems, then it's likely a driver issue.

When you install the driver, do you choose the software-specific settings for SolidWorks from the nVidia menu?



by: knobbylowboyPosted on 2009-04-23 at 21:06:44ID: 24221650

>When you install the driver, do you choose the software-specific settings for SolidWorks from the nVidia menu?
Yes this has been done.

We swapped video card hardware and the problem persisted.

Presently we are testing the system with Microsoft IntelliMouse drivers removed as this has been suggested as a possible cause.



by: knobbylowboyPosted on 2009-05-26 at 21:32:34ID: 24479880

It appears removing the Microsoft IntelliMouse drivers has resolved the issue!



by: NeilParbrookPosted on 2009-05-27 at 01:39:59ID: 24480875

Good,  glad it's OK.

Should have thought of that as I have had that very issue myself.

Cheers

Neil
