Trouble drawing curves with pen tool in Photoshop
Zone:
Adobe Photoshop

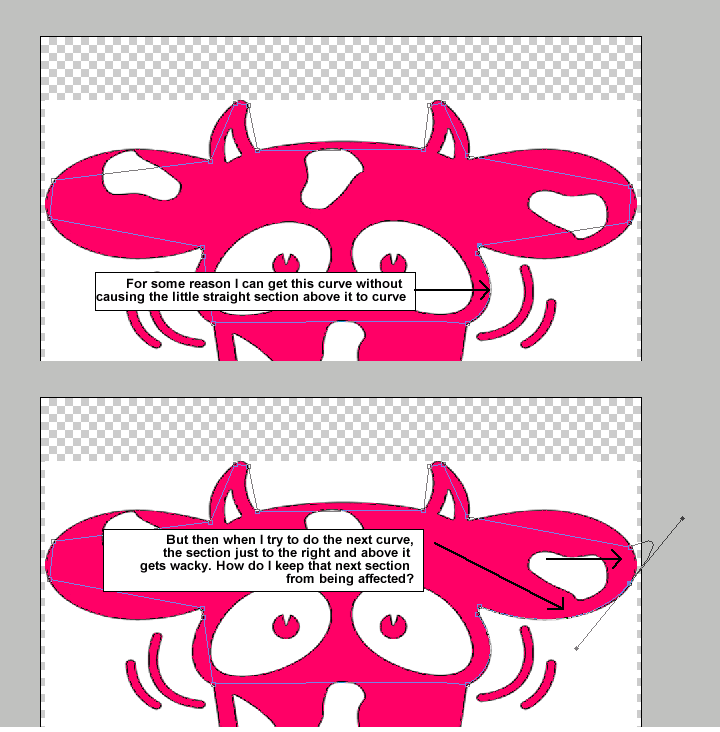

I got a great answer to this earlier today which helped a lot but I'm still having trouble srawing curves with the pen tool in Photoshop. Please take a look at the attached image and tell me how to keep adjacent sections of a multifaceted pen tool design INDIVIDUALLY modifiable?
Thanks!
John
Thanks!
John
Attachments:
Question Stats
Zone:
Software
Question Asked By:
gabrielPennyback
Solution Provided By:
crooksy88
Participating Experts:
3
Solution Grade:
A
Views:
0
Translate:
Loading Advertisement...
Loading Advertisement...
| Microsoft |
- Internet Protocols
- Applications
- Development
- OS
- Hardware
- Windows Security
| Apple |
- Operating Systems
- Hardware
- Programming
- Networking
- Software
| Internet |
- Search Engines
- File Sharing
- WebTrends / Stats
- Spy / Ad Blockers
- Web Browsers
- New Net Users
- Web Development
- Chat / IM
- Anti Spam
- Web Servers
- Anti-Virus
- Email Clients
| Gamers |
- Tips
- Online / MMORPG
- Puzzle
- Emulators
- Action / Adventure
- Role Playing
- Consoles
- Game Programming
- Strategy
- Sports
- Misc
- Computer Games
| Digital Living |
- Hardware
- Automotive
- New Net Users
- New Users
- Software
- Digital Music
- Gaming World
- Home Security
- Apple
- Networking Hardware
| Virus & Spyware |
- Vulnerabilities
- IDS
- Encryption
- Anti-Virus
- Operating Systems Security
- Software Firewalls
- WebApplications
- Cell Phones
- Operating Systems
- Internet
- Hardware Firewalls
| Hardware |
- Displays / Monitors
- Handhelds / PDAs
- Components
- Peripherals
- Laptops/Notebooks
- Servers
- Misc
- Apple
- Embedded Hardware
- Networking Hardware
- Storage
- Desktops
- New Users
| Software |
- System Utilities
- Industry Specific
- Network Management
- Photos / Graphics
- Page Layout
- VMware
- Misc
- Web Development
- OS
- CYGWIN
- Voice Recognition
- Virtualization
- Message Queue
- Quality Assurance
- Security
- Firewalls
- MultiMedia Applications
- Development
- Database
- Office / Productivity
- Business Management
- OS/2 Apps
- Server Software
- Internet / Email
| ITPro |
- OS
- Storage
- Encryption
- Operating Systems Security
- Apple Hardware
- Laptops & Notebooks
- Servers
- Networking Hardware
- Peripherals
- Devices
- Displays / Monitors
- WebTrends / Stats
- Search Engines
- Firewalls
- Web Computing
- WebApplications
- IDS
- Vulnerabilities
- Email Clients
- File Sharing
- Spy / Ad Blockers
- Web Browsers
- Web Servers
- Networking
- Anti-Virus
- Consulting
- Chat / IM
- Anti Spam
| Developer |
- Web Servers
- Web Browsers
- Game Programming
- Dev Tools
- Industry Specific
- Office / Productivity
- Database
- CYGWIN
- Web Development
- Search Engines
- File Sharing
- WebTrends / Stats
- Programming
- Content Management
- Application Servers
- Protocols
| Storage |
- Removable Backup Media
- Storage Technology
- Servers
- Grid
- Remote Access
- Backup / Restore
- Misc
- Hard Drives
| OS |
- Miscellaneous
- Security
- Development
- Linux
- VMware
- MainFrame OS
- Unix
- Apple
- OS / 2
- AS / 400
- BeOS
- Microsoft
- VMS / OpenVMS
| Database |
- Oracle
- Miscellaneous
- MySQL
- Software
- Sybase
- Contact Management
- PostgreSQL
- Data Manipulation
- Clarion
- InterSystems Cache
- Siebel
- MUMPS
- OLAP
- SQLBase
- SAS
- GIS & GPS
- 4GL
- Berkeley DB
- DB2
- Informix
- Interbase / Firebird
- FoxPro
- Reporting
- LDAP
- Filemaker Pro
- MS SQL Server
- dBase
- MS Access
| Security |
- Misc
- Web Browsers
- Software Firewalls
- Operating Systems Security
- File Sharing
- Spy / Ad Blockers
- Vulnerabilities
- WebApplications
- IDS
- Anti-Virus
- Encryption
- Anti Spam
- Email Clients
- VPN
- Chat / IM
| Programming |
- Editors IDEs
- Installation
- Handhelds / PDAs
- Multimedia Programming
- System / Kernel
- Automation
- Algorithms
- Game
- Signal Processing
- Project Management
- Open Source
- Database
- Misc
- Languages
- Processor Platforms
- Theory
| Web Development |
- Scripting
- Blogs
- Web Servers
- Software
- Search Engines
- Web Graphics
- Web Services
- Images
- Internet Marketing
- Images and Photos
- Components
- Document Imaging
- Web Languages/Standards
- Illustration
- WebApplications
- Fonts
- WebTrends / Stats
- Authoring
- Digital Camera Software
- Miscellaneous
| Networking |
- Protocols
- Apple Networking
- Network Management
- Message Queue
- Application Servers
- Content Management
- File Servers
- Email Servers
- Misc
- Java Editors & IDEs
- Wireless
- Networking Hardware
- Backup / Restore
- System Utilities
- ISPs & Hosting
- Web Servers
- Storage Technology
- Removable Backup Media
- Servers
- Web Computing
- Broadband
- Grid
- OS / 2
- Novell Netware
- Unix Networking
- Windows Networking
- Security
- Telecommunications
- Operating Systems
- Linux Networking
| Other |
- Lounge
- Business Travel
- Community Support
- New Net Users
- Philosophy / Religion
- Math / Science
- Miscellaneous
- URLs
- Expert Lounge
- Politics
- Puzzles / Riddles
- Automotive
| Community Support |
- Suggestions
- New to EE
- New Topics
- CleanUp
- Announcements
- General
- Feedback
- Input
- EE Bugs
| 04.28.2008 at 11:20PM PDT, ID: 21459995 |
Delete the existing line and start a new one. The aim is to use the least amount of points you can. Usually this can be done with points in the corners and on the apex's of any curves.
Begin with a point at the corner underneath the right ear with a single click (no dragging). Next click to add a point AND DRAG until you see the line sit along the bottom of the cows ear.
Next, add a point with a single click to the top corner of the cows ear.
Continue around the cow, getting the line as close as possible to the edge ( it's not important to be perfect at this point).
Adding points with no dragging creates more of a corner point whilst clicking and dragging creates a more curved point.
Once you have gone all the way around, click the starting point to close the shape.
Now select the Direct Selection Tool which is a white arrow (found just below the type tool). You may have to click and hold on the path selection tool (black arrow) to see this. Select the path first, then select a point that is not correct, then drag the handles.
If you have any points that are totally wrong you can click and hold on the pen tool in the tools palette and select the convert point tool (which looks like an upside down V). Then click on any curve point that isn't correct and drag to get as close as possible
Begin with a point at the corner underneath the right ear with a single click (no dragging). Next click to add a point AND DRAG until you see the line sit along the bottom of the cows ear.
Next, add a point with a single click to the top corner of the cows ear.
Continue around the cow, getting the line as close as possible to the edge ( it's not important to be perfect at this point).
Adding points with no dragging creates more of a corner point whilst clicking and dragging creates a more curved point.
Once you have gone all the way around, click the starting point to close the shape.
Now select the Direct Selection Tool which is a white arrow (found just below the type tool). You may have to click and hold on the path selection tool (black arrow) to see this. Select the path first, then select a point that is not correct, then drag the handles.
If you have any points that are totally wrong you can click and hold on the pen tool in the tools palette and select the convert point tool (which looks like an upside down V). Then click on any curve point that isn't correct and drag to get as close as possible
Accepted Solution
| 04.29.2008 at 12:08AM PDT, ID: 21460151 |
and to add; do not create a shape and then add points to make it look like the required shape
instead, "trace" the shape by adding the points and curves on the top of the required shape
instead, "trace" the shape by adding the points and curves on the top of the required shape
Assisted Solution
| 05.01.2008 at 02:17AM PDT, ID: 21477270 |
Here are a couple of other suggestions:
A) If you have FLASH, import the image into flash and use the TRACE BITMAP function to get a near perfect vector copy of your image. You can then export your vectors from Flash and import them into Photoshop or you can drag the vectors from Flash into Photoshop while holding down the CTRL key. If you choose this option, make sure that you have the arrow tool selected and that you can see the various handlebars for your vectors.
B) If you have illustrator, use the trace image function to generate your vectors.
C)In Photoshop, you can enlarge your image A LOT and then select the PATH pallet. Click the Trace button to trace the enlarged image and Photoshop will create vectors for you. Unfortunately, Photoshop's tracing function isn't that great, so enlarging your image before you trace it makes for a more accurate set of vectors. Then you use the Transform tool to scale your vectors back down to the original artwork size.
D) Experiment with your keyboard constrain functions when dealing with vectors in Photoshop. For example, if you have a sweeping curve that comes to a sharp point (where the cow ear meets it's head), you can click on the point and hold the mouse button to drag match your curve. Then, release the mouse button and hover over the handlebar on the opposite side of the point you created (probably somehwere around his eyeball). Hold the CONTROL key down and click the handlebar to move JUST that handlebar and point it in the direction you want the next curve to go and release the CTRL key and the mouseButton. The next click of your mouse will automatically be setup with the right curve...
E) with Images like this cow, only draw half the cow and then, using the SOLID ARROW path tool, select all of the points you have drawn, COPY and PASTE. Then COMMAND T (open Apple T) to open the TRANSFORM tool, right click (ctrl-click on Mac) on the path and select "FLIP HORIZONTAL". Make sure that you have the SOLID ARROW tool selected, then select the two halves and you can use the ALIGN functions from the Top Toolbar. You can also adjust COMBINE modes to ADD the two halves.
Hope this information helps,
Jase
A) If you have FLASH, import the image into flash and use the TRACE BITMAP function to get a near perfect vector copy of your image. You can then export your vectors from Flash and import them into Photoshop or you can drag the vectors from Flash into Photoshop while holding down the CTRL key. If you choose this option, make sure that you have the arrow tool selected and that you can see the various handlebars for your vectors.
B) If you have illustrator, use the trace image function to generate your vectors.
C)In Photoshop, you can enlarge your image A LOT and then select the PATH pallet. Click the Trace button to trace the enlarged image and Photoshop will create vectors for you. Unfortunately, Photoshop's tracing function isn't that great, so enlarging your image before you trace it makes for a more accurate set of vectors. Then you use the Transform tool to scale your vectors back down to the original artwork size.
D) Experiment with your keyboard constrain functions when dealing with vectors in Photoshop. For example, if you have a sweeping curve that comes to a sharp point (where the cow ear meets it's head), you can click on the point and hold the mouse button to drag match your curve. Then, release the mouse button and hover over the handlebar on the opposite side of the point you created (probably somehwere around his eyeball). Hold the CONTROL key down and click the handlebar to move JUST that handlebar and point it in the direction you want the next curve to go and release the CTRL key and the mouseButton. The next click of your mouse will automatically be setup with the right curve...
E) with Images like this cow, only draw half the cow and then, using the SOLID ARROW path tool, select all of the points you have drawn, COPY and PASTE. Then COMMAND T (open Apple T) to open the TRANSFORM tool, right click (ctrl-click on Mac) on the path and select "FLIP HORIZONTAL". Make sure that you have the SOLID ARROW tool selected, then select the two halves and you can use the ALIGN functions from the Top Toolbar. You can also adjust COMBINE modes to ADD the two halves.
Hope this information helps,
Jase
