Question

Deleted Items folder missing from Outlook 2007 / Exchange OWA

Asked by: swallsvcs

I'm having a strange problem with the Outlook Deleted Items folder for one of our mailboxes.  For all intents and purposes the folder is apparently missing.  When logging in from any workstation (one in cached mode, the other is not) or when logging in using OWA the folder is not present.  I have expanded the entire folder tree in from each test location and am unable to find the folder.

The folder is not gone however - when you right-click the mailbox in Outlook, go to properties then click on the Folder Size button the Deleted Items folder is shown on the list of folders on the Exchange Server (see attached).  As a test I created a new folder called Test Folder in Outlook then deleted it.  Outlook asked if I was sure I wanted to move it to the deleted items folder so I said yes.  Although the deleted items folder is still not visible in Outlook, the Folder Size window (see attached) confirms that my test folder is now located in the deleted items folder where I would expect it to be.

I've googled my heart out but I'm totally stumped - any suggestions on how to get the Deleted Items folder back in Outlook and OWA?

Configuration:
Server:  Windows SBS 2003 Std
Client1:  Windows XP Pro w/ Outlook 2007 in cached mode
Client2:  Windows XP Pro w/ Outlook 2003
Client3:  Outlook OWA / Internet Explorer 8 / Windows 7 RC

  • Capture.PNG
    • 38 KB

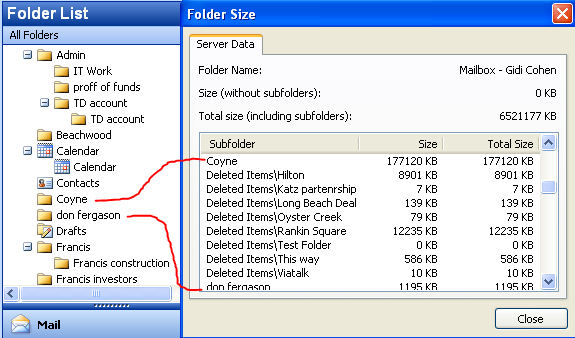

    Folder Size with Outlook Folder Tree; shows missing folders.

    Folder Size with Outlook Folder Tree; shows missing folders.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-08-04 at 10:57:52ID24625613
Tags

Outlook 2007

,

Exchange 2003

,

OWA

,

Deleted Items Folder Missing

Topics

Exchange Email Server

,

Outlook Groupware Software

Participating Experts
3
Points
500
Comments
25

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. SBS 2003 & OWA
    Hello, We've recently migrated from SBS 2000 to SBS 2003 Standard (no ISA server) on a new server and I'm having a hard time figuring out how to get Web based Outlook to work again. I'm able to access web outlook from inside the network but not from outside the network. T...
  2. OWA in Exchng Srvr 2003 Std.
    Hi, Our company staff used to access to Outlook Web Access (OWA) over Exchng Server 2003 Std., but after I changed to a new ISP, we no longer are able to do so...We also have ISA Server 2004 running along with Exchange...plz help...thanks,,,
  3. OWA on SBS server 2003
    Ok heres the setup: One SBS 2003 server running as the only DC which is also running exchange Want to put it on the DMZ with one interface public for OWA Added an access entry to the firewall for https (443) to the public IP of the SBS server The other NIC of the SBS is ...
  4. OWA
    I have one user in the domain who receives mail through Outlook but this mail is not being delivered to OWA

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: demazterPosted on 2009-08-04 at 11:05:27ID: 25016409

Completely close outlook (you may want to logoff and back on again as outlook is notoriously bad at closing properly)

then click start > run > outlook /resetfolders



by: badgermikePosted on 2009-08-04 at 11:07:35ID: 25016439

did you try opening outlook with the /resetfolders switch




by: badgermikePosted on 2009-08-04 at 11:11:42ID: 25016480

I am not sure how that affects owa though

How about using the PFDavadmin tool?

You can connect and select user mailboxes right click on the user mailbox and show deleted folders and go to the top of the info store and see if the deleted is highlighted in red.



by: endital1097Posted on 2009-08-04 at 11:12:06ID: 25016483

you may want to download mfcmapi and open the mailbox using this utility
http://www.microsoft.com/downloads/details.aspx?FamilyID=55FDFFD7-1878-4637-9808-1E21ABB3AE37&displaylang=en
you may find the folder is hidden (PR_ATTR_HIDDEN)



by: swallsvcsPosted on 2009-08-04 at 11:16:01ID: 25016521

@demazter

Thanks for the reply.  I performed your suggestion on Client2 by shutting down the computer, restarting, then launching Outlook with that command line switch but there was no effect.  Any other ideas?

Please note that this problem is also present when using Client3; Outlook Web Access.



by: endital1097Posted on 2009-08-04 at 11:17:10ID: 25016540

i would either try mfcmapi or the pfdavadmin tool



by: swallsvcsPosted on 2009-08-04 at 11:30:23ID: 25016655

@badgermike

Thank you for your reply.  I downloaded the pfdavadmin tool and ran it on the server.  I connected to All Mailboxes using the Administrator account and was able to see the Deleted Items folder for the user in question, but it wasn't in red or anything.  As this is my first time using this utility if there is anything else I should be doing with this utility that I am not doing please let me know.  I have attached a screenshot in case it is helpful.

  • Capture.PNG
    • 21 KB

    pfdavadmin screen shot of deleted items folder

    pfdavadmin screen shot of deleted items folder


by: badgermikePosted on 2009-08-04 at 11:35:54ID: 25016716

apparently the utility is showing deleted items as not deleted -

when you right click on the top of information store for that account and then choose show deleted subfolders you would probably see deleted in red in which you could highlight and recover it.

...this is strange



by: endital1097Posted on 2009-08-04 at 11:35:57ID: 25016719

it may be hidden somehow and mfcmapi can update the folder



by: swallsvcsPosted on 2009-08-04 at 11:51:14ID: 25016881

@endital1097

Thank you for your reply too.  I downloaded the mfcmapi utility from CodePlex and I think I may have found the problem if I'm understanding what I'm looking at.  Here is what I have done so far:

I downloaded and ran the utility from Client2.  I clicked Session and then Logon and Display Store Table.  I double clicked the exchange store which opened another window for Mailbox - Gidi Cohen.  I then walked the tree from Root Container > Top of Information Store > Deleted Items noticing the properties of each folder shown on the right hand side as I navigated the tree.

Each folder has a long list of properties associates with it but the Deleted Items folder has NO properties shown on the right hand side at all.  All of the deleted folders underneath Deleted Items have properties, but Deleted Items itself is blank.

Have you heard of anything like this before?  Where should I go from here?

  • Capture.PNG
    • 50 KB

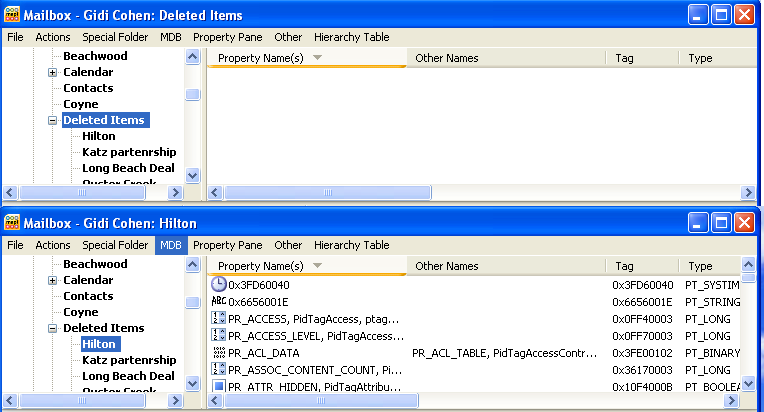

    mfcmapi showing no properties on delete items

    mfcmapi showing no properties on delete items


by: badgermikePosted on 2009-08-04 at 11:55:43ID: 25016929

Have you run office diagnostics? Help - detect and repair.

I



by: endital1097Posted on 2009-08-04 at 11:59:31ID: 25016975

you may need to use this utility to delete the deleted items folder and create a new one
i would test it on a test mailbox first to ensure it doesn't have any ill effects
i am looking at this with a test mailbox now



by: endital1097Posted on 2009-08-04 at 12:09:45ID: 25017086

i don't think these utilities are going to assist
do you now if a repair was done against this exchange database (eseutil /p)
you may need to run an isinteg against the database



by: swallsvcsPosted on 2009-08-04 at 12:28:42ID: 25017280

@endital1097

To our knowledge, no utilities have been against the Exchange server database besides its normal automated utilities such as online defragmentation.  What would you suggest running?  (which utilities and command line parameters, etc.)  I'll do it tonight off-hours as we can't dismount the store during the day and report back tomorrow on the status.



by: swallsvcsPosted on 2009-08-04 at 12:30:39ID: 25017298

@badgermike

No, we have not ran a detect and repair in Microsoft Outlook but to my knowledge this only looks for problems with the installed copy of Outlook, not problems on the Exchange store.  As this problem persists across two different Outlook versions on two different workstations and OWA I didn't think this would help.  If you think otherwise though just let me know and I'll run it on Client2.



by: endital1097Posted on 2009-08-04 at 12:34:32ID: 25017330

isinteg -s servername -fix -test alltests
http://support.microsoft.com/kb/301460



by: swallsvcsPosted on 2009-08-05 at 10:07:14ID: 25025592

Unfortunately everyone needed to work late last night, specifically on e-mail and then didn't want us interrupting last night's brick-level backup either so the DB maintenance got put off until tonight.  I will update again tomorrow after the DB maintenance has been completed.



by: swallsvcsPosted on 2009-08-06 at 09:14:30ID: 25035143

We were given the same delay excuse yesterday saying we'd have to wait until today to perform maintenance.  As I'm starting to think this is going to happen each night until the weekend I'm going to hold off on updating this thread until the maintenance is completed.  I'll re-post in 1 - 4 days when completed.



by: swallsvcsPosted on 2009-08-07 at 10:03:11ID: 25044851

Last night we were able to successfully run isinteg -s servername -fix -test alltests on both stores of the exchange server.  Watching it's output it does appear to have fixed a small number of errors, unfortunately the Deleted Items folder is still missing in Outlook/OWA.

Any additional ideas?



by: endital1097Posted on 2009-08-07 at 10:29:49ID: 25045090

a mailbox move is not supposed to move corruption, so if you have a second database you may want to consider moving the mailbox



by: swallsvcsPosted on 2009-08-07 at 11:06:26ID: 25045424

No second database, we're running Small Business Server 2003 so everything is on one box/one database.  Anything else?  Is there any feasible way to manually setup the properties on the deleted items folder using mfcmapi or is that just asking for trouble?

If ultimately we can't fix this mailbox and I just have to erase it and create a new one then re-import all of the messages into a new box, is there anyway to get the items currently in the deleted items folder out?  We have daily backups of the entire Exchange DB but I'd rather not go that route if possible because it's a pain in the ***.  This office doesn't have brick-level backups of the mailboxes - only the entire DB.



by: swallsvcsPosted on 2009-08-11 at 11:38:34ID: 25071970

Using MFCmapi I have been able to move everything out of the Deleted Items folder into a secondary "Recovered Deleted Items" folder I created.  At this point I can export everything out of Outlook into a PST, erase the exchange mailbox, recreate it, then import from the PST using Outlook.  Is this the recommended course of action or is there something else left that we can try before going to this extreme?



by: swallsvcsPosted on 2009-08-19 at 08:58:16ID: 25134161

The experts appear to have abandoned this question.
I attempted to use MFCmapi to erase the entire deleted items folder so that isinteg may be better able to repair the problem but as I expected I was not allowed to delete that folder.  Having no other ideas, I backed up the entire Exchange mailbox to a PST file, erased the mailbox from the user account, purged it from Exchange, then recreated a new mailbox for the user and re-imported the contents from the PST file.

Unfortunately this did require erasing and recreating the Exchange configuration on every device that was connected to that mailbox as it knew it was no longer connected to the same mailbox.  As such, I needed to reconfigure that users desktop, laptop and iPhone to restore connectivity.



by: swallsvcsPosted on 2009-08-19 at 09:03:44ID: 31611570

Ultimately we weren't able to come up with a solution to the problem other than to erase/recreate the mailbox however your suggestion of using MFCmapi did allow us to save the contents of the deleted items folder before erasing the mailbox (and gave us a new tool to keep in our toolbox).  Thanks for all your help!
