Question

Coldfusion graph with multiple series

Asked by: WyleOP

I was to create a bar chart that shows the number of occurrences of a date broken down by class.  My result set has three columns (Count, Date, Class)

So, I should have a series for each class type (There are multiple and not every date will have the same classes).  Based on the sample data below the chart should show:

For the first date I will only have a bar representing the "C" class with a value of 1.
For the second date I will only have a bar representing the "P" class with a value of 4.
For the third date I will have two bars, one for each class ("P", "C") with the values of 3 and 1.

CLASS 	COUNTOFDATE 	MONYEAR
C 	1 	1983-04
P 	4 	1985-06
P 	3 	1986-03
C 	1 	1986-03

1:
2:
3:
4:
5:

Select allOpen in new window

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-19 at 08:37:38ID24823879
Tags

Coldfusion CFCHART

Topics

ColdFusion Application Server

,

Cold Fusion Markup Language

Participating Experts
2
Points
500
Comments
12

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Discontinuity graphs in ASP
    I want to construct a graph using asp, which can show discontinuity in series(broken line). Which free charting tool can deliever this.
  2. 2 series graph (stacked bar and regular line graph)
    Hi, I use Crystal Reports 9 I need to produce a chart containing 2 series on the same graph with: - one series represented as a stacked bar chart type, - one series represented as a line (not stacked) chart type. I was able to create 2 series(bar and line) on the same graph....
  3. VBA code to automatically update chart series
    Hello, I have a pie chart that I would like to be easily updateable to each series. For instance, the pie chart right now is pointing to: January - Controllable But I would like the ability to pick whatever month I want, and also pick if it's controllable or uncontrollabl...
  4. Charts-adding series names in the graph
    Is there a way to have the series name listed beside the dot on the graph, I see only value and label. I don't want to add text boxes beside every point?
  5. Graph Question
    Hello Experts, I am having difficulty trying to create a graph that has both bar and line chart types on the same graph. I have three categories on the x-axis (0 TO < 30 ,0 TO < 60, & = > 60). On the Y axis I have total percentage 0% - 100%. The bar graphs ar...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: pravinasarPosted on 2009-10-19 at 10:05:22ID: 25606944



by: WyleOPPosted on 2009-10-19 at 10:25:13ID: 25607125

I've already looked at that page, and the related MX7 and 8 pages and they do not make it clear how to achieve what I'm looking to do.



by: _agx_Posted on 2009-10-19 at 10:37:37ID: 25607245

You'd need to group the data differently and generate the counts based on MonYear + Class.  So your query results would be something like

ChartItem                     ChartValue
1983-04 (Class=C)       1
1985-06 (Class=P)       4
1986-03 (Class=P)       3
1986-03 (Class=C)       1



by: WyleOPPosted on 2009-10-19 at 10:43:57ID: 25607300

While that would work, I'd prefer to have each class represented by a different color to make the graph more readable.  I may have to build two separate queries.



by: _agx_Posted on 2009-10-19 at 11:27:03ID: 25607721

> I may have to build two separate queries.

That would probably be the simplest approach, and use a separate series  ie cfdataseries ...



by: WyleOPPosted on 2009-10-19 at 12:25:54ID: 25608161

The problem with that is that I'd need a separate series for each class type and I don't know that until runtime.  This is a rather simple graph in Access or Excel, why would it be so difficult in ColdFusion?

Can't I produce the graph I'm looking for with the dataset that I already have?

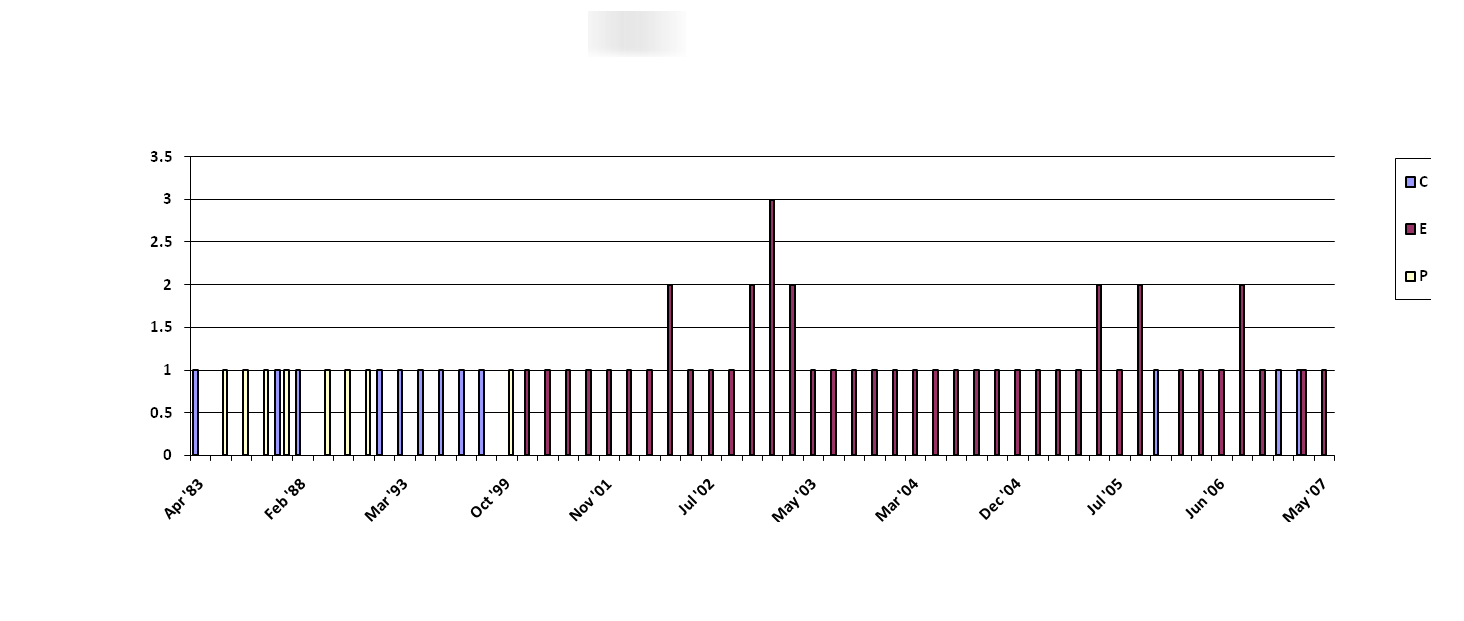

See attached example.



by: _agx_Posted on 2009-10-19 at 12:58:57ID: 25608415

Well, this isn't Excel ;-) Web applications have a lot more to contend with than a simple desktop app.

But I don't see what the problem is.. if you chart each class in a separate cfchartseries, it comes out perfectly.  If you don't want to create separate queries, you could just use a grouped cfoutput.

<!--- MUST order by "Class" first or output will not work ! --->
<cfquery name="qChartData" ....>
SELECT  ..... FROM ....
ORDER BY Class
</cfquery>

<cfchart>
      <cfoutput query="qChartData" group="Class">
            <cfchartseries type="bar">
                  <cfoutput>
                  <cfchartdata item="#MonthYear#" value="#CountOfDate#">
                  </cfoutput>
            </cfchartseries>
      </cfoutput>
</cfchart>



by: WyleOPPosted on 2009-10-21 at 09:30:02ID: 25625591

Your solution got me closer, but it's still not exactly what I'm looking for.  I have two problems:

1. If there is no class data for a given MonYear, the graph assumes 1 and not 0.
2. I can show the legend, but the labels dont show for which class a given color is.



by: _agx_Posted on 2009-10-21 at 09:40:15ID: 25625694

Hmm, let me check. The labels are tricky because you are not actually including the class in the chart code anywhere.  IIRC, there may be a setting controling #1.  Let me see if there's one for #2



by: WyleOPPosted on 2009-10-21 at 09:43:06ID: 25625734

I got #2 figured out by using the following tag element.

<cfchartseries type="bar" serieslabel="#Class#">

As for #1, I found an erticle online that discusses this issue.

http://www.coldfusionjedi.com/index.cfm/2008/2/7/Ask-a-Jedi-CFCHART-Question

I'm looking it over now.



by: _agx_Posted on 2009-10-21 at 10:05:56ID: 25625967

> http://www.coldfusionjedi.com/index.cfm/2008/2/7/Ask-a-Jedi-CFCHART-Question

Hm, I was thinking interpolation .. but that might work better.



by: WyleOPPosted on 2009-10-21 at 11:33:01ID: 25626856

I got it to work by building my own resultset.  I get all the distinct dates and distinct classes and loop through each combination.  If there is no data for a specific combination, I set the count to 0.  The attached file shows the result.

<cfset dataGraphs2 = queryNew("MonYear,Class,CountOfDate")>
<cfloop query="Classes">
      <cfloop query="Dates">
            <cfquery name="dataCheck" datasource="DS">
                  SELECT Count(Date) as CountOfDate, Format([Date],'yyyy-mm') as checkDate
                  FROM data
                  WHERE [data.val] = '<cfoutput>#form.val#</cfoutput>'
                  and   Format([Date],'yyyy-mm') = <cfqueryparam cfsqltype="cf_sql_varchar" value="#Dates.checkDate#">
                  and   [Class] = <cfqueryparam cfsqltype="cf_sql_varchar"  value="#Classes.checkClass#">
                  group by Format([Date],'yyyy-mm')
            </cfquery>
            <cfif dataCheck.recordcount EQ 0>
                <cfset queryAddRow(dataGraphs2)>
                <cfset querySetCell(dataGraphs2,"MonYear", Dates.checkDate)>
                <cfset querySetCell(dataGraphs2,"Class", Classes.checkClass)>
                <cfset querySetCell(dataGraphs2,"CountOfDate", 0)>
            <cfelse>
                  <cfloop query="dataCheck">
                <cfset queryAddRow(dataGraphs2)>
                <cfset querySetCell(dataGraphs2,"MonYear", Dates.checkDate)>
                <cfset querySetCell(dataGraphs2,"Class", Classes.checkClass)>
                <cfset querySetCell(dataGraphs2,"CountOfDate", dataCheck.CountOfDate)>
                  </cfloop>
            </cfif>
      </cfloop>
</cfloop>
<!---<cfdump var="#dataGraphs2#">--->
<cfchart show3d="true"  showlegend="true"  xaxistitle="Date" yaxistitle="Count" chartwidth="650" seriesplacement="cluster" >
      <cfoutput query="dataGraphs2" group="Class">
            <cfchartseries  type="bar" serieslabel="#Class#">
                  <cfoutput>
                        <cfchartdata item="#MonYear#" value="#CountOfDate#">
                  </cfoutput>
            </cfchartseries>
      </cfoutput>
</cfchart>
