I want to create a rule on the firewall that allows the infrastructure client to connect to the ESX box on the other side of the Firewall.
i thought it was 443 and 902 TCP but I can seem to connect.
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
The default ports that the VirtualCenter Server uses to listen for connections from the
VI Client are ports 80, 443, and 902.
Port 902 is the default port that VirtualCenter uses to send data to the managed hosts.
Ref : http://www.vmware.com/pdf/
make sure there is no Network Address Translation (NAT) firewall between VirtualCenter and the hosts
it will manage.
I think the original question here was about the connection directly to an ESX server from the viclient.

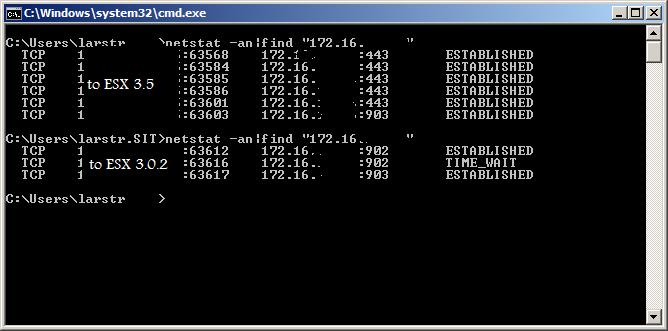

For testing this I also tried manually connecting to both an ESX 3.5 and ESX 3.0.2 server directly with the viclient to see what ports that were in use (see attached pic).
I also tried connecting the viclient to VC 2.5 and it showed only connections on port 443 while console conections are going directly to each ESX server on port 903.
Lars
viclient network connections
Business Accounts
Answer for Membership
by: larstrPosted on 2008-07-01 at 06:05:14ID: 21907333
On ESX 3.0.x the viclient uses tcp port 902 and 903
On ESX 3.5 the viclient uses tcp port 443 and 903
Note also that if you're doing NAT between your Virtual Center server and the ESX servers you'll run into some issues.
Lars
